In actual application of smart space management, instead of being applied in bedroom, living room, office and other scenarios with long-period human static presence, human motion sensor usually is used in corridor, stairwell, elevator, warehouse and other scenarios with large human motion/ human shortly stayed or passed through.
Common human motion sensor can be divided to two types, microwave human motion sensor and PIR human motion sensor. Considering costs of installation and maintenance, PIR human motion sensor is more cost-effective solution in scenarios with relatively stable environment or low penetrability requirement.

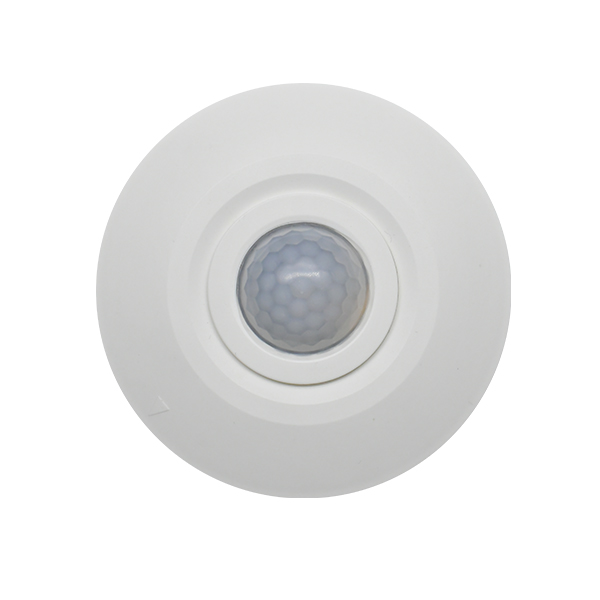

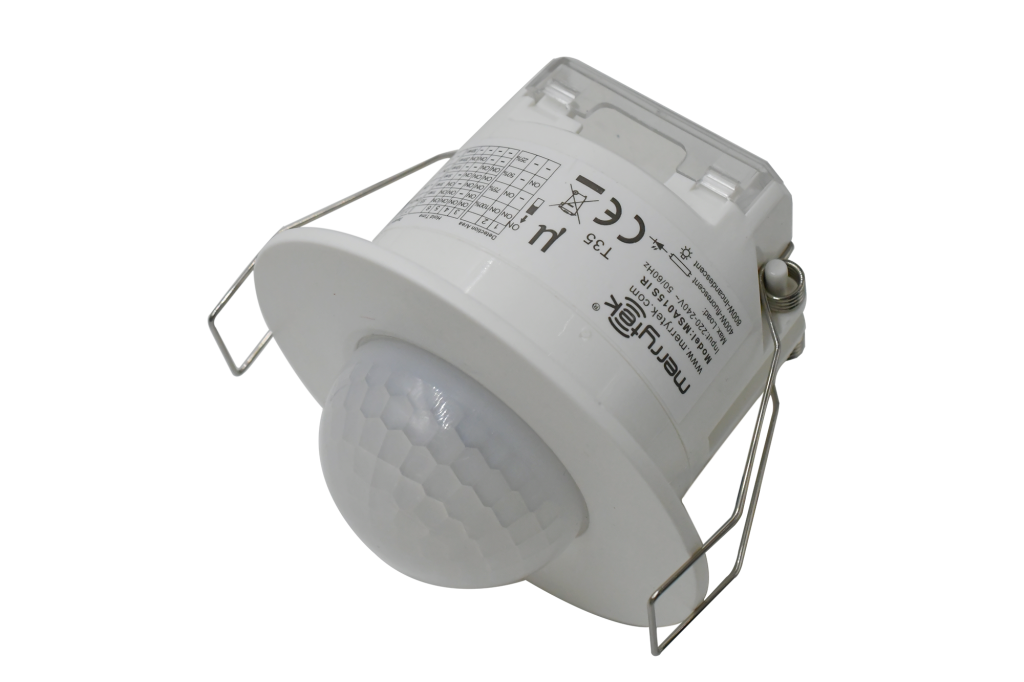

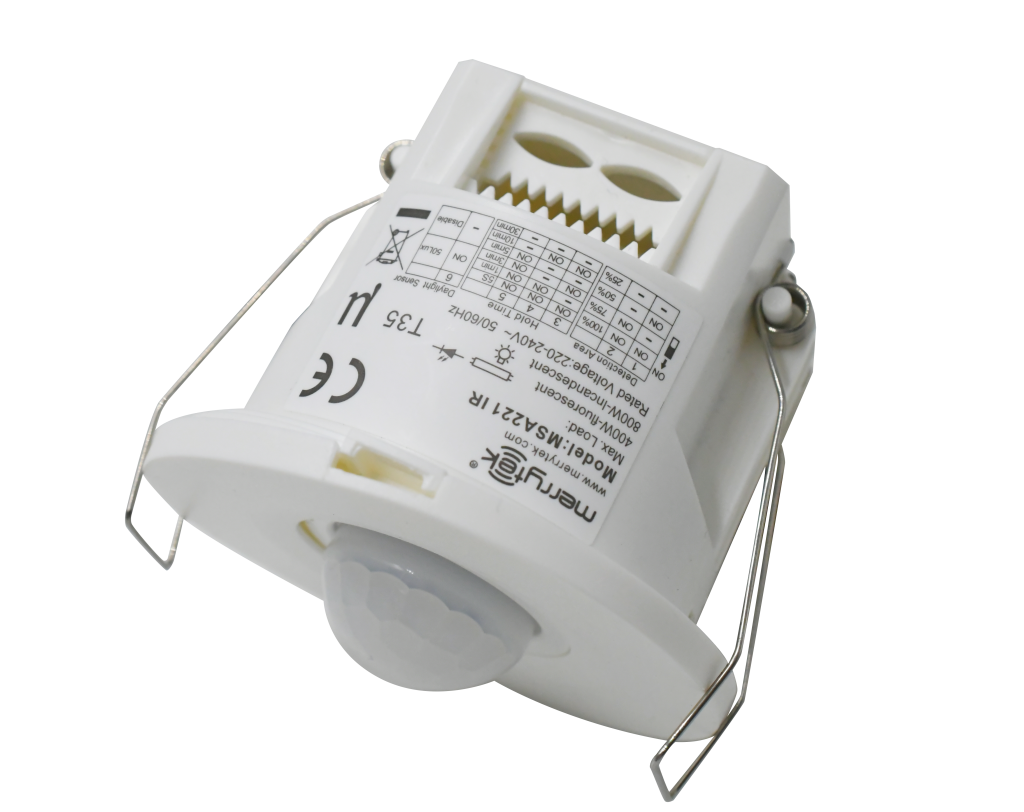

To satisfy high precision human motion detection demands and save more costs, Merrytek launched PIR high and low installation motion sensor series. Based on the traditional infrared motion sensor, the algorithm is upgraded and the design is improved, which achieves more precise human motion detection and further enrich the application of smart space control.
PIR human motion sensing+ ambient daylight sensing:
Integrated human body sensing + daylight sensing, intelligent perception of ambient brightness and darkness to meet dimming needs of the environmen.
Built-in Merrytek self-developed AI algorithm:
Upgraded algorithm to effectively address the pain point that infrared sensor is vulnerable to outside interference, without false trigger and omitted trigger, achieving more precise human motion sensing.
Support DIP switch and remote control for setting parameters:
Parameter setting like detection sensitivity, hold time, daylight threshold is flexible in later use to satisfy various users’ needs.
Maximum 800w resistive load, 400w inductive load
High performance, high precision detection, easy wiring
Support passive dry contact output switching between NO and NC
Stable signals transmission, easy to use, easy to install and maintain
Unified interface, convenient to access to various integrated control system
