| Charge Part | KE023 | 02AM180HE | 03AM180HE | 04AM180HE | 05AM180HE |
| Rated input voltage | 220-240Vac 50Hz/60Hz | ||||
| Rated input current | 0.06A Max. @230Vac | ||||
| Input inrush current | 10A(Twidth=100us 50% Ipeak )@230Vac（Cold start at full load ) | ||||
| Power factor | ≥0.5@230Vac | ||||
| Input power | <4W@230Vac | ||||
| Battery charging current | 250mA | 250mA | 350mA | 350mA | |
| Battery charging time | 24 hours Max. | ||||
| Emergency Part | Operating mode | Emergency mode | |||
| Load type | LED | ||||
| Emergency power | 2W | 2.5W | 4W | 5W | |
| Emergency time | 3hours | ||||
| Load output current | 100-30mA | 125-41mA | 200-65mA | 250-80mA | |
| Load output voltage | 20-60Vdc | ||||
| Battery | LifePO4 (The battery capacity meets the emergency time at 25℃) | 6.4V 1.8Ah | 6.4V 1.8Ah | 6.4V 3.6Ah | 6.4V 3.6Ah |
| Battery warranty | Warranty 5 year @5~60℃. | ||||
| Exception Driver Requirements | Surge current | 8A | |||
| Input current | 3A Max. | ||||
| Output current | 2A Max. | ||||
| LED Indication (Manual test) | Charging | Green light | |||
| Fault | Green light off | ||||
| Emergency Function Test | Manual test | Default | |||
| Auto test | Settable | ||||
| Auto Testing | Fault / test / Status | Reason | Charge Indicator Status | ||
| Battery fully charged and operational | Standard daily use | solid green | |||
| Battery Charging | Initial Charge/Battery Top Up | Flashing green 1 sec on 1 sec off | |||
| Auto Test 3 Hours (every 12 months) | Periodic self test | Flashing Green 3 sec on 1 sec off | |||
| Auto Test 5 Min (every 30 days) | Periodic self test | Flashing Green 3 sec on 3 sec off | |||
| Duration test fault | Automatic test failed | Flashing Red 0.5 sec on 0.5 sec off | |||
| LED fault | Not plugged in or damaged/faulty | Flashing Red 2 sec on – 2 sec off | |||
| Battery Disconnected/Faulty | Not plugged in or damaged/faulty | solid red | |||
| Emergency protection | Battery over-charge/deep discharge protection | Yes | |||
| Output over-voltage protection | Yes | ||||
| Output overload protection | Yes | ||||
| Output short circuit protection | Yes | ||||
| Operating Environment |
Operating temperature/humidity | 0℃…+50℃humidity:20%-75%(without condensation) | |||
| Storage temperature/humidity | -5℃-35℃ | ||||
| Case Max. Temp(Tc) | 75℃ | ||||
| Safety & EMC | Withstand voltage | 3000Vac 5mA 60s (Input “L N” – output “SEC+ SEC-) | |||
| Safety standard | EN61347-1, 60598-2-22, 61347-2-7, 62034 | ||||
| EMC standard | EN55015, EN61000-3-2, EN61000-3-3 | ||||
| Battery standard | UN38.3 | ||||
| Environmental protection requirements | Compliant to RoHS | ||||
| Certification | CE | ||||
| Others | Input/output(terminal/wiring) specification | Press terminal, wire diameter：0.5-0.75mm² | |||
| IP rating | IP20 | ||||
| Type of protection | Class 2 | ||||
| Installation type | Built-in installation | ||||

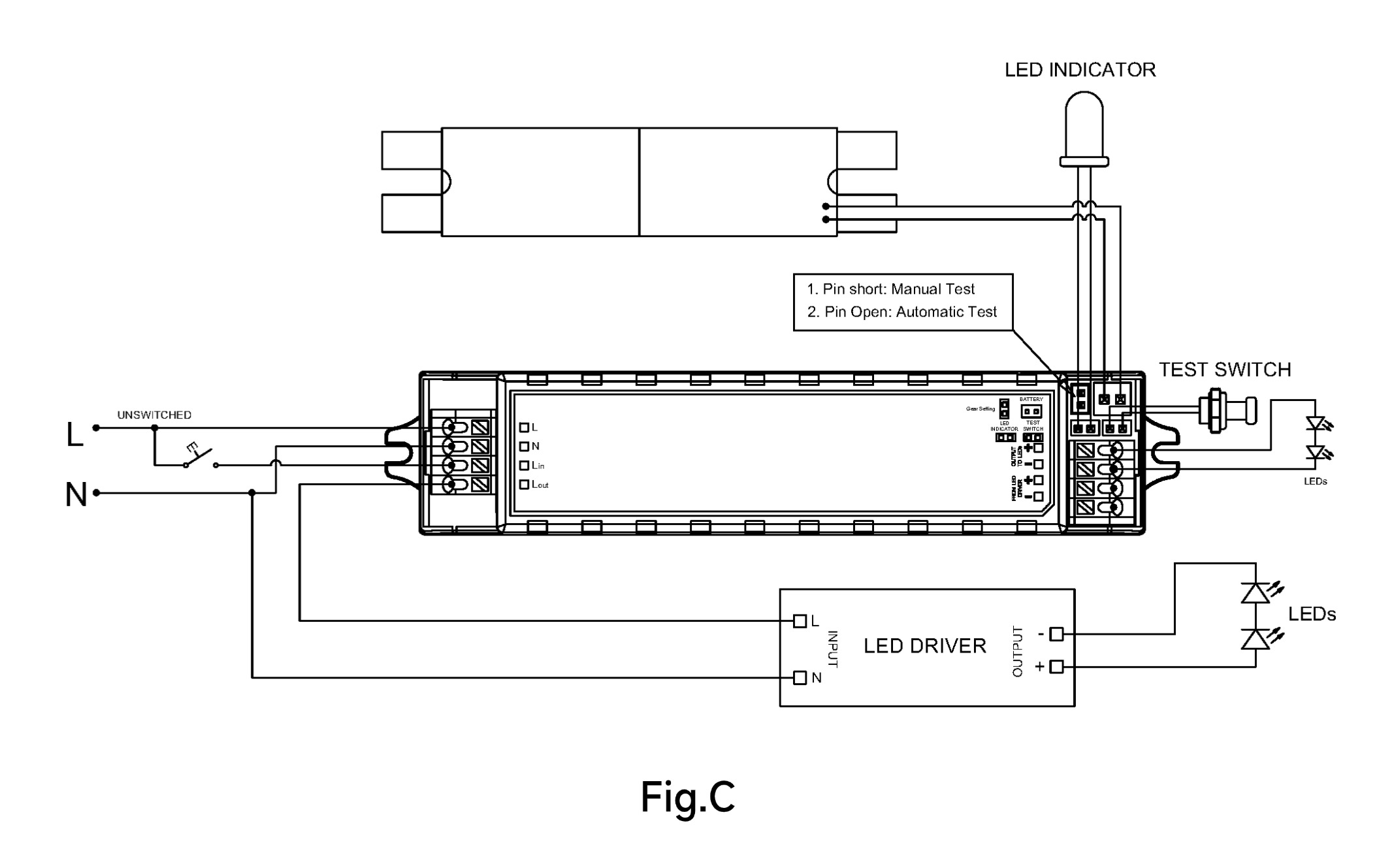

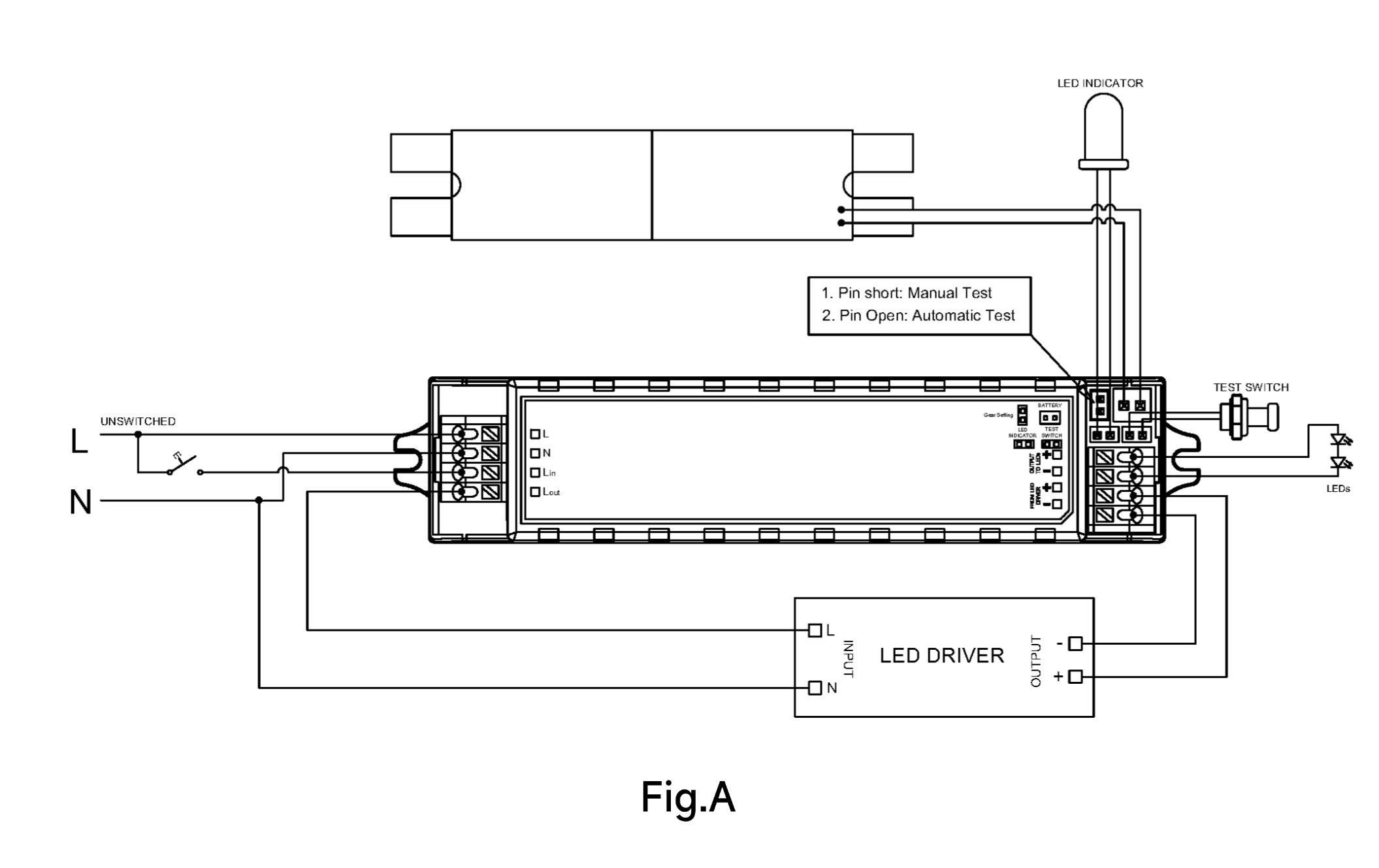

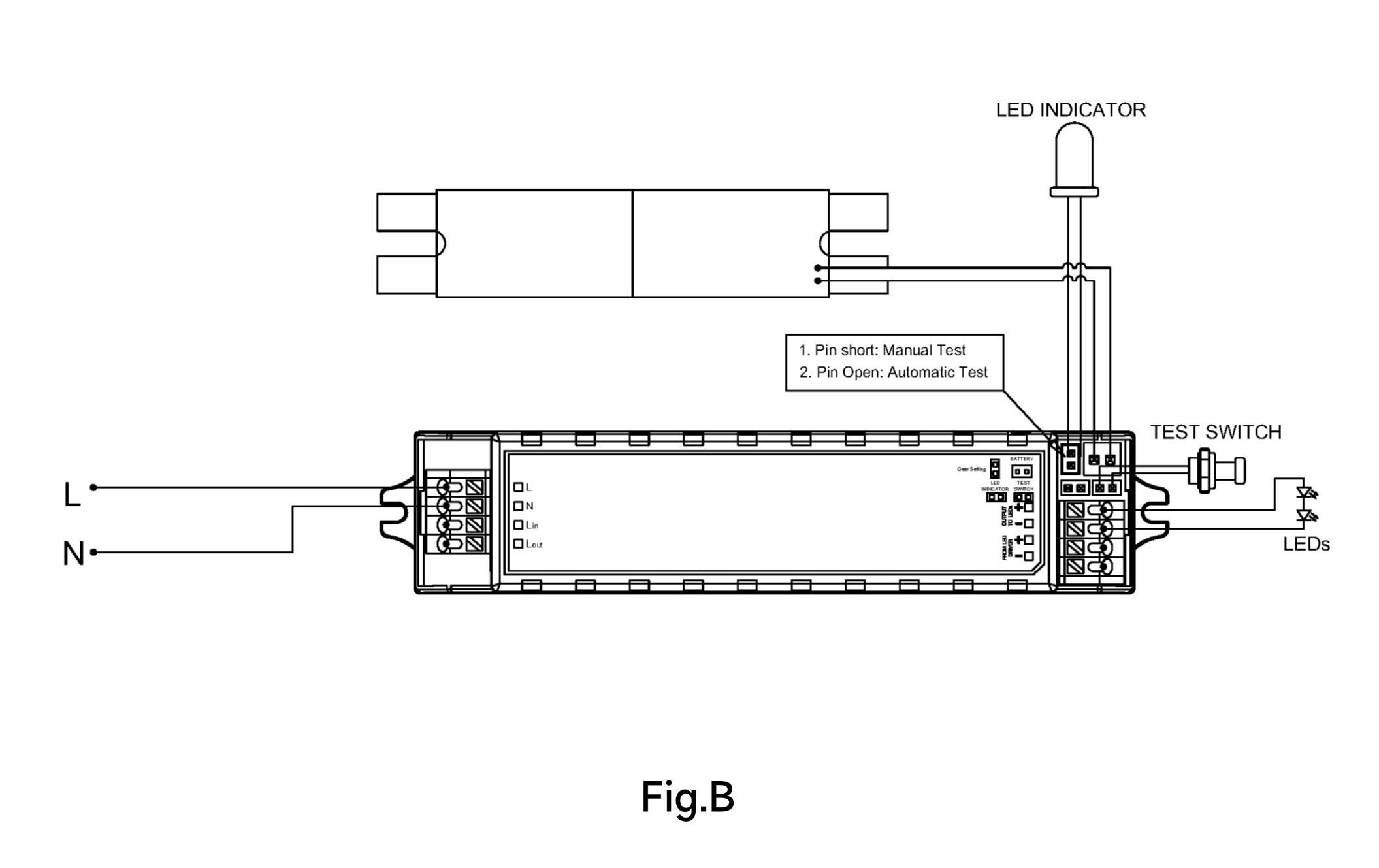

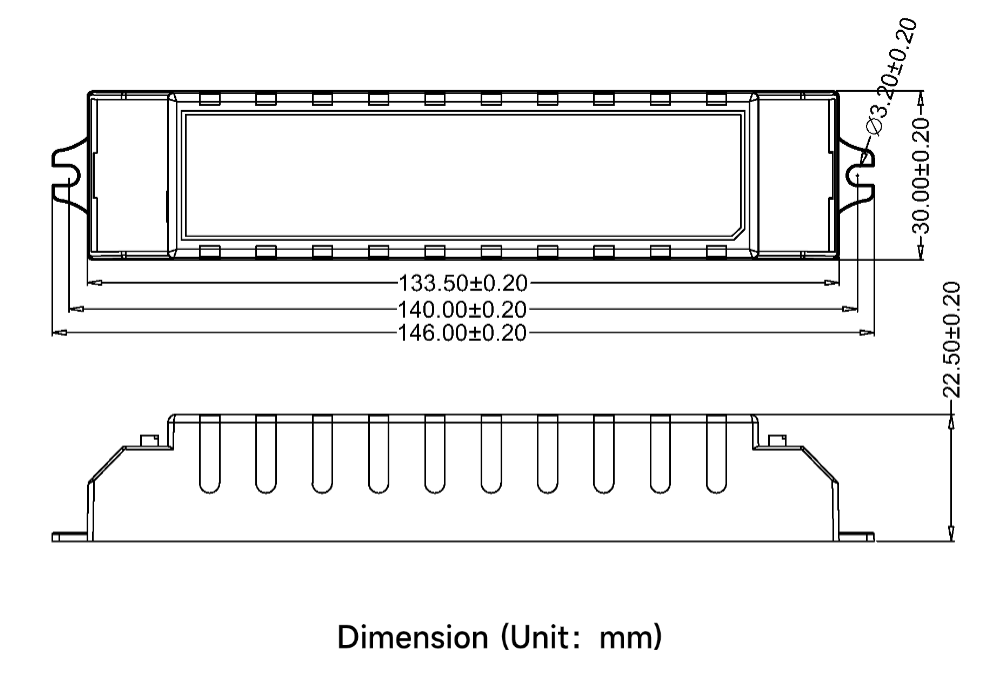

| Installation dimension | 146*30*22.5mm | ||||
| Packaging requirement | White box+Instruction manual+clapboard+outer carton(K=A) | ||||
| Weight | 80g (driver) | ||||
| Lifespan | 5 Year @Ta | ||||
| Notes：All parameters are tested on the input voltage 230Vac,environment temperature 25℃,unless otherwise specified. | |||||
