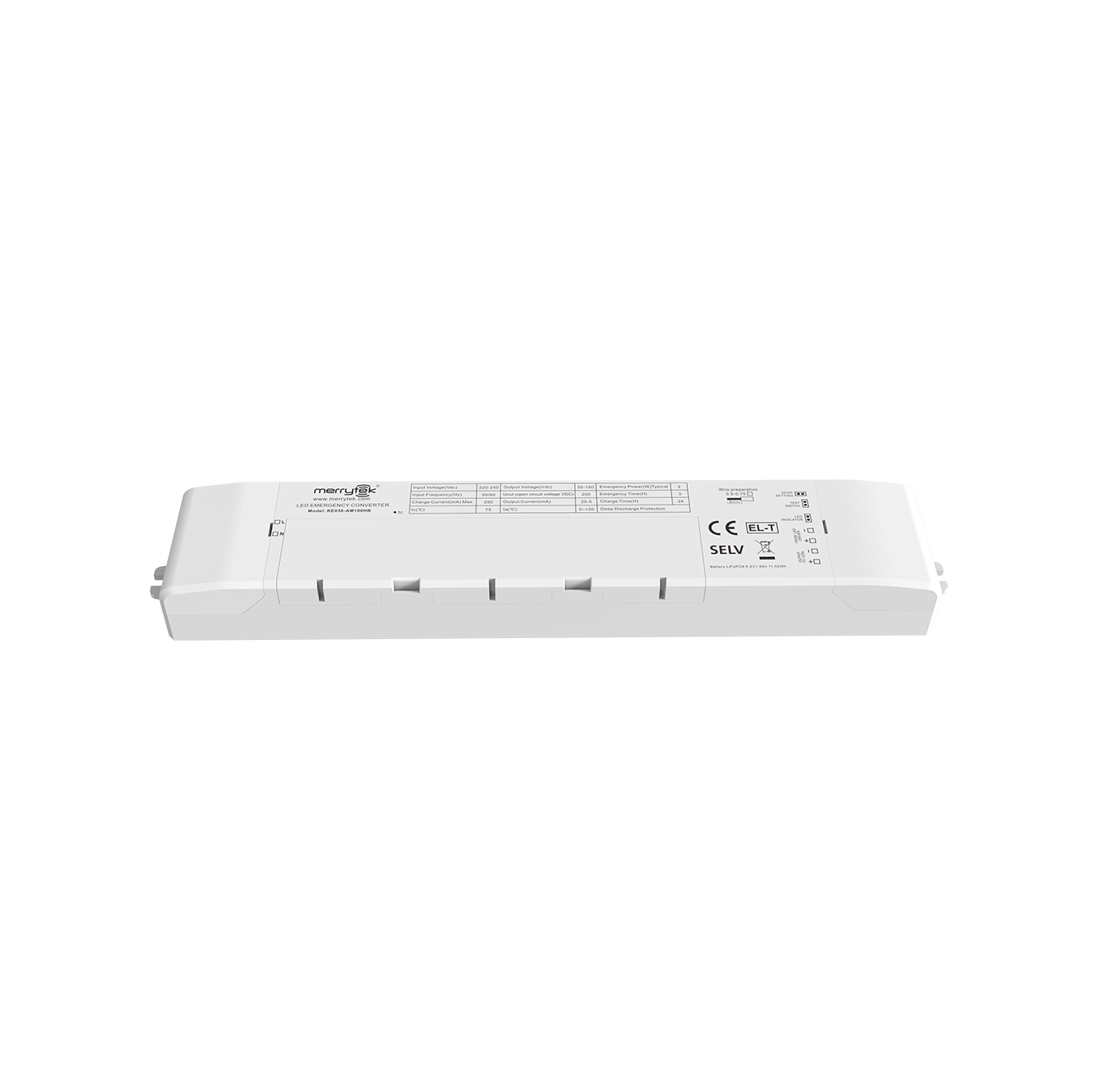

KE036-HB series

Features

Constant power output LED emergency power supply with a wide output voltage range.
Input relay switching.
LiFePO4 batteries withbattery management.
Deep discharge protection.
Manual test& automatic test selection.

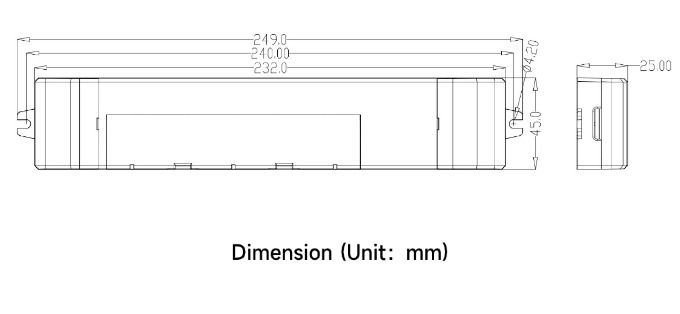

Dimension & Function Diagram

Parameter characteristics

Charge Part	KE036-	02AM180HB	02AM180HB1	03AM180HB
	Rated input voltage	220-240Vac 50Hz/60Hz
	Rated input current	0.06A Max. @230Vac
	Input inrush current	10A(Twidth=100us 50% Ipeak ) @230Vac
		(Cold start at full load)
	Power factor	≥0.5@230Vac
	Input power	<4W@230Vac
	Battery charging current	250mA Max.
	Battery charging time	24 hours Max.
Emergency Part	Operating mode	Emergency mode
	Load type	LED
	Emergency power	2W		2.5W
	Emergency time	3 hours
	Load output current	200-30mA	40-9mA	250-40mA
	Load output voltage	10-60Vdc	50-220Vdc	10-60Vdc
Battery	LifePO4 (The battery capacity meets the emergency time at 25℃)	6.4V 1800mAh
	Battery warranty	Warranty 5 year @25℃.
Exception Driver Requirements	Surge current	8A
	Input current	3A Max.
	Output current	2A Max.
LED Indication (Manual test)	Charging	Green light
	Fault	Green light off
Emergency Function Test	Manual test	Default
	Auto test	Settable
Auto Testing	Fault / test / Status	Reason	Charge Indicator Status
	Battery fully charged and operational	Standard daily use	solid green
	Battery Charging	Initial Charge/Battery Top Up	Flashing green 1 sec on 1 sec off
	Auto Test 3 Hours (every 12 months)	Periodic self test	Flashing Green 3 sec on 1 sec off
	Auto Test 5 Min (every 30 days)	Periodic self test	Flashing Green 3 sec on 3 sec off
	Duration test fault	Automatic test failed	Flashing Red 0.5 sec on 0.5 sec off
	LED fault	Not plugged in or damaged/faulty	Flashing Red 2 sec on – 2 sec off
	Battery Disconnected/Faulty	Not plugged in or damaged/faulty	solid red
Abnormal protection	over-charge/deep discharge protection	Yes
	Output over-voltage protection	Yes
	Output overload protection	Yes
	Output short circuit protection	Yes
Operating Environment	Operating temperature/humidity	0℃…+50℃humidity:20%-75%(without condensation)
	Storage temperature/humidity	-5℃-35℃
	Case Max. Temp(Tc)	75℃
Safety & EMC	Withstand voltage	3000Vac 5mA 60s (Input “L N” – output “SEC+ SEC-)
	Safety standard	EN61347-1, 60598-2-22, 61347-2-7, 62034
	EMC standard	EN55015, EN61000-3-2, EN61000-3-3
	Battery standard	UN38.3
	Environmental protection requirements	Compliant to RoHS
	Certification	CE
Others	Input(terminal/wiring)specification	Press terminal, wire diameter: 0.75-2.5mm²
	output(terminal/wiring)specification	Press terminal, wire diameter: 0.75-1.5mm²
	IP rating	IP20
	Type of protection	Class II
	Installation type	Independent installation
	Dimension	2324525mm
	Packaging requirement	White box+Instruction manual+clapboard+outer carton(K=A)
	Weight	208±5g
	Lifespan	5 Year @Ta
Notes:All parameters are tested on the input voltage 230Vac,environment temperature 25℃,unless otherwise specified.

Product details

Manual Test & Operation Instructions

1).Before installation, set Pin short: Manual Test.

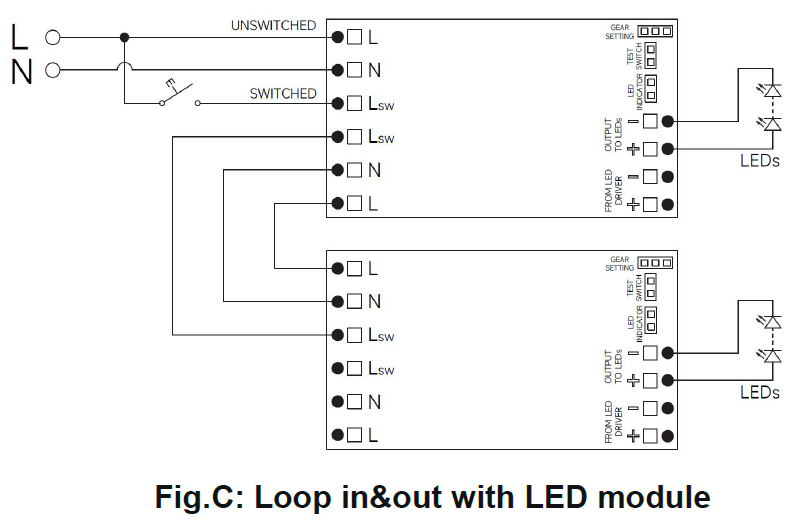

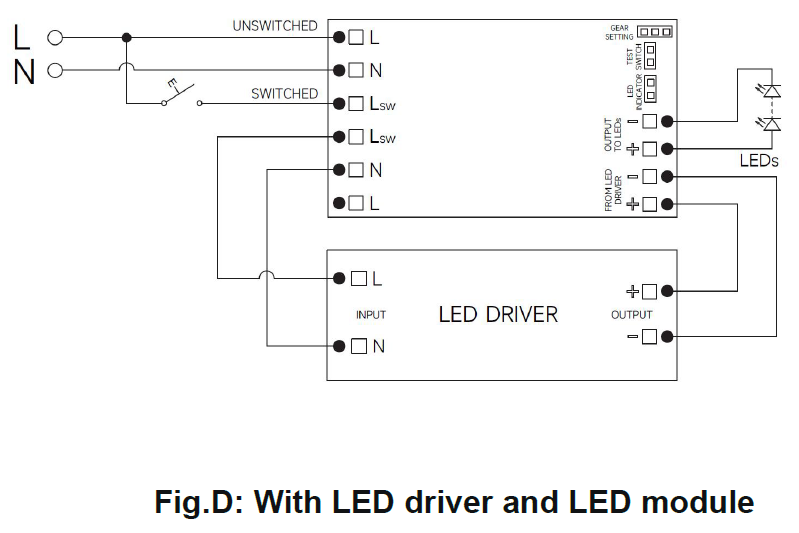

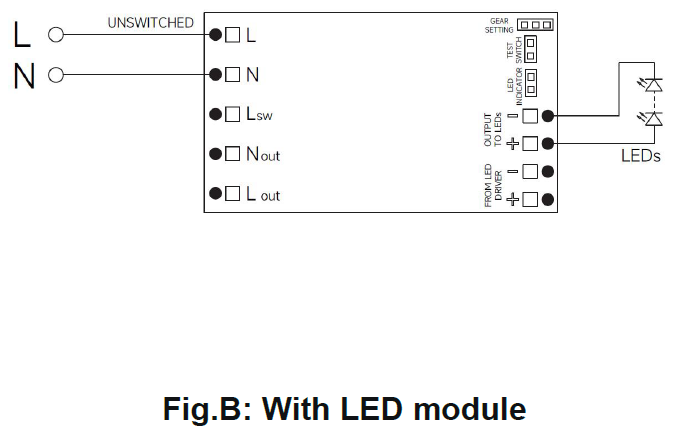

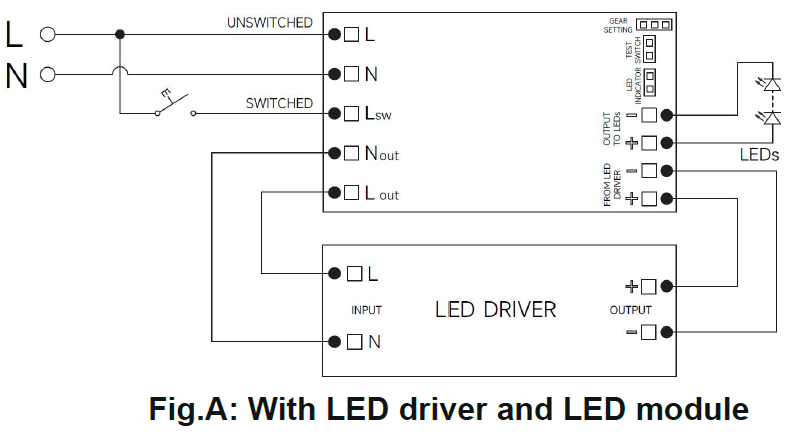

2).Connect the wire according to wiring diagram.

3).L,N power on, Switch on S1. then the load lamp turns on, The emergency driver indicator light will turns green, emergency power supply normal charging. Turn off Switch S1, the load lamp turns off.

4).Emergency Simulation: Switch on, the load lamp turns on, press the switch(TEST SWITCH), then switch to emergency mode, the indicator light of emergency driver will be extinguished. Release the switch(TEST SWITCH), then lamp is powered by led driver, the indicator light will turn on.

Automatic Test& Operation Instructions

1).Before installation, set Pin open: Automatic Test.

2).Connect the wire according to wiring diagram. Remove the test switch on the LED Emergency Driver.

3).L,N power on, start the clock and periodic self test. To replace the battery, turn off the power supply, Re-time.

Battery Application Notice

.The battery should be recharged and discharged semiannually in normal use conditions.
.Do not connect to the circuit when the battery is not use to prevent over-discharge of the battery due to self-consumption of the circuit board.
.Please keep the battery from the heat source when installing and using, and only be allowed to use in certain working temperature range.
.The battery should be stored in a cool and dry environment.
.After long time storage, the battery is cycled every 6 months as required.
.AC power is off, and the clock lasts for 7days,Power on and re-time. To replace the battery, turn off the power supply, Re-time.
