| Input | Models | 150mA | 200mA | 250mA | 300mA | 350mA | 700mA | |
| Operating Voltage | 198-264VAC 50Hz /60Hz | |||||||
| Rated Input Voltage | 220-240VAC 50Hz /60Hz | |||||||
| DC Input Voltage range | 200-240VDC | |||||||
| Input Cuttent | 0.06A Max. | |||||||
| Input Inrush Current | <10A (Half current pulse width 100US) @230VAC | |||||||
| Power Factor | ≥0.9C @230VAC （Full load） | |||||||
| Total harmonic distortion | Typical: 20% （@230Vac, 100% load） | |||||||
| Stand-by Power | ≤0.5W（@230Vac） | |||||||
| Efficiency | 83%Max. @230VAC （Full load） | |||||||
| Wiring Method | INPUT: AC:0.5mm² DALI:0.5mm²; | |||||||
| Automatic circuit breaker (Calculate current in the wire) |
type | B10 | B13 | B16 | B20 | B25 | / | |
| Number | 40 | 50 | 65 | 85 | 100 | / | ||
| Diameter | 1.5mm² | 1.5mm² | 2.5mm² | 2.5mm² | 2.5mm² | / | ||
| type | C10 | C13 | C16 | C20 | C25 | C32 | ||
| Number | 70 | 90 | 110 | 140 | 170 | 220 | ||
| Diameter | 1.5mm² | 1.5mm² | 1.5mm² | 1.5mm² | 2.5mm² | 2.5mm² | ||
| Output | Load type | LED | ||||||
| Ripple requirement (Flickering or flickering-Free） | Flicker value: less than 2% for whole dimming range | |||||||
| Start up time | <1s (@230Vac) | |||||||
| No-load output voltage | 55VDC Max. | |||||||
| Operating mode | 150mA | 200mA | 250mA | 300mA | 350mA | 700mA | ||
| Load output voltage range | 3-40V | 3-40V | 3-40V | 3-33V | 3-29V | 3-14V | ||
| Full load output power | 0.45-6W | 0.6-8W | 0.7-10W | 0.9-10W | 1.05-10W | 2-10W | ||
| Load output current | Single Current | |||||||
| Output current/voltage tolerance | ±5% | |||||||
| Wiring method | wirecross section:0.5mm² | |||||||
| Control Method | Primary PUSH Dimming | Primary PUSH dimming (Max.lead length：20M） | ||||||
| 1-10V Dimming | NO | |||||||
| Dimming Range | Primary PUSH & DALI dimming: 0%-100% | |||||||
| Potentiometer | NO | |||||||

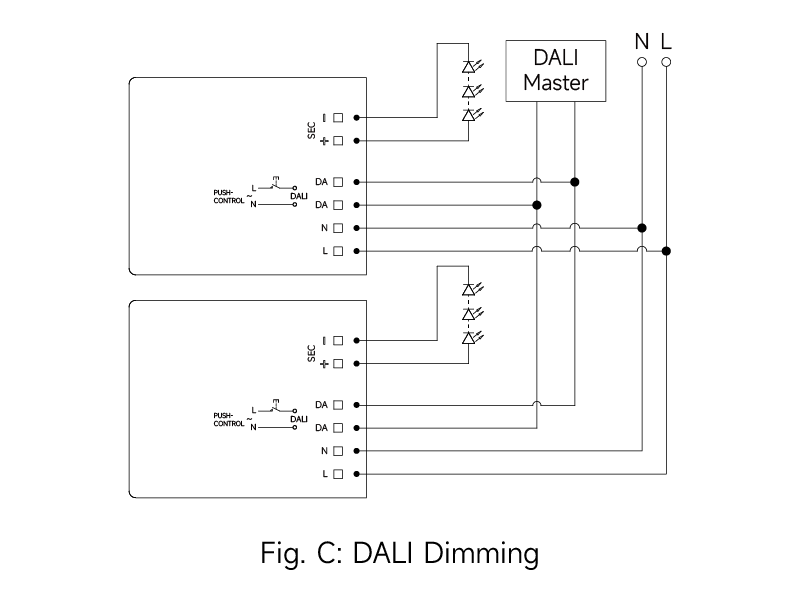

| DALI Dimming | DALI dimming (Max.lead length：300M） | |||||||
| Exception Protection Requirements | Output over temperature protection | Yes, without self recovery function（Can be inquired） | ||||||
| Output short circuit protection | Yes, without self recovery function（Can be inquired） | |||||||
| Operating Environment | Operating temperature/ humidity | -25℃~50℃ Humidity:85% (Non-condensing) | ||||||
| Storage temperature/ humidity | -40℃~80℃, Humidity:10%–95% | |||||||
| Max. case temp（Tc） | 85℃ | |||||||
| Safety & EMC | EMC standard | EN55015 EN61547 EN61000-3-2 EN61000-3-3 | ||||||
| DALI protocol standard | IEC62386-102 IEC62386-207 DT6 251 253 | |||||||
| Safety standard | EN61347-1 EN61347-2-13 | |||||||
| Certification | CE | |||||||
| Withstand voltage | 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”) | |||||||
| Others | Degrees of protection | IP20 | ||||||
| Type of protection | Class II | |||||||
| Installation type | Independent installation | |||||||

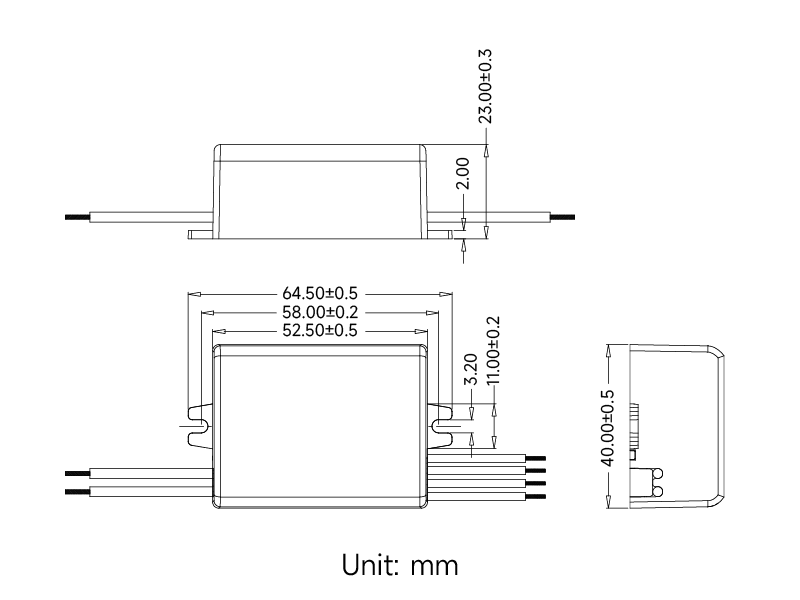

| Installation dimension | 64.5*40*23mm | |||||||
| Blackout memory function | Yes, PUSH blackout memory | |||||||

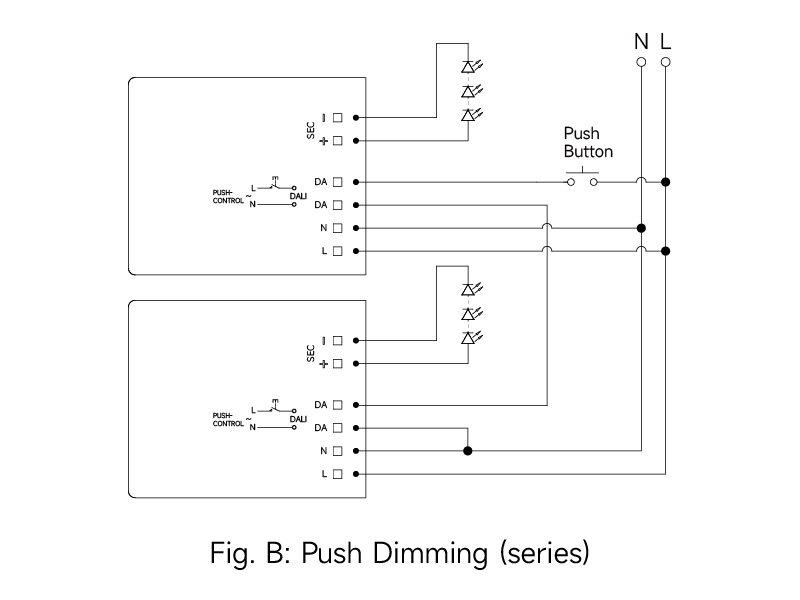

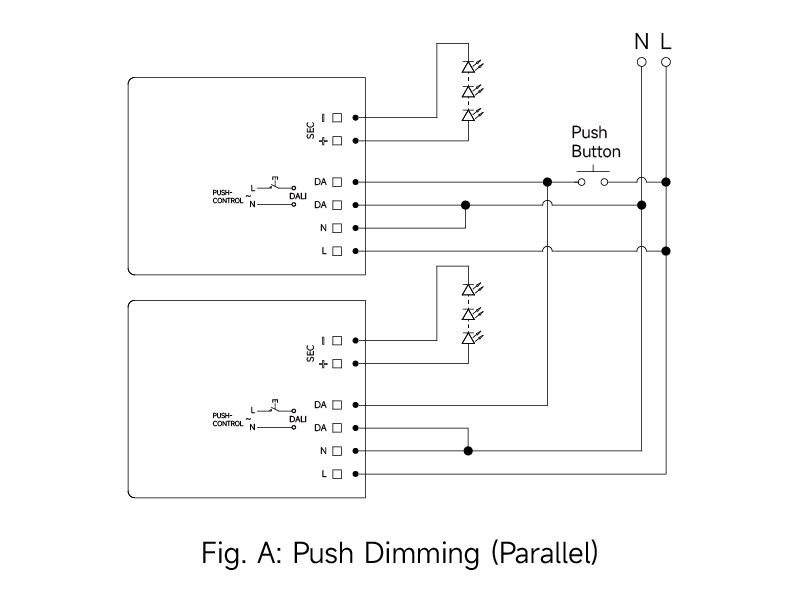

| PUSH dimming synchronization | Parallel: 15 units Max. Series: 25 units Max. |
|||||||
| Packaging requirement | white box+ Instructions Clapboard Outer Carton（K=A） | |||||||
| Weight | 80g | |||||||
| Life | 5 years guarantee @Ta full load | |||||||
| Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified. | ||||||||
ON/OFF & Description of Dimming Operation
N/A
