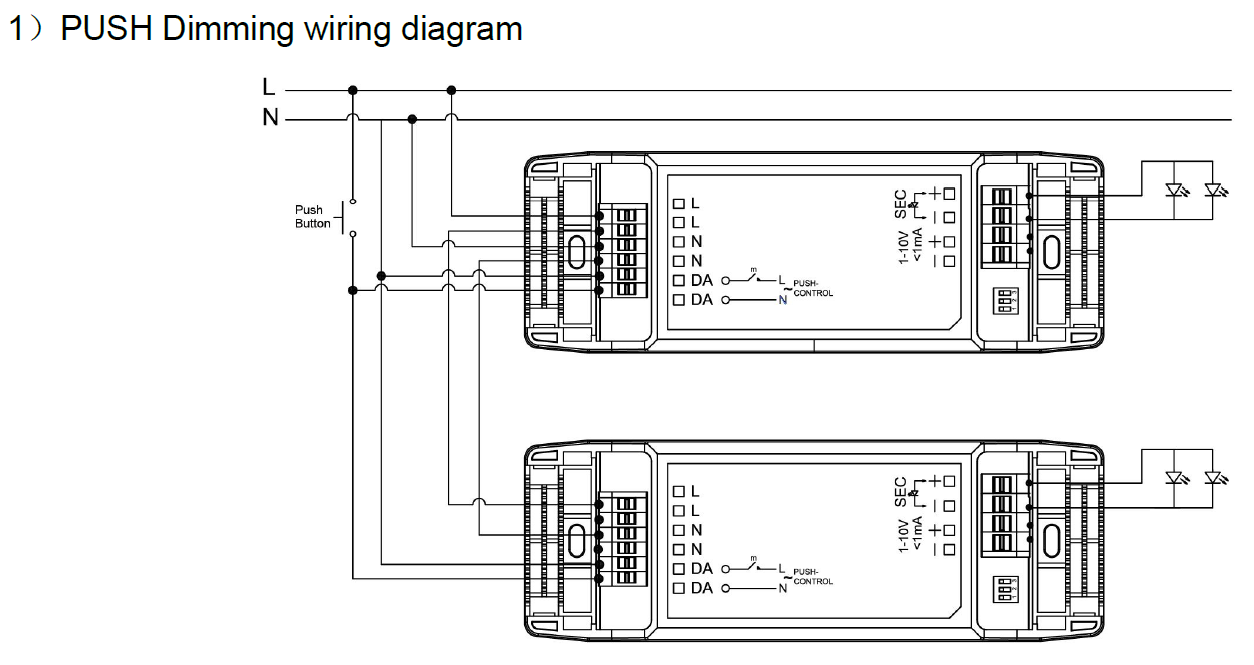

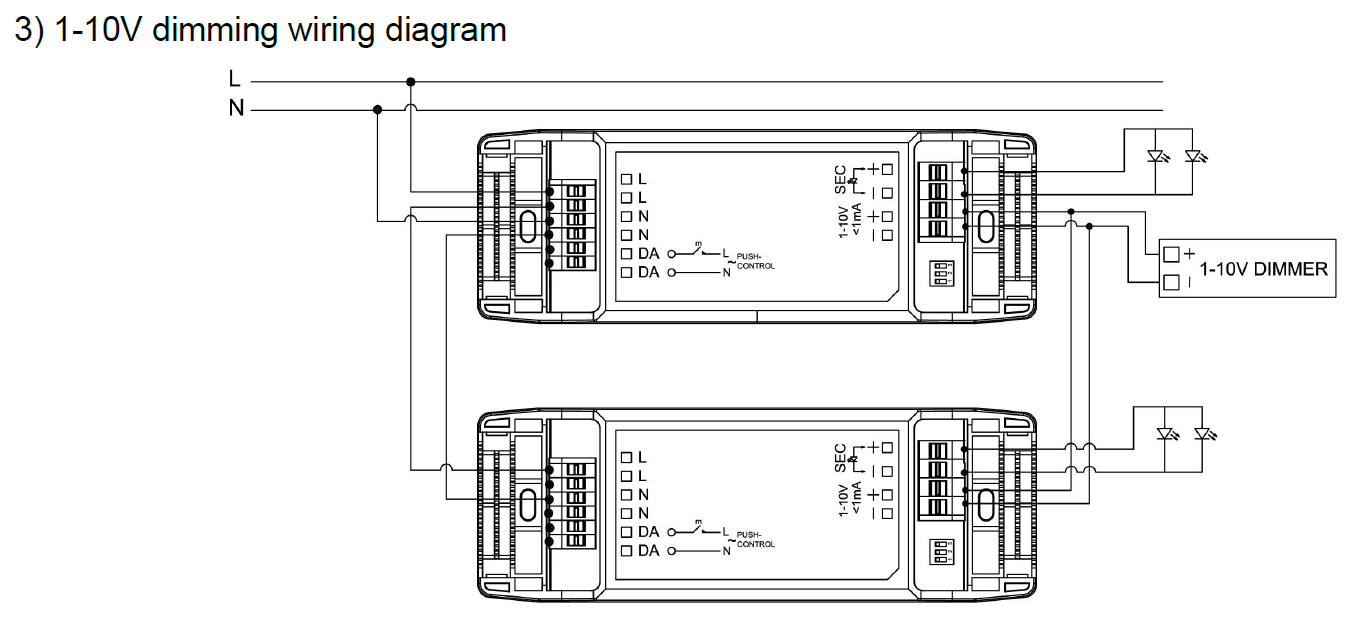

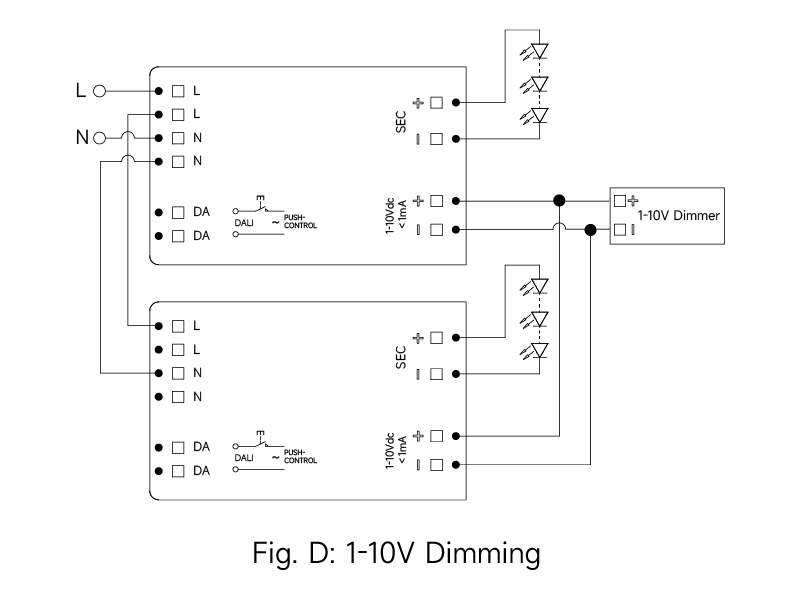

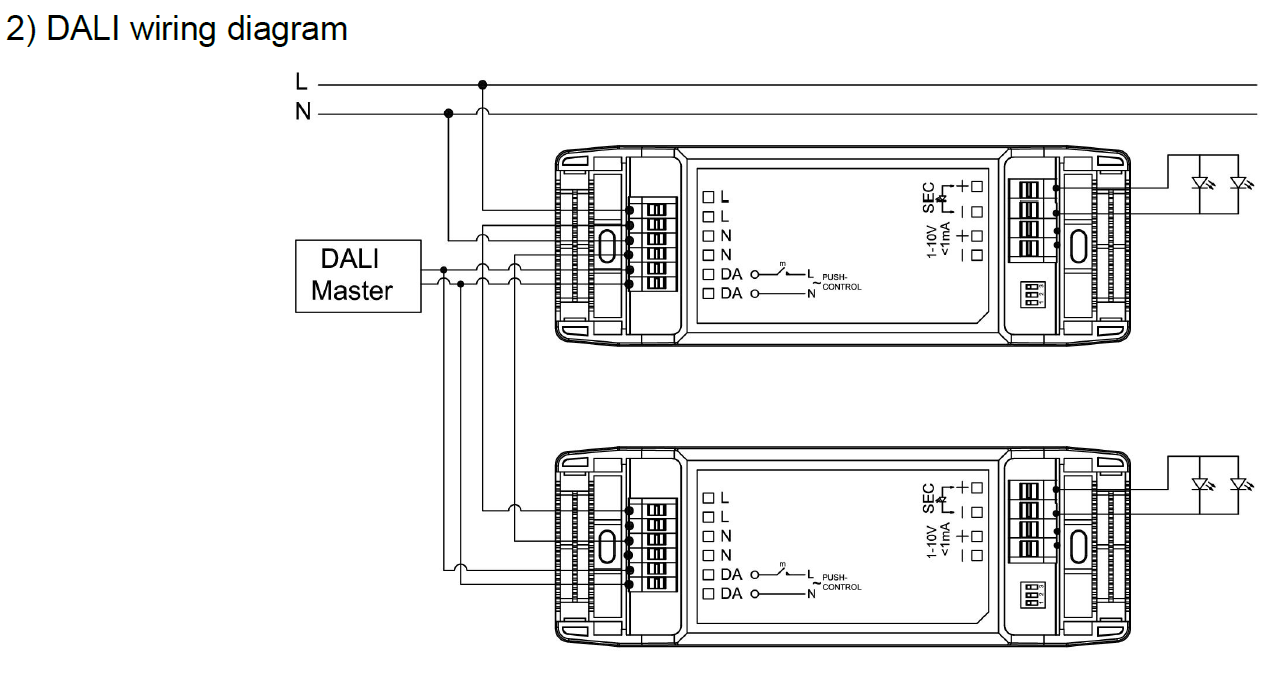

| Input | Voltage range | 198~264Vac 50Hz /60Hz | ||||||
| Rated supply voltage | 220~240Vac 50Hz /60Hz | |||||||
| DC voltage range | 200~240Vdc | |||||||
| Input current | 0.12A Max.@230Vac | |||||||
| Inrush Current | <10A (Half current pulse width 100US) @230VAC | |||||||
| Power factor | ≥ 0.95 （@230Vac,100% load） | |||||||
| Total harmonic distortion | Typical: 16% （@230Vac, 100% load） | |||||||
| Stand-by power | ≤0.5W （@230Vac when PUSH or DALI turn off） | |||||||
| Efficiency | 85%Max （@230Vac,100% load） | |||||||
| Wiring method | Push terminal, wire cross section:0.75-1.5mm² | |||||||
| Automatic circuit breaker (Calculate current in the wire) |
type | B10 | B13 | B16 | B20 | B25 | / | |
| Number | 25 | 35 | 45 | 55 | 65 | / | ||
| type | C10 | C13 | C16 | C20 | C25 | C32 | ||
| Number | 60 | 70 | 80 | 110 | 130 | 160 | ||
| Output | Operating mode | Constant current | ||||||
| Load type | LED | |||||||
| Flickering / Flickering-Free | Flicker value: less than 2% for whole dimming range | |||||||
| Start up time | <1s (@230Vac) | |||||||
| Ripple current | ±7%（@230Vac, 100% load: LED load） | |||||||
| No-load output voltage | 68Vdc Max. | |||||||
| Load output voltagerange | 9-60Vdc | |||||||
| Full load output power | 21W Max. | |||||||
| Load output current | 250~700mA : For details<Current gear setting> | |||||||
| Output current/voltage tolerance | ±5% | |||||||
| Wiring method | Push terminal, wirecross section:0.75-1.5mm² | |||||||
| Control Method | Primary PUSH Dimming | Primary PUSH dimming (Max. lead wire length：20m） | ||||||
| 1-10V（0-10V）Dimming | Port current＜1mA, (Max. lead wire length：20m） | |||||||
| Dimming Range | Primary PUSH & DALI dimming: 0%-100% 1-10V dimming：2%-100% |
|||||||
| Secondary PWM dimming | 1-10V port PWM dimming （3KHz-8KHz） | |||||||
| Potentiometer | Yes, 100kΩ | |||||||
| DALI function | DALI dimming (Max. lead wire length：300m） | |||||||
| Exception Protection Requirements | Output over temperature protection | Yes, without self recovery function（Can be inquired） | ||||||
| Output short circuit protection | Yes, without self recovery function（Can be inquired） | |||||||
| Operating Environment | Operating temperature/ humidity | -25℃~50℃ Humidity:85% (Non-condensing) | ||||||
| Storage temperature/ humidity | -40℃~80℃, Humidity:10%–95% | |||||||
| Max. case temp（Tc） | 85℃ | |||||||
| Safety & EMC | EMC standard | EN55015, EN61547, EN61000-3-2, EN61000-3-3 | ||||||
| DALI standard | IEC62386-102, IEC62386-207 | |||||||
| Safety standard | EN61347-1, EN61347-2-13 | |||||||
| Certification | ENEC SEMKO CB CE | |||||||
| Withstand voltage | 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”) | |||||||
| Others | Degrees of protection | IP20 | ||||||
| Type of protection | Class II | |||||||
| Installation type | Independent installation | |||||||

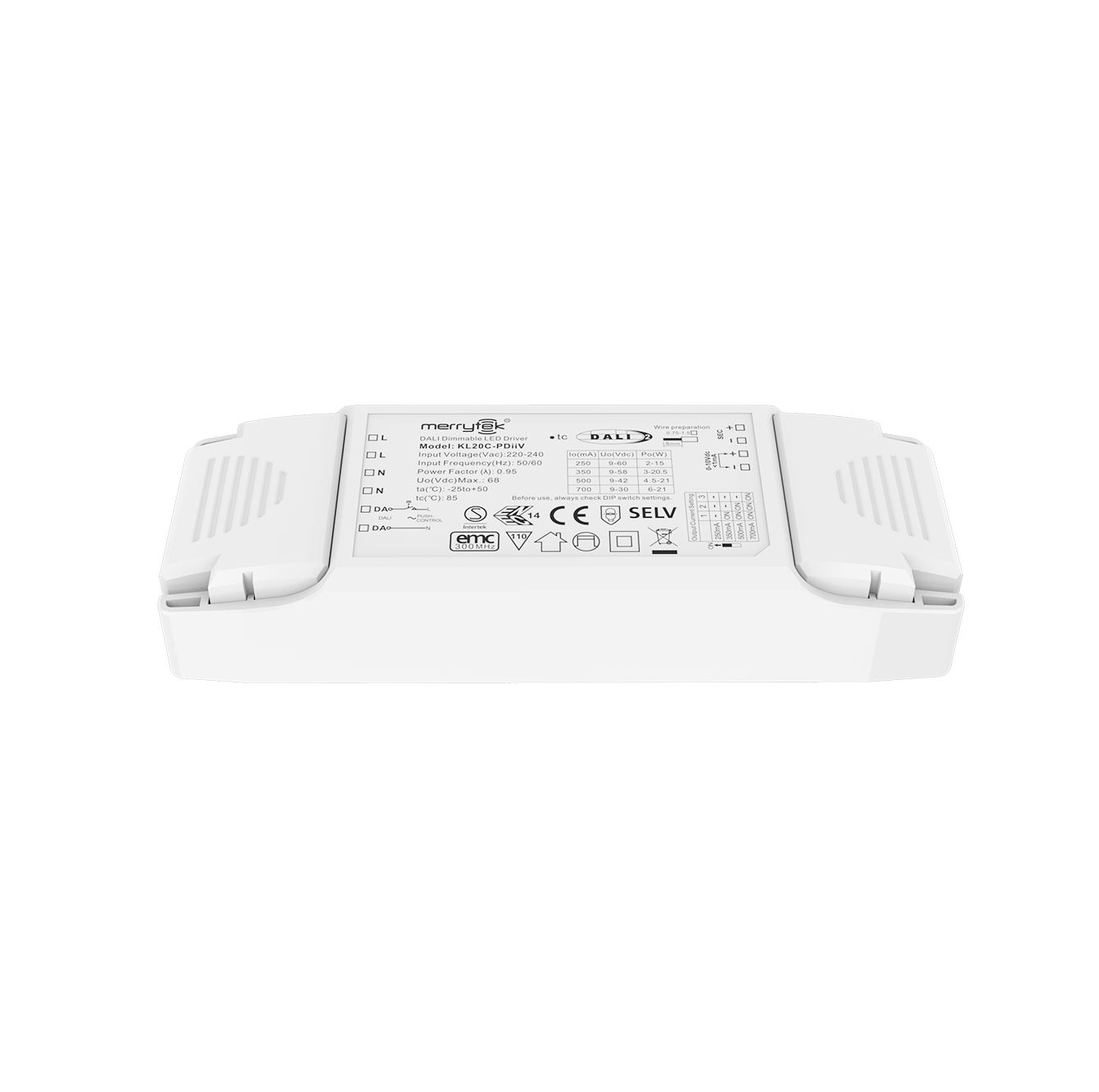

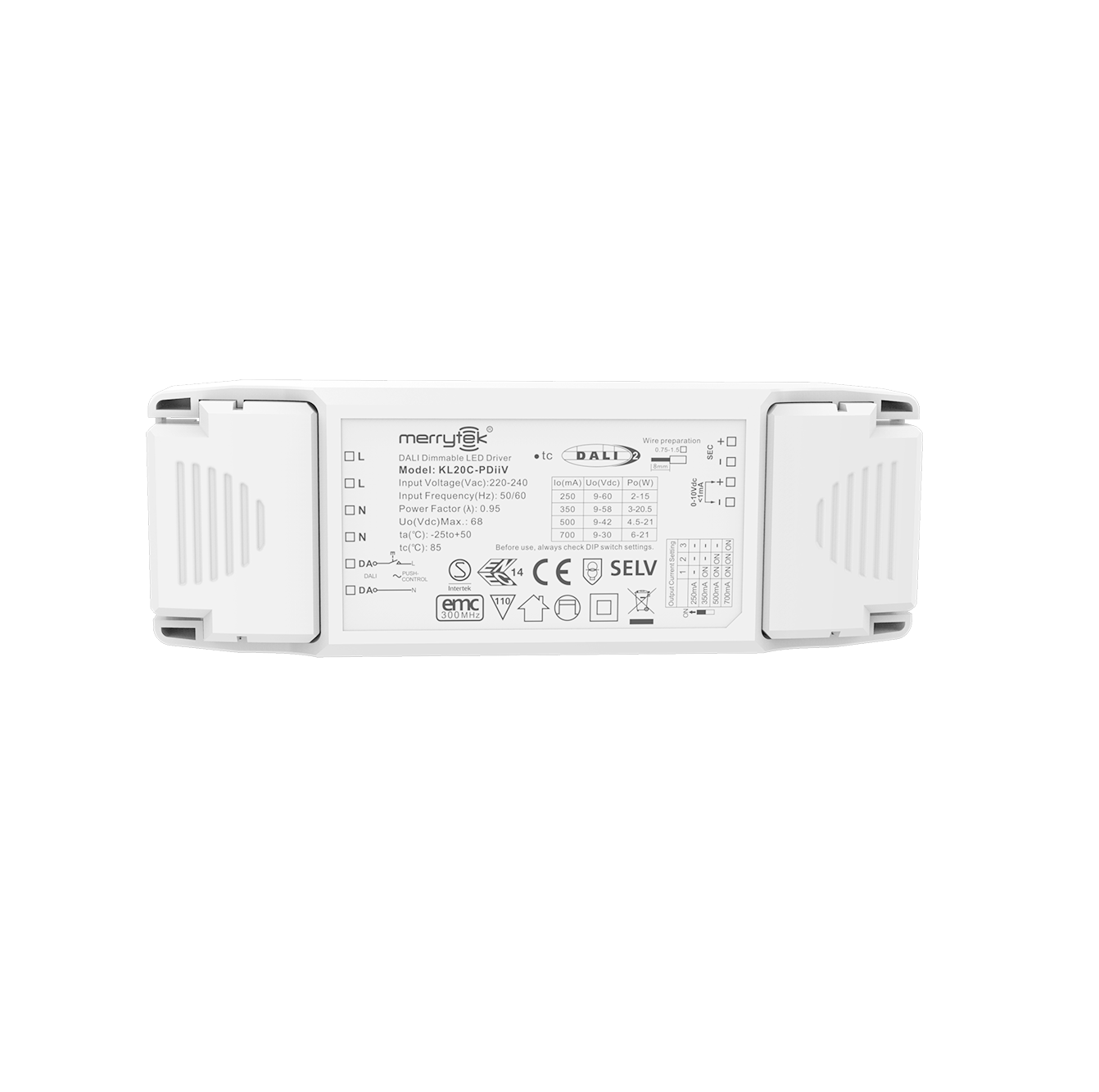

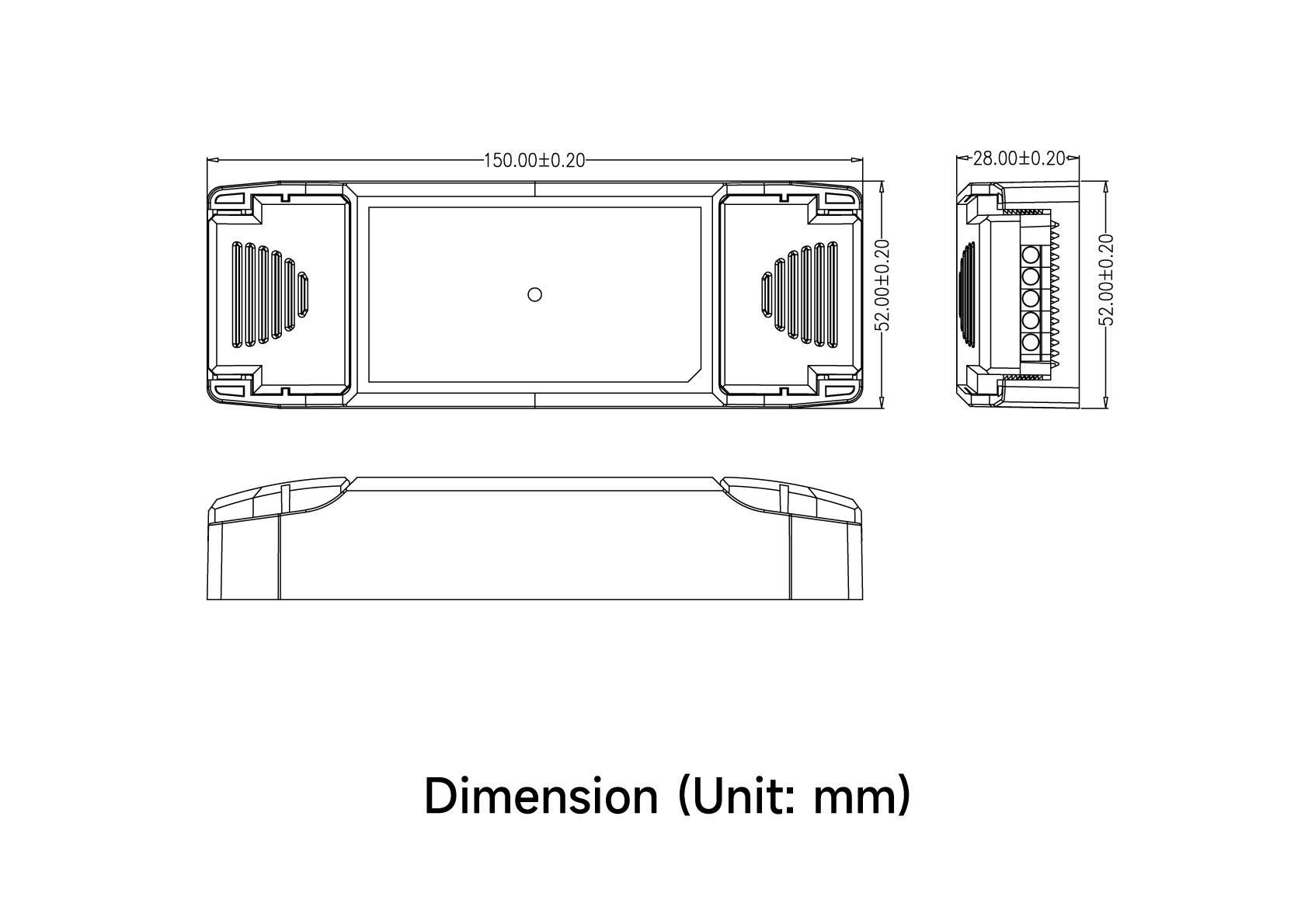

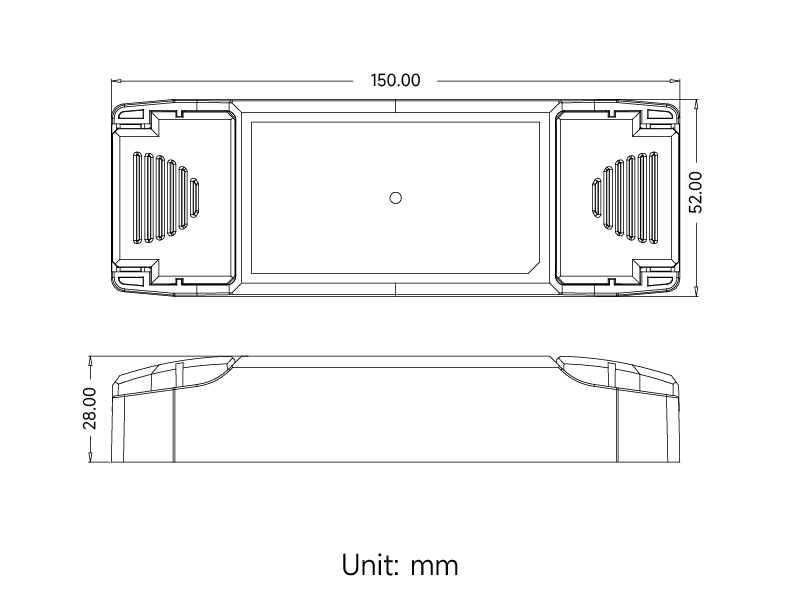

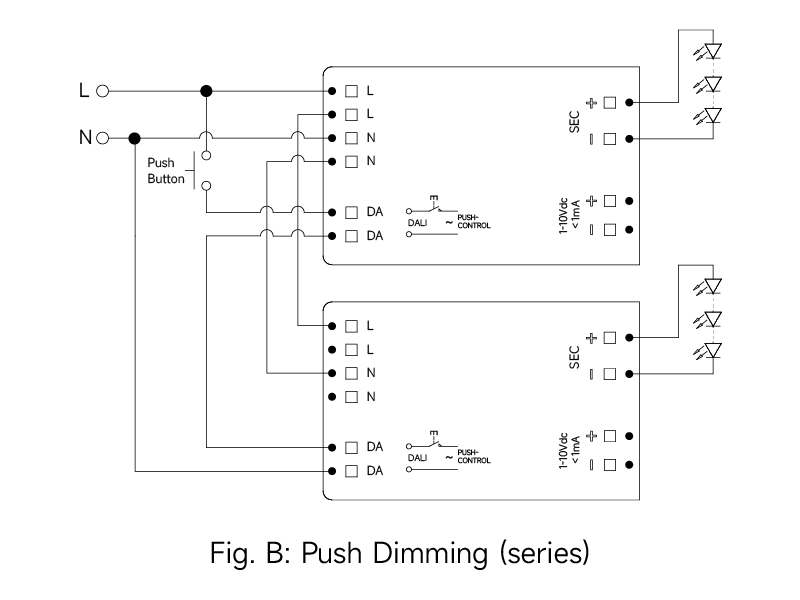

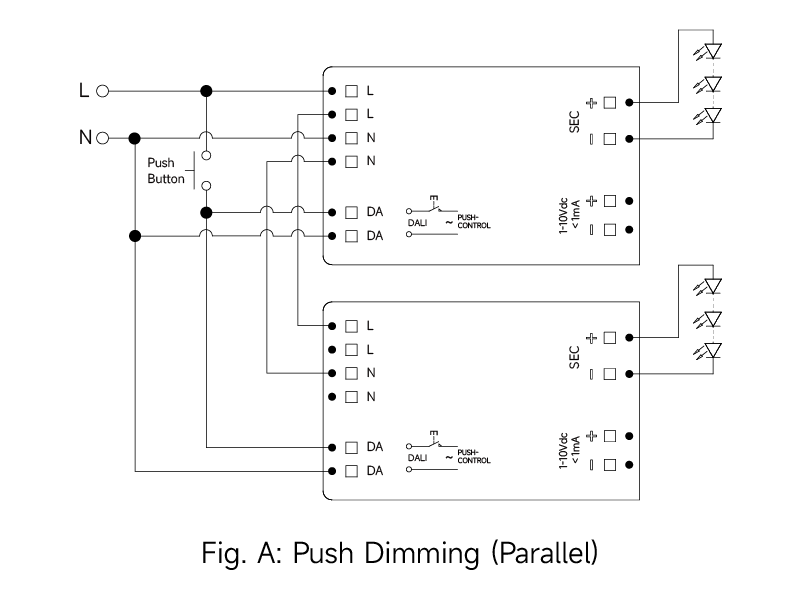

| Installation dimension | 150*52*28mm | |||||||
| Blackout memory function | Yes, PUSH blackout memory | |||||||
| PUSH dimming synchronization | Parallel: 15 units Max. Series: 25 units Max. |
|||||||
| Packaging requirements | Instruction+clapboard+outer carton（K=A） | |||||||
| Weight | 142g | |||||||
| Life | 5 years guarantee @Ta full load | |||||||
| Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified. | ||||||||
