KL25C-PDii3

Features

Flicker-free for wholedimming range
Stand-by power below 0.5W
Primary dimming with push button
Secondary dimming with 1-10V dimmer and 12V auxiliary power supply
Supports 10V PWM dimming (3KHz-8KHz)
Built-in DALI interfaceDT6
Protection: short circuit / over temperature/ over voltage
Derating current for over high ambient temperature
Push dim with memory function
5 year warranty

Dimension & Function Diagram

Parameter characteristics

Input	Operating Voltage	198-264VAC 50Hz /60Hz
	Rated Input Voltage	220-240VAC 50Hz /60Hz
	DC Input Voltage range	200-240VDC
	Input Cuttent	0.15A Max.
	Input Inrush Current	<15A (Half current pulse width 100US) @230VAC
	Power Factor	≥ 0.95 （@230Vac,100% load）
	Total harmonic distortion	Typical: 15% （@230Vac, 100% load）
	Stand-by Power	≤0.5W （@230Vac）
	Efficiency	86%Max （@230Vac,100% load）
	Wiring Method	Push terminal, wire cross section:0.75-1.0mm²
	Automatic circuit breaker (Calculate current in the wire)	type	B10	B13	B16	B20	B25	/
		Number	25	35	45	50	65	/
		type	C10	C13	C16	C20	C25	C32
		Number	55	65	75	110	130	160
Output	Operating mode	Constant Current
	Load type	LED
	Ripple requirement (Flickering or flickering-Free）	Flicker value: less than 2% for whole dimming range
	Start up time	<1s (@230Vac)
	No-load output voltage	68VDC Max.
	Load output voltage range	9-58VDC
	Full load output power	25W Max.
	Load output current	350MA(9-58V)500MA(9-50V)550MA(9-45V)700MA(9-36V)
	Constant current/voltage Precision	Constant Current Precision ±5%
	Wiring method	Push terminal, wire cross section:0.75-1.0mm²
Control Method	Primary PUSH Dimming	Primary PUSH dimming (Max.lead length：20M）
	1-10V Dimming	1-10V dimming（Port current＜1MA) (Max.lead length：20M）
	Dimming Range	Primary PUSH & DALI dimming: 0%-100% 1-10V dimming：2%-100% (Turn off below 1V)
	Primary PWM Dimming	1-10V port PWM dimming （3KHZ-8KHZ）
	Output auxiliary power port	12±0.6V Port load capability:50mA
	Sensor Dimming	Could be dimmable working with our sensor, match to PWM（3KHZ-8KHZ）or 1-10V..
	Wiring Method	Push Terminal, sensor port 3pin;
	Potentiometer	Yes, 100kΩ
	DALI Dimming	DALI dimming (Max.lead length：300M）
Exception Protection Requirements	Output over temperature protection	Yes, without self recovery function（Can be inquired）
	Output short circuit protection	Yes, without self recovery function（Can be inquired）
Operating Environment	Operating temperature/ humidity	-25℃~50℃ Humidity:85% (Non-condensing)
	Storage temperature/ humidity	-40℃~80℃, Humidity:10%–95%
	Max. case temp（Tc）	85℃
Safety & EMC	EMC standard	EN55015 EN61547 EN61000-3-2 EN61000-3-3
	DALI protocol standard	IEC62386-102 IEC62386-207 DT6
	Safety standard	EN61347-1 EN61347-2-13
	Certification	CE
	Withstand voltage	3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others	Degrees of protection	IP20
	Type of protection	Class II
	Installation type	Independent installation

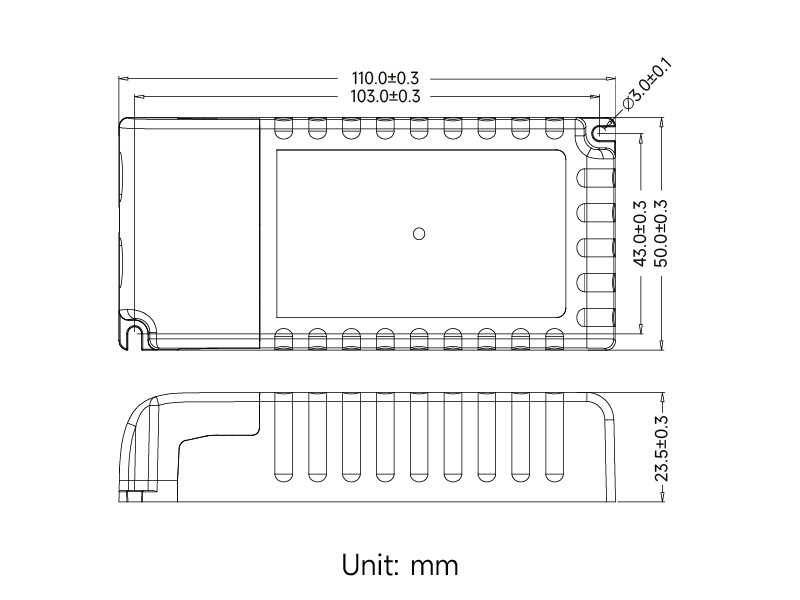

	Installation dimension	1105023.5mm
	Blackout memory function	Yes, PUSH blackout memory

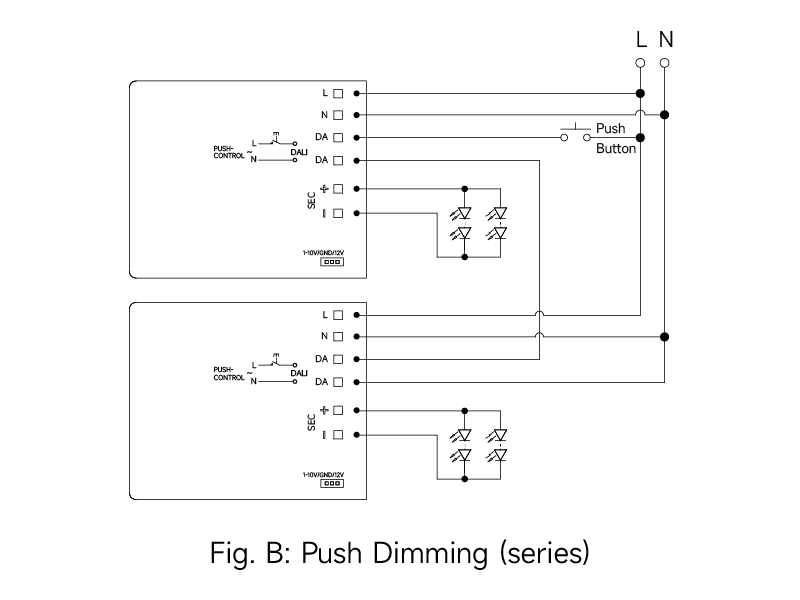

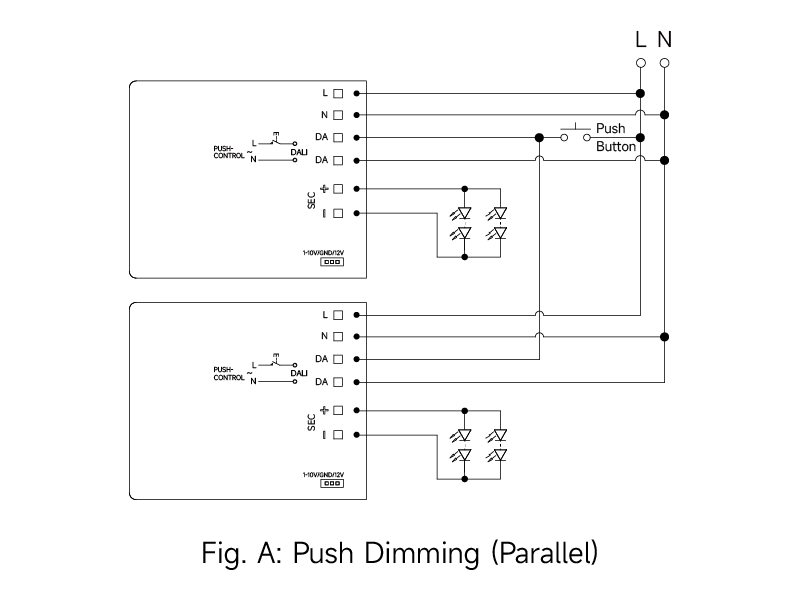

	PUSH dimming synchronization	Parallel: 15 units Max. Series: 25 units Max.
	Packaging requirement	white box+ Instructions Clapboard Outer Carton（K=A）
	Weight	140±5g
	Life	5 years guarantee @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.

Product details

ON/OFF & Description of Dimming Operation

Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.
Dimming:Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.
Memory:PUSH dimming has dimming memory function.
Dimming synchronization:The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S

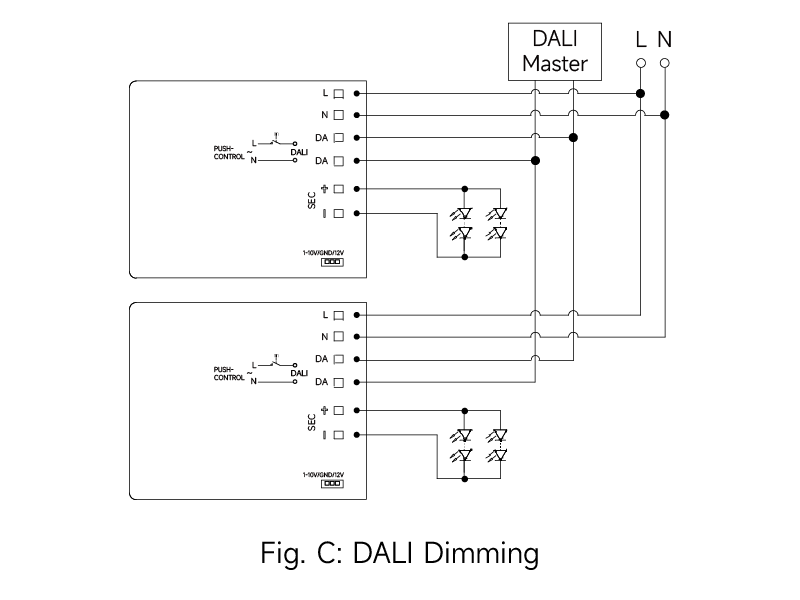

DALI dimming mode:Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.
