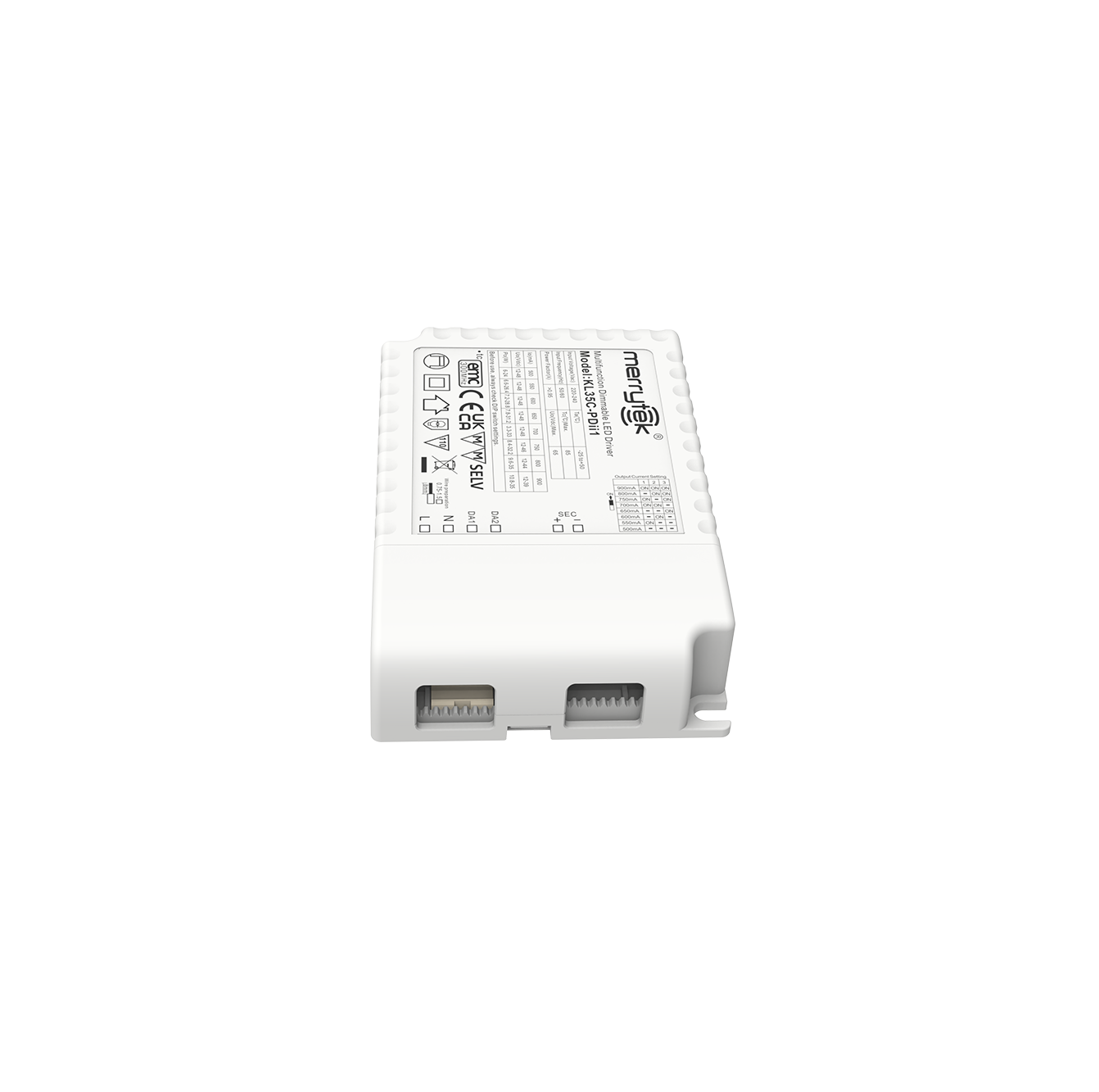

KL35C-PDii1

Features

Flicker-free for wholedimming range
Stand-by power below 0.5W
Primary dimming with push button
Built-in DALI interfaceDT6
Protection: short circuit / over temperature/ over voltage
Derating current for over high ambient temperature
Push dim with memory function
5 year warranty

Size and Function Diagram

Parameter characteristics

Input	Operating Voltage	198-264VAC 50Hz/60Hz
	Rated Input Voltage	220-240VAC 50Hz/60Hz
	DC Input Voltage range	200-240VDC
	Input Cuttent	0.2A Max.
	Input Inrush Current	<10A (Half current pulse width 100US) @230VAC
	Power Factor	≥ 0.95 （@230Vac,100% load）
	Total harmonic distortion	Typical: 15% （@230Vac, 100% load）
	Stand-by Power	≤0.5W （@230Vac when PUSH or DALI turn off）
	Efficiency	87%Max （@230Vac,100% load）
	Wiring Method	Push terminal, wire cross section:0.75-1.5mm²
	Automatic circuit breaker (Calculate current in the wire)	type	B10	B13	B16	B20	B25	/
		Number	25	30	40	50	60	/
		type	C10	C13	C16	C20	C25	C32
		Number	40	55	60	80	105	130
Output	Operating mode	Constant Current
	Load type	LED
	Flickering / Flickering-Free	Flicker value: less than 2% for whole dimming range
	Start up time	<1s (@230Vac)
	No-load output voltage	65VDC Max.
	Load output voltage range	12-48VDC
	Full load output power	35W Max.
	Load output current	500~900mA : For details<Current gear setting>
	Constant current/voltage Precision	Constant Current Precision ±5%
	Wiring method	Push terminal, wire cross section:0.75-1.5mm²
Control Method	Primary PUSH Dimming	Primary PUSH dimming (Max.lead length：20M）
	Dimming Range	Primary PUSH & DALI dimming: 0%-100% 1-10V dimming：2%-100%
	DALI Dimming	DALI dimming (Max.lead length：300M）
Exception Protection Requirements	Output over temperature protection	Yes, without self recovery function（Can be inquired）
	Output short circuit protection	Yes, without self recovery function（Can be inquired）
Operating Environment	Operating temperature/ humidity	-25℃~50℃ Humidity:85% (Non-condensing)
	Storage temperature/ humidity	-40℃~80℃, Humidity:10%–95%
	Max. case temp（Tc）	85℃
Safety & EMC	EMC standard	EN55015 EN61547 EN61000-3-2 EN61000-3-3
	DALI protocol standard	IEC62386-102 IEC62386-207 DT6
	Safety standard	EN61347-1, EN61347-2-13, EN62493, EN60598-1
	Certification	CE
	Withstand voltage	3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others	Degrees of protection	IP20
	Type of protection	Class II
	Installation type	Independent installation

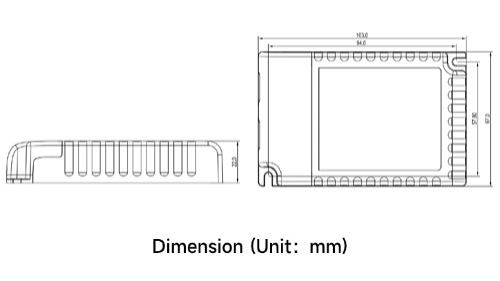

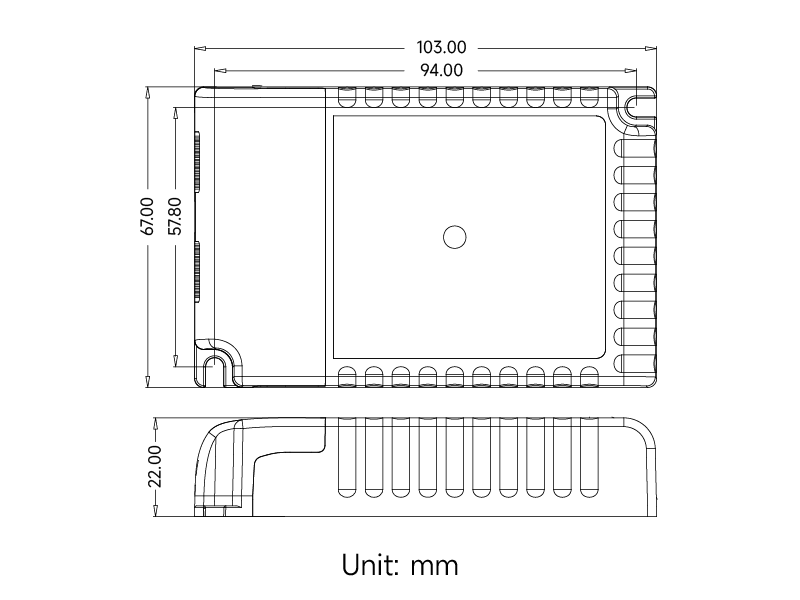

	Installation dimension	1237924mm
	Blackout memory function	Yes, PUSH blackout memory
	PUSH dimming synchronization	15 units Max.
	Packaging requirement	white box+ Instructions Clapboard Outer Carton（K=A）
	Weight	132g
	Life	5 years guarantee @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.

Product details

ON/OFF & Description of Dimming Operation

Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.
Dimming:Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.
Memory:PUSH dimming has dimming memory function.
Dimming synchronization:The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S
DALI dimming mode:Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.

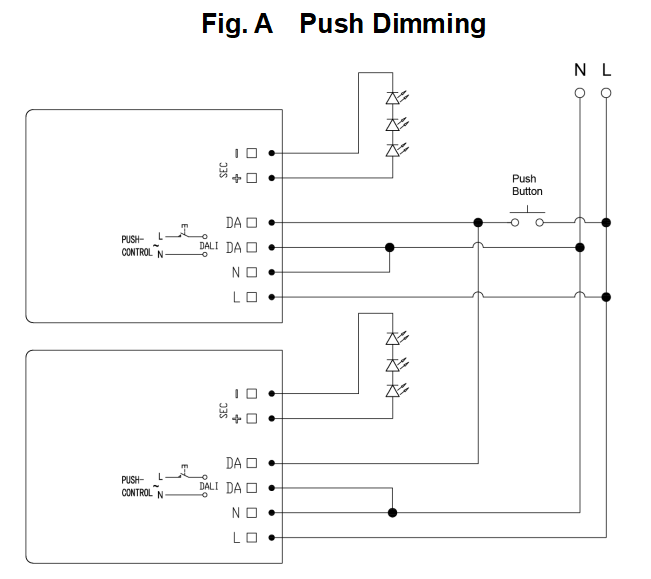

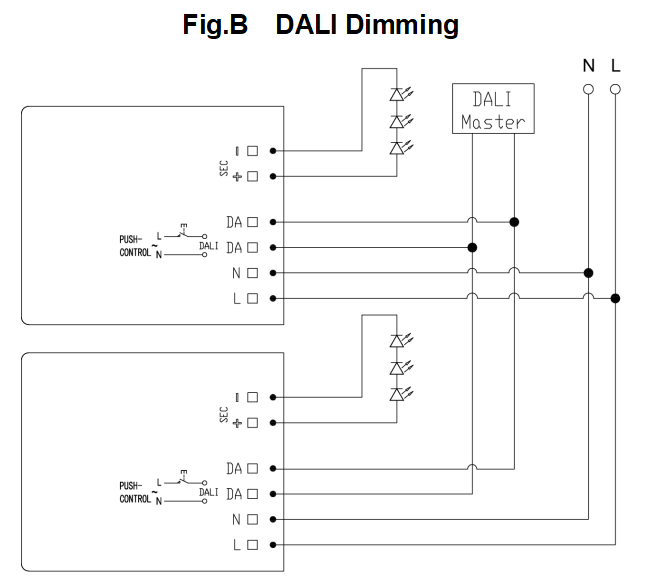

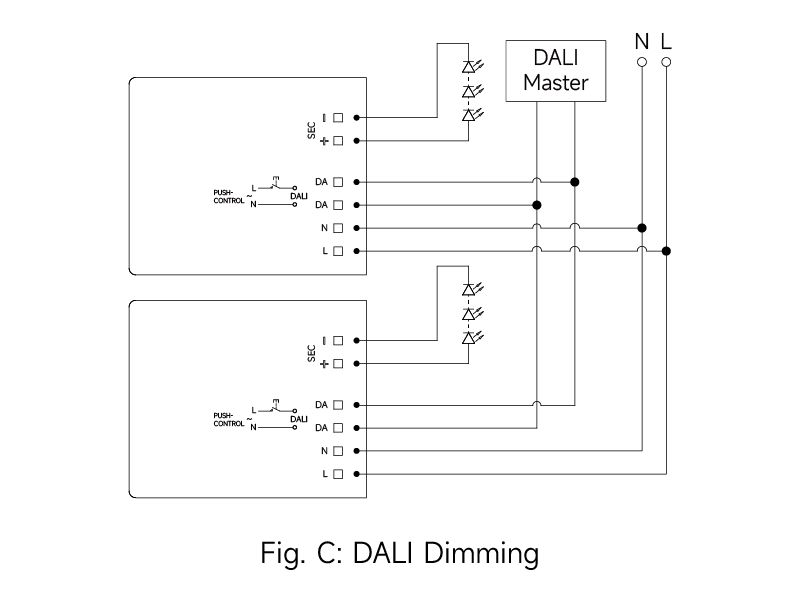

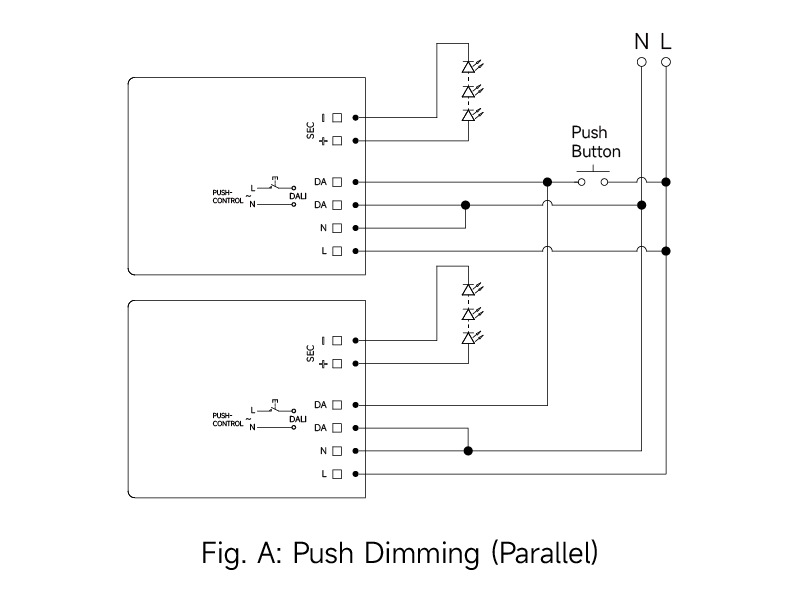

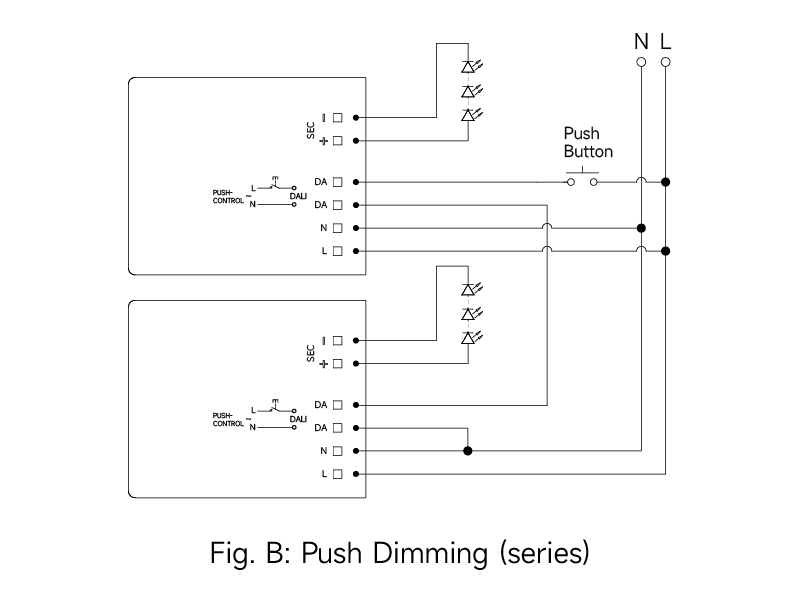

Wiring suggestions

Installation suggestion

matters needing Attention

1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
