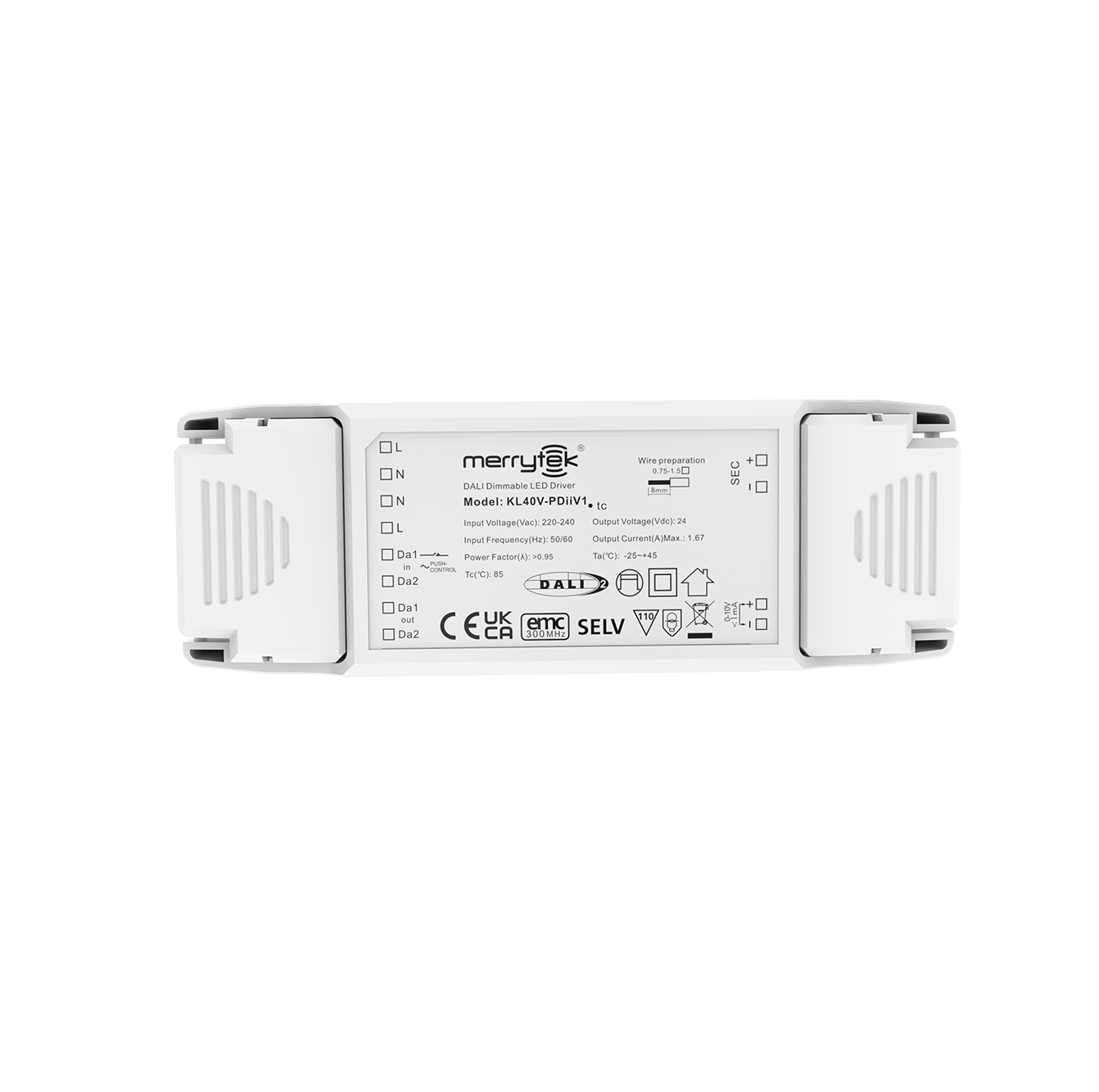

KL40V-PDiiV1

Features

Flicker-free for wholedimming range
Stand-by power below 0.5W
Primary dimming with push button
Secondary dimming with 0-10V dimmer and potentiometer
Built-in DALI interfaceDT6
Supports 10V PWM dimming (3KHz-8KHz)
Protection: short circuit / over temperature/ over voltage
Derating current for over high ambient temperature
Push dim with memory function
5 year warranty

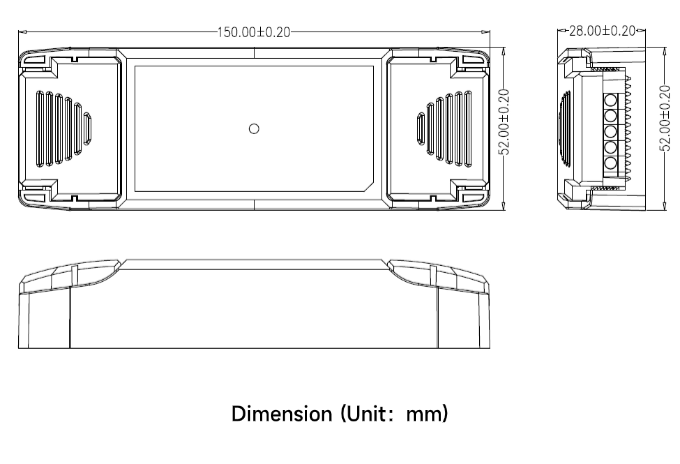

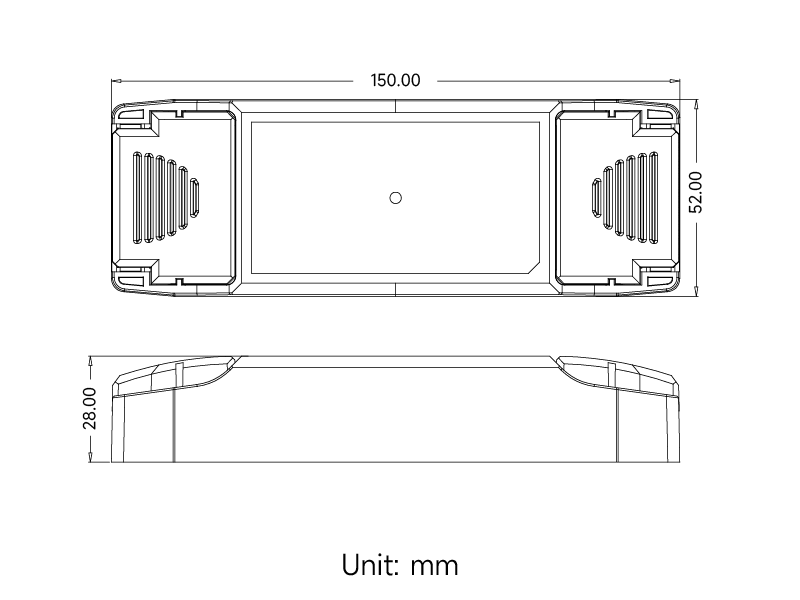

Size and Function Diagram

Parameter characteristics

Input	Voltage range	198~264Vac 50Hz /60Hz
	Rated supply voltage	220~240Vac 50Hz /60Hz
	DC voltage range	200~240Vdc
	Input current	0.21A Max.@230Vac
	Inrush Current	15A (Half current pulse width 100US) @230VAC
	Power factor	＞ 0.95 （@230Vac,100% load）
	Total harmonic distortion	Typical: 16% （@230Vac, 100% load）
	Stand-by power	≤0.5W
	Efficienc（@230Vac,100% load）	89%Max
	Wiring method	Push terminal, wire cross section:0.5-1.5mm²
	Loop-in&Loop-out quantity	30PCS（@230Vac）
	Automatic circuit breaker (Calculate current in the wire)	type	B10	B13	B16	B20	B25	/
		Number	20	25	30	42	50	/
		type	C10	C13	C16	C20	C25	C32
		Number	25	40	50	70	80	100
Output	Operating mode	Constant voltage
	Load type	LED
	Flickering / Flickering-Free	Flickering-Free
	Start up time	<1s (@230Vac)
	Load output voltagerange	24V CV
	Load output current	1.67A Max.
	Full load output power	40W Max.
	Minimum load	3W
	Output current/voltage tolerance	±5%
	Wiring method	Push terminal, wirecross section:2*0.5-2.0mm²
Control Method	Primary PUSH Dimming	Primary PUSH dimming (Max. lead wire length：20m）
	1-10V（0-10V）Dimming	0-10V dimming（Port current＜1mA), (Max. lead wire length：20m）
	Dimming Range	0%-100%
	Secondary PWM dimming	0-10V port PWM dimming （3KHz-8KHz）
	Potentiometer	Yes, 100kΩ
	DALI function	DALI dimming (Max. lead wire length：300m）
Exception Protection Requirements	Output over temperature protection	Yes, reset power on to recover
	Output short circuit protection	Yes, reset power on to recover
Operating Environment	Operating temperature/ humidity	-25℃~50℃ Humidity:85% (Non-condensing)
	Storage temperature/ humidity	-40℃~80℃, Humidity:10%–95%
	Max. case temp（Tc）	85℃
Safety & EMC	EMC standard	EN55015, EN61547, EN61000-3-2, EN61000-3-3
	DALI standard	IEC62386-102, IEC62386-207
	Safety standard	EN61347-1, EN61347-2-13
	Certification	CE
	Withstand voltage	3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others	Degrees of protection	IP20
	Type of protection	Class II
	Installation type	Independent installation
	Installation dimension	1505228mm
	Memory function	Yes, （PUSH with memory function）
	PUSH dimming synchronization	15 units Max.
	Packaging requirements	Instruction+clapboard+outer carton（K=A）
	Weight	300g
	Life	5 years @Ta 100% load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.

Product details

ON/OFF & Description of Dimming Operation

Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.
Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.
Memory: PUSH dimming has dimming memory function.
Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S
DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.
Constant voltage dimming drivers cannot be used in lamps with constant current circuits.

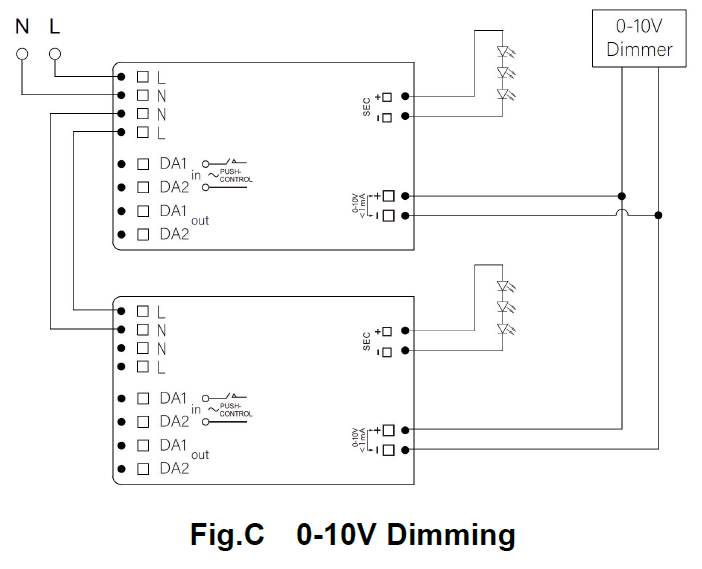

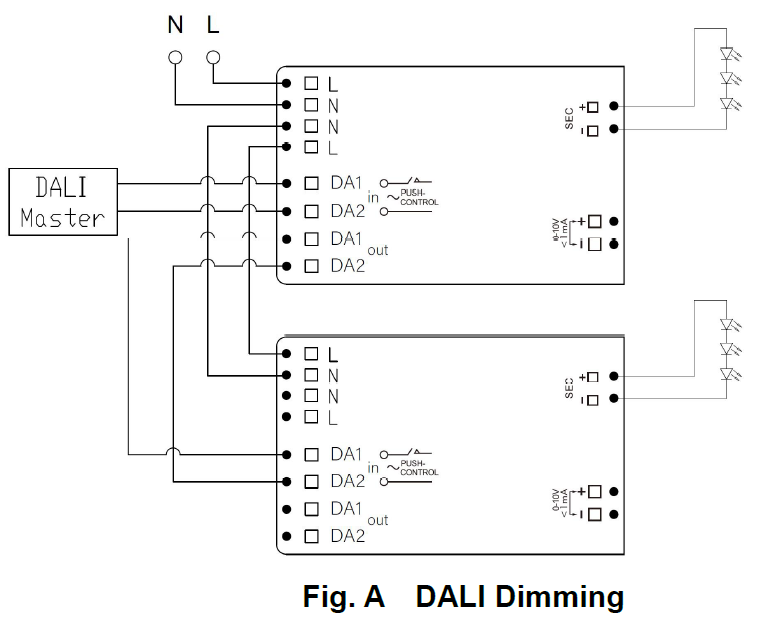

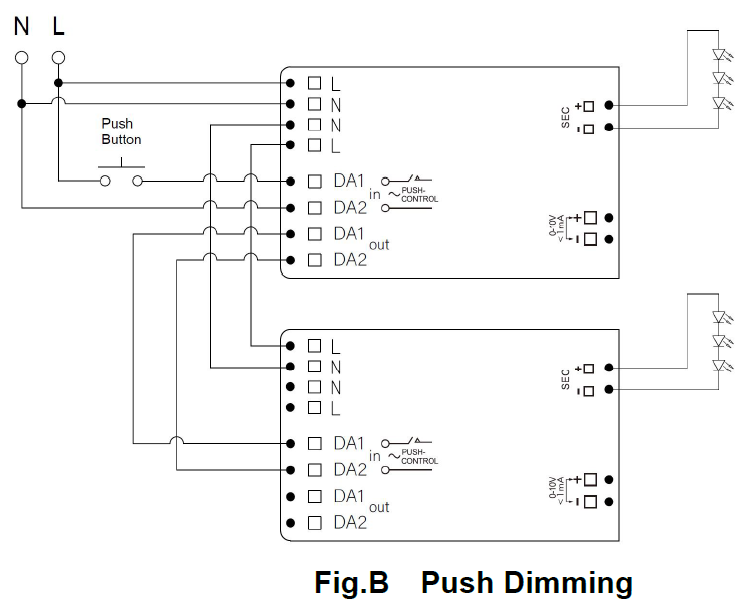

Wiring suggestions
