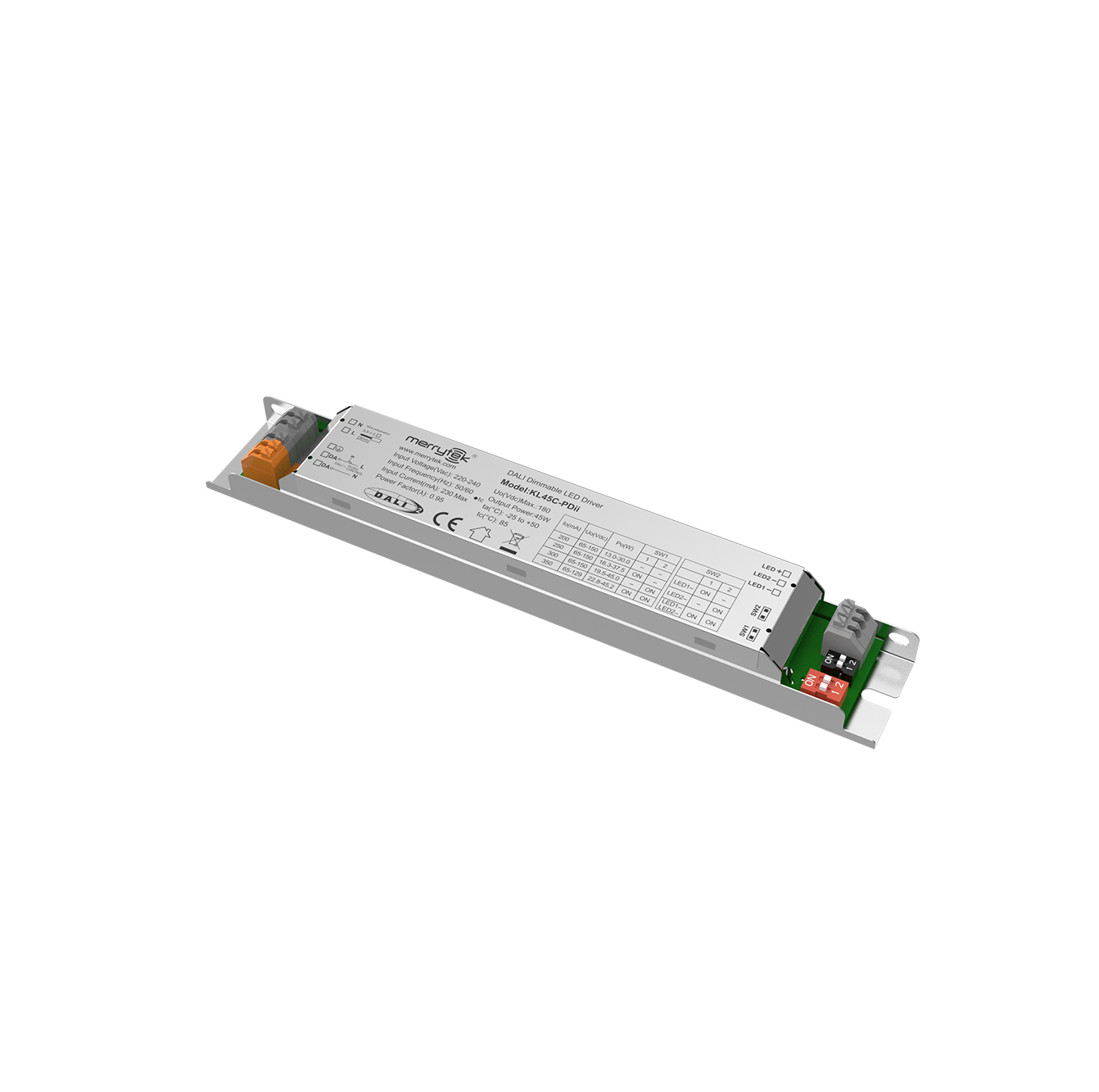

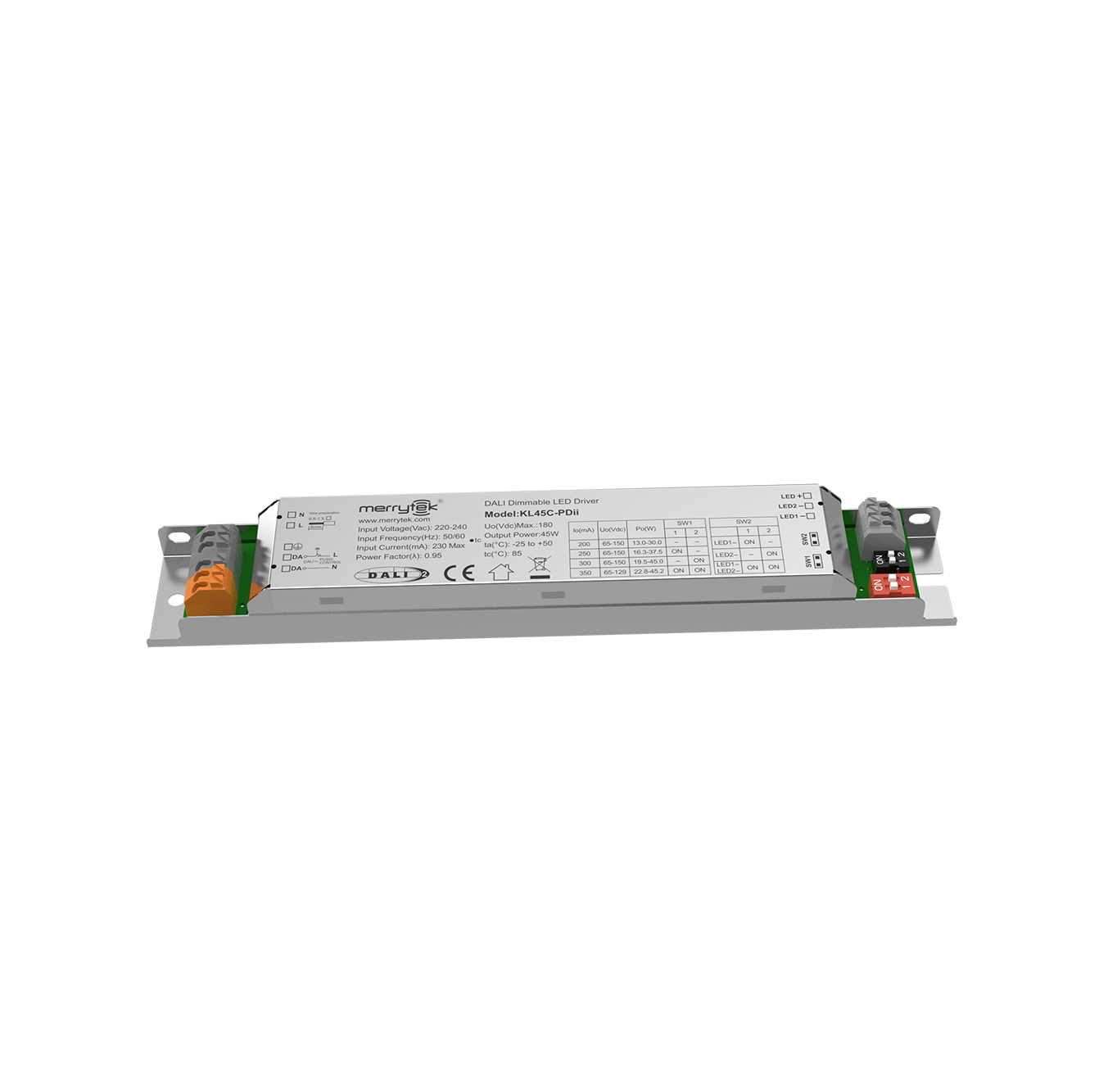

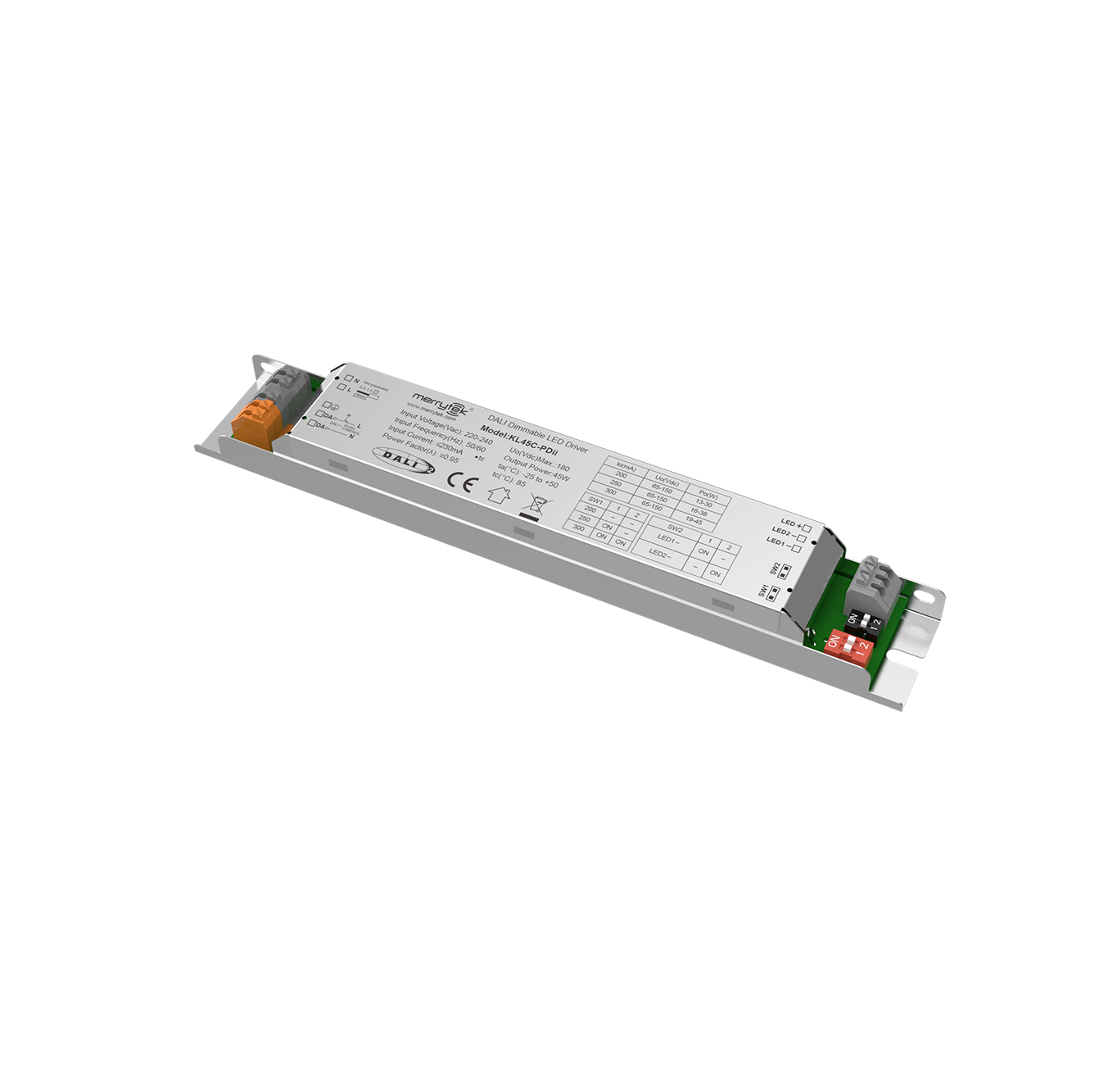

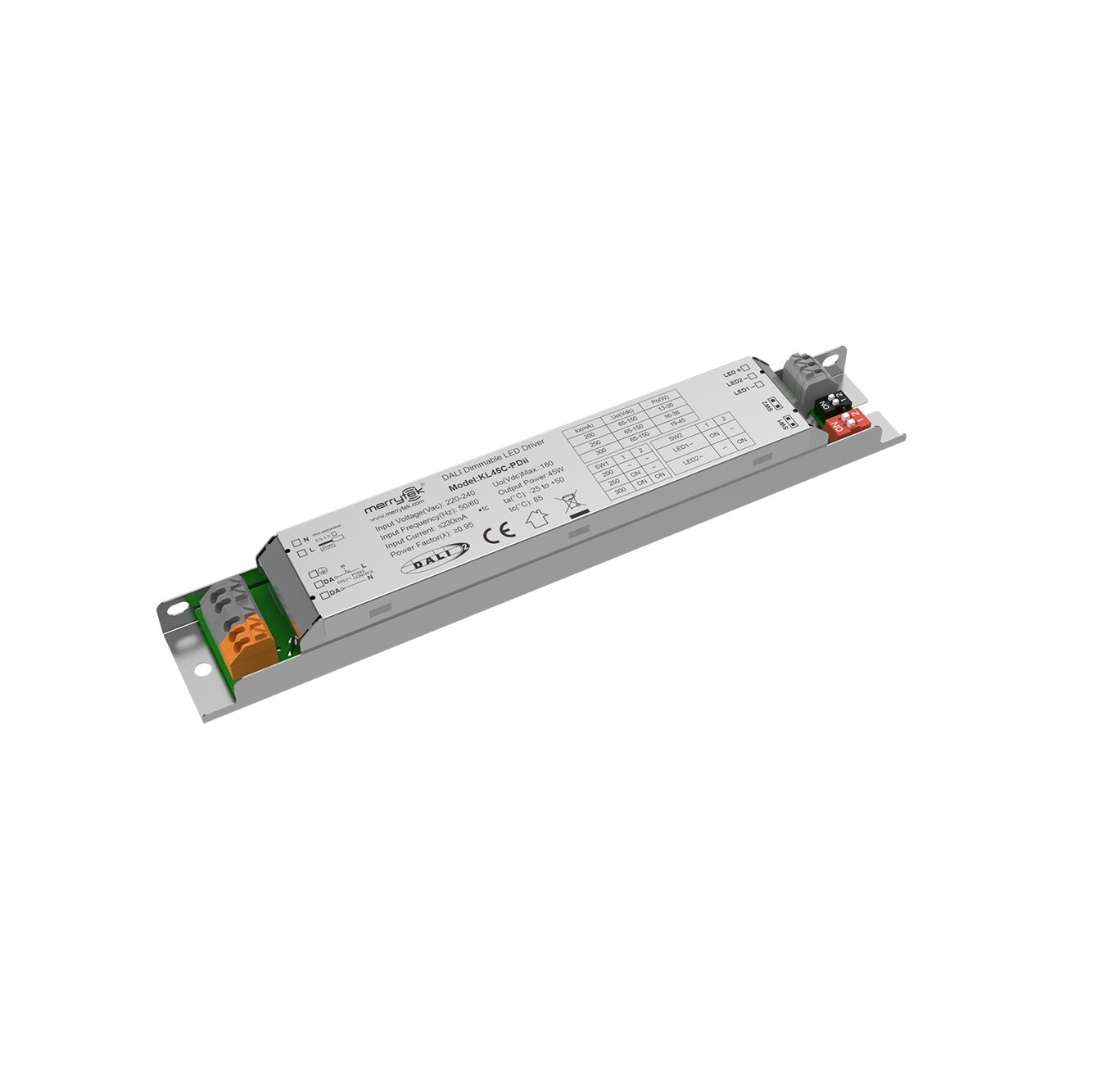

KL45C-PDii

Features

Flicker-free for wholedimming range
Built-in DALI interfaceDT6
Centrally-supplied DC emergency operation DT19
Primary dimming with push button; with memory function
Protection: short circuit / over temperature/ over voltage
Derating current for over high ambient temperature
DIP setting CW、WW color temperature output
5 year warranty

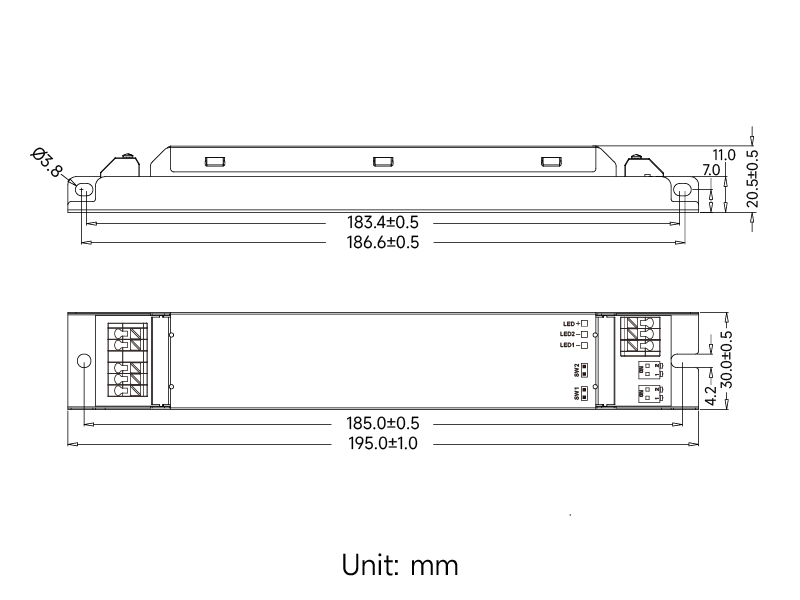

Dimension & Function Diagram

Parameter characteristics

Input	Operating Voltage	198-264VAC 50Hz /60Hz
	Rated Input Voltage	220-240VAC 50Hz /60Hz
	DC Input Voltage range	200-240VDC
	Input Cuttent	0.23A Max.
	Input Inrush Current	<15A (Half current pulse width 100US) @230VAC
	Power Factor	≥0.95 @230VAC (Full load)
	Total harmonic distortion	Typical: 15% (@230Vac, 100% load)
	Stand-by Power	≤0.5W (@230Vac)
	Efficiency	92%Max. @230VAC (Full load)
	Wiring Method	Push terminal, wire cross section: 0.5-1.5mm²
	Automatic circuit breaker (Calculate current in the wire)	type	B10	B13	B16	B20	B25	/
		Number	20	25	30	40	50	/
		type	C10	C13	C16	C20	C25	C32
		Number	30	40	50	60	80	100
Output	Operating mode	Constant Current
	Load type	LED
	Ripple requirement (Flickering or flickering-Free）	Flicker value: less than 2% for whole dimming range
	Start up time	<0.7s (@230Vac); <0.5s (@ DC Input)
	No-load output voltage	180V DC Max.
	Load output voltage range	65-150V DC
	Full load output power	45W Max.
	Load output current	200~350mA : For details<Current gear setting>
	Constant current/voltage Precision	Constant Current Precision ±5%
	Wiring method	Push terminal, wire cross section: 0.5-1.5mm²
Control Method	Primary PUSH Dimming	Primary PUSH dimming (Max.lead length：20M）
	Dimming Range	Primary PUSH & DALI dimming: 2%-100%
	DALI Dimming	DALI dimming (Max.lead length：300M）
Exception Protection Requirements	Output over temperature protection	Yes, without self recovery function (Can be inquired)
	Output short circuit protection	Yes, with self recovery function (Can be inquired)
Operating Environment	Operating temperature/ humidity	-25℃~50℃ Humidity:85% (Non-condensing)
	Storage temperature/ humidity	-40℃~80℃, Humidity:10%–95%
	Max. case temp（Tc）	85℃
Safety & EMC	EMC standard	EN55015 EN61547 EN61000-3-2 EN61000-3-3
	DALI protocol standard	IEC62386-102, IEC62386-207 DT6 / 220 DT19 / 251 / 252 / 253
	Safety standard	EN61347-1 EN61347-2-13
	Certification	CE
	Withstand voltage	3750Vac, 5mA, 60s (Input “L N” – Output “SEC”) 2000Vac (Input “L N” – “E”) 1000Vac (Input “L” – “N”)
Others	Degrees of protection	IP20
	Type of protection	Class I
	Built-in installation	1953021mm
	Blackout memory function	Yes, PUSH blackout memory

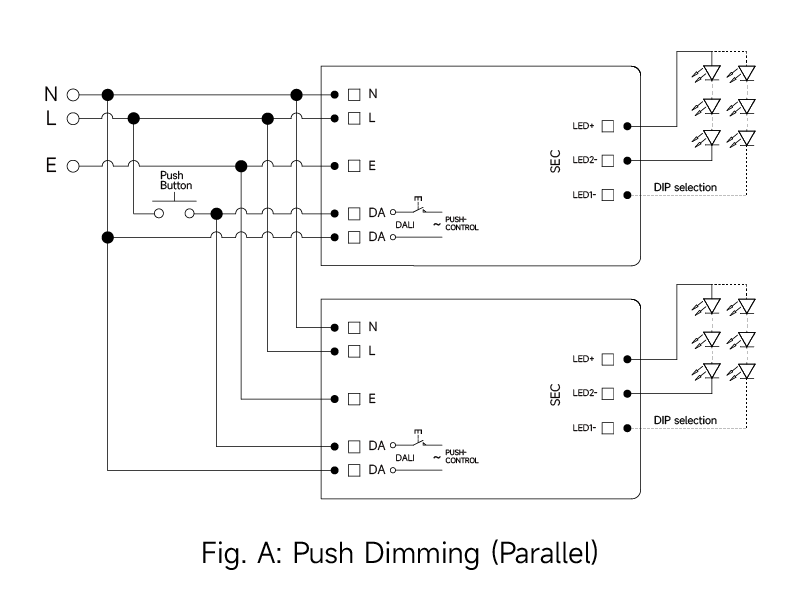

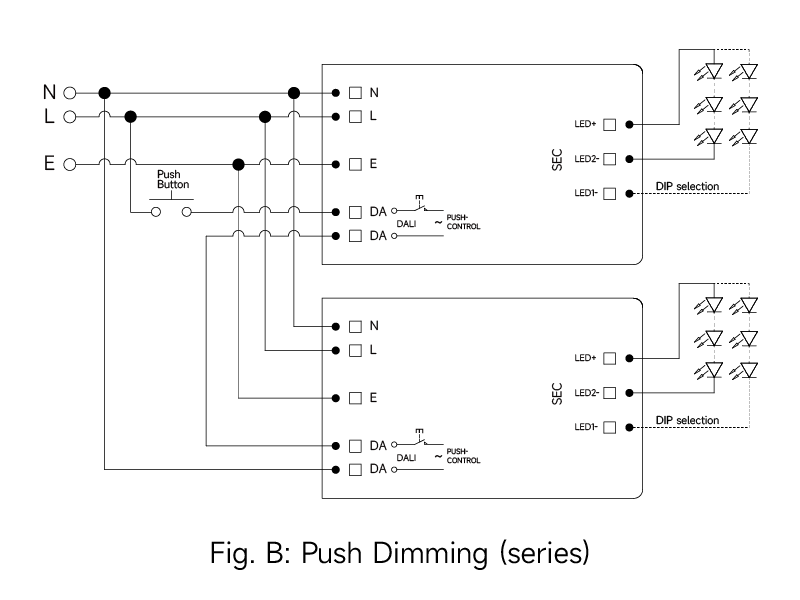

	PUSH dimming synchronization	Parallel: 15 units Max. Series: 25 units Max.
	Packaging requirement	PE bag+Clapboard+Outer Carton（K=A）
	Weight	126.8±5g
	Life	5 year @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.

Product details

ON/OFF & Description of Dimming Operation

Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.
Dimming:Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.
Color temperature adj: Set SW2 DIP switch, selection of three different color temperature.
D. Memory:PUSH dimming has dimming memory function.
E. Dimming synchronization:The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S

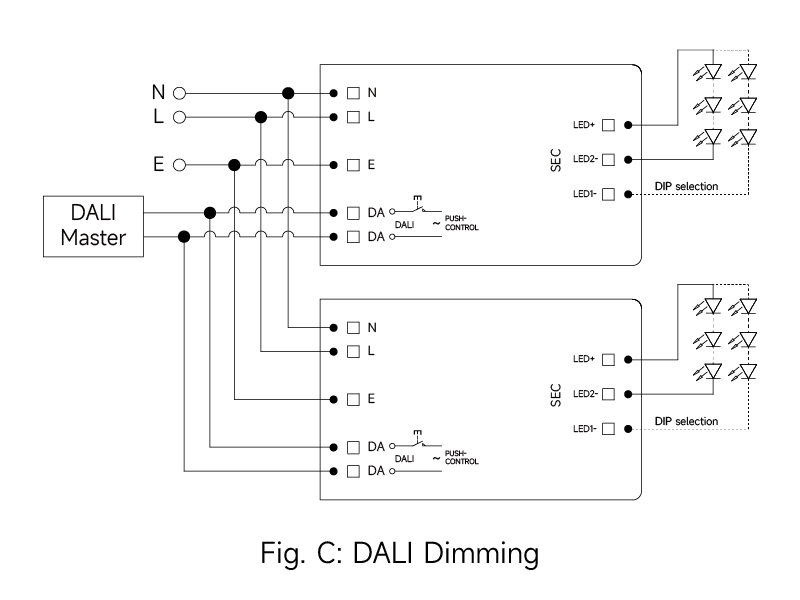

F. DALI dimming mode:Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.

Matters Needing Attention

The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.
After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
When the LED light board is aluminum substrate and access ground wire, a 18kΩ resistor can be connected in parallel with each string of lamp beads to solve the glow phenomenon after power off.
