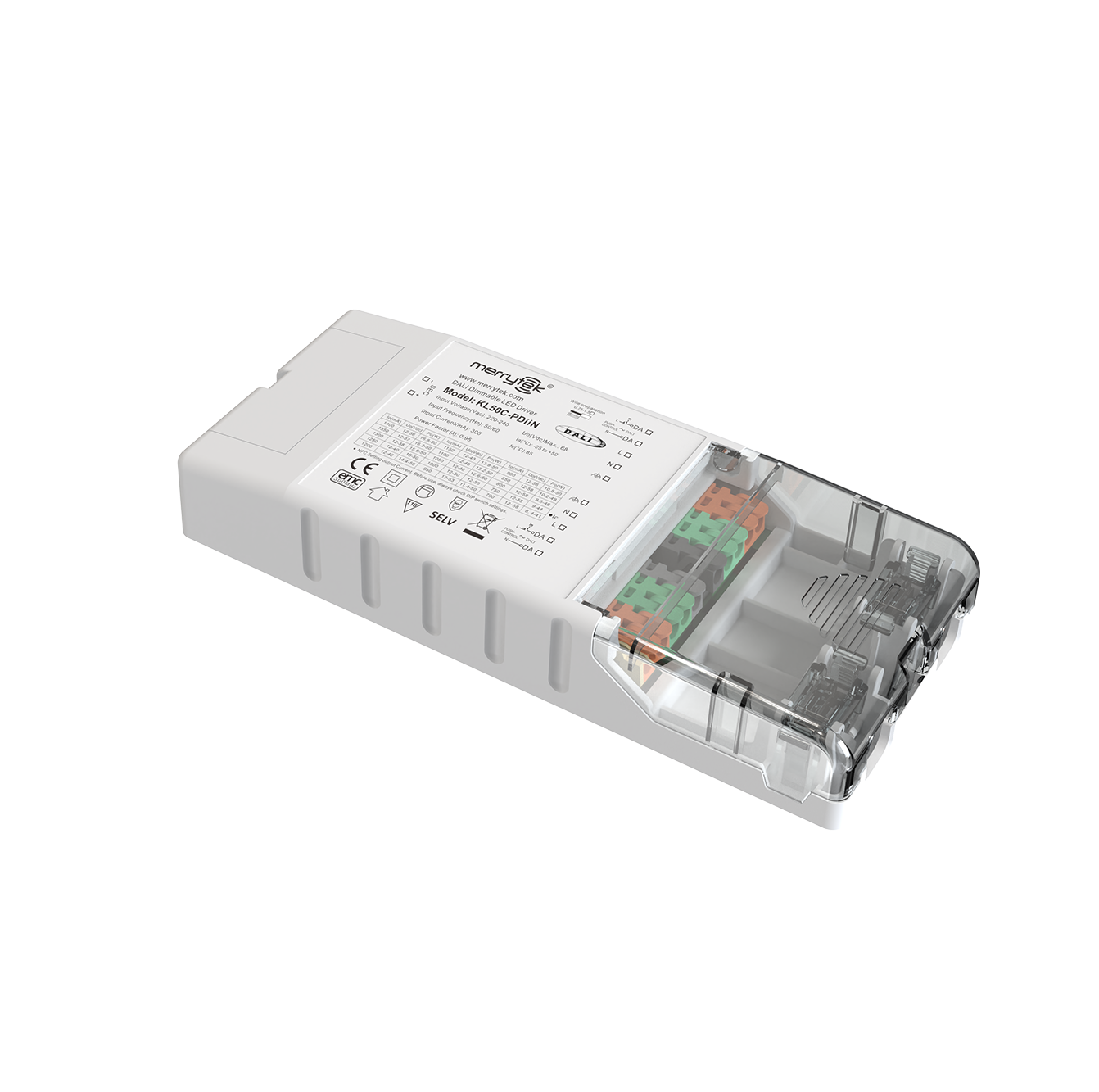

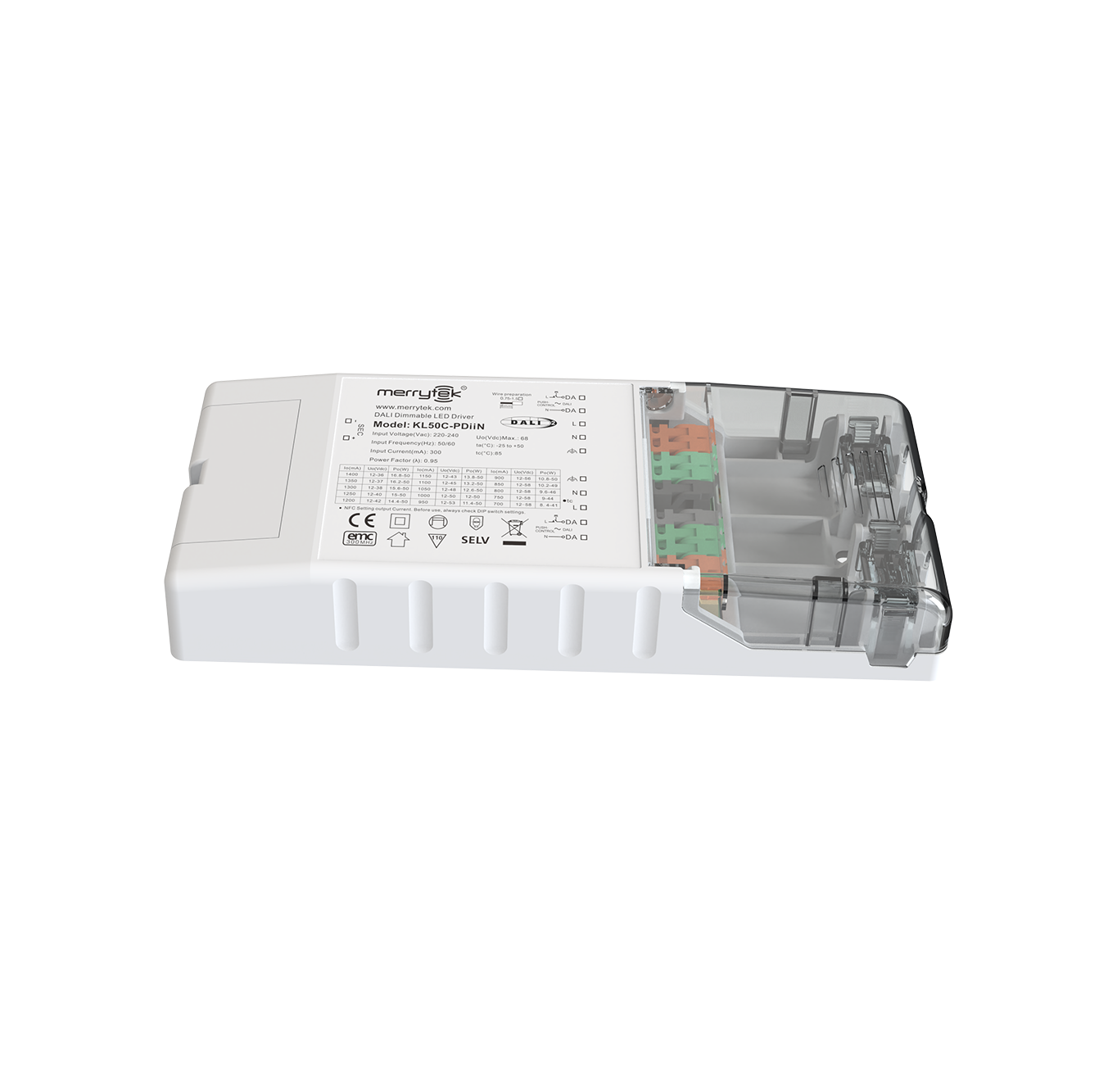

KL50C-PDiiN

Features

Flicker-free for wholedimming range
NFC technology for wireless programming
Stand-by power below 0.5W
Built-in DALI interfaceDT6
Centrally-supplied DC emergency operationDT19
Protection: short circuit / over temperature/ over voltage
CLO compensation
Derating current for over high ambient temperature
Push dim with memory function
Looping design, Quick-wiring, Convenient and time-saving
5 year warranty

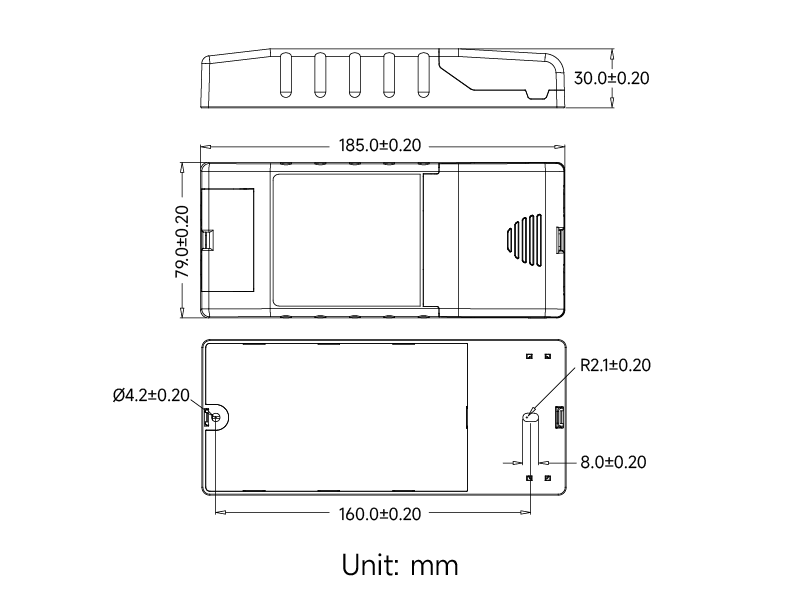

Dimension & Function Diagram

Parameter characteristics

Input	Operating Voltage	198-264Vac 50Hz/60Hz
	Rated Input Voltage	220-240Vac 50Hz/60Hz
	DC Input Voltage range	200-240Vdc
	Input Current	0.3A Max.
	Input Inrush Current	<25A (Half current pulse width100μs) @230Vac
	Power factor(@230V,100% load)	≥ 0.95
	Total harmonic distortion	Typical:15% (@230Vac, 100% load)
	Stand-by power	≤0.5W (@230Vac when DALI turn off)
	Efficiency(@230Vac,100% load)	0.88
	Wiring Method	Wire cross section:0.75-2.5mm²
	Loop-in&Loop-out quantity	22PCS (@230Vac)
	Automatic circuit breaker (Calculate current in the wire)	type	B10	B13	B16	B20	B25	/
		Number	20	25	30	40	50	/
		type	C10	C13	C16	C20	C25	C32
		Number	28	40	45	55	70	90
Output	Operating mode	Constant Current
	Load type	LED
	Ripple requirement (Flickering or Flickering-Free）	Flicker value: less than 5% for whole dimming range
	Start up time	<1s (@230Vac); <0.5s (@200Vdc)
	No-load output voltage	75V DC Max.
	Load output voltage range	12-58Vdc
	Full load output power	50W Max.
	Load output current	700-1400mA
	Constant current/voltage Precision	Constant Current Precision ±5%
	Wiring method	Wire cross section:0.75-1.5mm²
Control Method	Primary PUSH Dimming	Primary PUSH dimming (Max. lead wire length：20m）
	DALI Dimming	DALI dimming (Max. lead length：300m）
	Dimming range	Primary PUSH & DALI dimming: 0%-100%
Exception Protection Requirements	Output over temperature protection	Yes, without self recovery function（Can be inquired）
	Output short circuit protection	Yes, without self recovery function（Can be inquired）
Operating Environment	Operating temperature/ humidity	-25℃~50℃ Humidity: 85% (Non-condensing)
	Storage temperature/ humidity	-40℃~80℃, Humidity: 85% (Non-condensing)
	Max. case temp（Tc）	85℃
Safety & EMC	EMC standard	EN55015 EN61547 EN61000-3-2 EN61000-3-3
	DALI protocol standard	IEC62386-102, IEC62386-207 DT6 / 220 DT19 / 251 / 252 / 253
	Safety standard	EN61347-1 EN61347-2-13
	Certification	CE
	Withstand voltage	3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others	Degrees of protection	IP20
	Type of protection	Class I
	Installation type	Independent installation
	Dimension	1857930mm
	Blackout memory function	Yes, PUSH blackout memory
	PUSH dimming synchronization	Parallel: 15 units Max. Series: 25 units Max.
	Packaging requirement	PE bag + kraft box + manual + partition + outer box (K=A)
	Weight	266±5g
	Life	5 year @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.

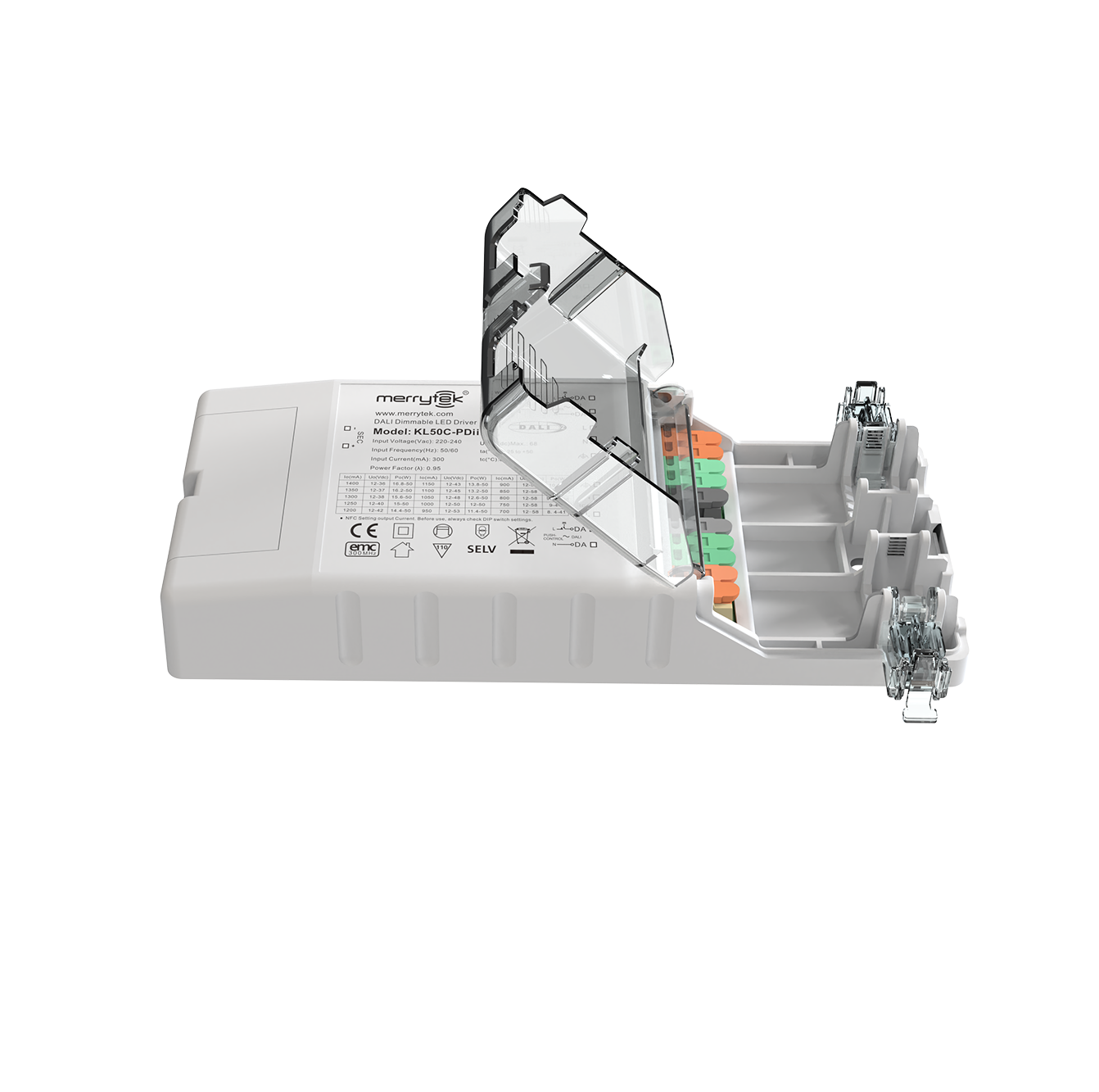

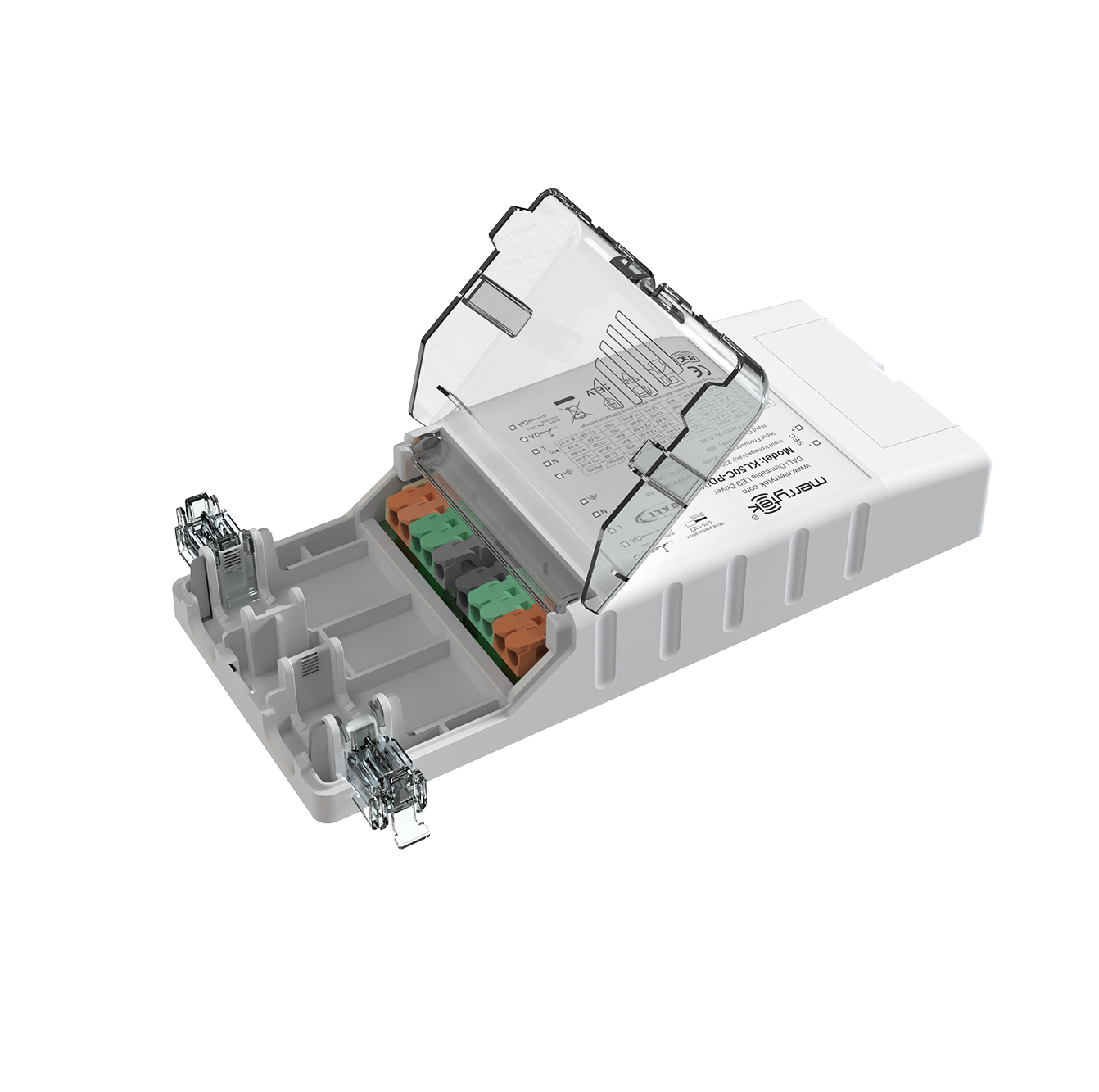

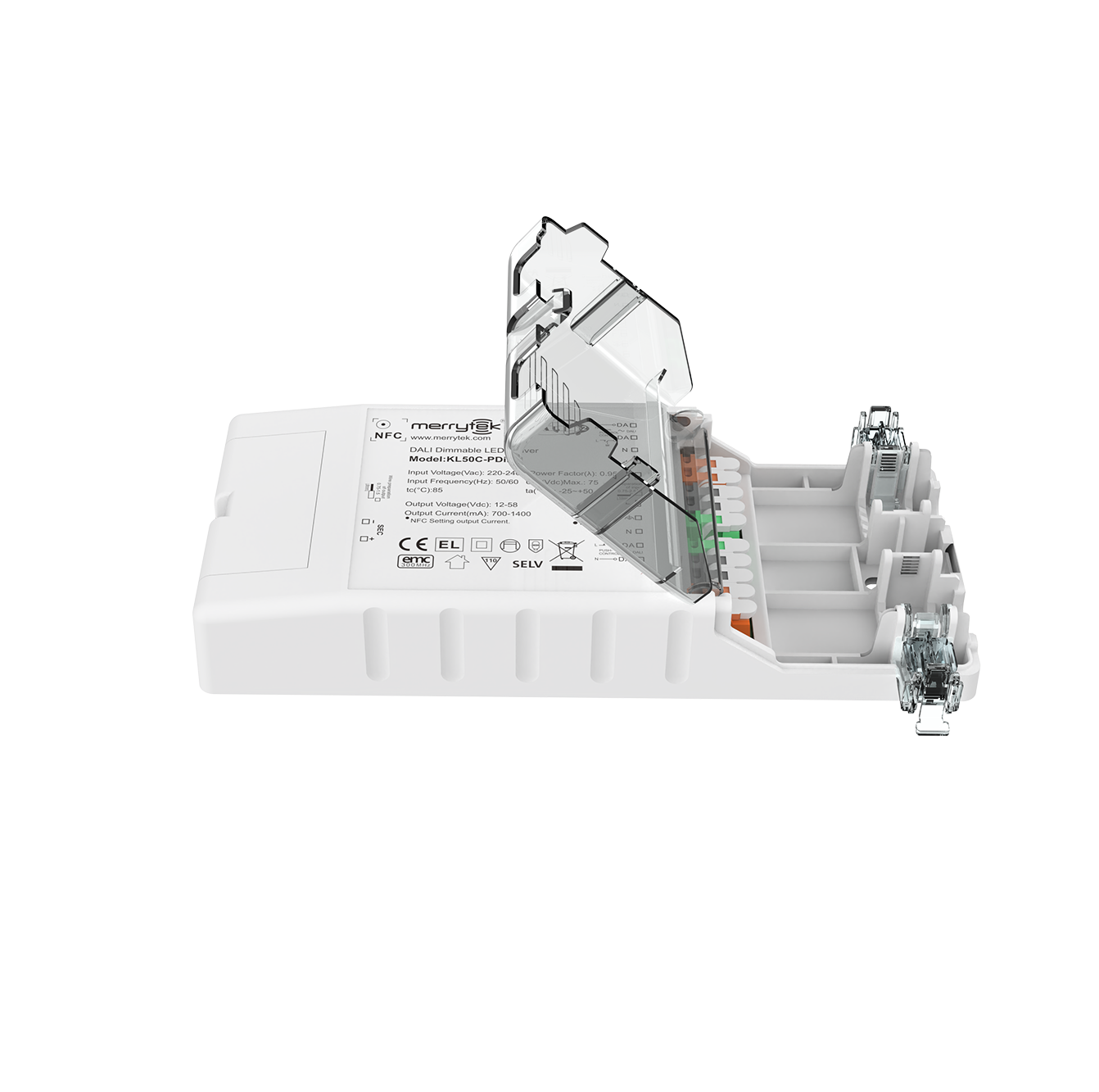

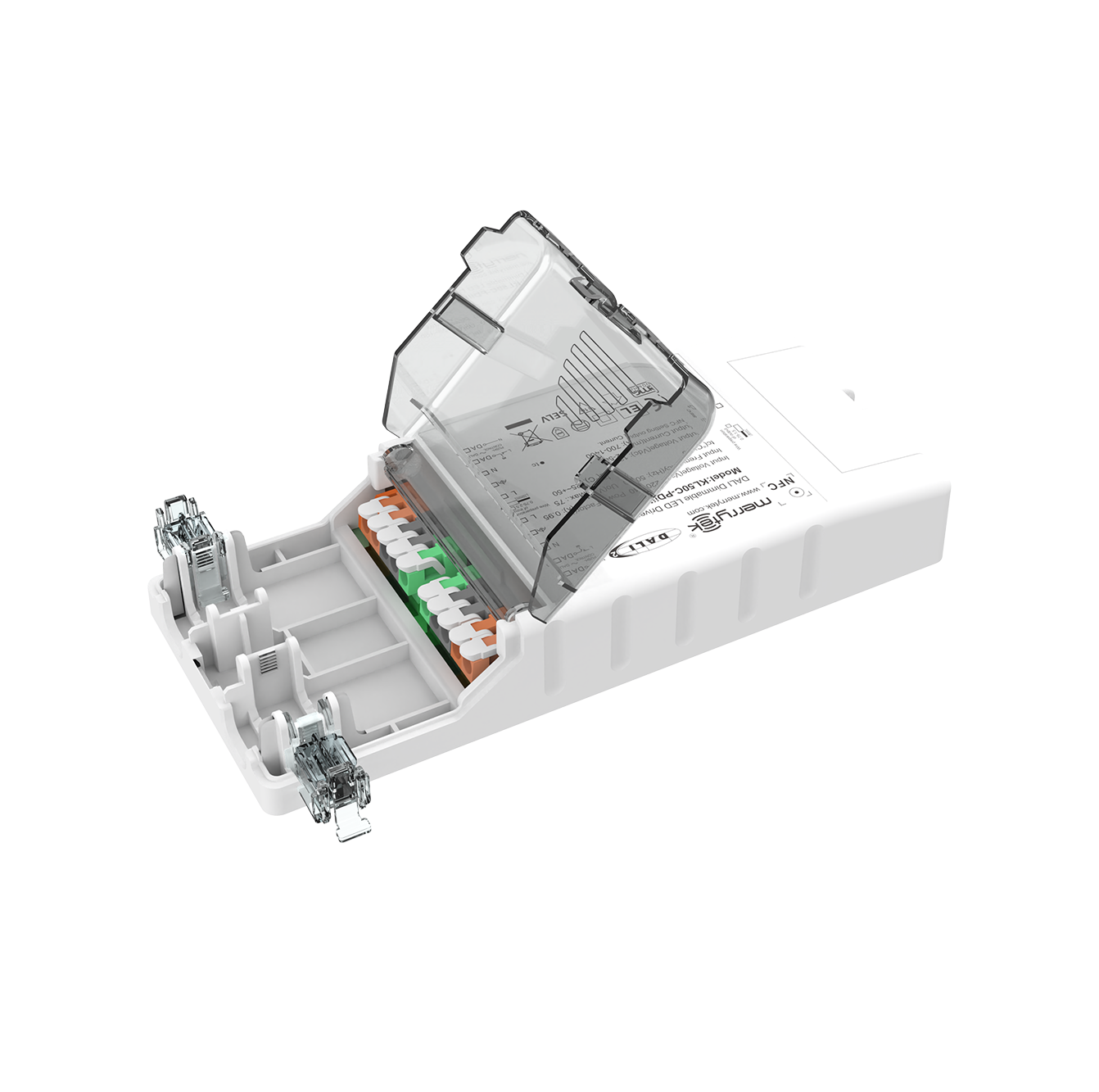

Product details

ON/OFF & Description of Dimming Operation

Short press the PUSH switch (short press time 0.1s-1s), the LED driver will turn on or off.
Dimming: Press and hold the PUSH switch (1s-8s), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.
Memory: PUSH dimming has dimming memory function.
Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15s
DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.

matters needing Attention

The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.
After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
Before setting the parameters by NFC, please make sure the driver is powered off.

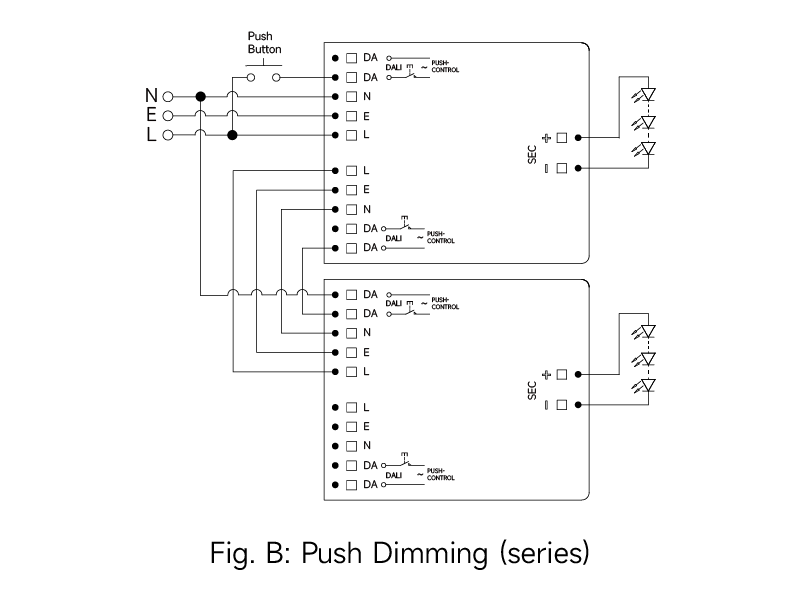

Wiring suggestions

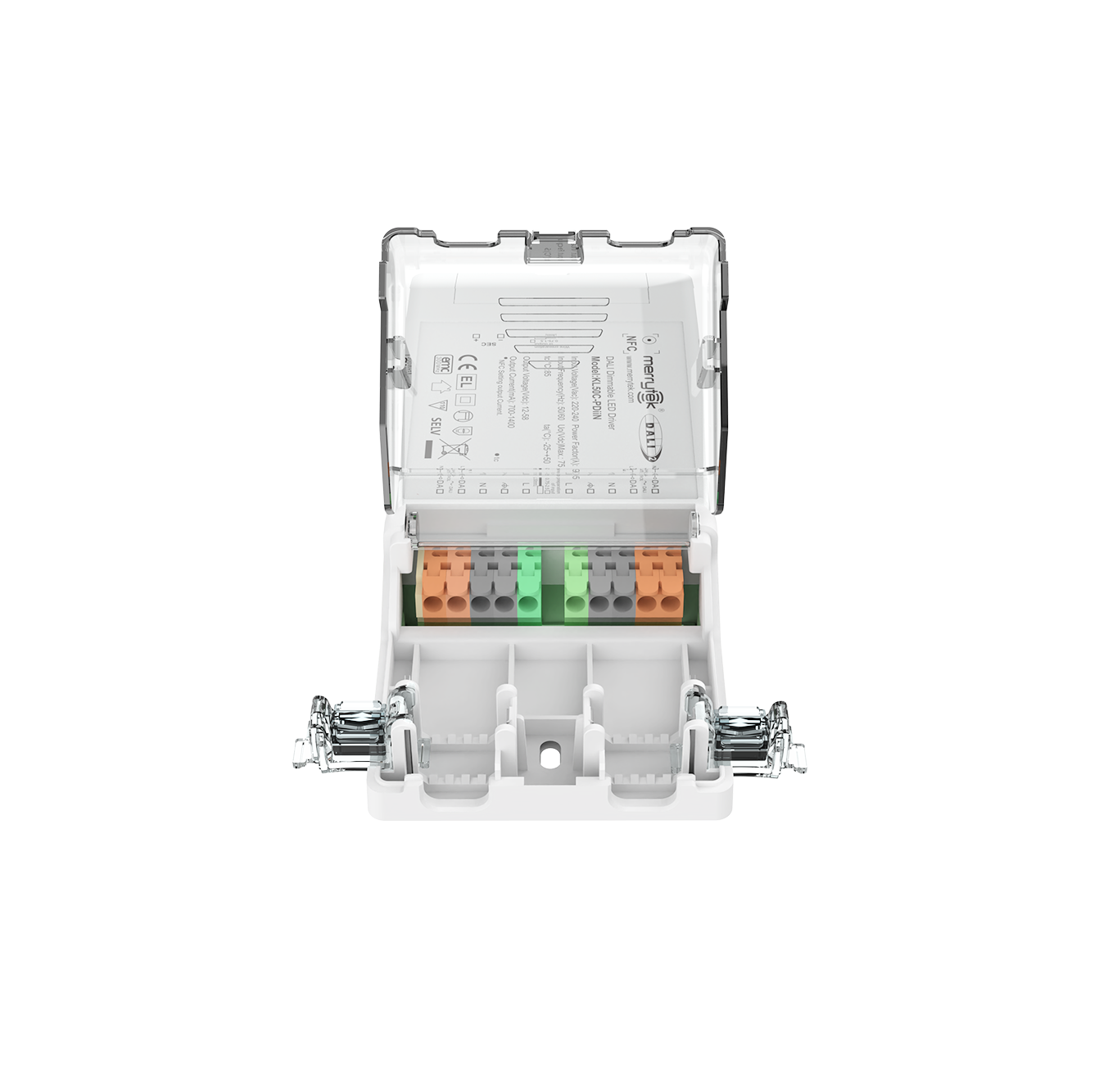

Installation suggestion

N/A

NameDateDownload
KL50C-PDiiN-Spec-2025.01.15.pdf 2025-09-10 03:01:29
