| Input | Operating Voltage | 198-264VAC 50Hz /60Hz | ||||||
| Rated Input Voltage | 220-240VAC 50Hz /60Hz | |||||||
| DC Input Voltage range | 200-240VDC | |||||||
| Input Cuttent | 0.28A Max. | |||||||
| Input Inrush Current | <15A (Half current pulse width 100US) @230VAC | |||||||
| Power Factor | ≥0.95 (@230VAC Full load） | |||||||
| Total harmonic distortion | Typical: 13% （@230Vac Full load） | |||||||
| Stand-by Power | ≤0.5W（@230Vac when PUSH or DALIturn off） | |||||||
| Efficiency | 86%Max. @230VAC （Full load） | |||||||
| Wiring Method | Push terminal, wire cross section:0.75-1.5mm² | |||||||
| Automatic circuit breaker (Calculate current in the wire) |
type | B10 | B13 | B16 | B20 | B25 | / | |
| Number | 20 | 25 | 30 | 40 | 50 | / | ||
| type | C10 | C13 | C16 | C20 | C25 | C32 | ||
| Number | 28 | 40 | 45 | 55 | 70 | 90 | ||
| Output | Operating mode | Constant Current | ||||||
| Load type | LED | |||||||
| Flickering / Flickering-Free | Flicker value: less than 2% for whole dimming range | |||||||
| Start up time | <1s (@230Vac) | |||||||
| No-load output voltage | 68VDC Max. | |||||||
| Load output voltage range | 9-58VDC | |||||||
| Full load output power | 50W Max. | |||||||
| Load output current | 700~1400mA : For details<Current gear setting> | |||||||
| Constant current/voltage Precision | Constant Current Precision ±5% | |||||||
| Wiring method | Push terminal, wire cross section:0.75-1.5mm² | |||||||

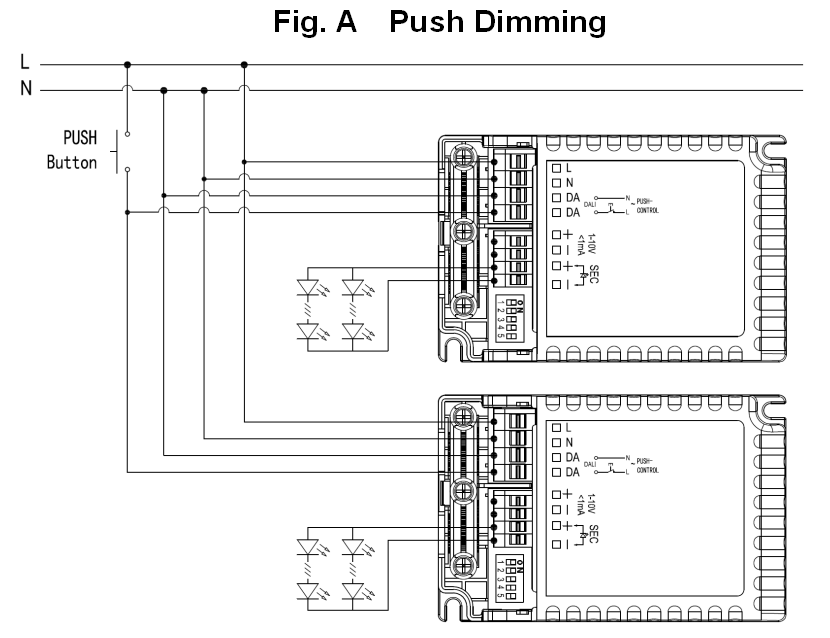

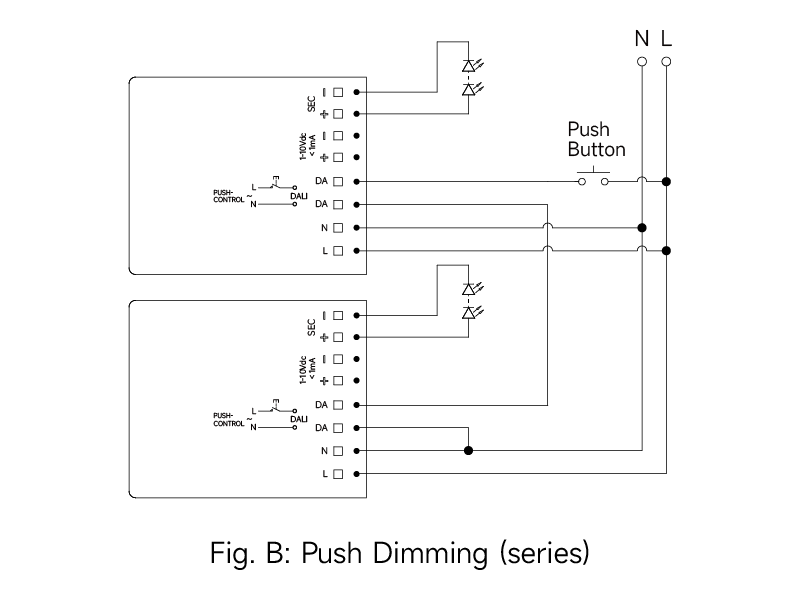

| Control Method | Primary PUSH Dimming | Primary PUSH dimming (Max.lead length：20M） | ||||||

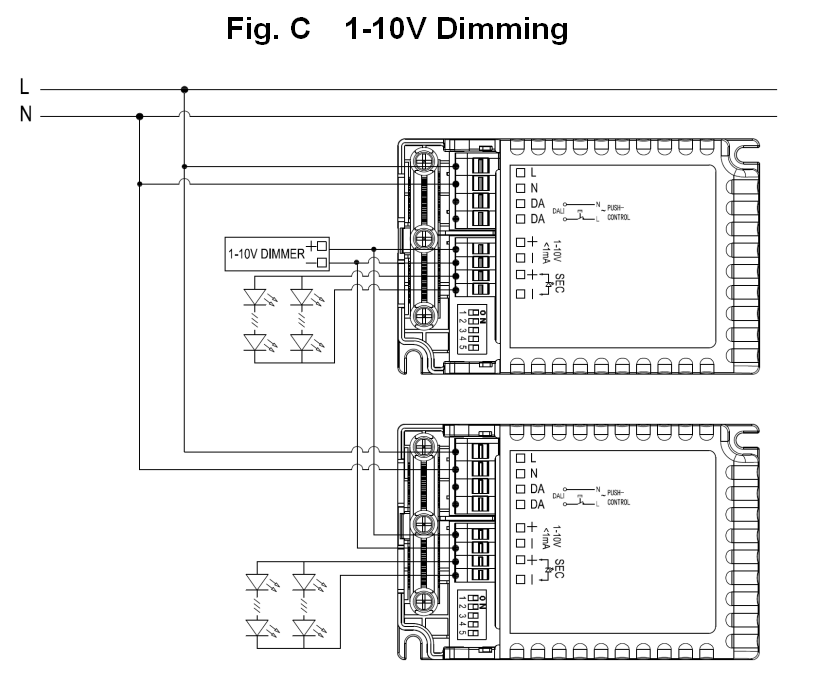

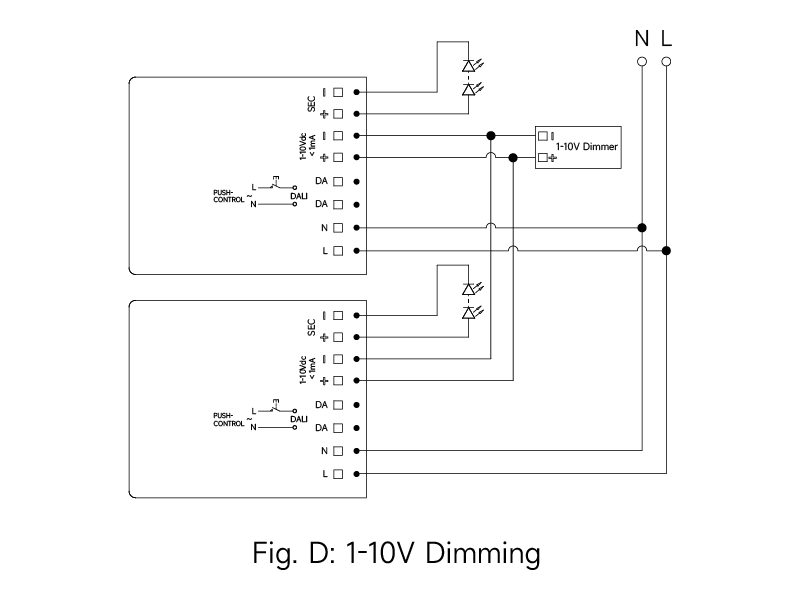

| 1-10V Dimming | 1-10V dimming（Port current＜1MA) (Max.lead length：20M） |
|||||||
| Dimming Range | Primary PUSH & DALI dimming: 0%-100% 1-10V dimming：2%-100% |
|||||||
| Primary PWM Dimming | 1-10V port PWM dimming （3KHZ-8KHZ） | |||||||
| Potentiometer | Yes, 100kΩ | |||||||

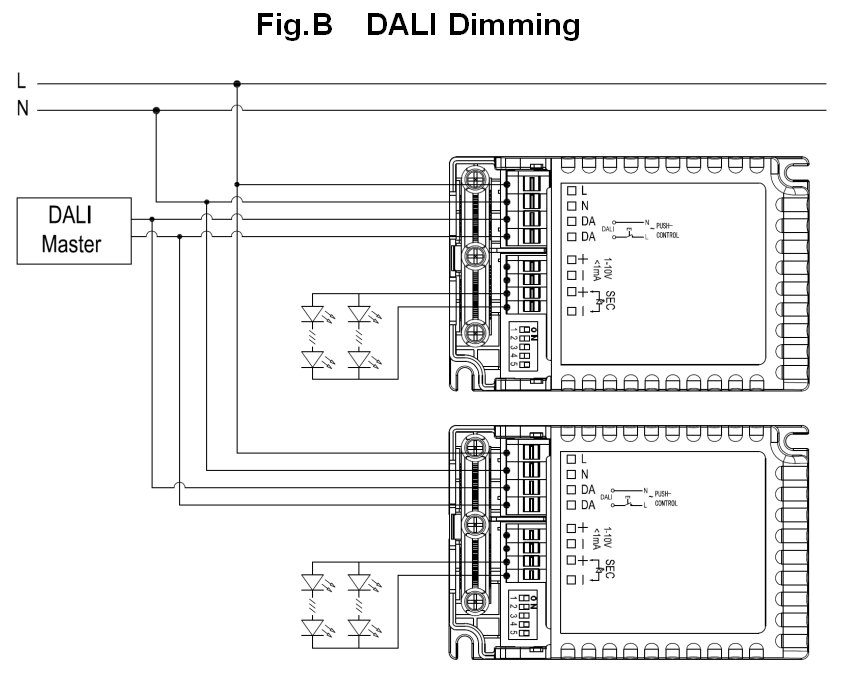

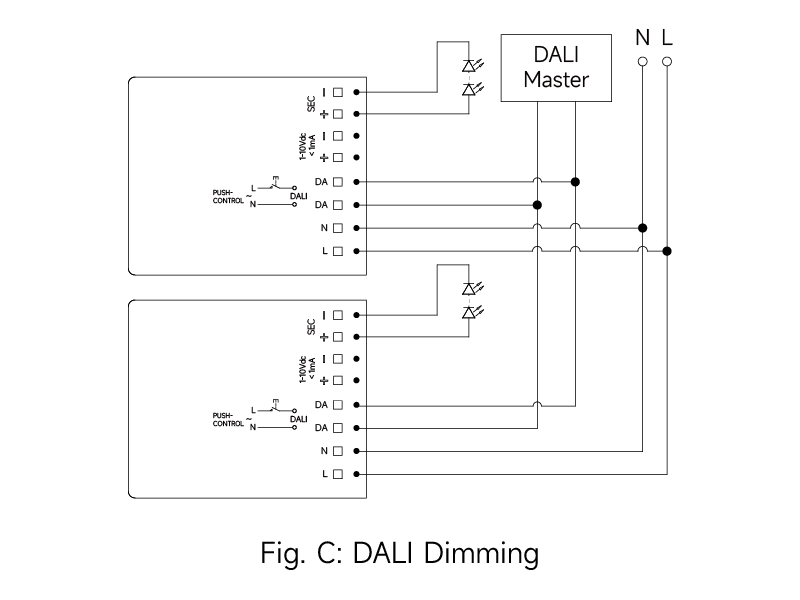

| DALI Dimming | DALI dimming (Max.lead length：300M） | |||||||
| Exception Protection Requirements | Output over temperature protection | Yes, without self recovery function（Can be inquired） | ||||||
| Output short circuit protection | Yes, without self recovery function（Can be inquired） | |||||||
| Operating Environment | Operating temperature/ humidity | -25℃~50℃ Humidity:85% (Non-condensing) | ||||||
| Storage temperature/ humidity | -40℃~80℃, Humidity:10%–95% | |||||||
| Max. case temp（Tc） | 85℃ | |||||||
| Safety & EMC | EMC standard | EN55015 EN61547 EN61000-3-2 EN61000-3-3 | ||||||
| DALI protocol standard | IEC62386-102 IEC62386-207 DT6 | |||||||
| Safety standard | EN61347-1 EN61347-2-13 | |||||||
| Certification | ENEC SEMKO CB CE | |||||||
| Withstand voltage | 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”) | |||||||
| Others | Degrees of protection | IP20 | ||||||
| Type of protection | Class II | |||||||
| Installation type | Independent installation | |||||||

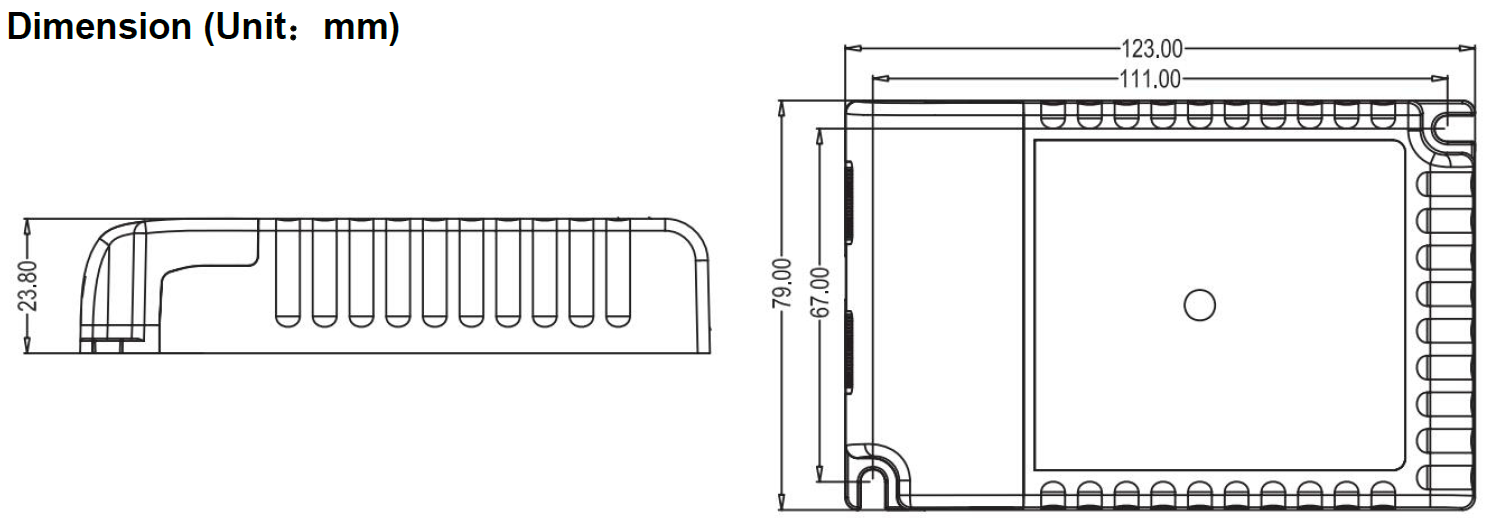

| Installation dimension | 123*79*24mm | |||||||
| Blackout memory function | Yes, PUSH blackout memory | |||||||
| PUSH dimming synchronization | 15 units Max. | |||||||
| Packaging requirement | white box+ Instructions Clapboard Outer Carton（K=A） | |||||||
| Weight | 210g | |||||||
| Life | 5 years guarantee @Ta full load | |||||||
| Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified. | ||||||||
ON/OFF & Description of Dimming Operation
N/A
