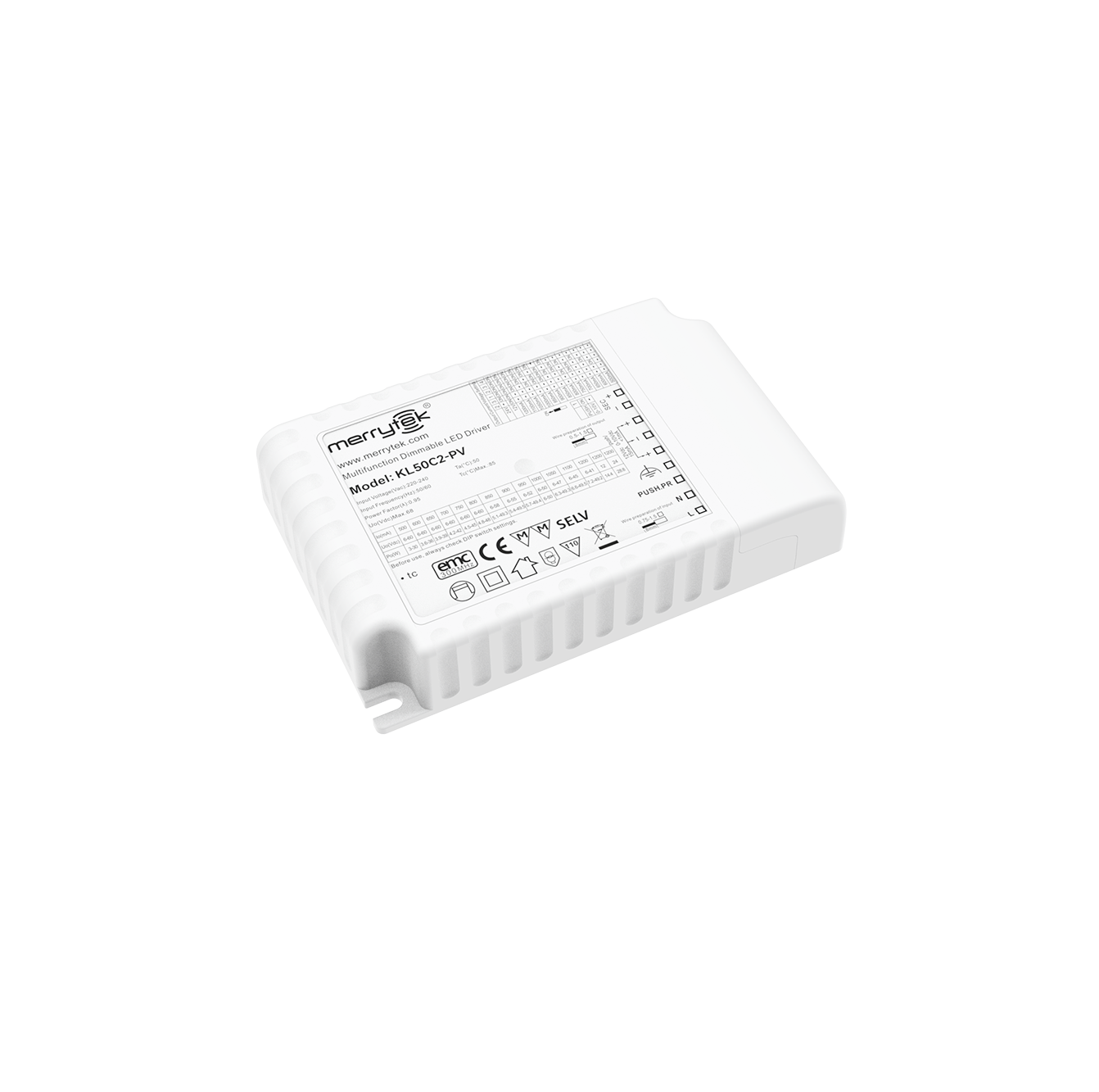

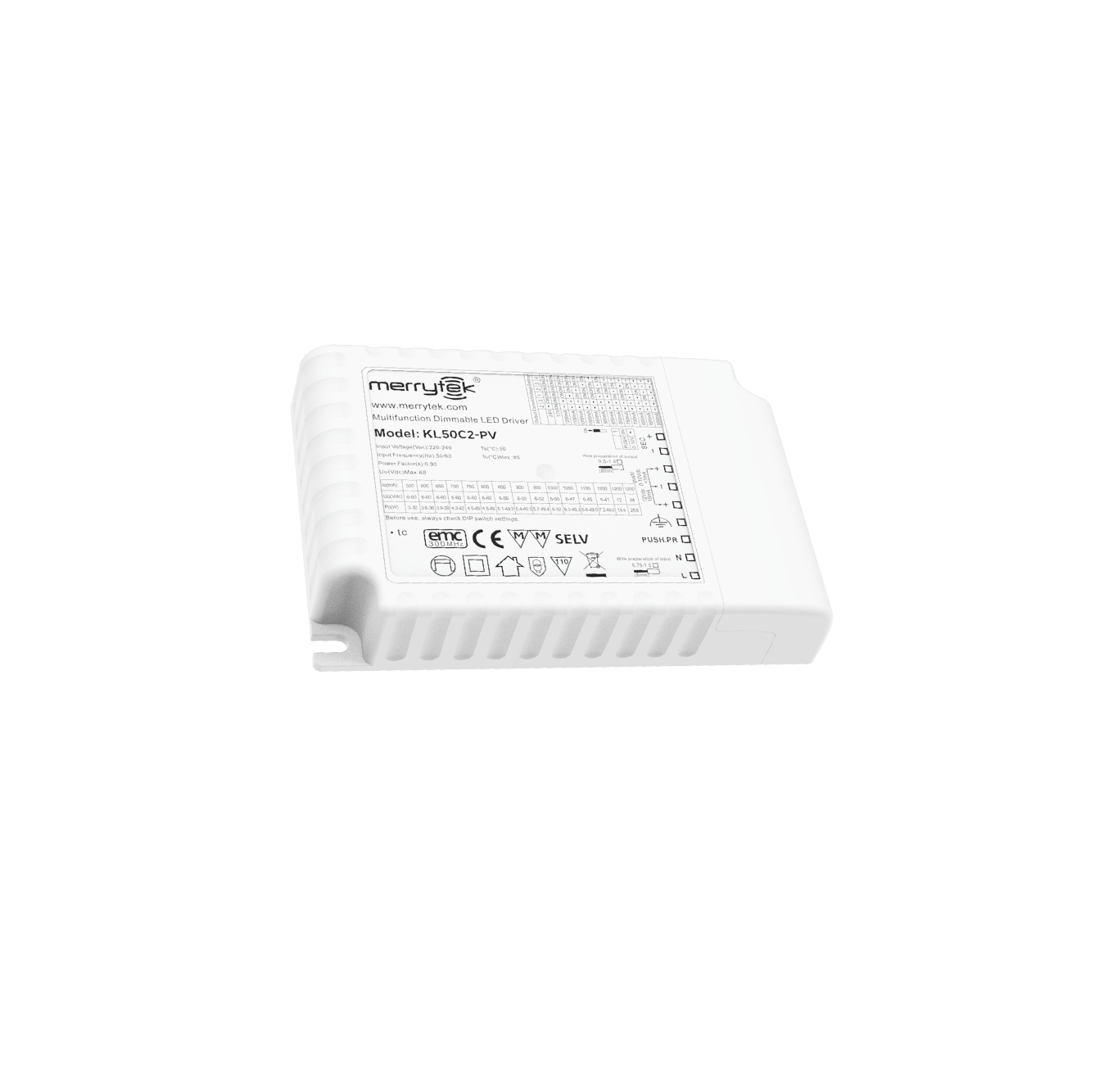

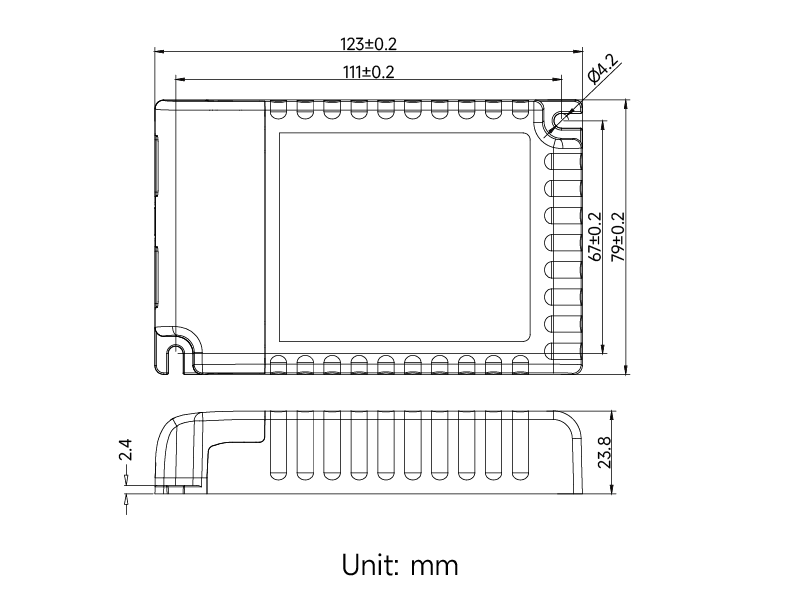

KL50C2-PV

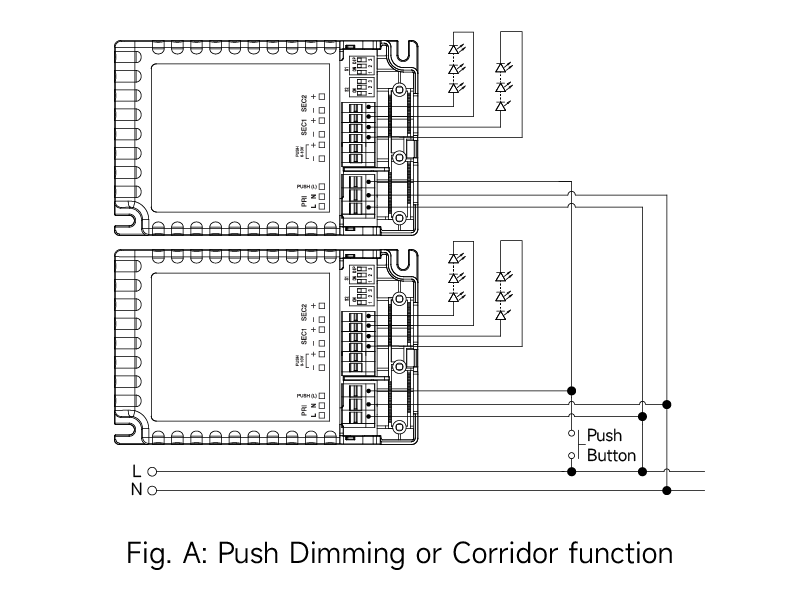

ON/OFF & Description of Dimming Operation

1. Brief push switches (< 1s),LED driver ON or OFF. The brightness returns to the last dimming value.
2. Press and hold the PUSH switch (1S~8S), the LED driver can achieve dimming;After pressing it again, the light changes in the opposite dimming directions.
3. Push dimming has power-down memory and brightness memory.
4. Dimming synchronization: LED driver can synchronize to a 50% dimming level with a 15-second hold the push.
5. Set fade times：Press push button to turn off lights, Then long press button, lights will turn on and dim. the time of long press will be saved to fade times.Turn of fade times function: Quickly press the PUSH switch 5 times within 3 seconds;Turn on fade times function: long press PUSH 15S.
6. Corridor function: PUSH has an L signal greater than 60S, enter the corridor function, 100% brightness, 20% brightness, wait for 60S, and then turn off the lights. Brief push switches 5 times to exit the corridor function.
7. Push button with indicator lights are not allowed.

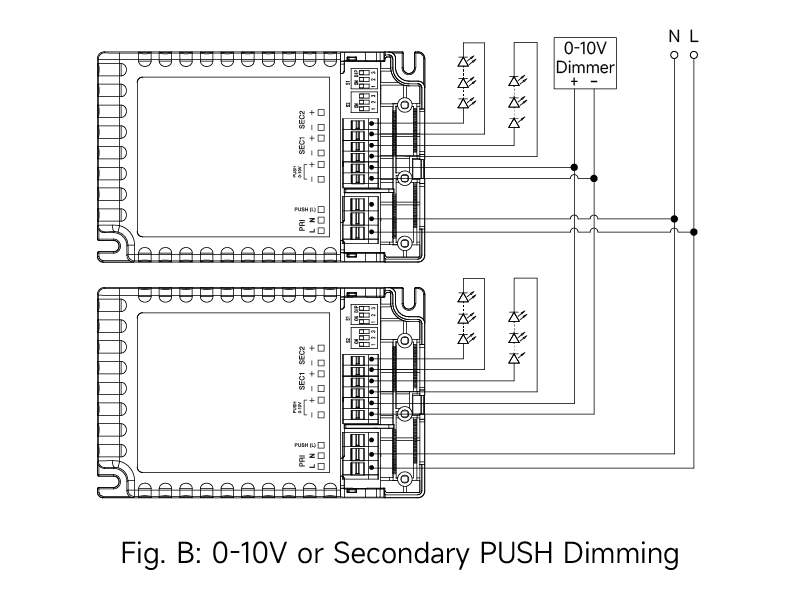

8. Secondary PUSH: The DIP switch “4”is closed;  0-10V：The red DIP switch “4” is open;

matters needing Attention

1. The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.
