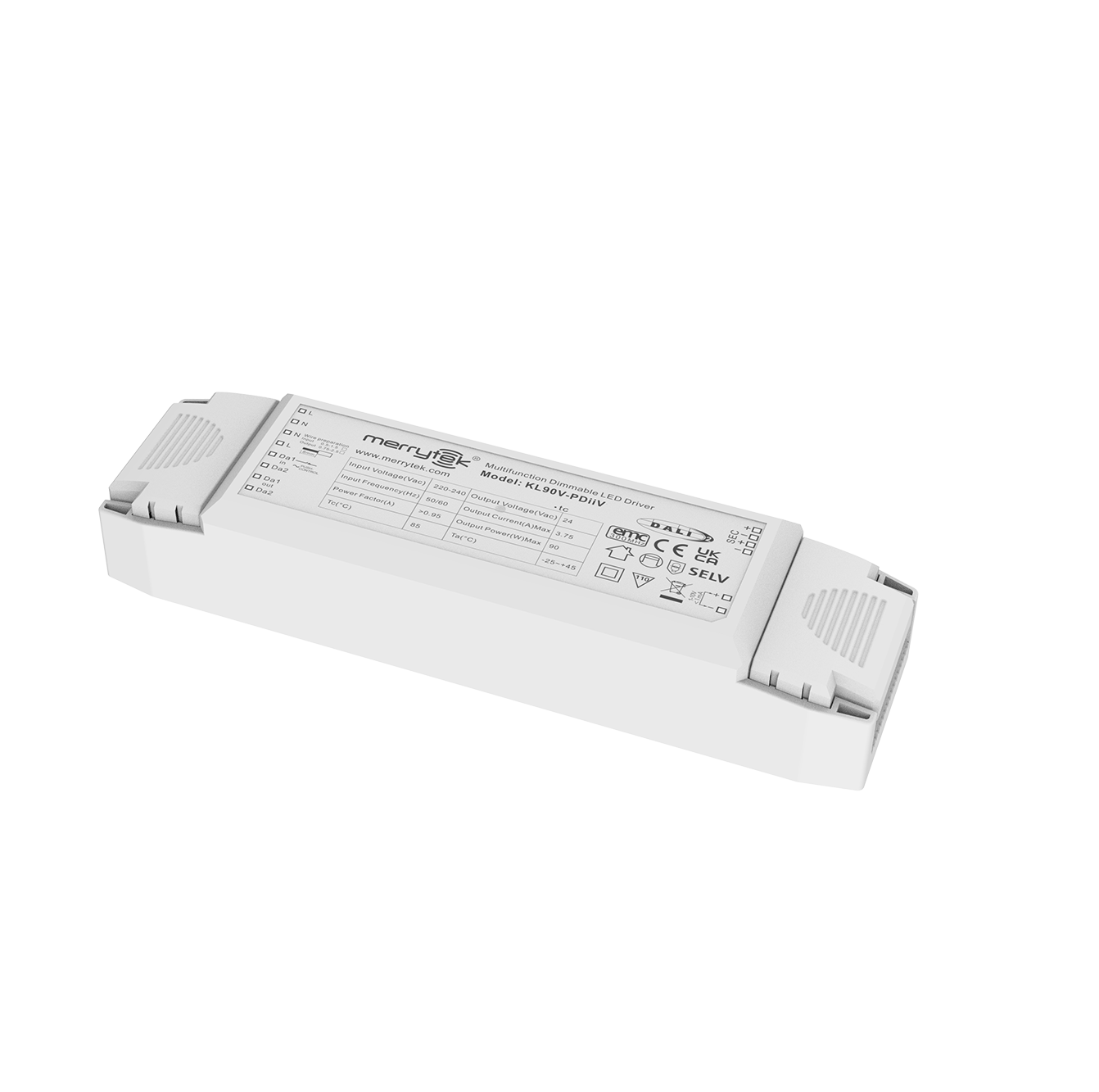

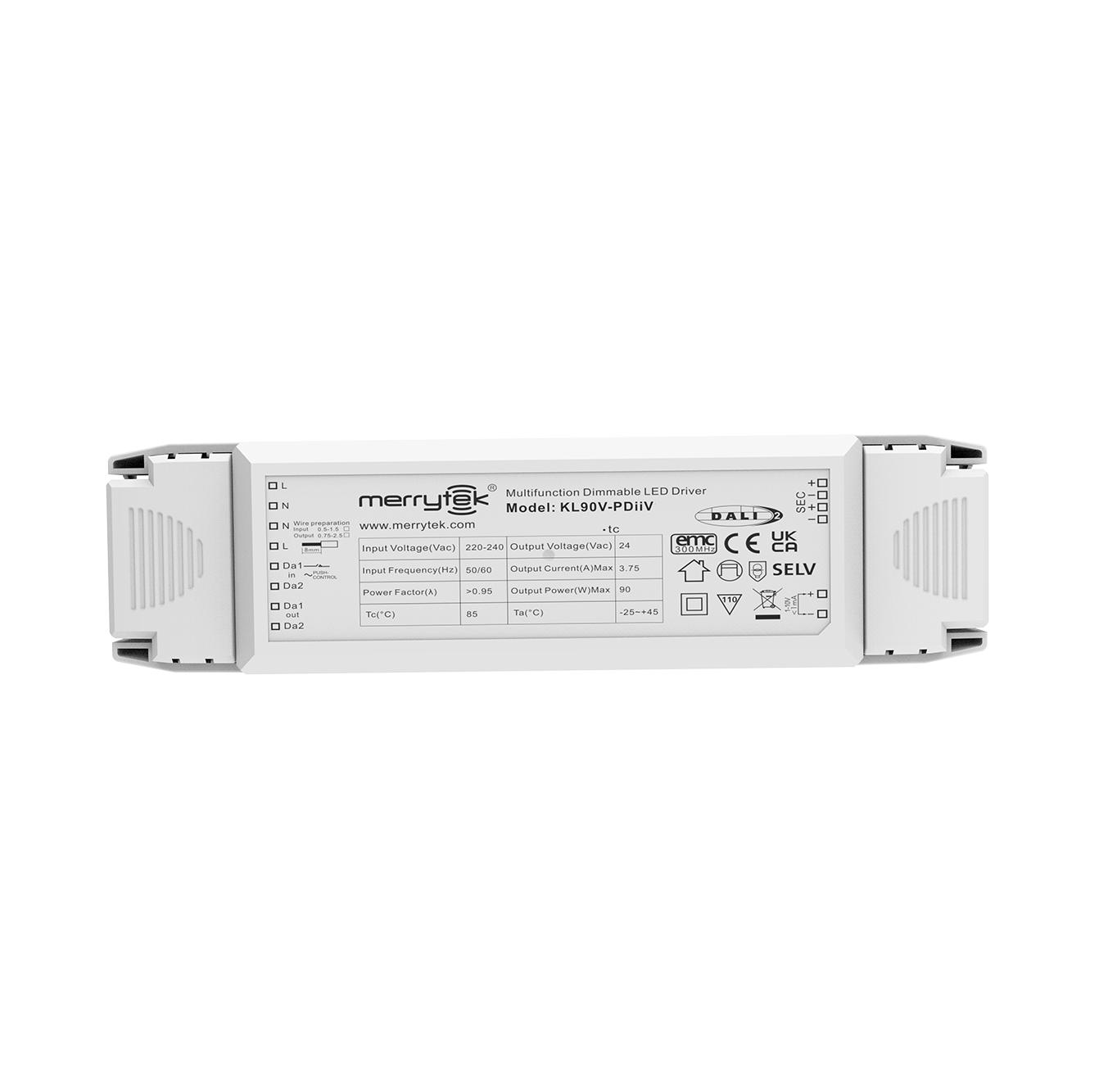

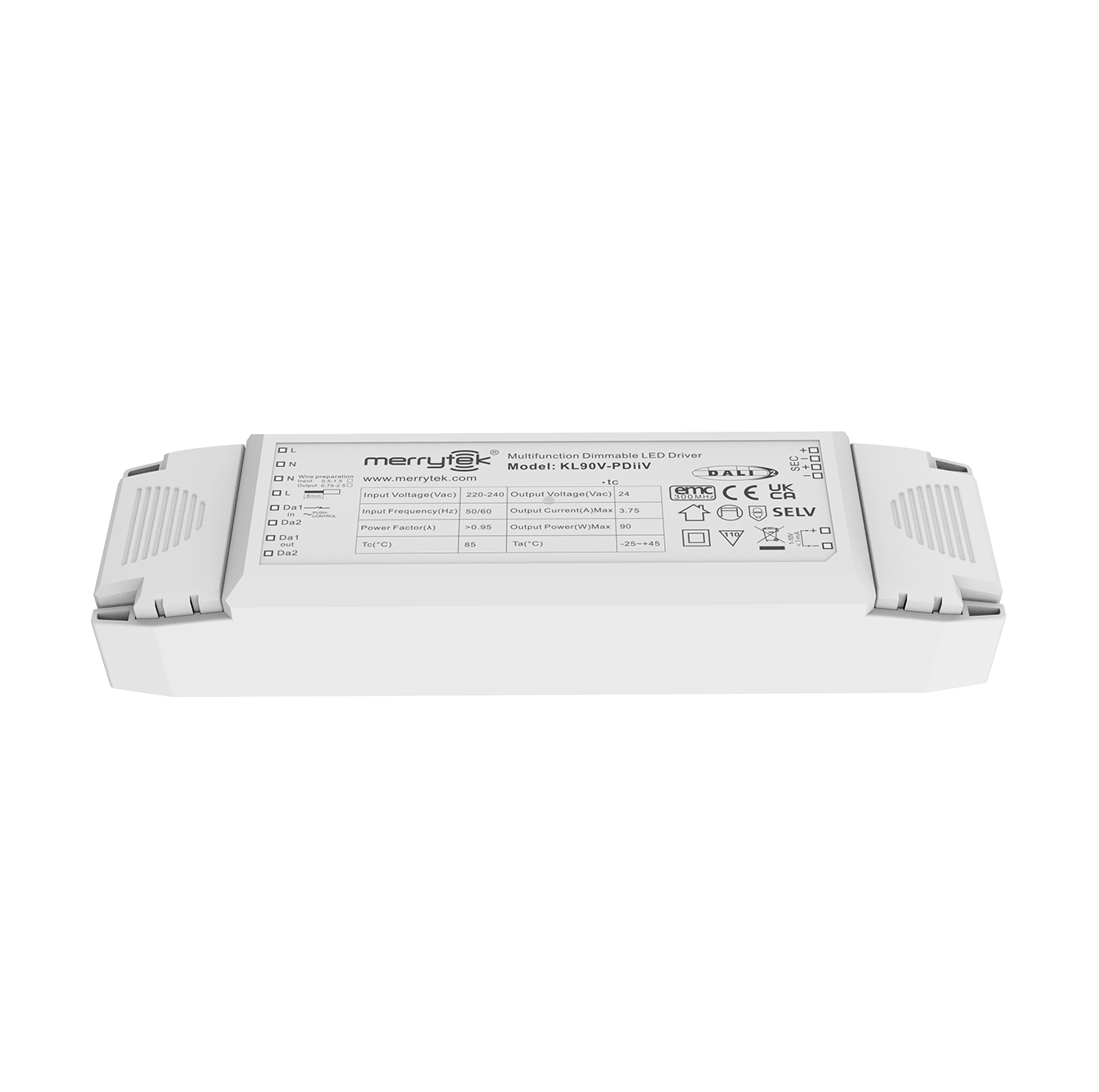

| Series | Name | KL90V-PDiiV | KL90V-PDiiV1 | KL120V-PDiiV1 | |||||||||
| Input | Voltage range | 198~264Vac 50Hz /60Hz | |||||||||||
| Rated supply voltage | 220~240Vac 50Hz /60Hz | ||||||||||||
| DC voltage range | 200~240Vdc | ||||||||||||
| Input current （@230Vac） | 0.46A Max | 0.45A Max | 0.6A Max | ||||||||||
| Inrush Current | 30A (Half current pulse width 100US) @230VAC | ||||||||||||
| Power factor | ≥ 0.95 （@230Vac,100% load） | ||||||||||||
| Total harmonic distortion | Typical: 6% （@230Vac, 100% load） | ||||||||||||
| Stand-by power | ≤0.3W | ||||||||||||
| Efficiency（230Vac,100% load） | 91%Max | 92%Max | 92%Max | ||||||||||
| Wiring method | Push terminal, wire cross section:0.5-1.5mm² | ||||||||||||
| Loop-in&Loop-out quantity | 16PCS（@230Vac） | 16PCS（@230Vac） | 12PCS（@230Vac） | ||||||||||
| Automatic circuit breaker type (Calculate current in the wire) |
B10 | 7 | C10 | 12 | B10 | 7 | C10 | 12 | B10 | 6 | C10 | 10 | |
| B13 | 9 | C13 | 16 | B13 | 9 | C13 | 16 | B13 | 7 | C13 | 13 | ||
| B16 | 11 | C16 | 20 | B16 | 11 | C16 | 20 | B16 | 9 | C16 | 16 | ||
| B20 | 14 | C20 | 25 | B20 | 14 | C20 | 25 | B20 | 11 | C20 | 20 | ||
| B25 | 17 | C25 | 35 | B25 | 17 | C25 | 35 | B25 | 14 | C25 | 25 | ||
| / | / | C32 | 35 | / | / | C32 | 35 | / | / | C32 | 30 | ||
| Output | Operating mode | Constant voltage | |||||||||||
| Load type | LED | ||||||||||||
| Flickering / Flickering-Free | Flickering-Free | ||||||||||||
| Start up time | <1s (@230Vac) | ||||||||||||
| Forward voltage | 12V | 24V | 24V | ||||||||||
| Output current | 7.5A | 3.75A | 5A | ||||||||||
| Max. output voltage (no-load ) | 20V | 30V | 30V | ||||||||||
| Full load output power | 90W Max. | 90W Max. | 120W Max. | ||||||||||
| Minimum load | 9W | 9W | 12W | ||||||||||
| Output current/voltage tolerance | ±5% | ||||||||||||
| Wiring method | Screw terminal, wire cross section:2*0.5-2.5mm² | ||||||||||||

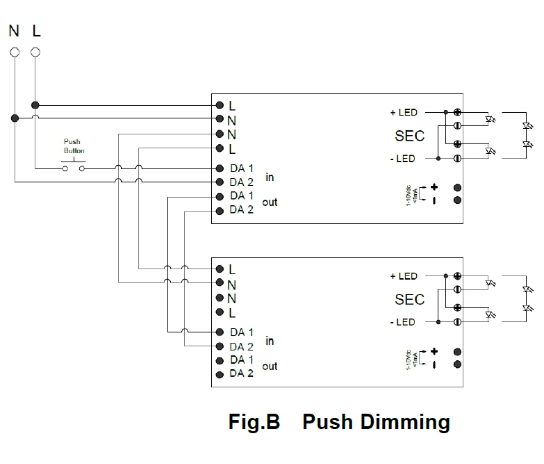

| Control Method | Primary PUSH Dimming | Primary PUSH dimming (Max. lead wire length：20m） | |||||||||||

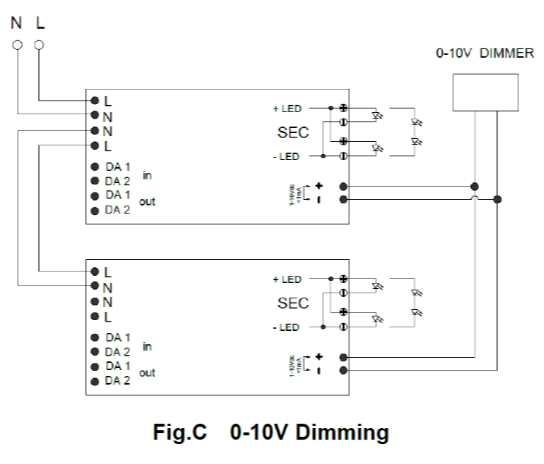

| 1-10V（0-10V）Dimming | 0-10V dimming（Port current＜1mA), (Max. lead wire length：20m） |
||||||||||||
| Dimming Range | 0%-100% | ||||||||||||
| Secondary PWM dimming | 0-10V port PWM dimming （3KHz-8KHz） | ||||||||||||
| Potentiometer | Yes, 100kΩ | ||||||||||||

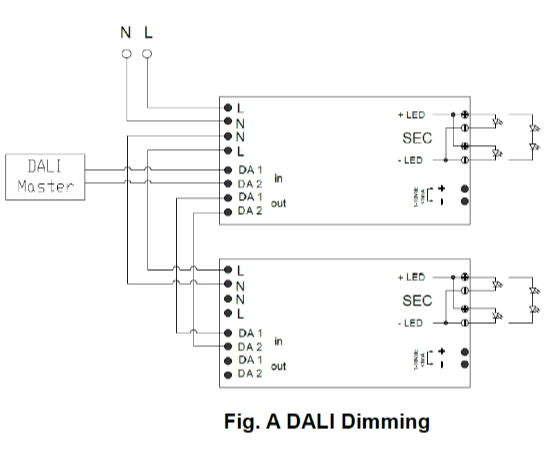

| DALI function | DALI dimming (Max. lead wire length：300m） | ||||||||||||
| Exception Protection Requirements | Output over temperature protection | Yes, reset power on to recover | |||||||||||
| Output short circuit protection | Yes, reset power on to recover | ||||||||||||
| Operating Environment | Storage temperature/ humidity | -40℃~80℃, Humidity:10%–95% | |||||||||||
| Operating temperature/ humidity | -25~50℃ | -25~50℃ | -25~40℃ | ||||||||||
| Max. case temp（Tc） | 85℃ | 85℃ | 90℃ | ||||||||||
| Safety & EMC | EMC standard | EN55015, EN61547, EN61000-3-2, EN61000-3-3 | |||||||||||
| DALI standard | IEC62386-102, IEC62386-207 | ||||||||||||
| Safety standard | EN61347-1, EN61347-2-13 | ||||||||||||
| Certification | CE | ||||||||||||
| Withstand voltage | 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”) | ||||||||||||
| Others | Degrees of protection | IP20 | |||||||||||
| Type of protection | Class II | ||||||||||||
| Installation type | Independent installation | ||||||||||||

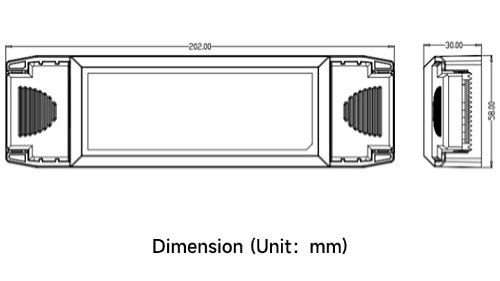

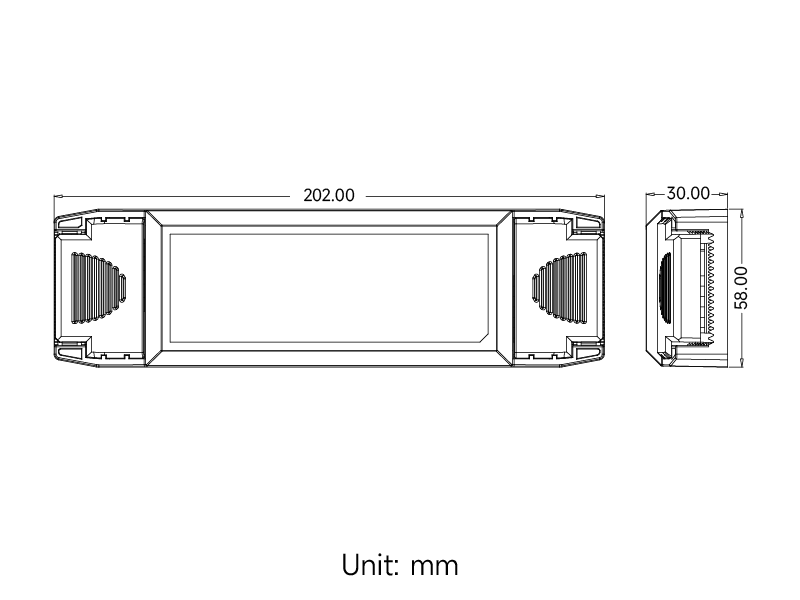

| Installation dimension | 202*58*30mm | ||||||||||||
| Memory function | Yes, （PUSH with memory function） | ||||||||||||
| PUSH dimming synchronization | 15 units Max. | ||||||||||||
| Packaging requirements | Instruction+clapboard+outer carton（K=A） | ||||||||||||
| Weight | 400g | ||||||||||||
| Life | 5 years @Ta 100% load | ||||||||||||
| Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified. | |||||||||||||
ON/OFF & Description of Dimming Operation
