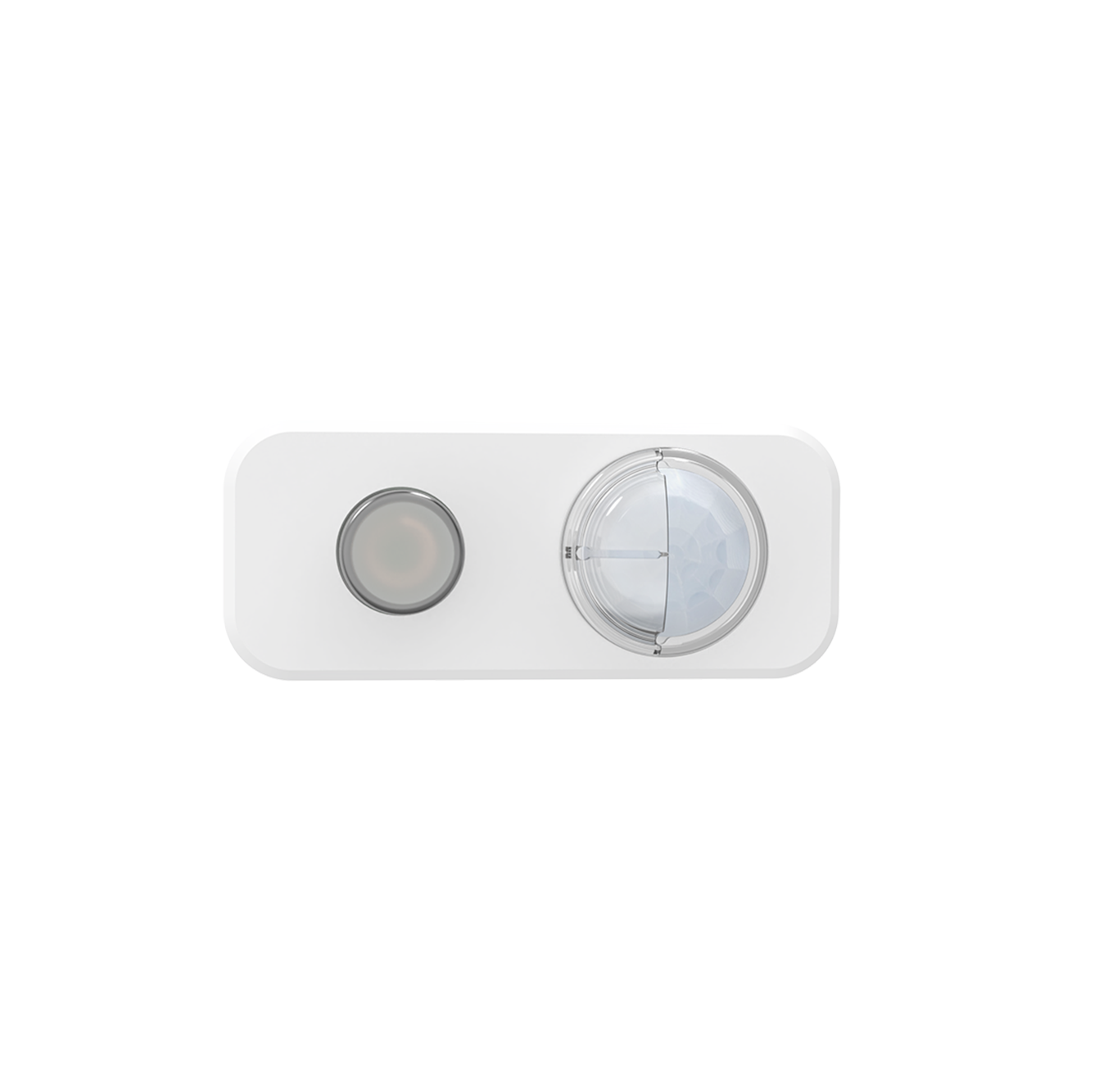

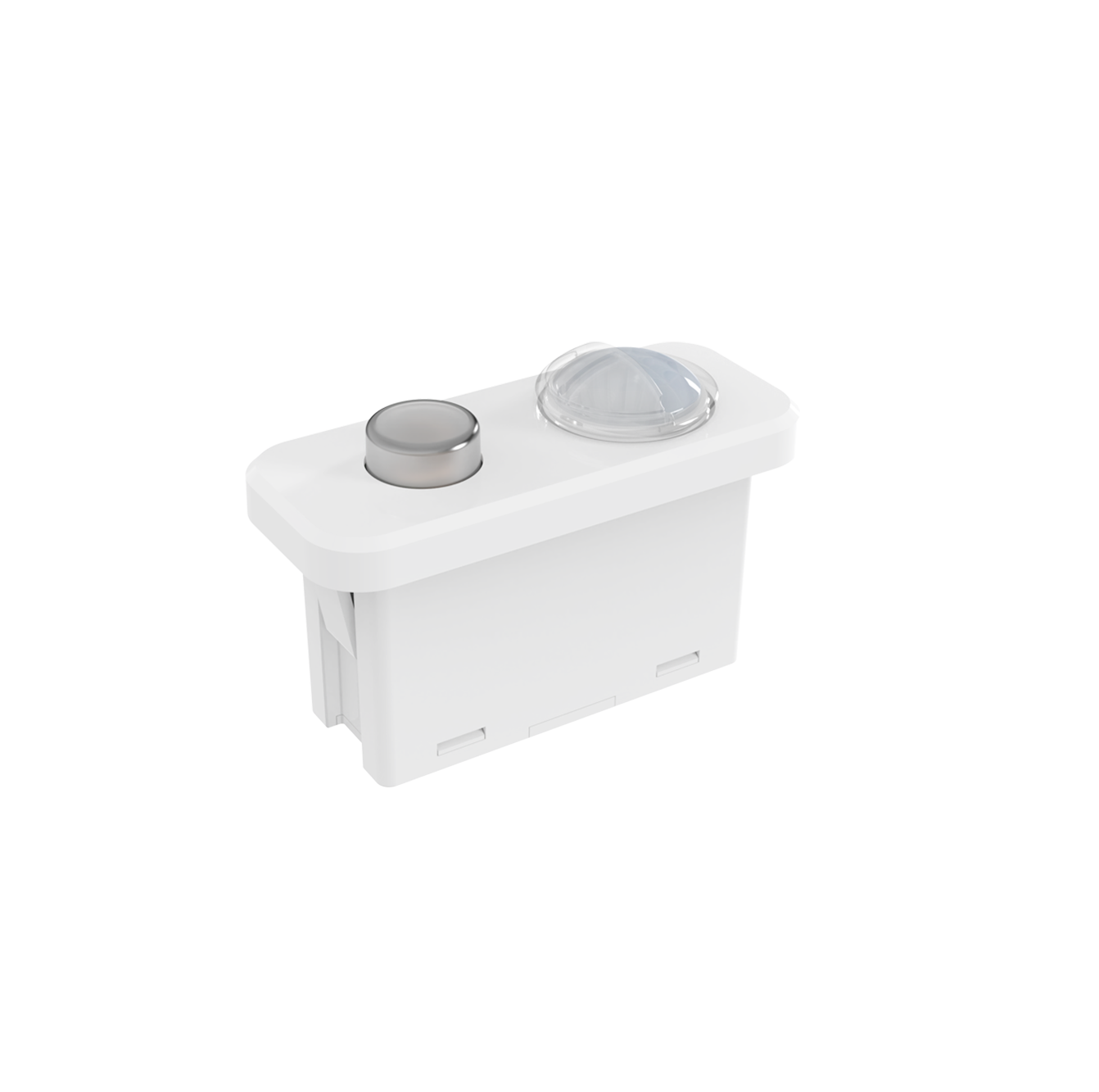

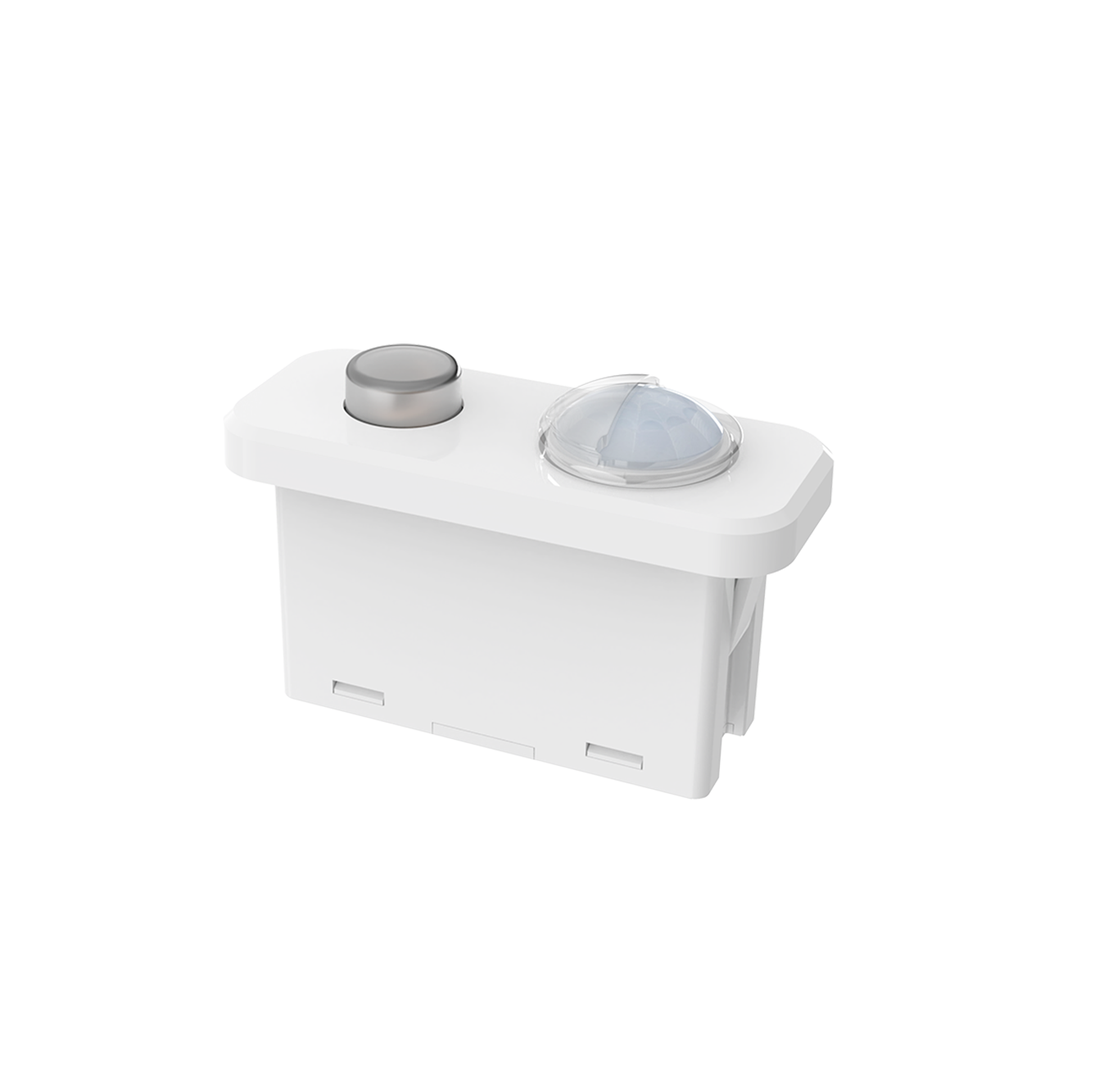

MC182D IR B & MC182D IR 1 B

Features

Built-in installation presence sensor, standard zhaga20 interface
Adopt PIR motion detect technology, support 4m max. installation height
5 years product warranty
Motion and daylight sensor function
Applicable for office,classroom environments where motion detection required
Grouping networking by 2.4G wireless, no need pairing or
gateway.
Output 0-10V dim or PWM dim, 2-step/3-step dim function.
All sensor parameters can be set by remote control.

Dimension & Function Diagram

Parameter characteristics

Input	Rated Voltage	12±1Vdc
	Operating Current	6±2mA
	Ripple Voltage	<100mVp-p
Output	Output Signal	MC182D IR 1 B		MC182D IR B
		PWM dimming signal		0-10V DC dimming signal
Sensor parameters	Detection mode	PIR detection
	Detection Area	100%/75%/50%/25%(MH17); 100%/50%/25%(MH15)
	Hold Time	30s/1min/3min/5min/10min/20min/30min(MH17); 30s/1min/3min(MH15)
	Stand-by Period	0s/10s/1min/3min/5min/10min/30min/+∞(MH17); 5min/10min/+∞(MH15)
	Stand-by DIM Level	10%/20%/30%/50%(MH17); 10%/30%(MH15)
	Daylight Sensor	Daylight threshold	5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/999Lux(Disable)(MH17) 15Lux/50Lux/(Disable)(MH15)( Ambient light diffusing state)
		Daylight harvesting	100L/200L/300L/400L/500L/600L/Disable (MH17 press “P” enter daylight harvesting mode)
	Stand-by Dim Level	10%/20%/30%/50% (MH17); 10%/30%(MH15)
	Detection Range (radius)	Ceiling installation 3m high: 0.6~1m/s ≥3m; tangential direction testing Motion and minor motion: r≥2.5m Test condition: 100% sensitivity, 60m² indoor open space. Ambient temperature 25℃
	Installation height	3m (4m Max )
Wireless Parameters	Operating Frequency	2.400-2.483GHz
	Transmitting Power	6dBm
	Group	One group max nodes 32 Pcs
	Transmitting Distance	15m MAX(Point-to-point open area transmission distance)
Environment	Working temperature(Ta)	‘-20℃-55℃
	Storage temperature	’-40℃~+80℃ Humidity: ≤85%(non-condensing)
Certification Standards	Certified	CE
	Environmental requirements	Comply with RoHS 2.0, Reach requirements
	IP Rating	IP20
	Protection Class	Class II
Other	Wiring	3 pin PH2.0 terminal
	Installation Requirements	External zhaga book20 installation
	Packaging requirements	Clapboard + Carton(K=A)
	Net weight	16±3g
	Lifetime	5 years warranty @Ta (indoor)

Product details

Initialization

After power on, the sensor automatically turns on light at 100% brightness and self-check for 45s-60s. During the initialization, the sensor is not able to detect movement. It enters sensing mode after initialization, and during which, the lamp maintains at 100% brightness.

Factory Setting

Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand-by period: 0s, Stand-by dim level: 10%

Application Notice

The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring and changing parameters.
PIR sensor can’t penetrate any materials, please make sure no obstacle between sensor and moving people/object.
Sensor may hard to detect people if wear thick clothes in cold winter.
Heat signals will be regarded as moving signals to trigger the sensor. Avoid facing sensor to air condition or other heating source.
Sensor is for indoor use only. Outdoor sunlight could affect the detection of sensor.
Due to continuous improvement, the contents of this instruction could be changed without prior notice.
The dimming performance could be different when work with different 0-10V drivers.
The daylight threshold is measured in a sunny environment without shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.
Detection distance is related to height of people, mounting height, mounting angle, working environment temperature and etc. When ambient temperature approaches the human body temperature range (36℃~37℃/96.8~98.6℉), PIR motion detection will significantly weaken or
non-responsive. When ambient temperature or LED tray temperature is higher than 55℃/131℉, false triggering may happen, please try to reduce detecting sensitivity to improve. If stays false triggering, the PIR sensor should not suitable to be used in the space.
Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
This product have to use with voltage-stabilized DC power supply whose input voltage is stable and ripple factor is low(ripple factor is lower than 100mV; load current is greater than 25mA).
When installing in new environment, please install and test at least 5pcs product firstly before mass installation.
PIR is a pyroelectric infrared sensor that detects changes in infrared rays. Pls pay attention to the following matters during actual use, such as: detecting heat sources other than the human body, the temperature of the heat source does not change or the heat source does not move, and other related environmental factors and violations of the PIR application principle impact.

Wiring suggestions

Installation suggestion
