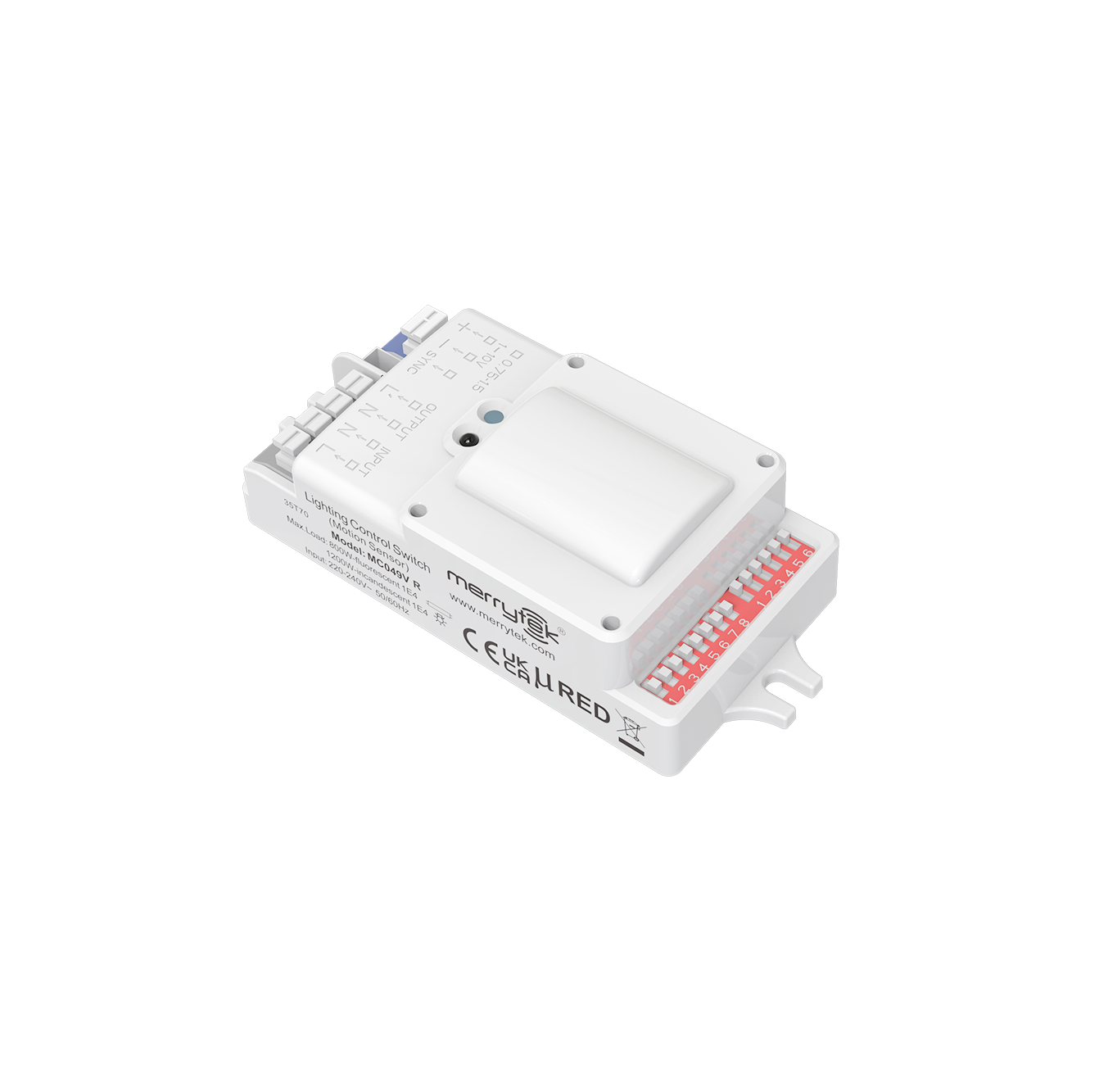

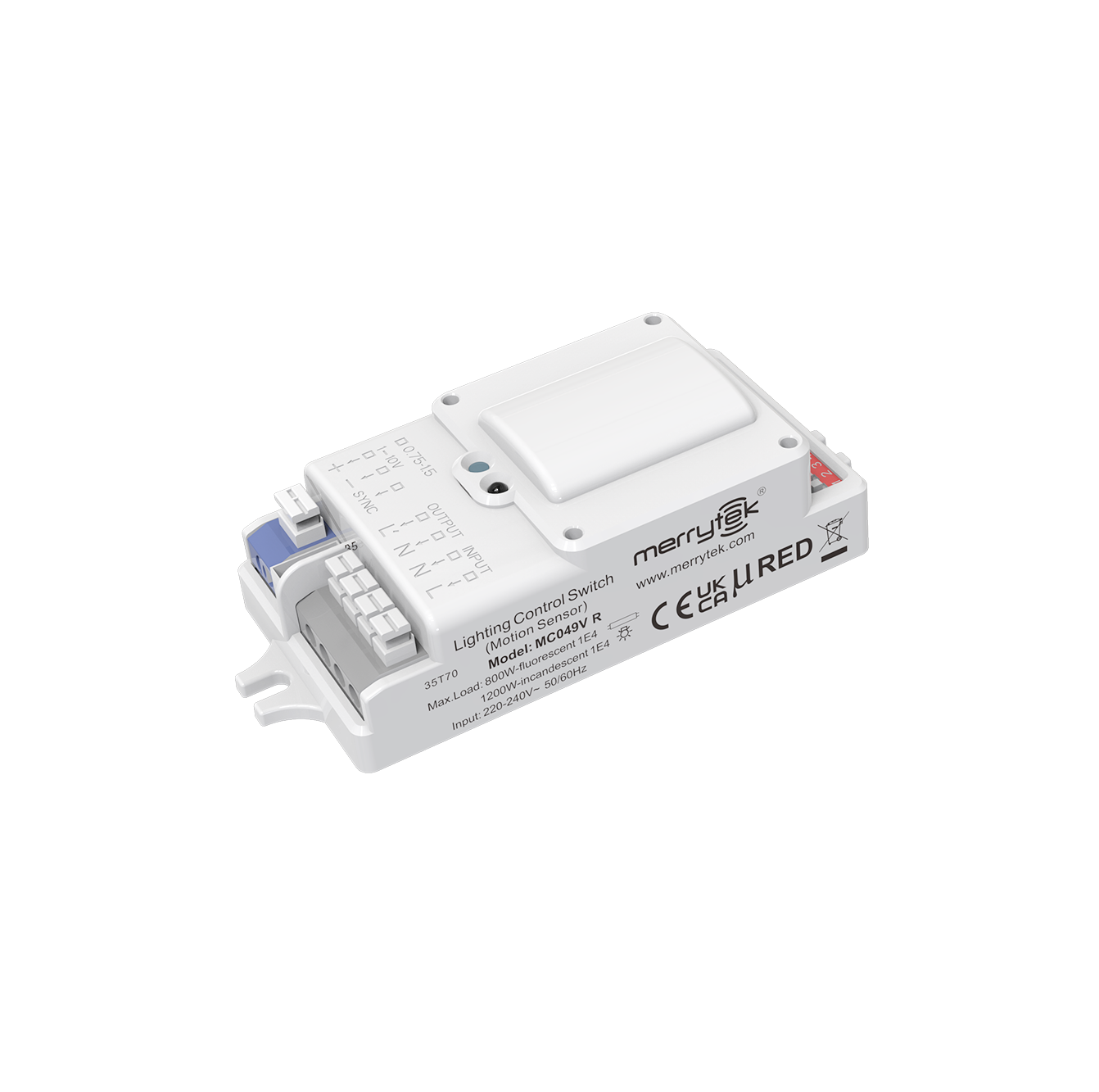

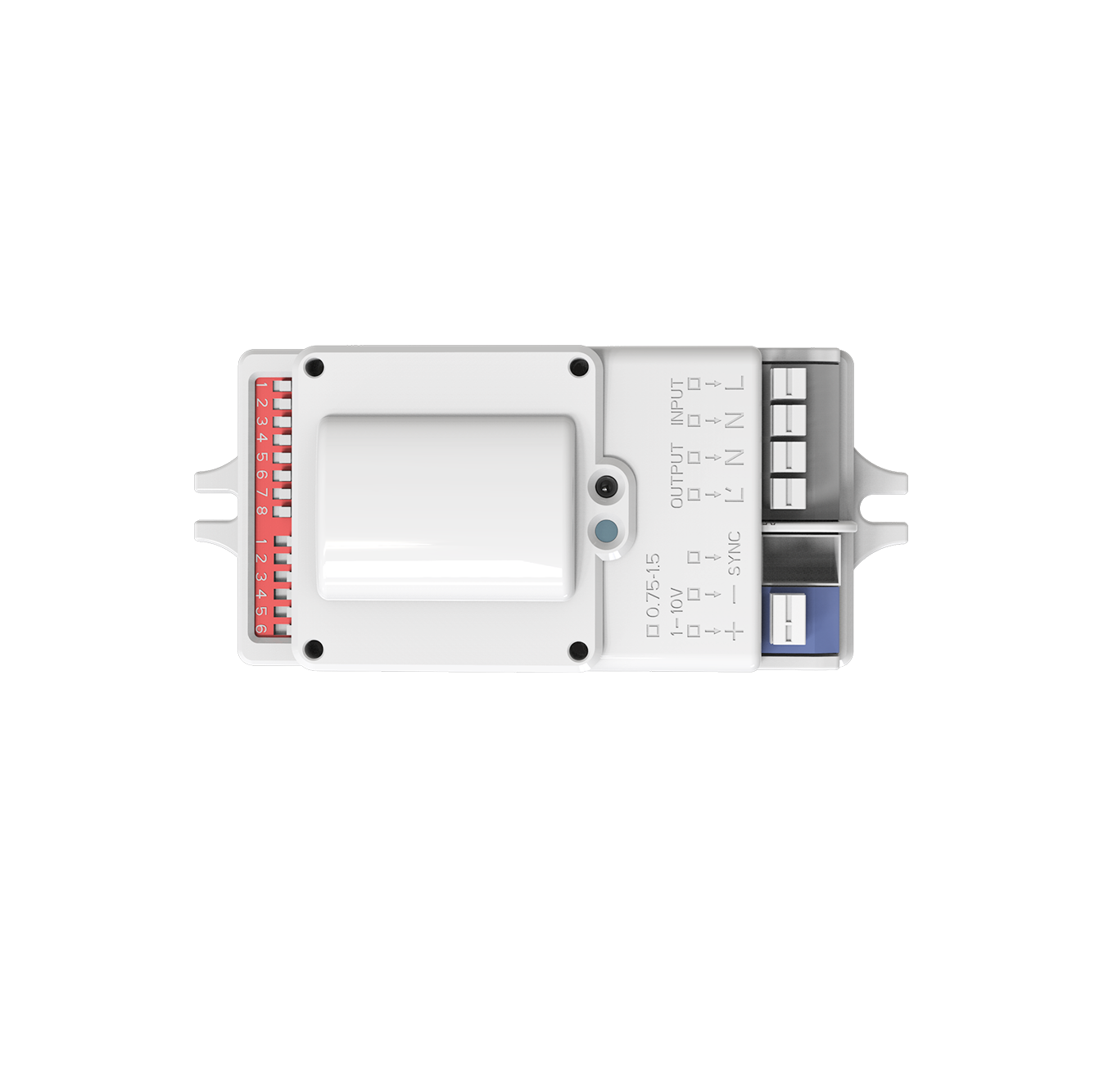

MC049V R

Features

Standard product, with 1-10V LED dimming drive, achieve 2-step or 3 step dimming function with 1-10V dimmable led driver,with a synchronous end
Detection area,hold time,daylight sensor,stand-by period,dim level by DIP switch
Convenient connection for user by pressed terminals for input and output end

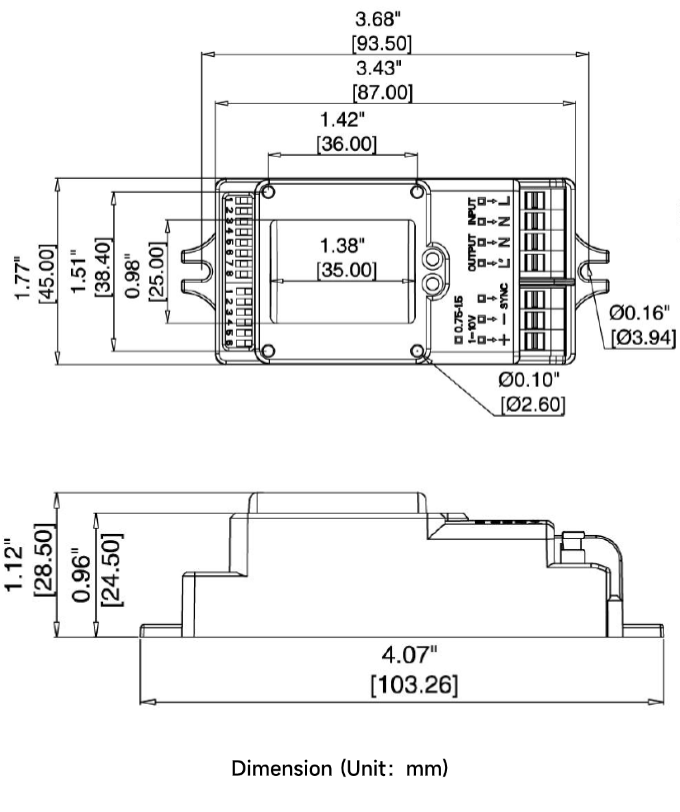

Dimension & Function Diagram

Parameter characteristics

Input	Operating voltage	108-305V AC 50Hz/60Hz
	Rated voltage	120-277V AC
	Stand-by power	≤0.5W（230Vac）
Output	Working mode	ON/OFF 1-10V dimming
	Type of load	White woven light/power supply /1-10V LED light
	Load capacity	120Vac 400W（inductive or resistive） 220Vac-240Vac 800W(inductive or resistive) 277Vac 1000W（inductive or resistive）
	Max.surge capacity	30A (50% Ipeak, twidth =500uS, 230Vac full load, cold start); 60A (50% Ipeak, twidth =200uS, 230Vac, full load, cold start)
Dim interface	1-10V Dimming	Available
Dim interface	Syn control	Available(Can sync for on-off function,can’t sync for 1-10V dimming )
Sensor parameters	Operating frequency	5.8 GHz ±75 MHz，ISM band
	Transmitting power	1mW Max.
	Detection Area	25%/50%/75%/100%（by two DIP switches）
	Hold time	5s/30s/90s/3min/20min/30min（by three DIP switches）
	Stand-by dim Level	10%(1.4-1.6V)/20%(1.9-2.1V)/30%(2.9-3.1V)/50%(4.9-5.1V)（by two DIP switches）
	Stand-by Period	10%(1.4-1.6V)/20%(1.9-2.1V)/30%(2.9-3.1V)/50%(4.9-5.1V)（by two DIP switches）
	Stand-by Period	0S/5S/5min/10min/30min/1h/+∞（by three DIP switches）
	Daylight Sensor	2 lux/5Lux /10Lux /25Lux /50Lux /100Lux /Disable（by four DIP switches）
	Detection Range（100% Sensibility Radius）	Surface mounting 3m height：0.3m/S ≥3.5m，1m/S ≥2.5m Horizontal mounting 2m height：0.3m/S ≥8m，1m/S ≥4m
	Mounting height	3m（6m max）
	3db beam Angle	80°@XZ plane 96°@YZ plane
Operating envrionment	Operating Temperature	-25℃~70℃
Operating envrionment	Storage Temperature/humidity	‘-40℃~80℃ humidity：≤85% （non-condensation）
Certificate Standards	Safety(LVD) standards	EN61058-1,EN61058-1-2,
	lightning surge	1KV(L/N，EN61000-4-5)
	EMC standards	EN61058-1，EN61000-3-2，EN61000-3-3，EN62479， EN301489-1，EN55015，EN300440
	Environmental Requirement	Compliant to RoHS
	Certificate	CE, RED,TUV
Others	Input/Output（connector/wiring） specification	Press-in terminals wire diamter：0.75-1.5mm²
	Installation Requirement	Built-in
	Installation Dimension	1805030mm
	Package Requirement	Bubble bag+ Clapboard+ Carton(K=A)
	Net weight	75g
	Life time	5 years warranty @Ta 230V full load

Product details

Initialization

After power on, the sensor automatically turns on light at 100% brightness. After 10 seconds, it turns off the light. During the initialization, the sensor is not able to detect movement.

Factory setting

Detection area: 100%, Hold time: 5s, Stand-by Period: 0s, Daylight Sensor: Disable

Application notice

The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.
Microwave cannot penetrate metal, please avoid installing the product in closed or semi-closed metal lamps, and ensure that there is no metal or glass shield above the product; If the antenna must pass through the metal plate, ensure that the top of the sensor is close to the metal plate.
The installation distance between microwave sensors is recommended to be greater than 3m, and should be far away from switches, routers and other wireless devices to avoid radio interference. The installation distance between both is recommended to be greater than 2m; The antenna surface of the microwave sensor must be far away from the input AC and output DC to avoid interference from low/high frequency signals.
Long-term vibration equipment or moving objects should be avoided around the microwave sensor. The vibration signal generated will be regarded as mobile signal triggering induction. If a pet passes by in the test area, the sensor may be triggered.
This product is suitable for indoor installation,if for semi-outdoor or outdoor installation, wind and rain may be regarded as a mobile signal trigger induction; When the sensor is installed in a metal lamp, metal reflective surface, or a narrow enclosed environment, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity or contact the manufacturer for technical support.
This model is suitable for ceiling installation. If wall installation is used, the microwave induction detection distance will be greatly increased, which may lead to microwave penetration through the wall or the lamp will not be off. Please adjust the sensitivity by 25%. If 25% cannot be used, avoid wall installation or contact the manufacturer for technical support.
Product specifications and parameters may be optimized without prior notice.
The light sensitivity threshold is in a sunny environment, no shadow and ambient light diffuse reflection.Lux level detected by sensor could be different in different period and climate condition.
Product detection range is related to the moving speed of the object, the size of the object, the installation height of the product, the installation angle, the installation environment, the material of the reflection and other factors.
The detection distances given in the specifications are typical values, which are obtained by testers in an indoor open environment of 165cm/65kg.
Do not put the sensor near high-density objects, such as metal, glass, mixed walls, etc., because the sensor may trigger incorrectly.
Sensor parameters may need to be reconfigured in different installation environments. Please refer to the above instructions or contact the manufacturer.

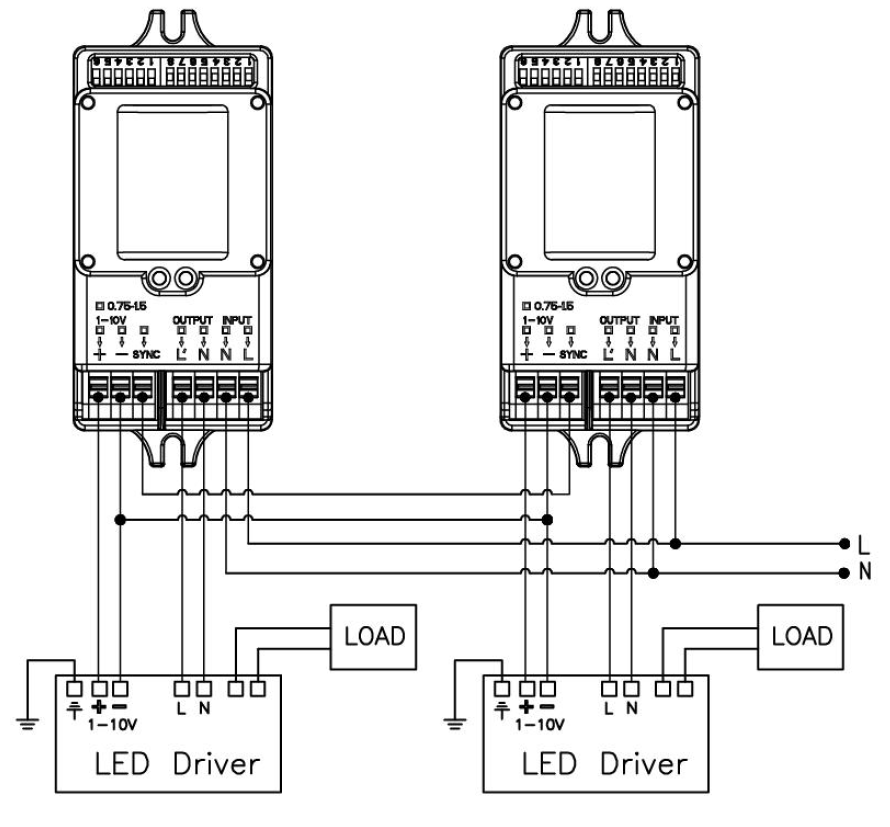

Wiring suggestions

Installation suggestion
