Initialization
The light will turn on 100% brightness in the initial energizing sensor, and turn off after 10 seconds. During initialization, no external motion sensing signal will be detected.
Default settings
Detection Area: 100%, Hold Time: 5S, Stand-by period:0s, Daylight Sensor: Disable, Stand-by DIM level:10%, RF Brightness:10%-50%, RF:Open, Mode:Broadcast ,TX:A, RX:A
Note

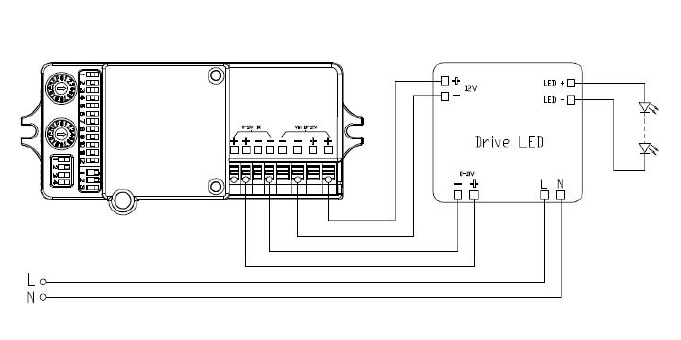

- The sensor should be installed by a professional electrician, please cut off the power before installing, wiring, changing settings, etc.
- The product has good penetrating ability to plastic, wood, etc., but metal accessories or metal casings should not be installed directly in front of and near the antenna of the microwave module, otherwise it will affect the transmission and reception ability of the microwave antenna.
- This product is designed for indoor use only.
- The detection range of the sensor is related to the moving speed and size of moving object, mounting height, installation height and angle, installation site, reflectors around the sensor etc. The data in the document is typical value and tested by a 165cm person in an open indoor area.
The detection range at wall mounting will be longer at ceiling mounting. Please reduce detection sensitivity at wall mounting or contact us to confirm the sensor data settings.
- Avoid long-term vibrating equipment or moving objects around the sensor. The vibration signal will be regarded as the motion signal to trigger the sensor.
- If a pet passes by in the detection area, it may trigger the sensor.
- The light threshold is detected value in a sunny environment, no shadows, and in an ambient light diffuse reflection condition. In different time periods, climates and environments, the illuminance values detected by the light sensor may be different.
- The installation distance between products or the distance between the product and the router is recommended to be greater than 1.5m.
- The installation plane of a product (for example: aluminum base plate, PCB board) needs to be different from the antenna plane of the microwave module by a certain height, and the antenna plane of the microwave module should be higher than the nearby plane by more than 5mm to achieve the best detection effect.

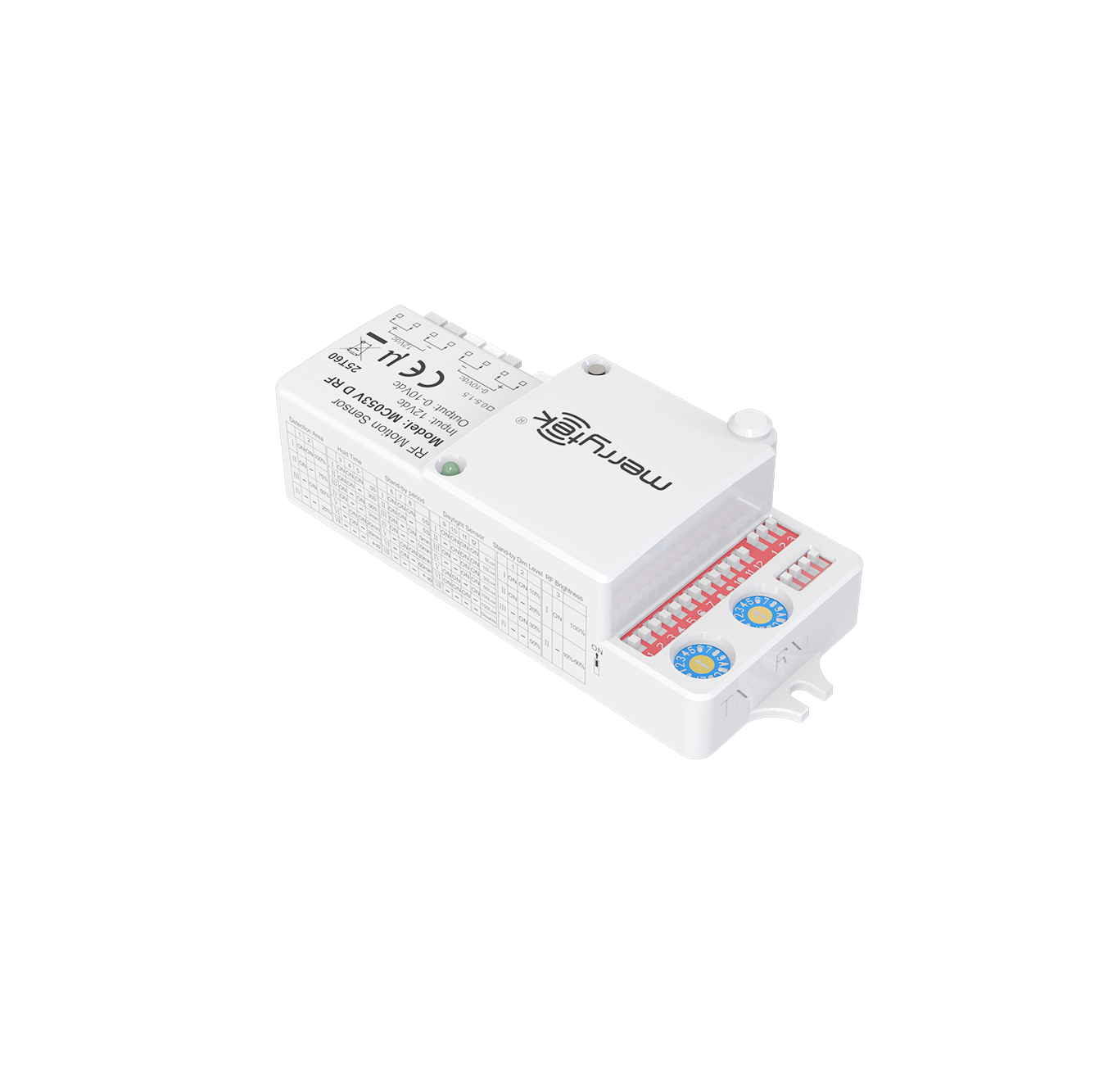

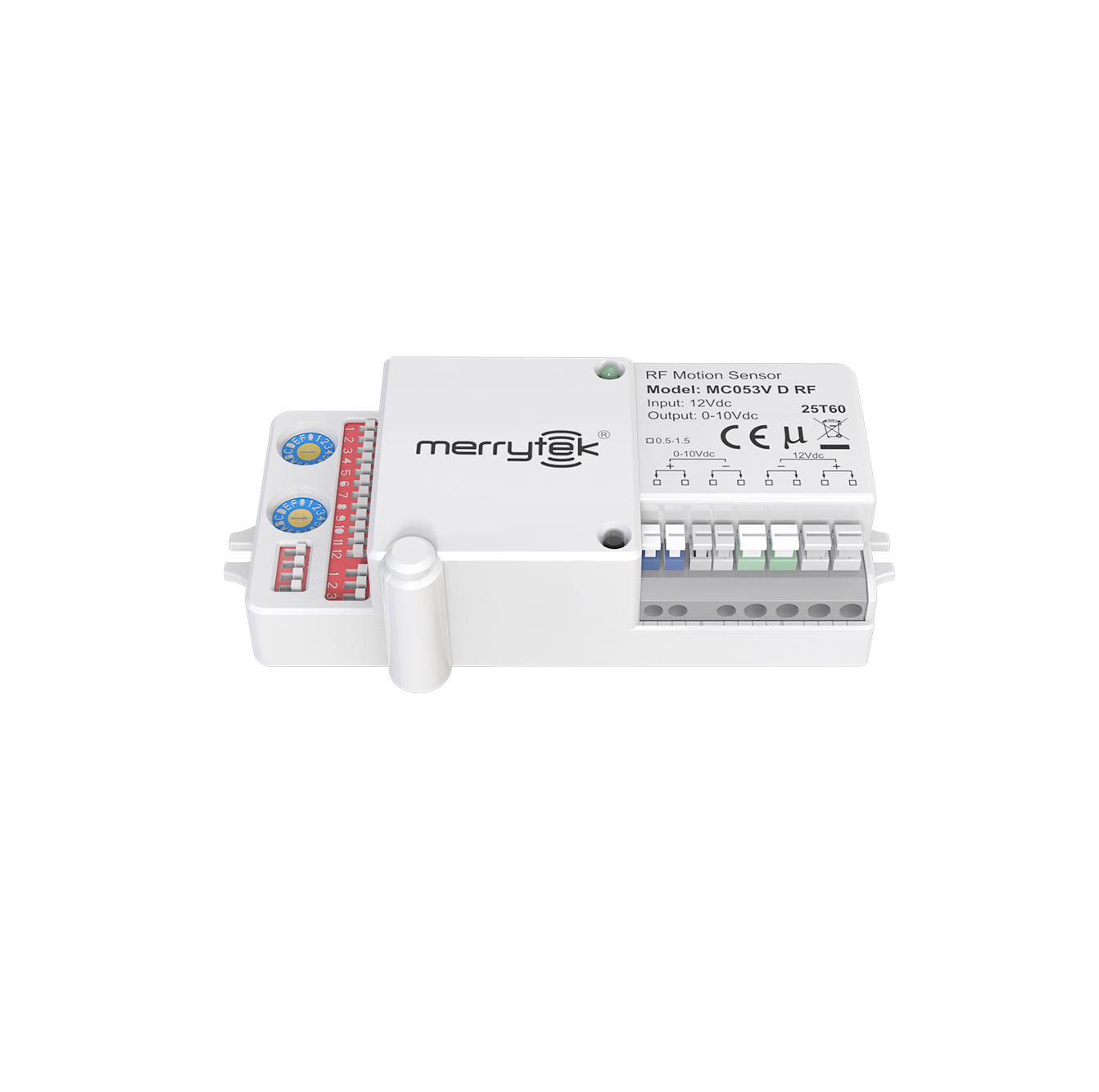

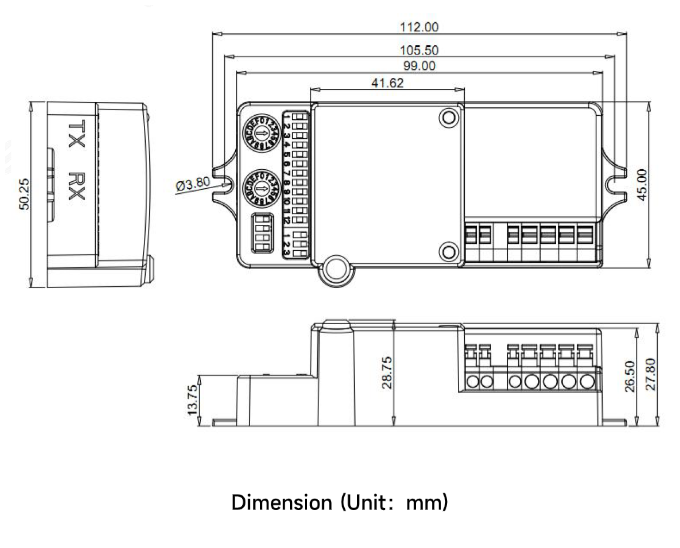

- MC053V RF & MW05 with override function, Quick switch on/off 3 times within 2s can cancel sensor function
- Work mode：Broadcast & Hopping
- TX: is for signal Transmitting, with 0-F 16 different channels. 1 DIP to set Group A or group B. Group A with16 channels, Group B also with 16 groups, total can set 32 groups .
- RX: is for signal Receiving, with 0-F 16 different channels. 1 DIP to set Group A or group B . Group A with16 channels, Group B also with 16 groups ,total can set 32 groups.
- When Master and Master set under broadcast work mode, that means ,all sensors set the same channel, Any Master sensor is triggered, it will transmit the RF signal to all the lamps in the group
- When Master and Master set under hopping work mode, that means ,when any master is triggered, it will send RF signal to 3 channels (the adjacent channel before and after the TX channel and the channel set by master itself. For example, when the master set the TX channel for “1”, it will launch “0” “1” “2” three different channel signal, if other different RX channel set with”0″ “1” “2”, at this time will receive the corresponding channel signals, this kind of work mode is mainly applied to corridor application , note: TX “F” to launch the channel group A and B group “0” RX receives channels can connect network.
- Master to Satellite only work as broadcast mode, that means the satellite only receive the signal from master , not affect by the master work mode.
- Satellite receive RF signal from Master, the “hold time” is determined by Master, keep the same with master’s “hold time” .
- Sensor will not transmit or receive RF signal during the Initialization time. only can transmit RF signal after the Initialization period.
- Group A and group B of RX require the corresponding Master group A and group B of TX .
