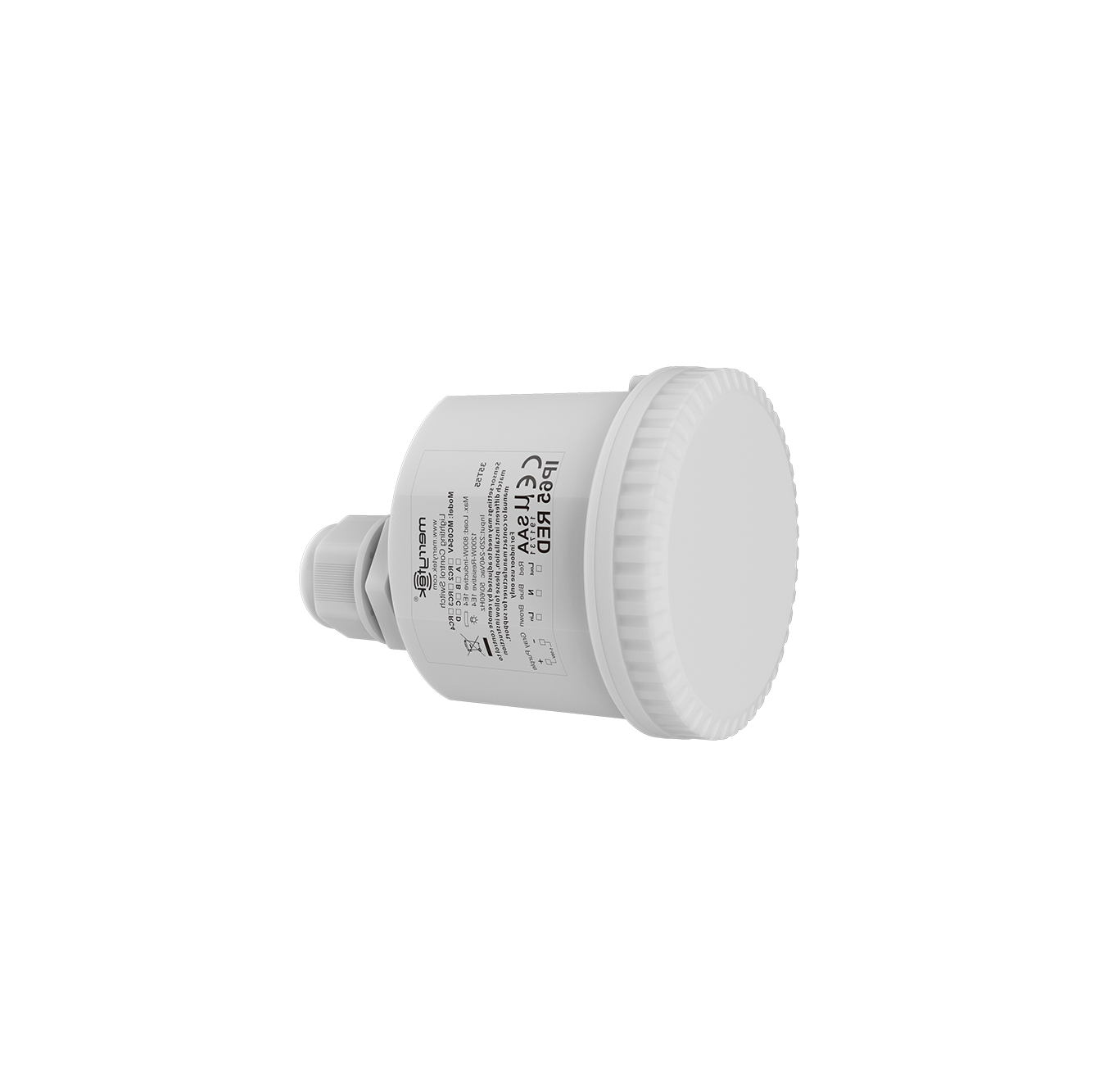

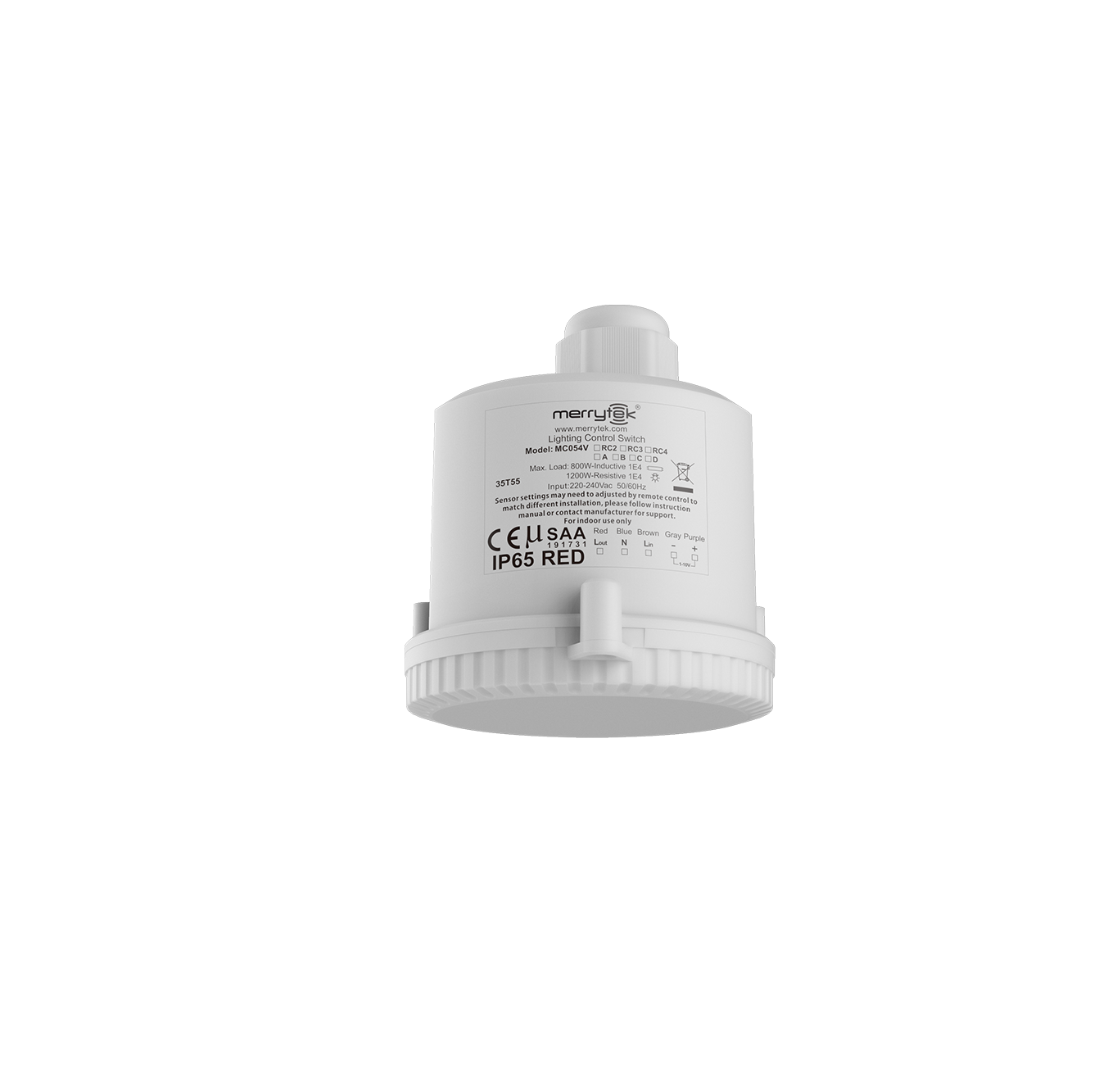

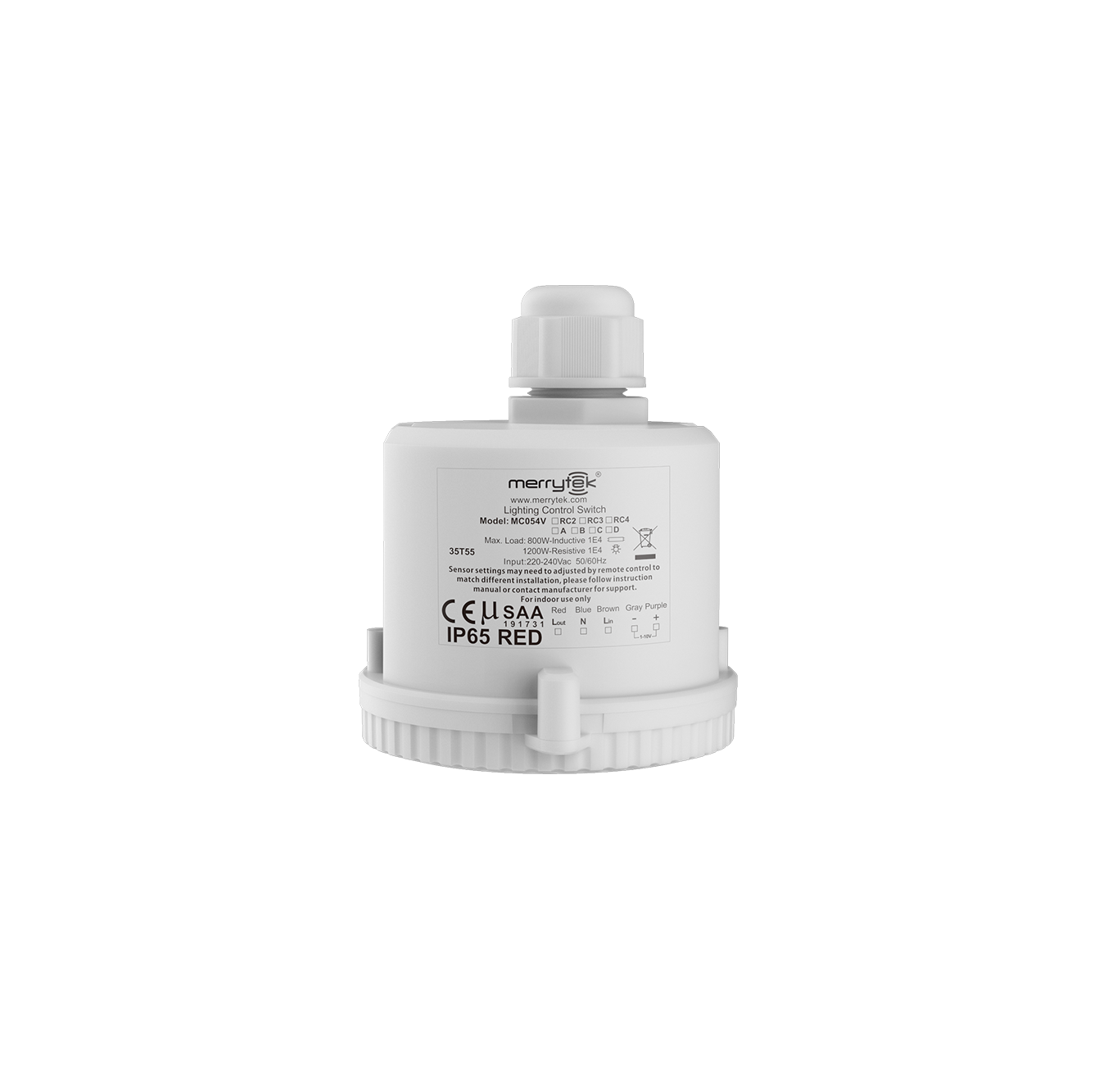

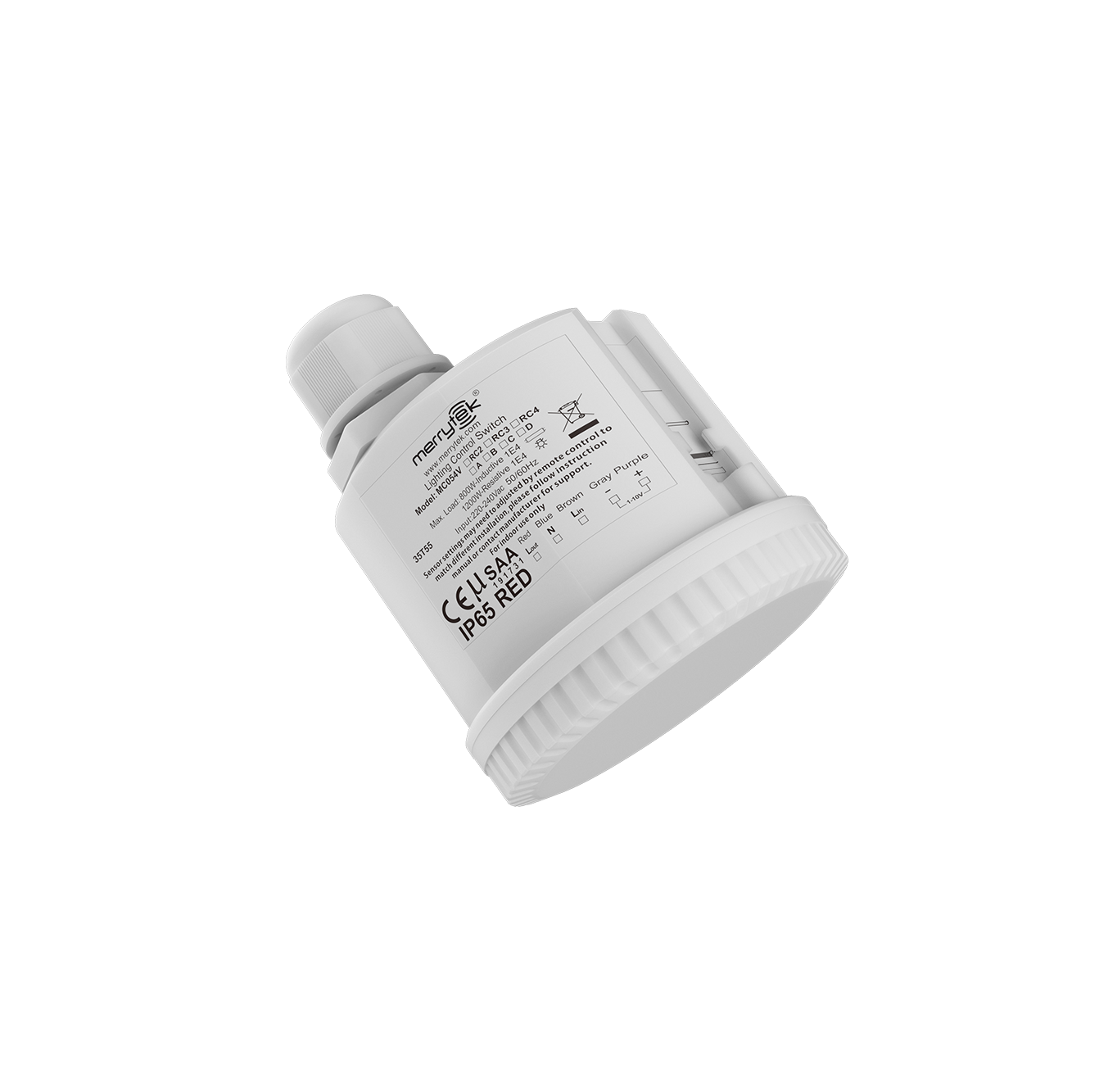

MC054V RC

Features

Operating voltage 120~277V AC
Patented microwave antenna, mounting height is 15m Max, suitable to install in most of warehouses
Supports high-sensitivity and low-sensitivity modes (for metal ceilings, metal reflector mounting environments)
Work with 1-10V dimmable LED driver, easy to achieve 2-step or 3-step dimming function
New patented remote control to adjust the launch angle ,avoid malfunction
Dim+/Dim- function, daylight priority function (MC054V RC3), daylight harvesting function (MC054V RC4)
5 years warranty

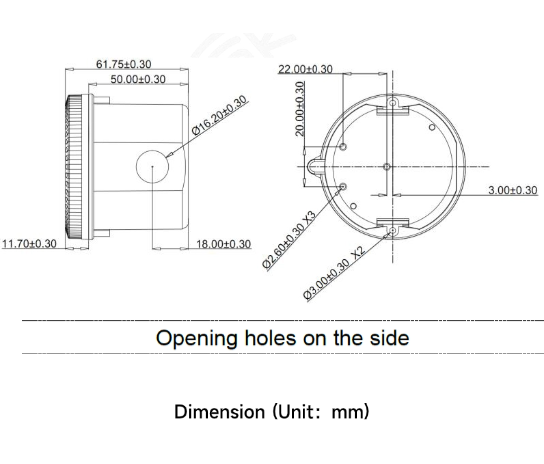

Size and Function Diagram

Parameter characteristics

Input	Rated Voltage	120/277VAC 50/60Hz
	Stand-by Power	≤1W
	Surge Test	1KV(L/N,EN61000-4-5)
Output	Output dimming Mode	1-10VDC Dimming Signal		ON/OFF Signal
	Load Capacity	@120VAC 4A Ballast @277VAC 3A Ballast
	Max. Surge Capacity	80A (50% Ipeak, twidth =200us, 230Vac full load, cold start)
Dim Interface	1-10V Dimming	< 50mA（Non-constant source） 10%(1.3-1.7V) 20%(1.8-2.2V) 30%(2.7-3.3V) 50% (4.5-5.5V)
Sensor Parameters	Operating Frequency	5.8 GHz ±75MHz, ISM wave band.
	Transmitting power	3mW Max.
	Daylight priority (MC054V RC3)	Switch ON	5lux/15Lux/30Lux/50Lux	100Lux	150Lux
		Switch OFF	150Lux	200Lux	300Lux
	Detecting Radius	1m/s ≥4m. @ 10m ceiling mounting, 1m/s ≥3m @ 12m ceiling mounting Test conditions : the product is set to 100% sensitivity, and there is no obvious occlusion in the room of 60 ㎡, 165cm person.
	Mounting Height	10-15m (ceiling mounting)
	3db beam angle	80°@XZ plane
		96°@YZ plane
Environment	Operating Temperature	-35~55℃
	Storage Temperature	-40℃~80℃, Humidity: ≤85%(Non-condensing)
Certificate Standard	Certificate	cULus、CE、SAA
	Environmental Requirement	Compliant to RoHS 2.0, Reach
	Safety Standards	IEC60669-2-1, IEC60669-1 AS/NZS 60669.1, AS/NZS 60669.2.1 UL60730-1
	EMC standards	EN55015, EN61000-3-2, EN61000-3-3, EN61547 AS/NZS CISPR 15, AS/NZS 4268 FCC Part 15C, Part 15B EN 60950-1, EN301489-1, EN 201489-3, EN300440
	IP Rating	IP65
	Protection Class	Class II
Other	Wiring(UL)	AWG18 UL1015: Black 105℃ 600V Exposed: 810mm±10mm Strip: 9mm Tinned AWG18 UL1015: Red 105℃ 600V Exposed: 810mm±10mm Strip: 9mm Tinned AWG18 UL1015: White 105℃ 600V Exposed: 810mm±10mm Strip: 9mm Tinned AWG22 UL1015: Pink 105℃ 600V Exposed: 810mm±10mm Strip: 9mm Tinned AWG22 UL1015: Purple 105℃ 600V Exposed: 810mm±10mm Strip: 9mm Tinned
	Wiring Colour(UL)	Lin: Black	N: White	Lout: Red	-: Pink	+: Purple
	Wiring(CE)	VDE（40026038）: Red H05RR-F0.75mm Exposed:900mm±10mm Strip: 9mm Tinned VDE（40026038）: Blue H05RR-F0.75mmExposed: 900mm±10mm Strip: 9mm Tinned VDE（40026038）: Brown H05RR-F0.75mm Exposed:900mm±10mm Strip: 9mm Tinned VDE（40026038）: Gray H05RR-F0.75mm Exposed:900mm±10mm Strip: 9mm Tinned VDE（40026038）: Purple H05RR-F0.75mm Exposed: 900mm±10mm Strip: 9mm Tinned
	Wiring Colour(CE)	Lin: Brown	N：Blue	Lout: Red	-: Gray	+: Purple
	Installation	Side-attached
	Package	Instruction+ White box+ White box tags+ Clapboard+ Carton(K=A)
	Net Weight	165±5g
	Lifetime	5 years warranty @Ta 230V

Product details

Initialization

Switch function/3-step dimming function: the light will be turned on 100% brightness by the initial energizing sensor, and will be turned off after 10 seconds. During initialization, no external motion sensing signal will be detected.
2-step dimming function: the light will turn on 100% brightness in the initial energizing sensor, and turn to low brightness 10 seconds later (the brightness set by stand-by dim level). During initialization, no external motion sensing signal will be detected.

Default setting

Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand by period: 0s, Stand by DIM level: 10%

Application Notice

Sensor should be installed by a professional electrician. Please turn off power before installing, wiring changing the setting of DIP switch.
The distance is related to factors such as the moving speed of the moving object, the size of the moving object, the installation height, the installation angle, whether the installation environment is open, and the material of the reflector. The detection distance given in the specification is a typical value, it is 165cm/65kg people who walks in an open indoor environment
The daylight threshold is in a sunny environment, no shadows, and ambient light diffuse reflection conditions. In different periods, climates, and environments, the daylight value detected by the light sensor may be different.
Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer
This sensor is only for indoor use, outdoor use may be false triggered by wind and rain, and surrounding moving objects.
The installation height of the sensor product cannot exceed 15 meters, and the suitable height is 12 meters; the distance between the two sensors should be greater than 3 meters
When the sensor is installed in a metal lamp, on a metal reflective surface, or in a narrow closed environment, the microwaves will be reflected multiple times and cause false triggering. Please reduce the sensor sensitivity or contact the manufacturer for technical support.
Sensor is compatible with different 0-10V driver but dimming effect will be different.
For the new installation environment, it is recommended to test 5pcs samples before installation.

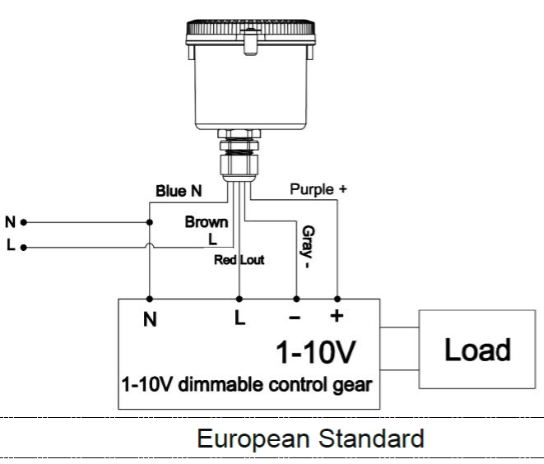

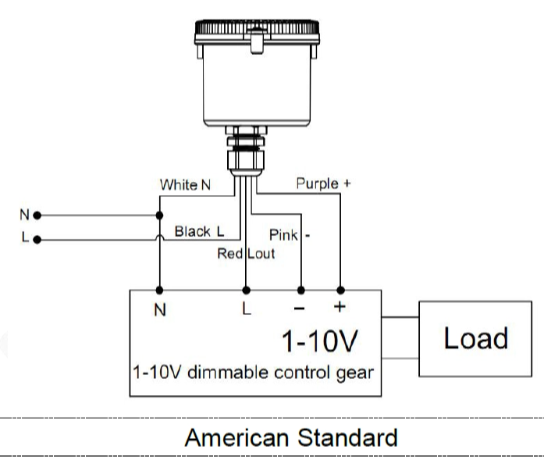

Wiring suggestions

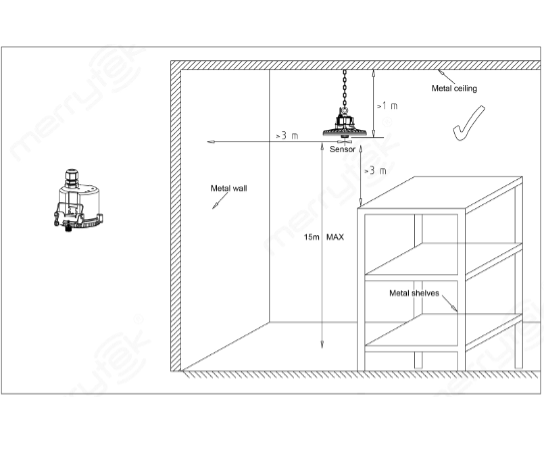

Installation suggestion

*The sensor is allowed to be connected to one load only. The sensor may be damaged if connecting more than one load. When installing, please pay attention to the distance between the microwave antenna and the metal frame.
