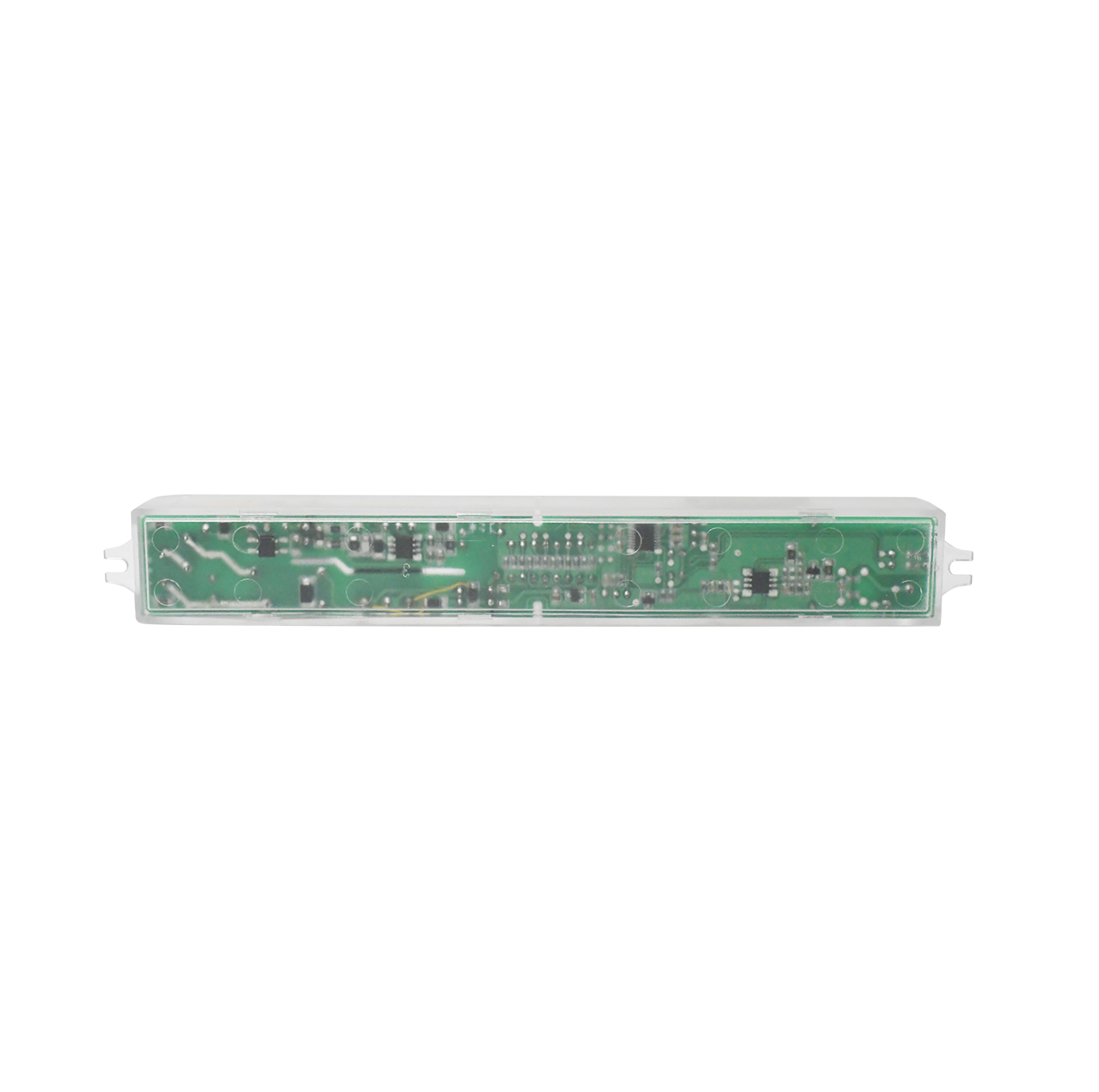

MC077V 99

Features

Patented coupling dipole antenna design, suitable to built-in metal LED tray without false trigger.
Transparent shell, not effect light distribution.
Low sidelobe, no false trigger in metal reflection space.
Low transmitting power, no harm to human.
Sensor data can be set by DIP switch & remote control.
Not affected by temperature, humidity, noise, dust etc..

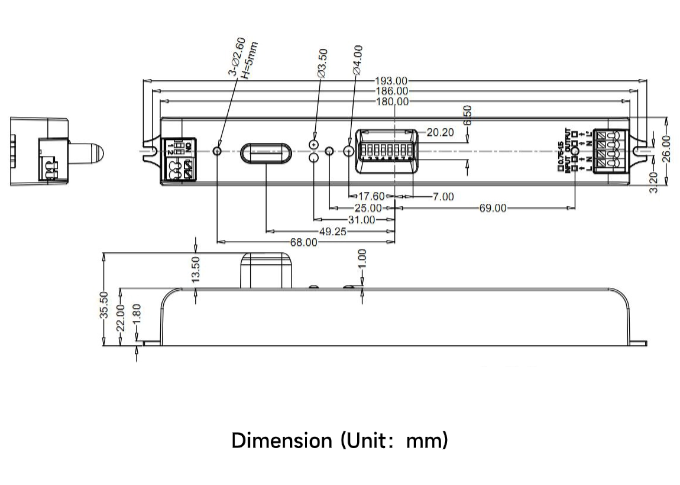

Dimension & Function Diagram

Parameter characteristics

Input	Rated Voltage	120/277V AC 50/60Hz（US）；220-240VAC 50/60Hz（Europe)
	Stand-by Power	≤0.5W
	Surge Test	1kV(L/N,EN61000-4-5)
Output	Output Control	ON-OFF		0-10V DC Dimming Signal
	Load Capacity	400W(Inductive/LED) ; 800W(Resistive)@220V； 200W(Inductive/LED)110V ; 400W(Resistive)@110V
	Max. Surge Capacity	30A (50% Ipeak, twidth =200us, 230Vac full load, cold start);
	0-10VDimming	< 50mA （Non-constant current source） 10%（1.4-1.6V） 20%（1.9-2.1V） 30%（2.9-3.1V） 50% （4.9-5.1V）
Sensor Parameter	Operating Frequency	5.8 GHz ±75MHz, ISM wave band.
	Transmitting power	1mW Max.
	Hold time	5S/1min/5min/10min （setting by DIP）
		5s/30s/1min/3min/5min/10min/20min/30min (setting by remote）
	Stand-by dim Level	10%(1.4-1.6V)/20%(1.9-2.1V)/30%（2.9-3.1V）/50%(4.9-5.1V)（setting by DIP）
		10%(1.4-1.6V)/20%(1.9-2.1V)/30% （2.9-3.1V ）/50%(4.9-5.1V)(setting by remote）
	Stand-by Period	0S/1min/10min/+∞（setting by DIP）
		0s/10s/1min/3min/5min/10min/30min/+∞ (setting by remote）
	Detection	100%/75%/50%/25%（setting by DIP）
		100%/75%/50%/25% （setting by remote）
	Daylight Sensor	Daylight threshold	5lux/30lux/100lux/Disable
			5lux/15lux/30lux/50lux/100lux/150lux/Disable （ setting by remote）
		Daylight priority	ON		Off
			5lux/15lux/30lux/50lux		Turn on Value+（50-150Lux）
			100lux		Turn on Value+（50-150Lux）
			150lux		Turn on Value+（50-150Lux）
	Detecting Radius	ceiling mounting3m r≥3m@1m/s, wall mounting 2m r≥3.5m@1m/s Motion speed: 100% sensitivity, open 60 ㎡ indoor area.
	Mounting Height	3m（6m Max ）
Environment	Operating Temperature	-20~60°C
	Storage Temperature	-40℃~80℃, Humidity: ≤85%(Non-condensing)
Certificate Standard	Certificate	CE, RED, UKCA, SAA
	Environmental Requirement	Compliant to RoHS 2.0, Reach
	Safety standards	EN61058-1-2
	EMC standards	EN61547, EN61000-3-2, EN61000-3-3, EN62479
	IP Rating	IP20
	Product Class	Class Ⅱ
Other	Wiring	Press-in type terminal block, wiring 0.5-0.75mm2
	Installation	Built-in
	Package	Bubble bag + Clapboard + Carton(K=A)
	Net Weight	67±5g
	Lifetime	5 years warranty @Ta

Product details

Initialization

After power on, the sensor automatically turns on light to 100% brightness and turns off light in 10 seconds. During initialization, sensor is not able to detect movement.

Default setting

Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand-by Period: 0s, Stand-by DIM Level:10%

Application Notice

The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.
Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.. Given detecting area is typical value that was measured by 165cm/65kg testers in an indoor open environment.
The detection area of the microwave sensor when installed on the wall will be greatly increased compared to when installed on the ceiling. If adopts wall ceiling, please reduce the sensitivity or contact our company to confirm the usage settings. The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.
Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer.
Sensor is for indoor use only. The waterproof effect for outdoor or half-outdoor use will be affected. Wind, rain, and moving objects may cause false triggering.
The installation height of the sensor product cannot exceed 6 meters, and the optimal height is 3 meters. The distance between the two sensors should be greater than 3m.
When the sensor is installed in a metal lamp, on a metal reflective surface, or in a small closed environment, the microwave will be reflected multiple times and cause false triggering. Please reduce the sensitivity of the sensor or contact the manufacturer for technical support.
Please make sure that there are no moving signals such as fans, DC motors, sewer pipes, air outlets, etc. around the sensor, otherwise the sensor may cause false triggering.
Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is not allowed to cover above the product.
For the new installation environment, it is recommended to test 5pcs samples before installation.

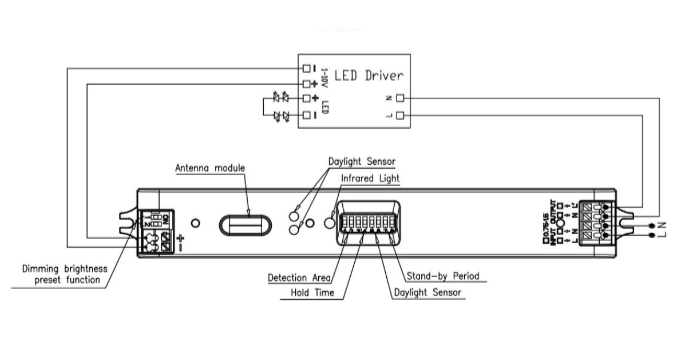

Wiring suggestions

*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.

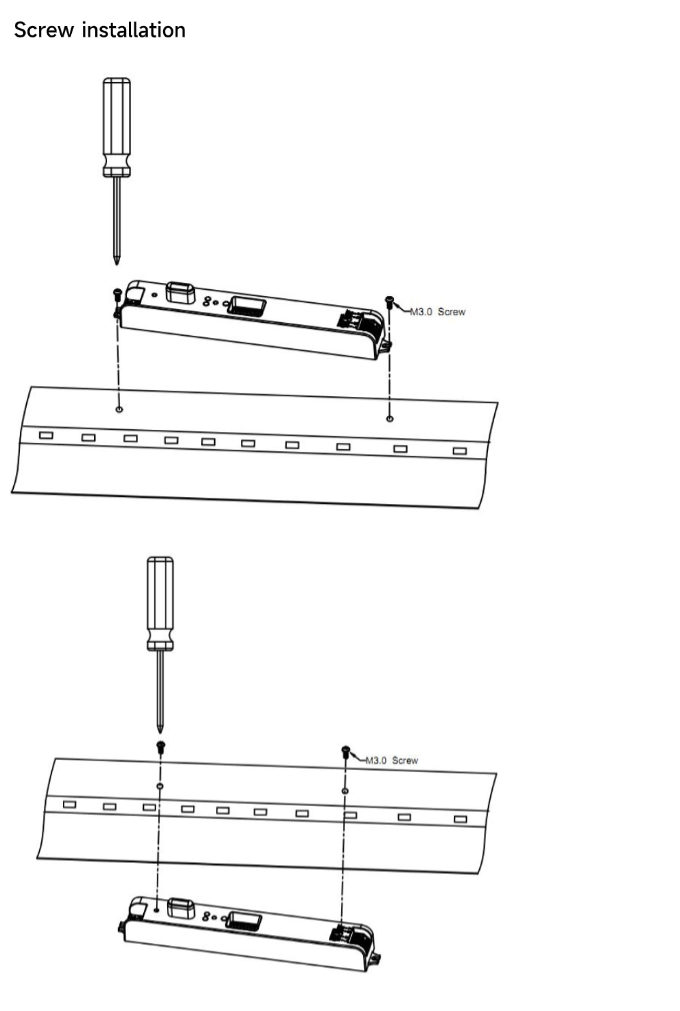

Installation suggestion
