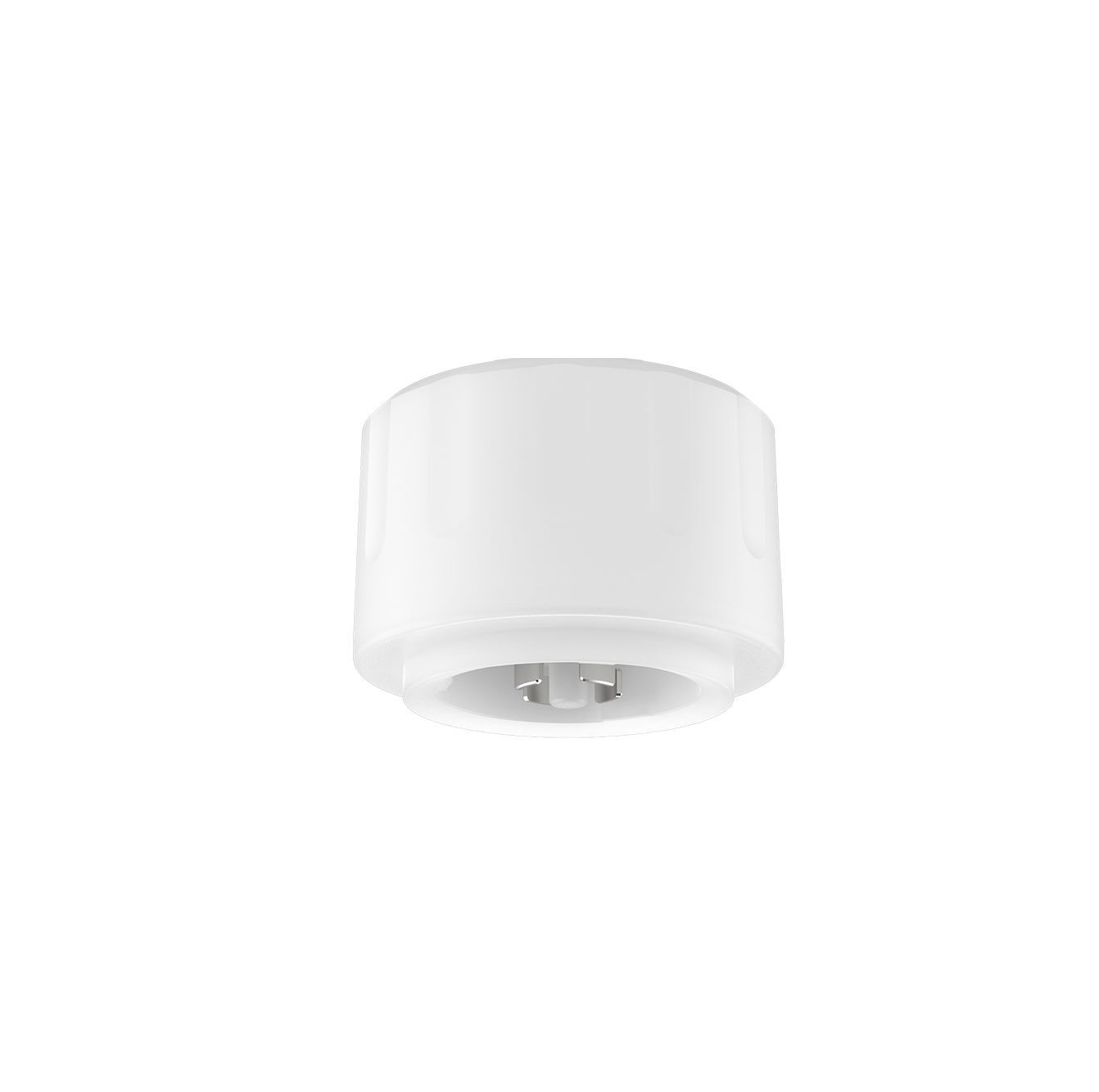

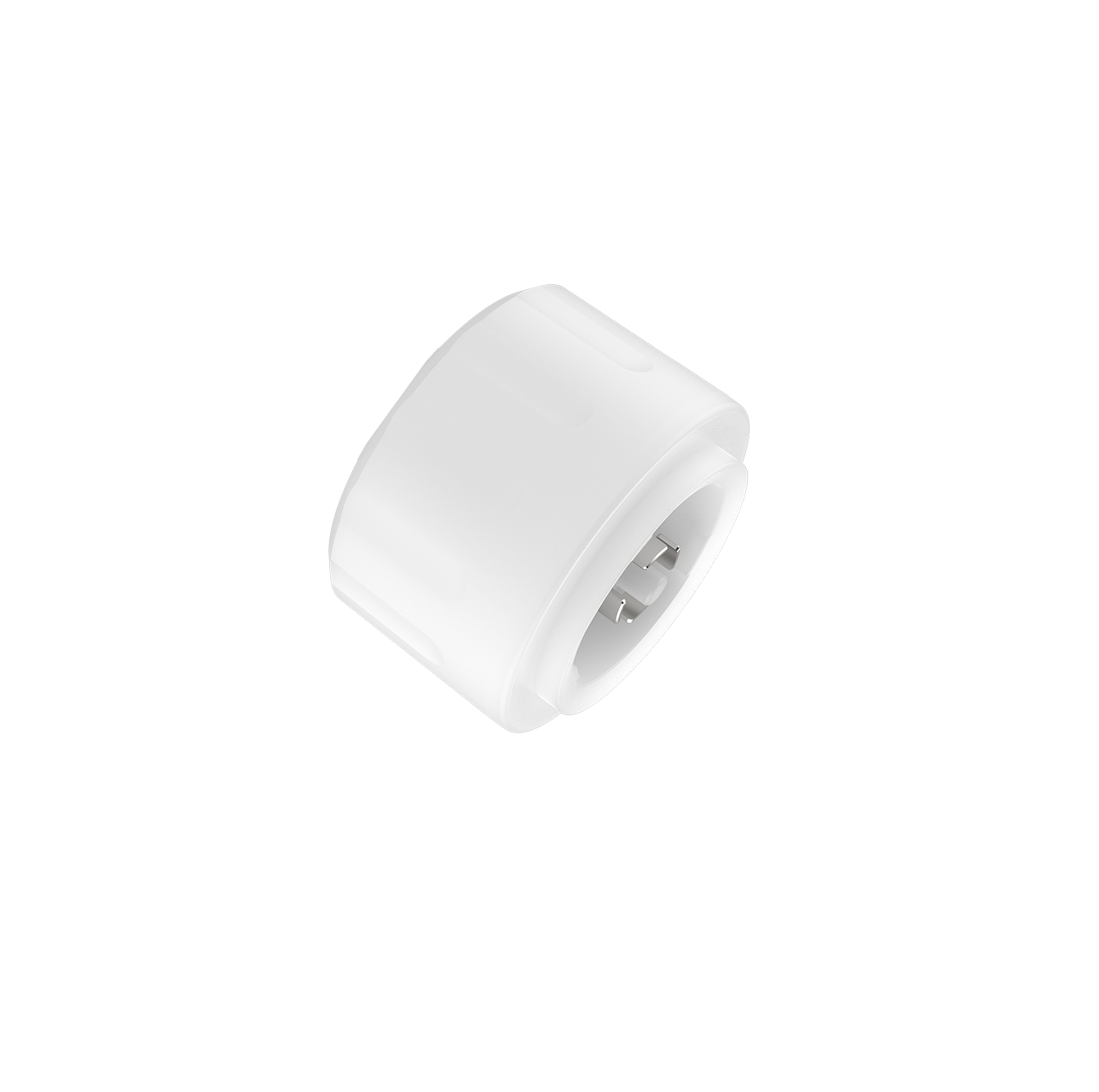

MC079D 99 ZB1

Features

12Vdc Input, suitable for DC systems or LED driver with 12V DC auxiliary power output.
0–10V dimming terminal, 3-step or 2- step is optional, detection area adjustable
Mini size MW motion detection sensor
Indoor maximum mounting height is 15m
All sensor parameters can be set by Casambi App setting

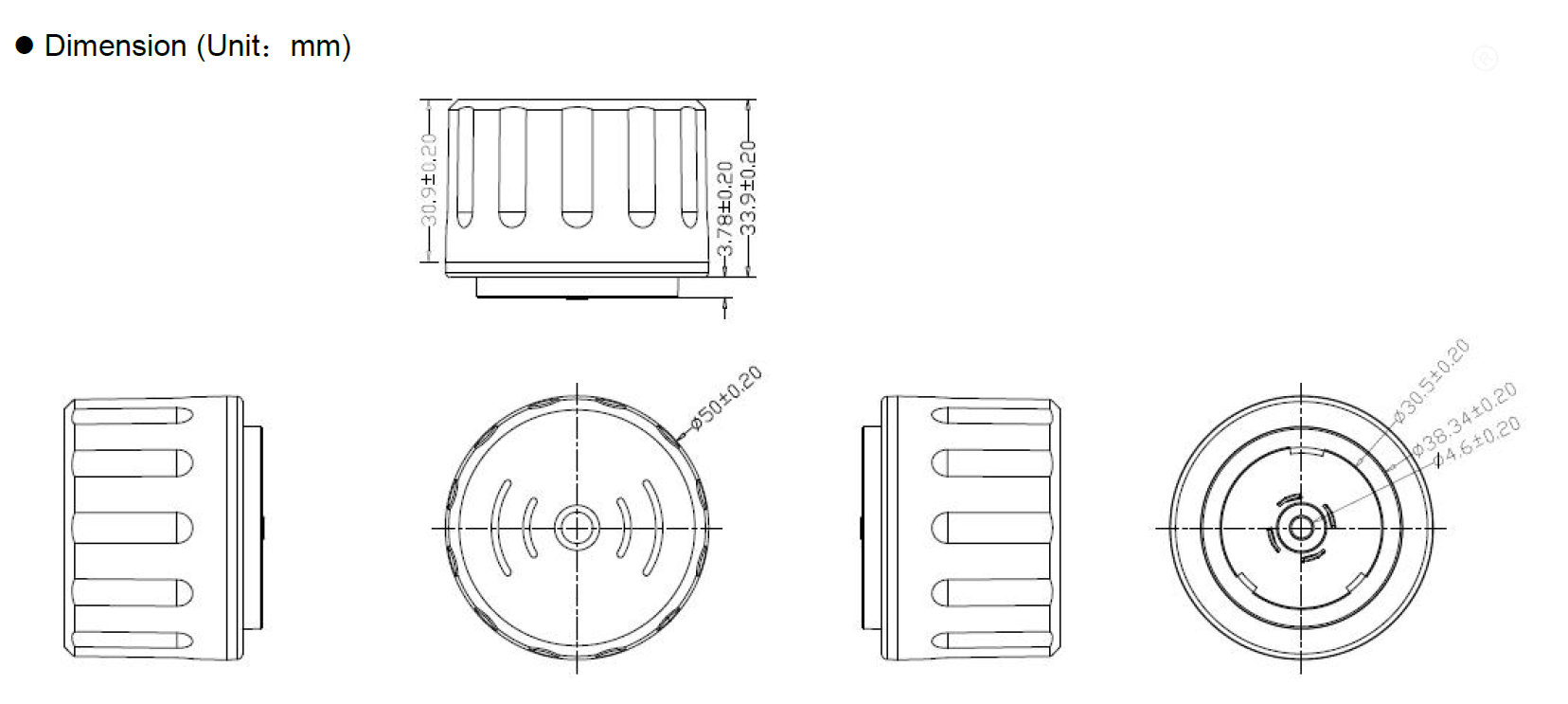

Dimension & Function Diagram

Parameter characteristics

Input	Rated voltage	12±1V DC
	Working current	40±5mA
	Ripple voltage	<100mVp-p
Output	Output signal	0 -10VDC dimming signal
Sensor parameters	Working frequency	5.8GHz ±75MHz, ISM band
	Transmitting power	3mW Max.
	Sensor sensitivity	Casambi App setting
	Daylight Priority	Casambi App setting
	Stand-by dim level	Casambi App setting
	Detection range (radius)	Ceiling installation 12m high: 0.3m/s;r≥4m, 1m/s; r≥3m;
	Installation height	12m (15m Max )
Wireless parameters	BLE Module	Casambi Bluetooth
	Working frequency	2.402-2.480GHz
	Transmitting power	+7dBm(max)
	Transmission distance	25m(Visible distance)
	Fixture ID	32022
Environment	Working temperature	-35~60℃
Environment	Storage temperature	-40℃~80℃, humidity ≤85% (non-condensing)
Certification standards	Certification	CE
	Environmental requirements	Comply with RoHS 2.0 , Reach requirements
	IP Rating	IP65
Other	Wiring	Zhaga Book 18 interface
	Installation requirements	built-in installation
	Packaging requirements	Clapboard + Carton(K=A)
	Net weight	41±3g
	Lifetime	5 years warranty @Ta

Product details

Initialization

The sensor turns on the light at 100% brightness, and will be turned off after 10 seconds. During initialization, the sensor is not able to detect movement.

Default setting

Sensitivity: 100%, Hold time: 10s, Daylight sensor: Disable, Stand by period: 0s, Stand by DIM level: 10%

Application Notice

Sensor should be installed by a professional electrician. Please turn off power before installing, wiring.
The distance is related to factors such as the moving speed of the moving object, the size of the moving object, the installation height, the installation angle, whether the installation environment is open, and the material of the reflector. The detection distance given in the specification is a typical value, it is 165cm/65kg people who walks in an open indoor environment.
The daylight threshold is in a sunny environment, no shadows, and ambient light diffuse reflection conditions. In different periods, climates, and environments, the daylight value detected by the light sensor may be different.
Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer.
This sensor is only for indoor use, outdoor use may be false triggered by wind and rain, and surrounding moving objects.
The installation height of the sensor product cannot exceed 15 meters, and the suitable height is 12 meters; the distance between the two sensors should be greater than 3 meters.
When the sensor is installed in a metal lamp, on a metal reflective surface, or in a narrow closed environment, the microwaves will be reflected multiple times and cause false triggering. Please reduce the sensor sensitivity or contact the manufacturer for technical support.
Sensor is compatible with different 0-10V driver but dimming effect will be different.
DC regulated power supply with stable output voltage and low ripple coefficient must be used. The ripple of the power supply should be less than 100mV ; the load current should be greater than 50 mA.
For the new installation environment, it is recommended to test 5pcs samples before installation.

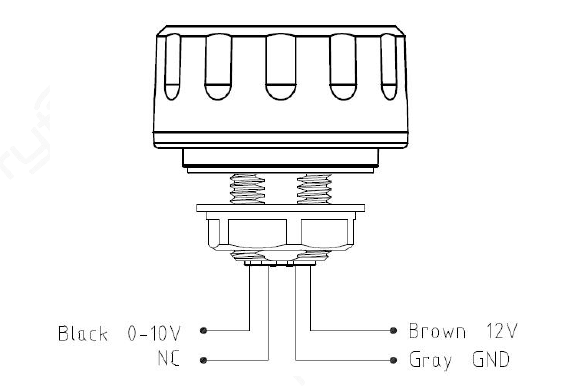

Wiring suggestions

Installation suggestion

NameDateDownload
MC079D-99-ZB1-Spec-2024.12.26.pdf 2025-03-31 08:30:02
