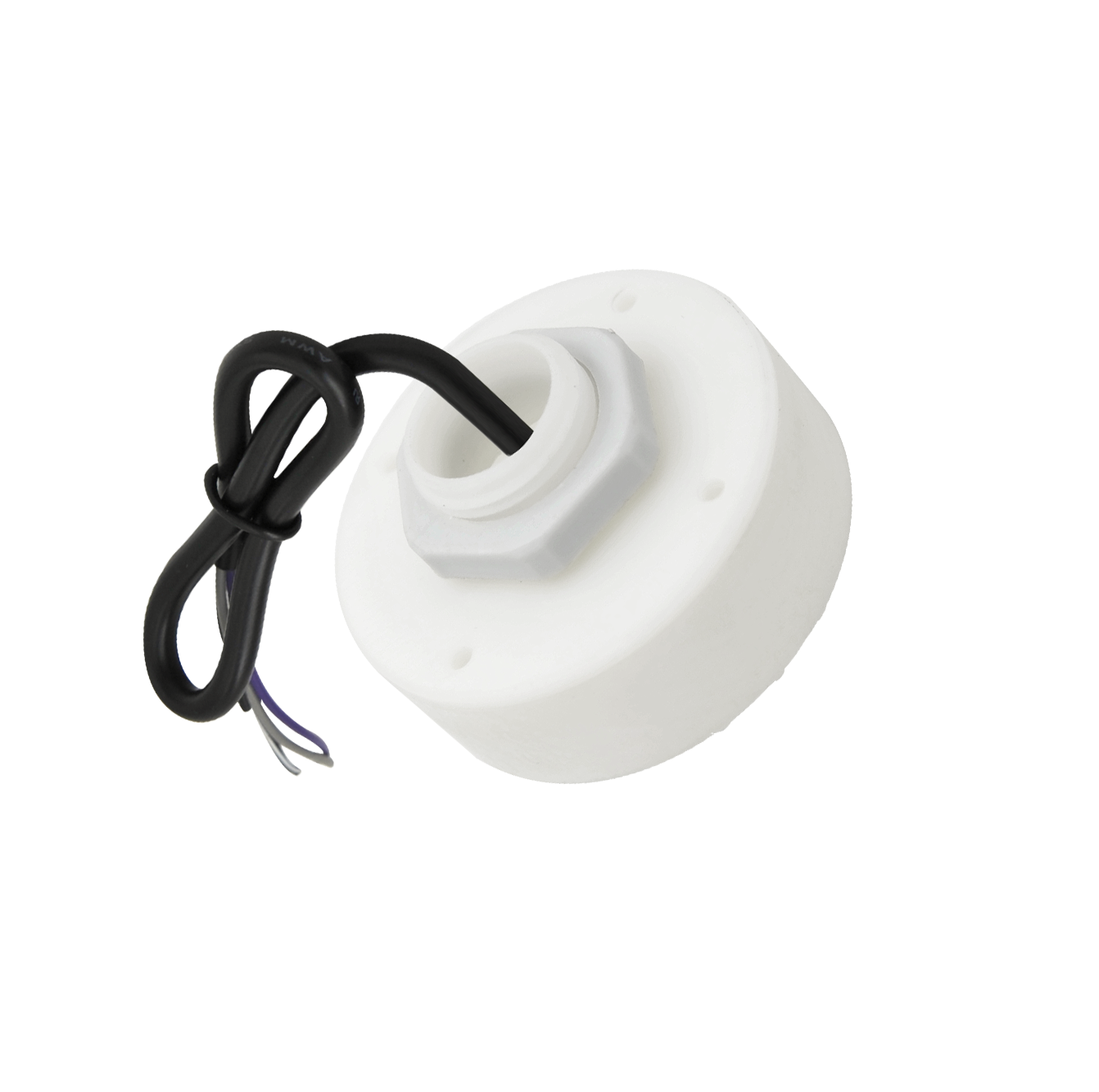

MC079D RC2 B

High Bay Sensor for Warehouse

Get a Quote

Features

  • 12Vdc±1V input, for DC systems or LED power supplies with 12Vdc±1V auxiliary power output
  • 0-10V dimming port, 3 or 2 step dimming function
  • Newly patent design sensor antenna with two detection mode: high sensitivity detection and interference immunity detection.
    (suitable for installation environments with many metal reflective surfaces)
  • Compact design,special for industrial lamps, sensors can be fixed at the edg or center of UFO.
  • 15m maximum installation height, suitable for most warehouses
  • Patented remote control, transmitting angle of the remote control is adjustable according to mounting height
  • Dim+/Dim- to set occupancy light level
  • Daylight priority function
  • 5 years warranty

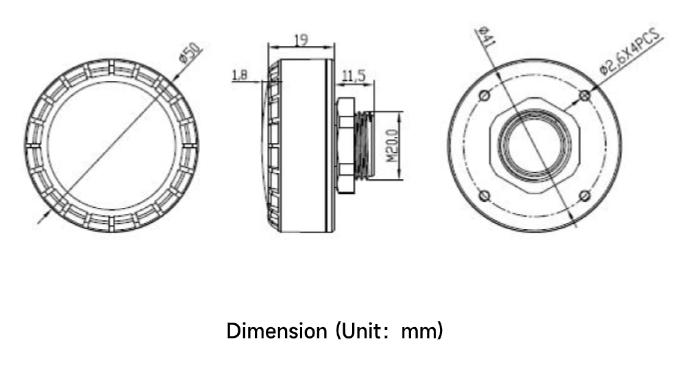

Size and Function Diagram

Parameter characteristics

Input DC Input Voltage 12Vdc±1V
Rated Voltage 12Vdc±1V
Voltage Ripple <300mVp-p
Stand-by Power <0.3W
Wiring 3 cores cable,wire diameter: 22AWG
Output Working Mode 0-10V DC
Wiring 3 cores cable,wire diameter: 22AWG
Dim Interface 0-10V Dimming < 50mA (Non-constant source)
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz,ISM Band.
Transmitting power 1mW Max.
Hold time 5S/30S/1min/3min/5min/10min/20min/30min
Stand-by DIM Level 10%(1.4-1.6V), 20%(1.9-2.1V), 30%(2.9-3.1V), 50% (4.9-5.1V)
Stand-by Period 0s/10S/1min/3min/5min/10min/30min/+∞
Detection Area 25%/50%/75%/100%
Daylight Sensor 5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable
Daylight priority(5lux/15Lux/30Lux/50Lux)/150Lux
100Lux/200Lux
150Lux/300Lux
Detecting Radius See detection pattern
Mounting Height 15m Max
Detecting Angle 150°(wall mounting) 360°(ceiling mounting)
Operating Environment Operating Temperature -35℃…+70℃
Storage Temperature Temperature: -40℃…+80℃;
Humidity: 10%-95% (non-condensing)
Certificate Standards Safety standards EN60669-2-1, EN60669-1
EMC standards EN55015, EN61000-3-2, EN61000-3-3, EN61547
Environmental Requirement Compliant to RoHS
Certificate CE
Others Wiring UL21996,3*22AWG, cable length: 300mm(pending)
IP Rating IP65 (MC079D RC2 A), IP20 (MC079D RC2 B)
Protection Class Class II
Installation External mounting,integrated mounting
Dimension See dimension
Package White paper box
Net Weight 55g
Lifetime 5 years warranty @Ta 230V full load
Note
1. “N/A”means not available.
.2. The detection range of the sensor is related to the moving speed and size of moving object, mounting height, installation height and angle, installation site, reflectors around the sensor etc. The data in the document is typical value and tested by a 165cm person in an open indoor area.
The detection range at wall mounting will be longer at ceiling mounting. Please reduce detection sensitivity at wall mounting or contact us to confirm the sensor data settings.

Product details

Initialization

1.On/Off function /3-step dimming function:

After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the sensor is not able to detect movement.

2.2-step dimming function:

After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it dims the light to a low light level (set by stand-by dim level). During the initialization, the sensor is not able to detect movement.



Factory Setting

Detection area: 100%, Hold Time: 5S, Stand-by Period: 0s, Stand-by dim level: 10%, Daylight Sensor: Disable



Instruction

  • The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.
  • The sensor which installed in the plastic and glass lampshade will reduce the sensitivity.For every 3mm increase in thickness, the sensitivity will be reduced by 20%.
  • The dimming performance could be different from different 0-10v drivers.
  • The detection range of the sensor is related to the moving speed and size of moving object, mounting height, installation height and angle, installation site, reflectors around the sensor etc. The data in the document is typical value and tested by a 165cm person in an open indoor area.
    The detection range at wall mounting will be longer at ceiling mounting. Please reduce detection sensitivity at wall mounting or contact us to confirm the sensor data settings.
  • The light sensitivity threshold is in a sunny environment, no shadow and ambient
    light diffuse reflection..Ambient lux level could be different in different environment, weather, climate, time-of-day and season.
  • The parameters of the sensor may need to be reconfigured in different installation environments. Please refer to the following instructions or contact the manufacturer.
  • This sensor is for indoor use only. It will affect the waterproof effect for outdoor use. Wind, rain, and moving objects around will cause false triggering.
  • The distance between any inductive sensors should be greater than 3m.
  • Do not place the sensor close to high-density objects such as metal, glass,concrete walls, etc, false triggering could happen. When the sensor is installed in a metal lamp, metal reflective surface, or a narrow enclosed environment, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity or contact the manufacturer for technical support.
  • Please ensure that there are no moving signals around the sensor, such as fan,DC motor, sewer pipe, air outlet, etc., the sensor may generate false trigger.
  • You are advised to test 5 samples before mass application of sensor in a new lighting project.
  • Due to continuous improvement, the contents of this instruction could be changed without prior notice
  • A stabilized DC power supply with stable output voltage and low ripple must be used, the power supply ripple should be less than 300mV, and the load current should be greater than 25mA.

Wiring suggestions

*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.

Installation suggestion

N/A
