| Input | Operating Voltage | 108-305V AC 50/60Hz |
| Rated Voltage | 120/277V AC 50/60Hz | |
| Stand-by Power | ≤1W | |
| Surge Test | L–N: 1kV | |
| Output | Working Mode | ON/OFF function |
| Type of Load | Inductive or resistive Load | |
| Load Capacity | 2A @120Vac ,3A@277Vac, 3A@220-240Vac | |
| Max. Surge Capacity | 30A (50%Ipeak,twidth =500uS, 230Vac full load, cold start); 60A (50% Ipeak, twidth=200uS, 230Vac, full load, cold start) |
|
| Sensor Parameters | Operating Frequency | 5.8 GHz ±75 MHz, ISM Band. |
| Transmitting power | 0.5mW Max. | |
| Hold time | 5S/30S/1min/3min/20min/30min | |
| Detection Area | 100%/75%/50%/10% | |
| Daylight Sensor | 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable（Ambient light diffusion） | |
| Detecting Radius | See detection pattern | |
| Mounting Height | 12m Max | |
| Detecting Angle | 150° | |
| Operating Environment | Operating Temperature | -25℃…+60℃ |
| Storage Temperature | Temperature:-40℃…+80℃; Humidity:10%-95% (non-condensing) |
|
| Certificate Standards | Safety standards | EN61058-1, UL60703-1 |
| EMC standards | EN300440; EN301489-1; EN55015; EN61547; EN61000-3-2; EN61000-3-3; EN62479 | |
| Environmental Requirement | Compliant to RoHS | |
| Certificate Standards | Certificate | CE, RED,UL,FCC |
| Others | Input/output terminal specifications | Push-type terminal block; wire diameter: 0.75-1.5mm² |
| IP Rating | IP20 | |
| Protection Class | Class II | |
| Installation | Built-in installation | |

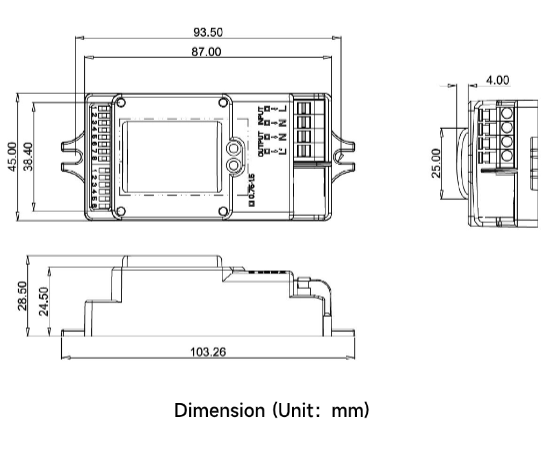

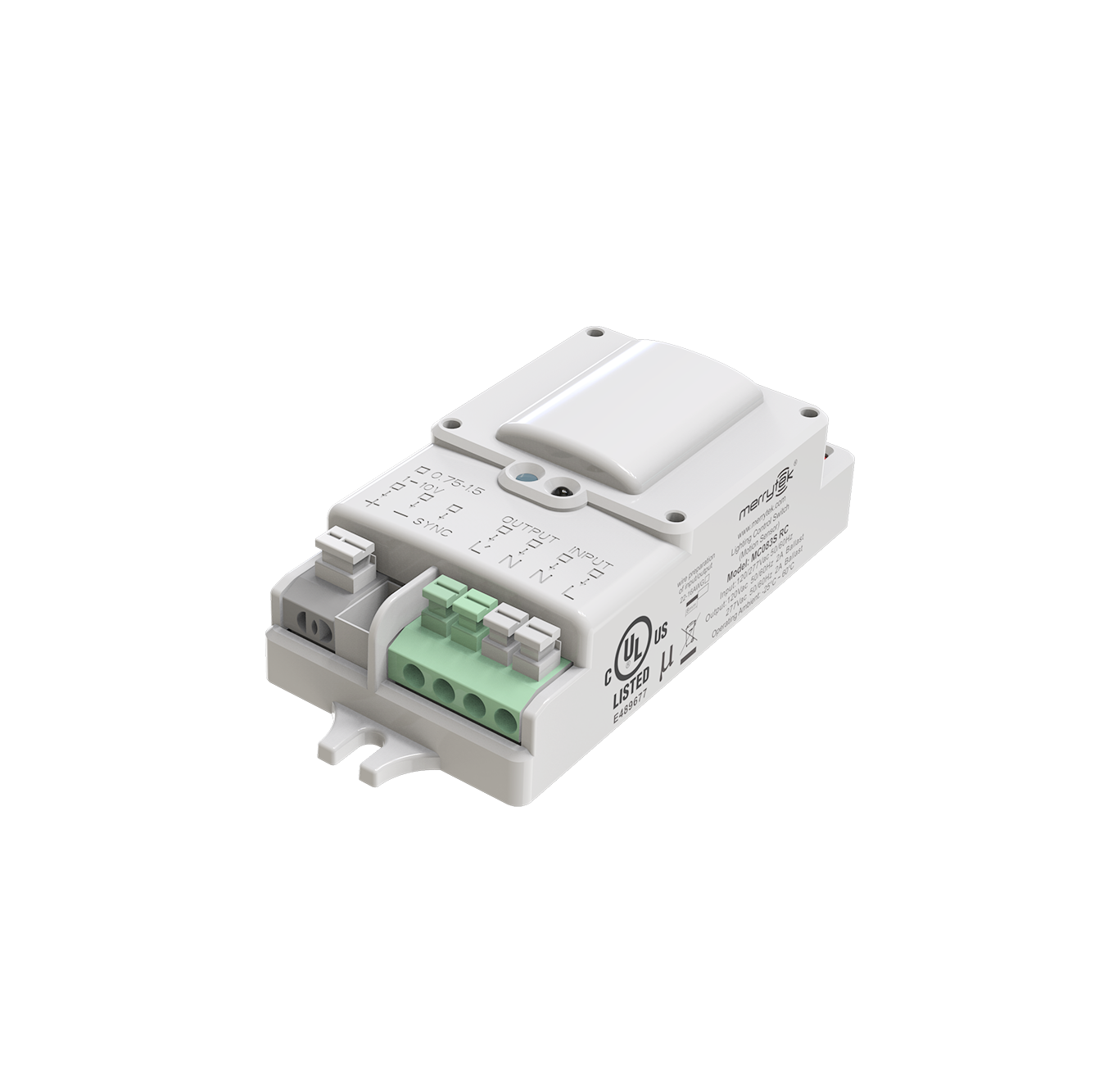

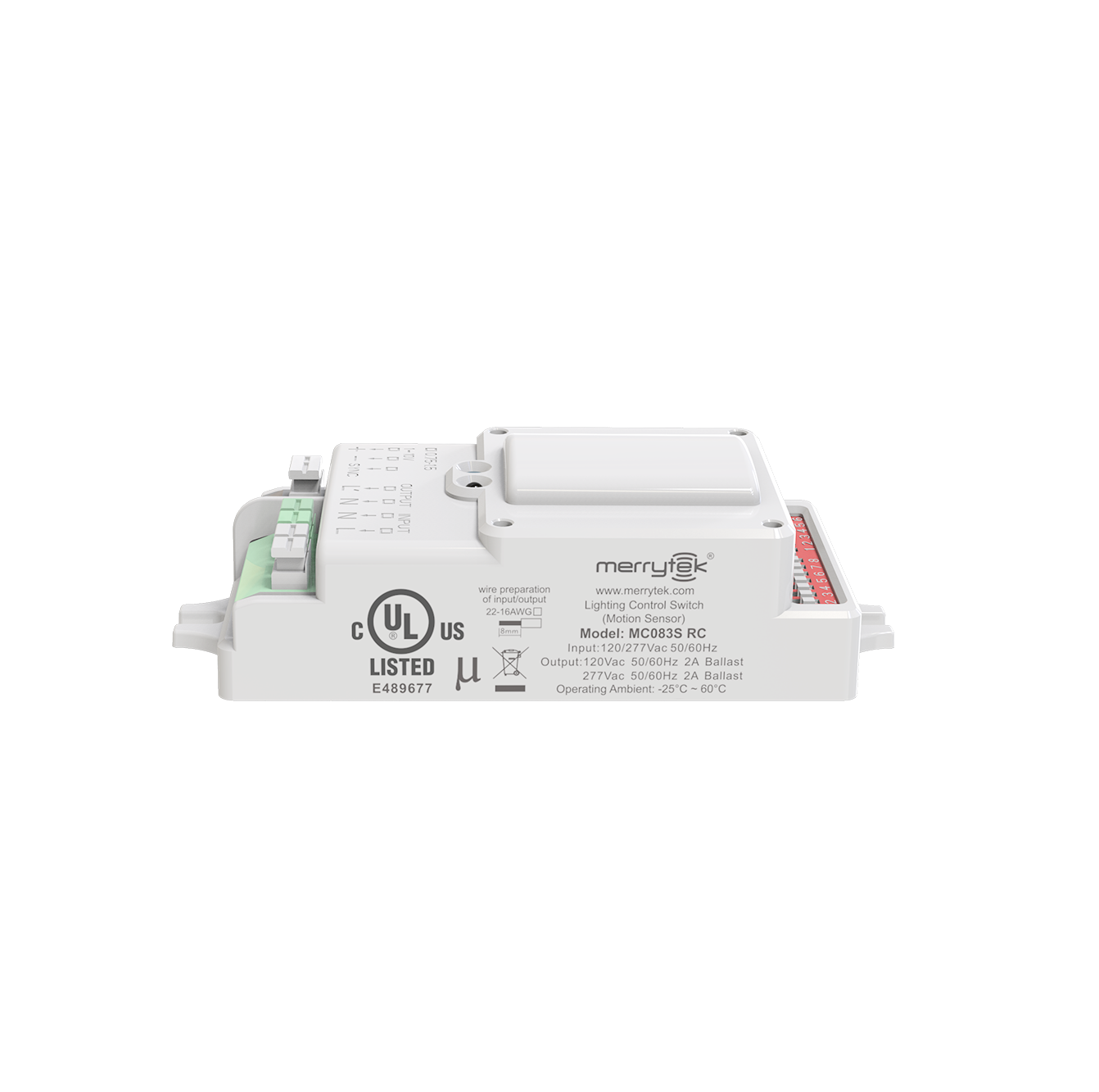

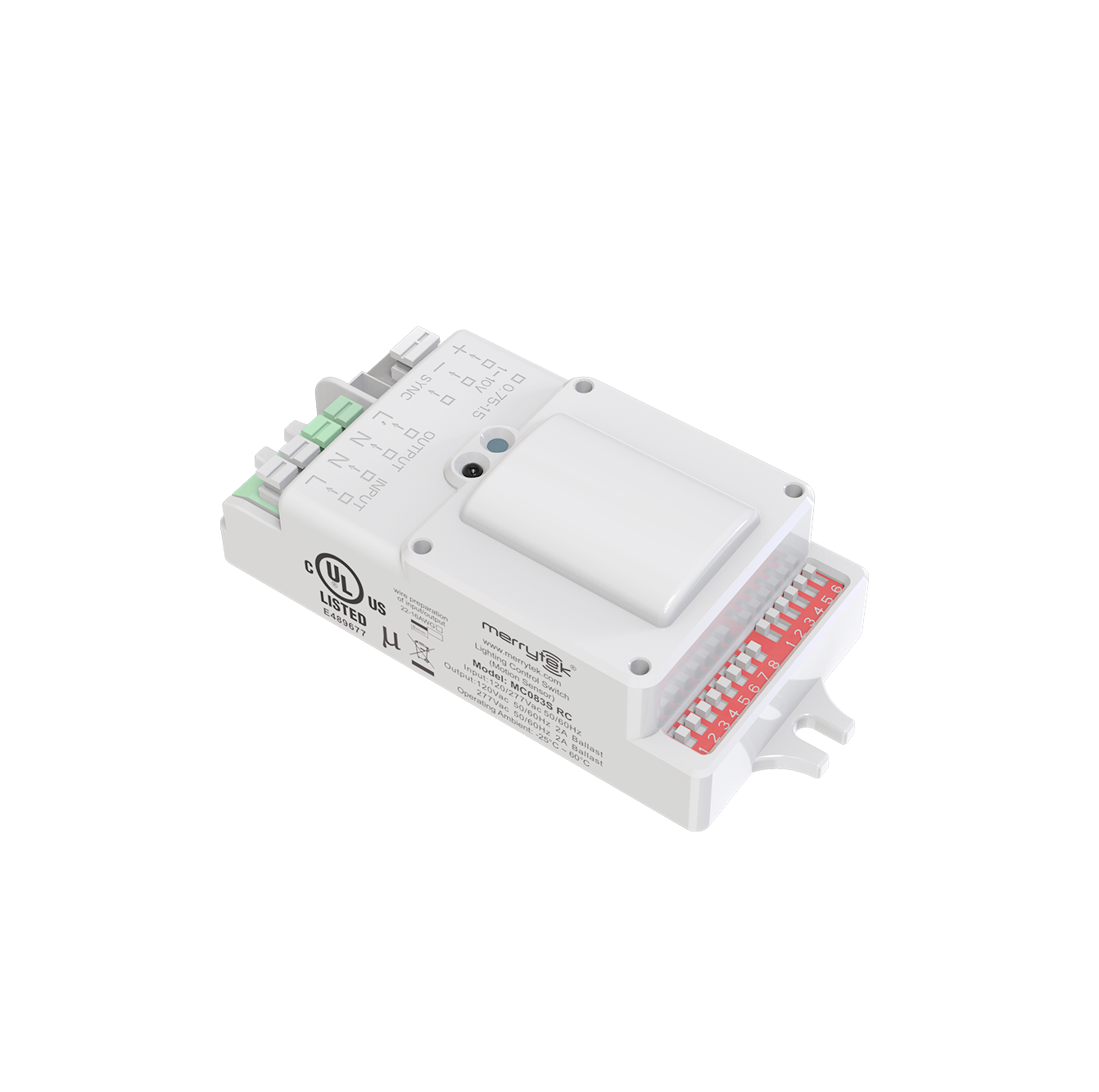

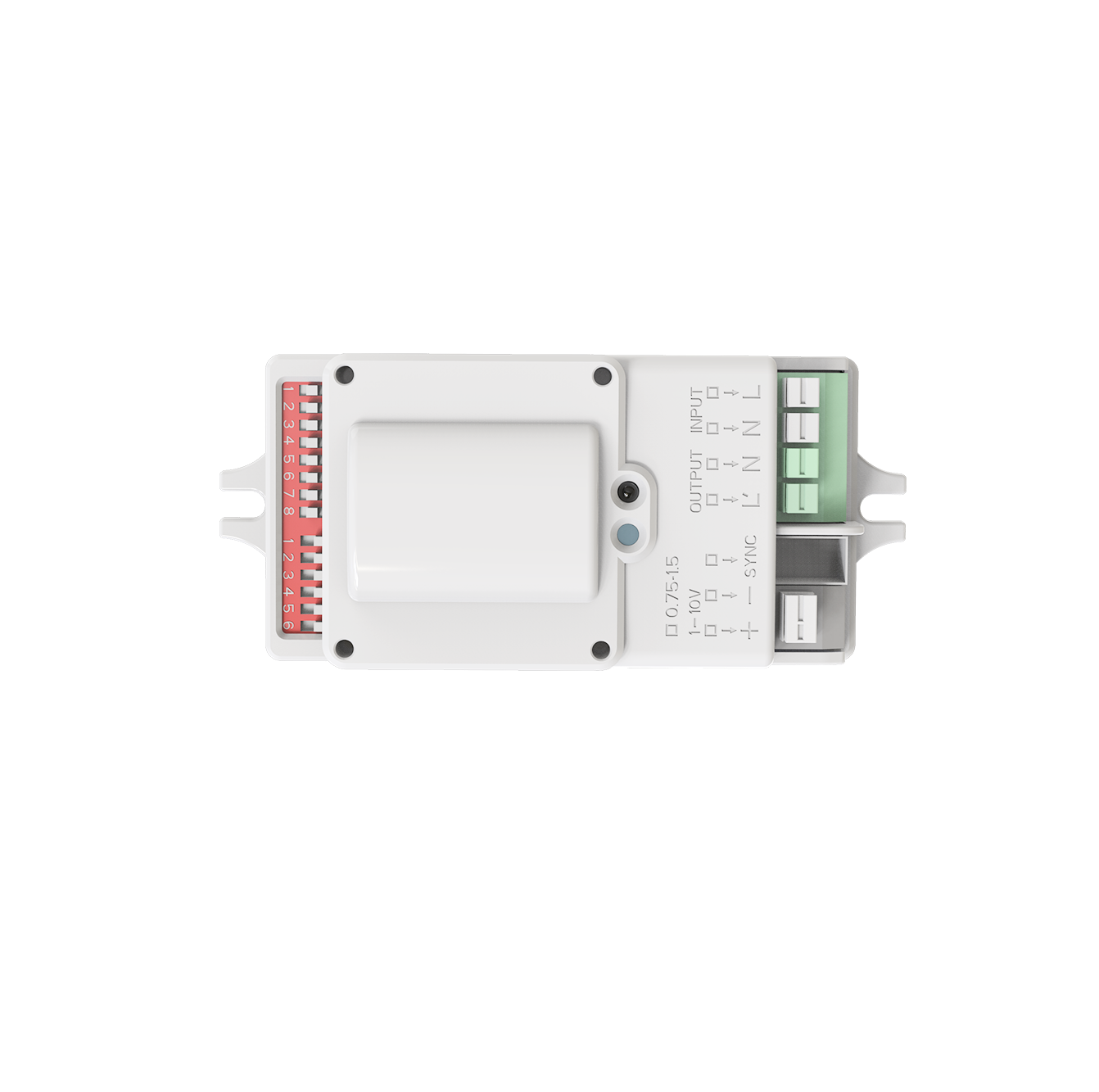

| Dimension | 93.5*45*28.5mm | |
| Package | Bubble bag + partition + outer box (K=A) | |
| Net Weight | 61.2g | |
| Lifetime | 5 years warranty @Ta 230V full load | |
| Note 1. “N/A”means not available. 2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s. |
||
Initialization
On/Off function
After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the sensor is not able to detect movement.
Factory Setting
Detection area: 100%, Hold Time: 5S, Daylight sensor: Disable, Detection mode: HS
Override Sensor
Power off, quick switch ON/OFF sensor 3 times (ON-OFF-ON-OFF-ON) within 2sec to override sensor function. Lights will blink 3 times and then switch ON all the time. Power off and on again to recover sensor function.
Application Notice
1)The product can work with any kinds of control grear..
2) The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.
3) The sensor mounted in a plastic, glass lampshade would reduce the sensitivity of the sensor. For every 3 mm increase in thickness, the sensitivity would reduce by 20%.
4) The sensing distance will be affected by the height of the sensor installation, the size of the object being detected, and the speed of movement.
5) Daylight the value is in a sunny environment with no shadows and ambient light diffuse reflection conditions. The values illumination detected by sensor may vary in different environment, at different times, in different seasons, and in different climates.
6) The parameters of the sensor may need to be reconfigured in different installation environments. Please refer to the following instructions or contact the manufacturer.
7) This sensor is for indoor use only. Outdoor use will affect the waterproof effect, wind and moving objects around would cause false triggering.
8) The distance between any inductive sensors should be greater than 3m.
9) When the sensor is installed in a metal illuminance , a metal reflective surface, or a narrow enclosed environment, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity or contact the manufacturer for technical support.
10) Do not place the sensor close to high-density objects such as metal, glass, mixed-use walls, etc. The sensor may be triggered by mistake.
11) Please ensure that there are no moving signals around the sensor, such as fan, DC motor, sewer, air outlet, etc., the sensor may generate false triggers.

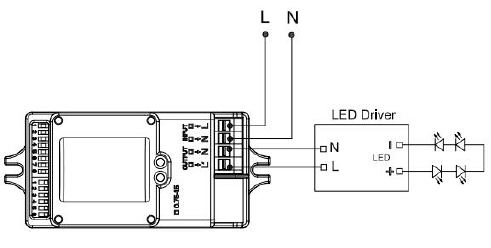

*The sensor is designed to connect one load only.
Connect more than one load may damage the sensor.
N/A
