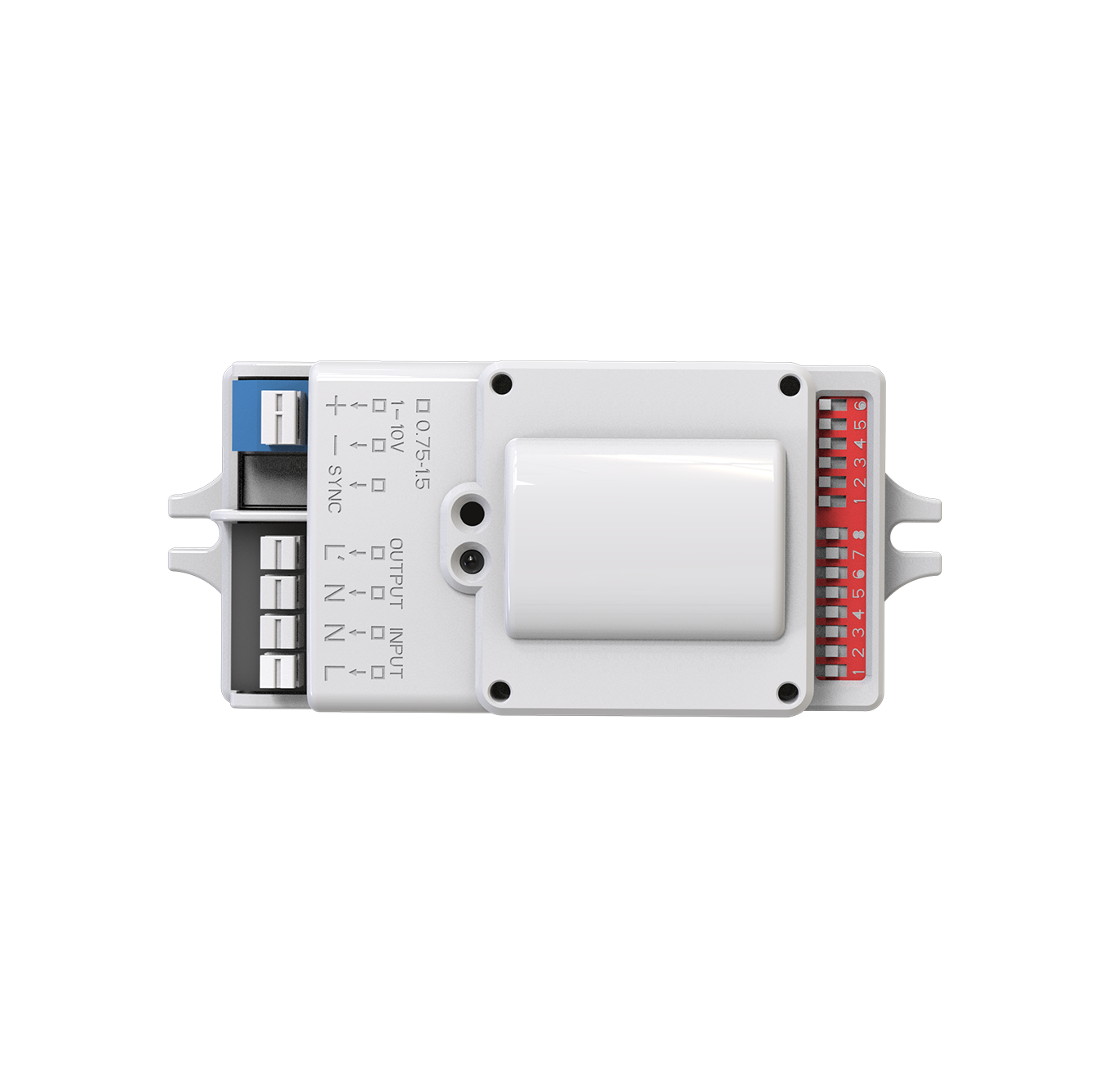

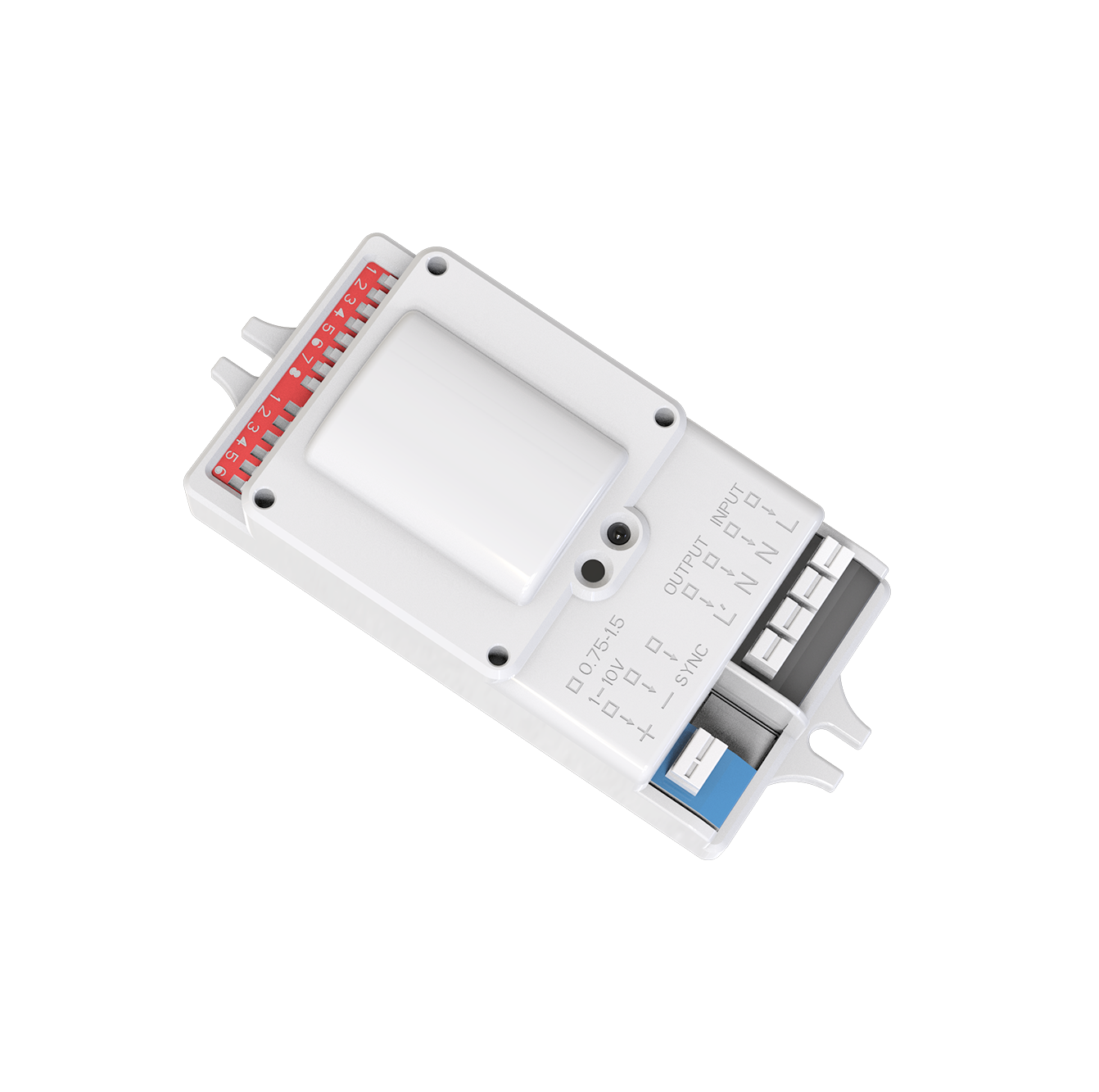

| Input | Operating Voltage | 108-305V AC 50/60Hz | |||||
| Rated Voltage | 120/277V AC 50/60Hz | ||||||
| Stand-by Power | ≤1W | ||||||
| Surge Test | L–N: 1kV | ||||||
| Output | Working Mode | ON/OFF function, 1-10V step dimming | |||||
| Type of Load | Inductive or resistive Load | ||||||
| Load Capacity | 2A @120Vac ,3A@277Vac, 3A@220-240Vac | ||||||
| Max. Surge Capacity | 30A (50%Ipeak,twidth =500uS, 230Vac full load, cold start); 60A (50% Ipeak, twidth=200uS, 230Vac, full load, cold start) | ||||||
| Dim Interface | 1-10V Dimming | 1-10Vdimming 20mA Max （Passive 1-10V port） | |||||
| Sensor Parameters | Operating Frequency | 5.8 GHz ±75 MHz, ISM Band. | |||||
| Transmitting power | 0.5mW Max. | ||||||
| Hold time | 5S/30S/1min/3min/20min/30min 5s/30s/1min/3min/5min/10min/20min/30min(remote control） |
||||||
| Stand-by DIM Level | 10%(1.4±0.3V)/20%(2.5±0.5V)/50%(5.±1V) (Only DIP Switch） | ||||||
| Stand-by Period | 0S/5S/5min/10min/30min/1h/+∞ 0s/10s/1min/3min/5min/10min/30min/+∞ (Remote control） |
||||||
| Detection Area | 100%/75%/50%/10% 100%/75%/50%/25% (Remote control） |
||||||
| Daylight Sensor | 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable（Ambient light diffusion） 5lux/15lux/30lux/50lux/100lux/150lux/Disable （Remote control） |
||||||
| Detecting Radius | See detection pattern | ||||||
| Mounting Height | 12m Max | ||||||
| Detecting Angle | 150° | ||||||
| Operating Environment | Operating Temperature | -25℃…+60℃ | |||||
| Storage Temperature | Temperature:-40℃…+80℃; Humidity:10%-95% (non-condensing) | ||||||
| Certificate Standards | Safety standards | EN61058-1, UL60703-1 | |||||
| EMC standards | EN300440; EN301489-1; EN55015; EN61547; EN61000-3-2; EN61000-3-3; EN62479 | ||||||
| Environmental Requirement | Compliant to RoHS | ||||||
| Certificate | CE, RED,UL,FCC | ||||||
| Others | Input/output terminal specifications | Push-type terminal block; wire diameter: 0.75-1.5mm2 | |||||
| IP Rating | IP20 | ||||||
| Protection Class | Class II | ||||||
| Installation | Built-in installation | ||||||

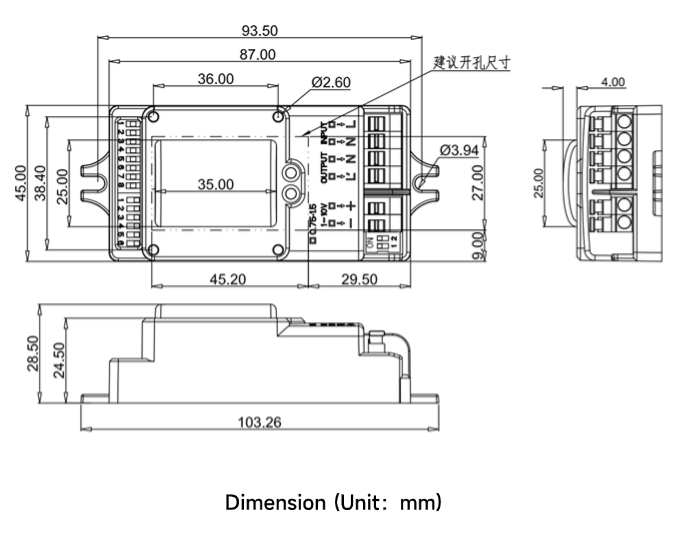

| Dimension | 93.5*45*28.5mm | ||||||
| Package | Bubble bag + partition + outer box (K=A) | ||||||
| Net Weight | 61.2g | ||||||
| Lifetime | 5 years warranty@Ta 230V full load | ||||||
| Note 1. “N/A”means not available. 2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s. |
|||||||
Override Sensor
Power off, quick switch ON/OFF sensor 3 times (ON-OFF-ON-OFF-ON) within 2sec to override sensor function. Lights will blink 3 times and then switch ON all the time. Power off and on again to recover sensor function.
Initialization
1.On/Off function /3-step dimming function:
After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the sensor is not able to detect movement.
2.2-step dimming function:
After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it dims the light to a low light level (set by stand-by dim level). During the initialization, the sensor is not able to detect movement.
Factory Setting
Detection area: 100%, Hold Time: 5S, Stand-by Period: 0S, Stand-by dim level:10%, Daylight Sensor: Disable
Application Notice

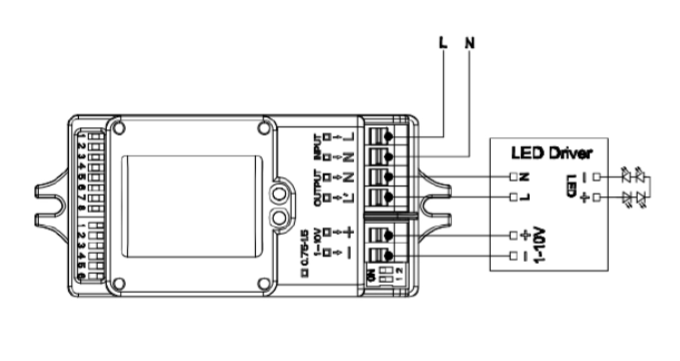

1) The product dimming function needs to be equipped with an 1-10V dimming LED driver.
2) The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.
3) The sensor mounted in a plastic, glass lampshade would reduce the sensitivity of the sensor. For every 3 mm increase in thickness, the sensitivity would reduce by 20%.
4) The sensing distance will be affected by the height of the sensor installation, the size of the object being detected, and the speed of movement.
5) Daylight the value is in a sunny environment with no shadows and ambient light diffuse reflection conditions. The values illumination detected by sensor may vary in different environment, at different times, in different seasons, and in different climates.
6) The parameters of the sensor may need to be reconfigured in different installation environments. Please refer to the following instructions or contact the manufacturer.
7) This sensor is for indoor use only. Outdoor use will affect the waterproof effect, wind and moving objects around would cause false triggering.
8) The distance between any inductive sensors should be greater than 3m.
9) When the sensor is installed in a metal illuminance , a metal reflective surface, or a narrow enclosed environment, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity or contact the manufacturer for technical support.
10) Do not place the sensor close to high-density objects such as metal, glass, mixed-use walls, etc. The sensor may be triggered by mistake.
11) Please ensure that there are no moving signals around the sensor, such as fan, DC motor, sewer, air outlet, etc., the sensor may generate false triggers.
12) You are advised to test 5 samples before mass application of sensor in a new lighting project.
*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.
