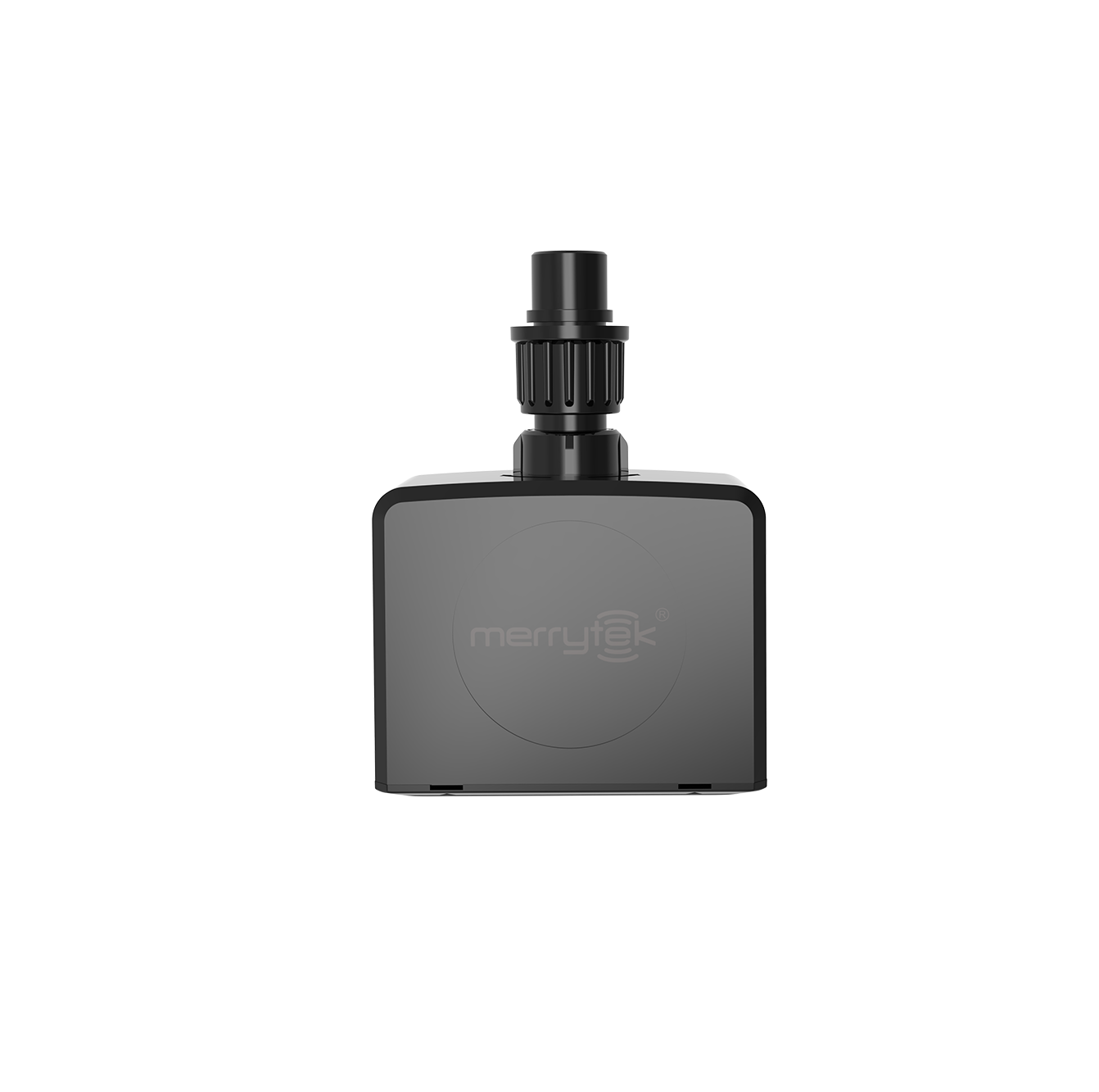

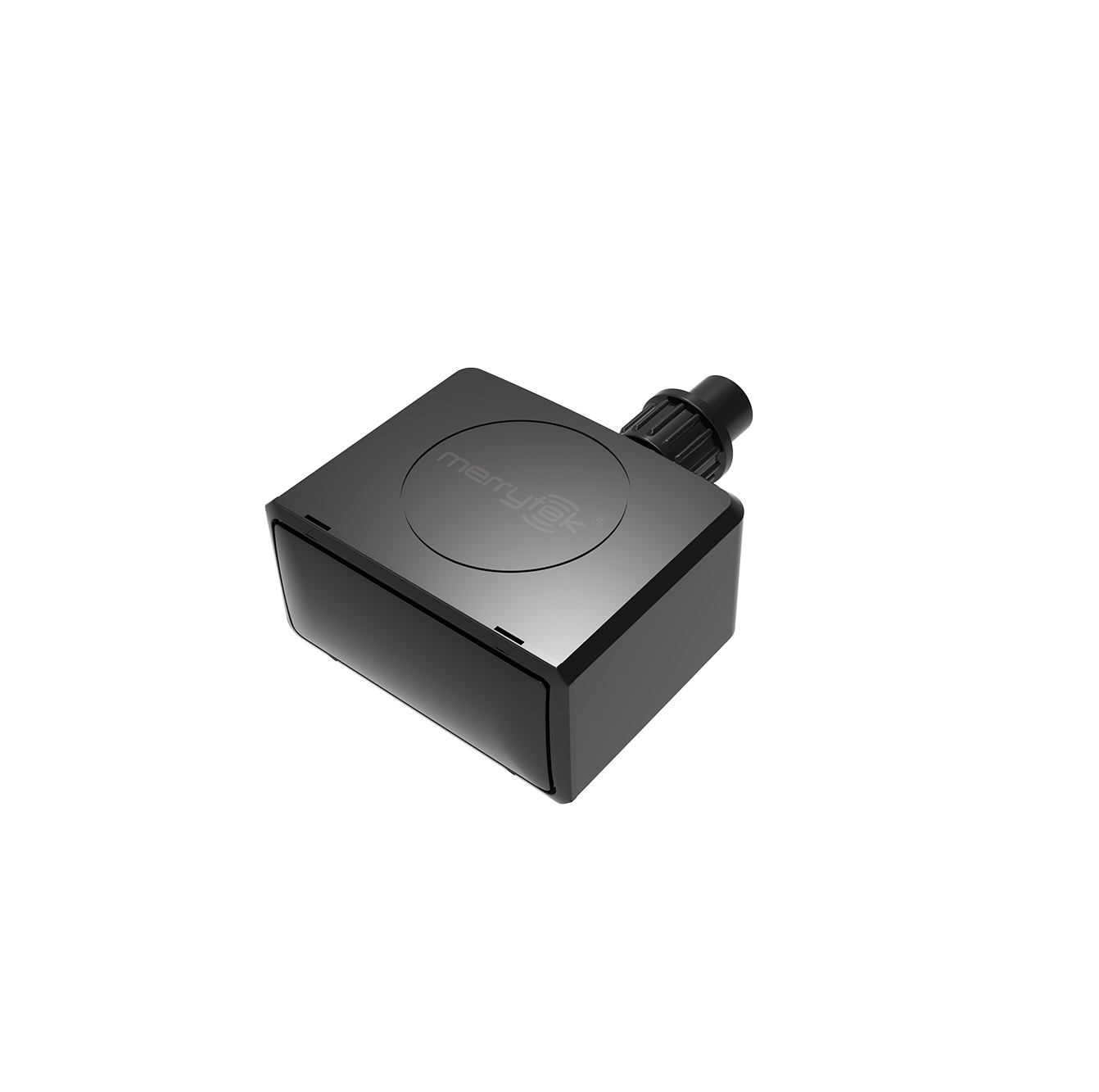

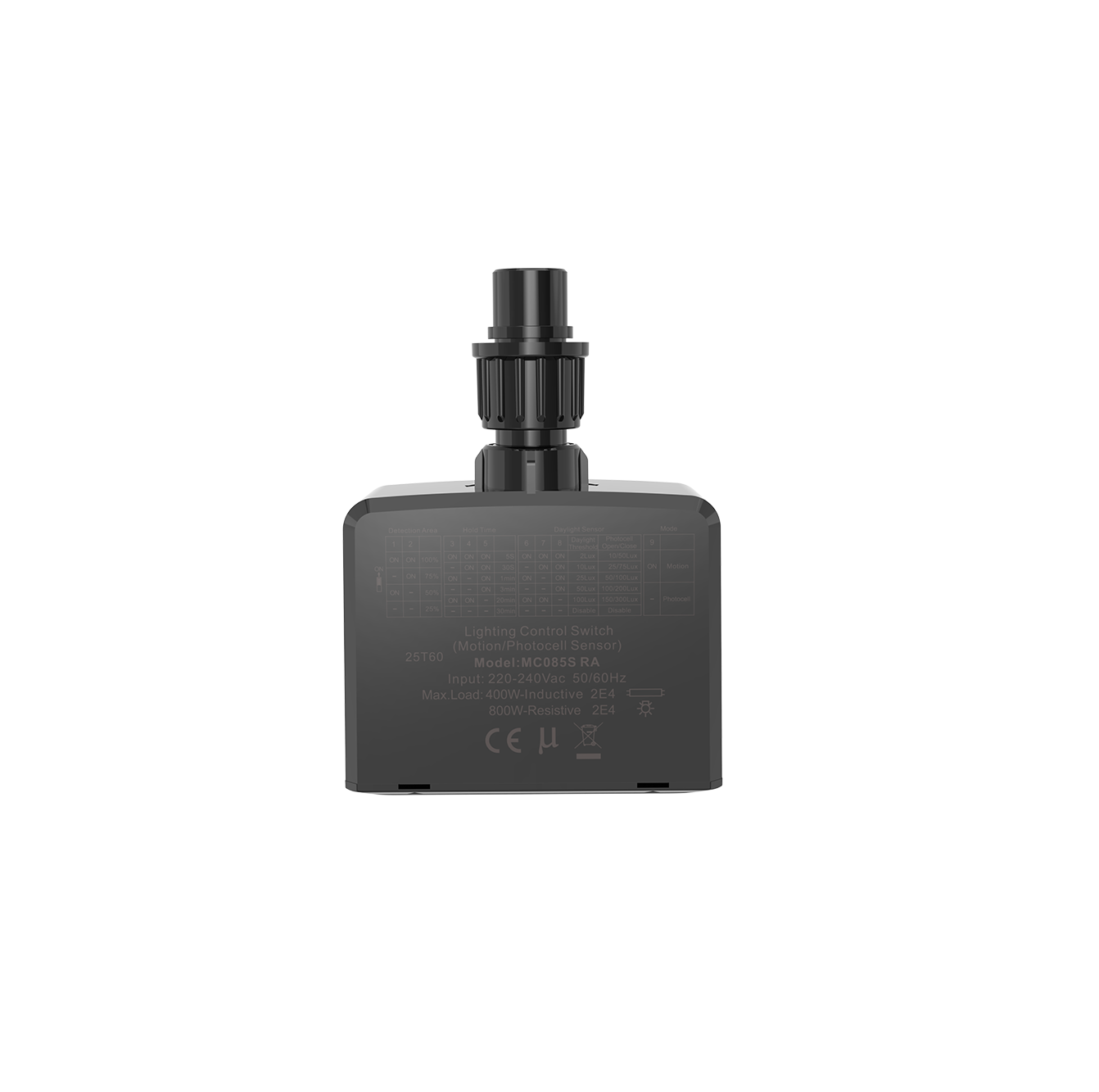

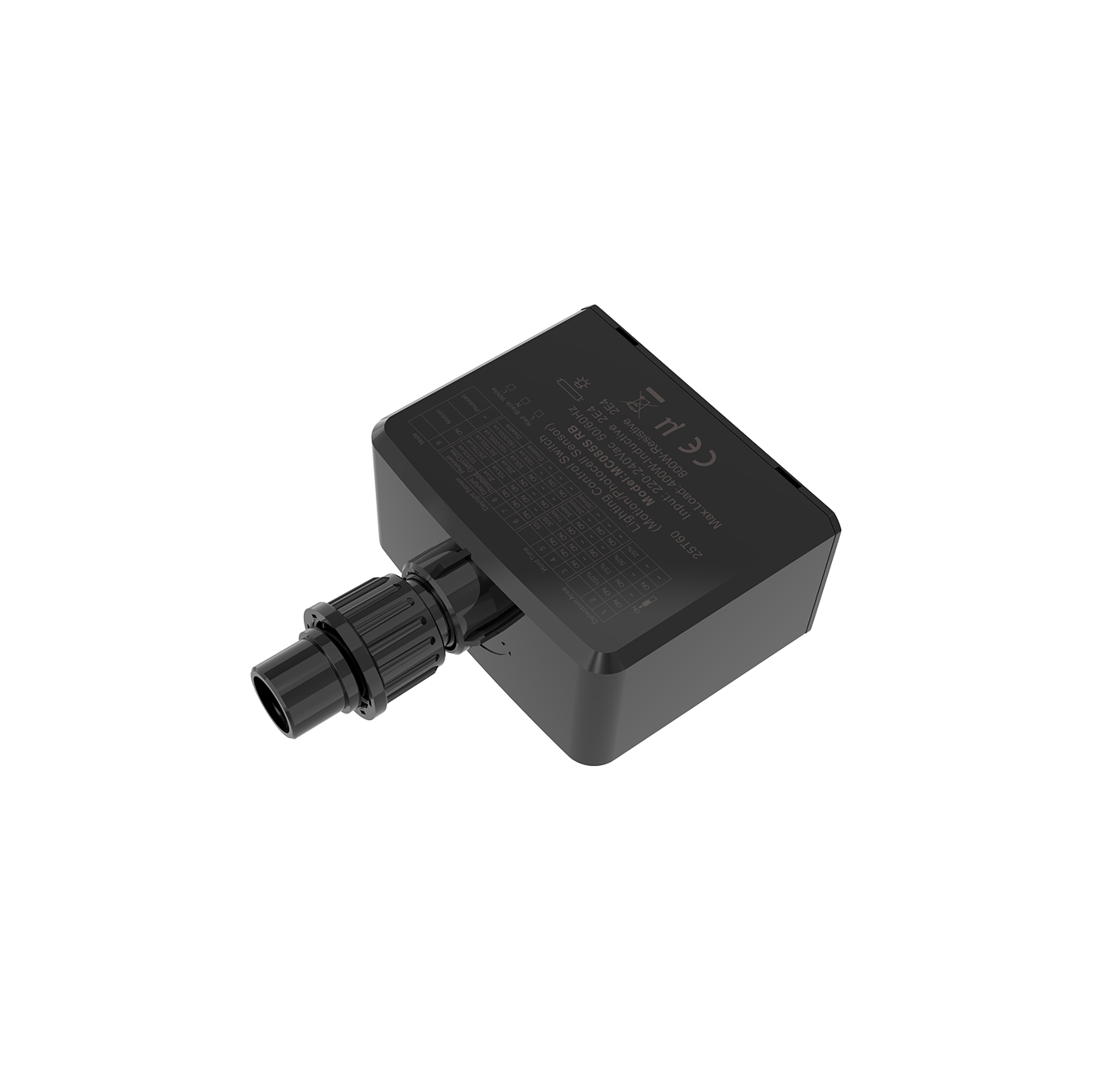

| Input | Operating Voltage Rage | 198-264V AC, 50Hz/60Hz |
| DC Input Voltage | N/A | |
| Rated Voltage | 220-240V AC, 50Hz/60Hz | |
| No-load Power | N/A | |
| Stand-by Power | ≤0.5W | |
| Surge Test | L–N: 1kV | |
| Output | Working Mode | Photocell function or Motion function |
| Type of Load | Inductive or Resistive | |
| Load Capacity | 400W(Inductive) ; 800W(Resistive) | |
| Current of Load | N/A | |
| Max. Surge Capacity | 10A: 30A (50% Ipeak, twidth =500uS, 230Vac full load, cold start); 60A (50% Ipeak, twidth =200uS, 230Vac, full load, cold start）17A: 50A (50% Ipeak, twidth =500uS, 230Vac full load, cold start); 80A (50% Ipeak, twidth =200uS, 230Vac, full load, cold start） |
|

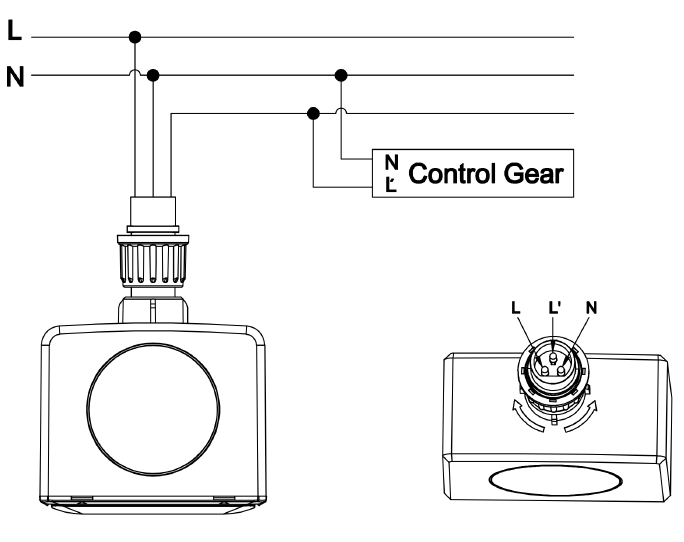

| Wiring Method | Needle Connector | |
| Sensor Parameters | Operating Frequency | 5.8 GHz ±75 MHz, ISM Band. |
| Transmitting power | 0.5mW Max. | |
| Hold time | 5S/30S/1min/3min/20min/30min | |
| Detection Sensitivity | 100%/75%/50%/25% | |
| Daylight Sensor | 2Lux/10Lux/25Lux/50Lux/100Lux/Disable | |
| Daylight open/close | 10Lux/50Lux ; 25Lux/75Lux; 50Lux/100Lux; 100Lux/200Lux; 150Lux/300Lux; Disable | |
| Detecting Radius | 4-6m (mounting height 3m) , see note 2 | |
| Mounting Height | 6m Max. | |
| Detecting Angle | 150° (Wall mounted), 360° (Ceiling mounted) | |
| Operating Environment | Operating Temperature | -20℃…+60℃ |
| Storage Temperature | -40℃…+80℃(Humidity: 10%-95%) | |
| Certificate Standards | Safety standards | EN61058-1 |
| EMC standards | EN300440; EN301489-1; EN55015; EN61547; EN61000-3-2; EN61000-3-3; EN62479 | |
| Environmental Requirement | Compliant to RoHS | |
| Certificate | CE | |
| Others | Wiring | MC085S A Needle connector |
| IP Rating | IP65 | |
| Protection Class | Class II | |
| Installation | Independent installation | |

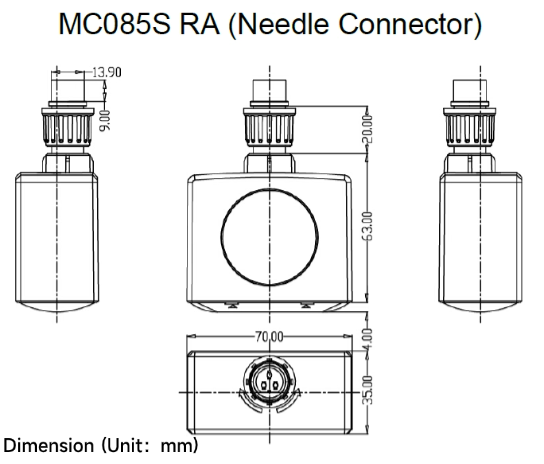

| Dimension | Φ16mm | |
| Package | Bubble bag+Clapboard + Carton（K=A） | |
| Net Weight | 77.7g | |
| Lifetime | 5 years warranty @Ta 230V full load | |
| Note 1. “N/A”means not available. 2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s. |
||
Override Function
Quick switch ON/OFF 3 times within 2sec to override sensor function. Lights will switch on all the time. Power off and on again to recover sensor function.
Factory Setting
Detection Area: 100%, Hold Time: 5S, Daylight Sensor: Disable, Mode Settings: Motion
Application Notice
When switch between the Photocell function and the Motion function , Please turn off the power first before change the mode.
*The sensor is designed to connect one load only.
Connect more than one load may damage the sensor.
