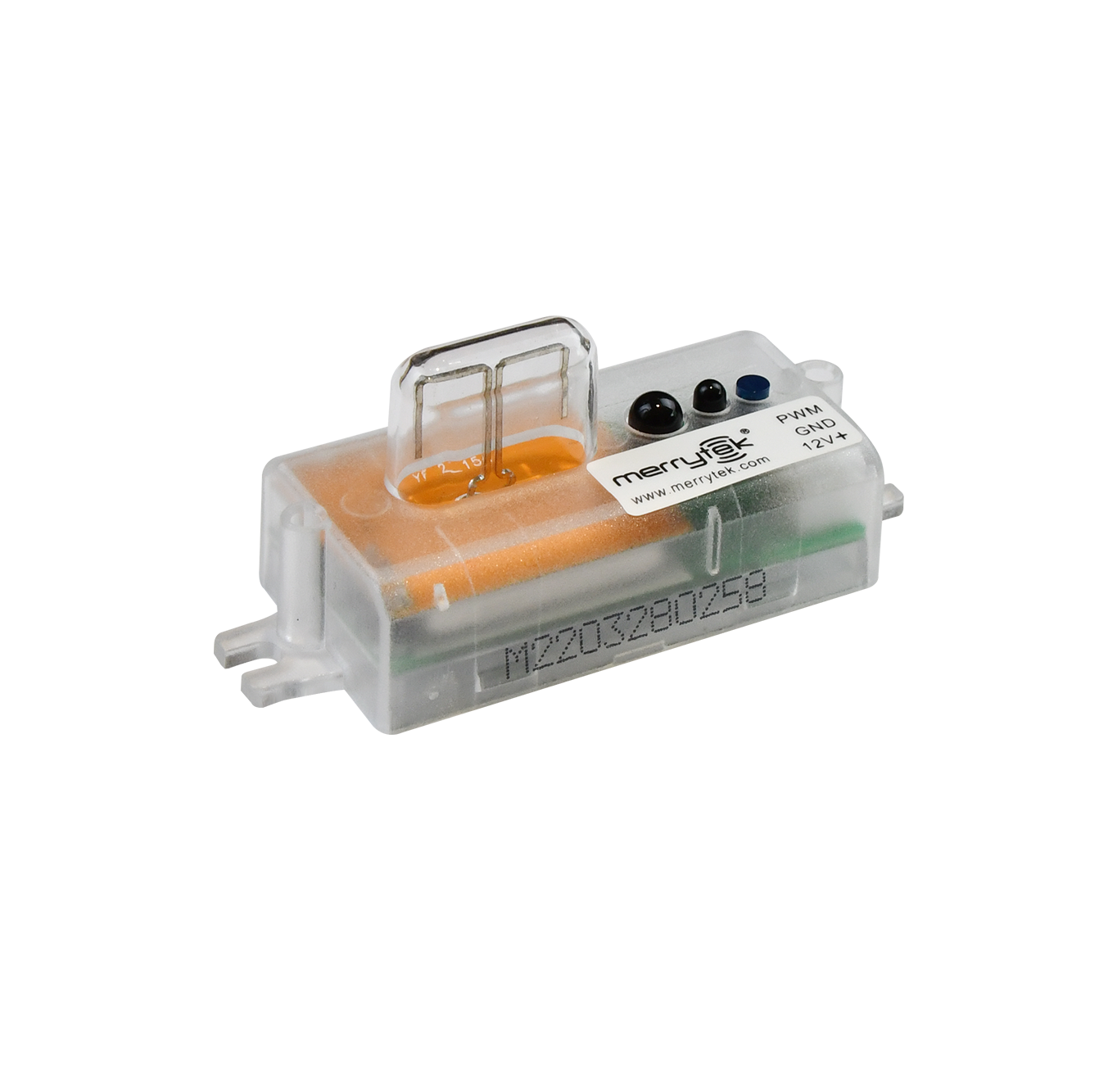

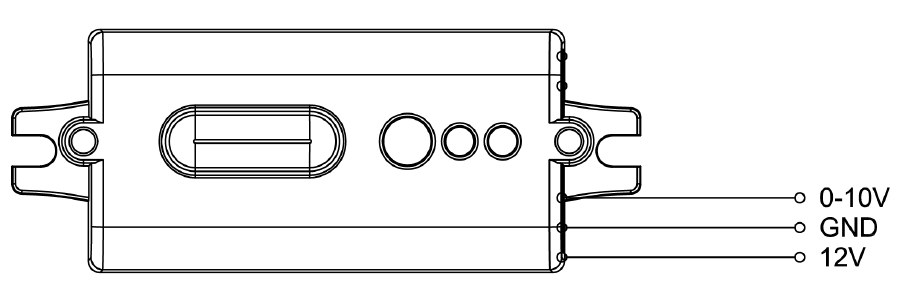

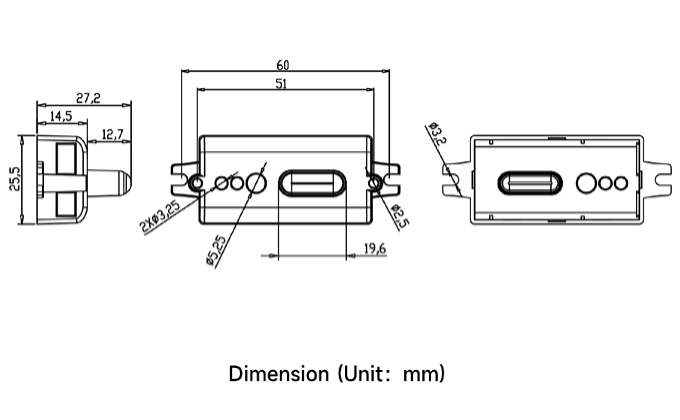

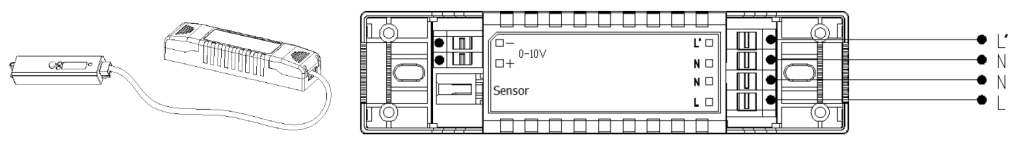

MC087D RC

Initialization

When power on, the sensor automatically turns on light to 100% brightness and turns off light in 10 seconds. During initialization, sensor is unable to detect motion signals.

Factory Setting

Detection area: 100%, Hold Time: 5S, Stand-by Period: 0s, Daylight Sensor: Disable, Stand-by dim level: 10% (can be changed as required)

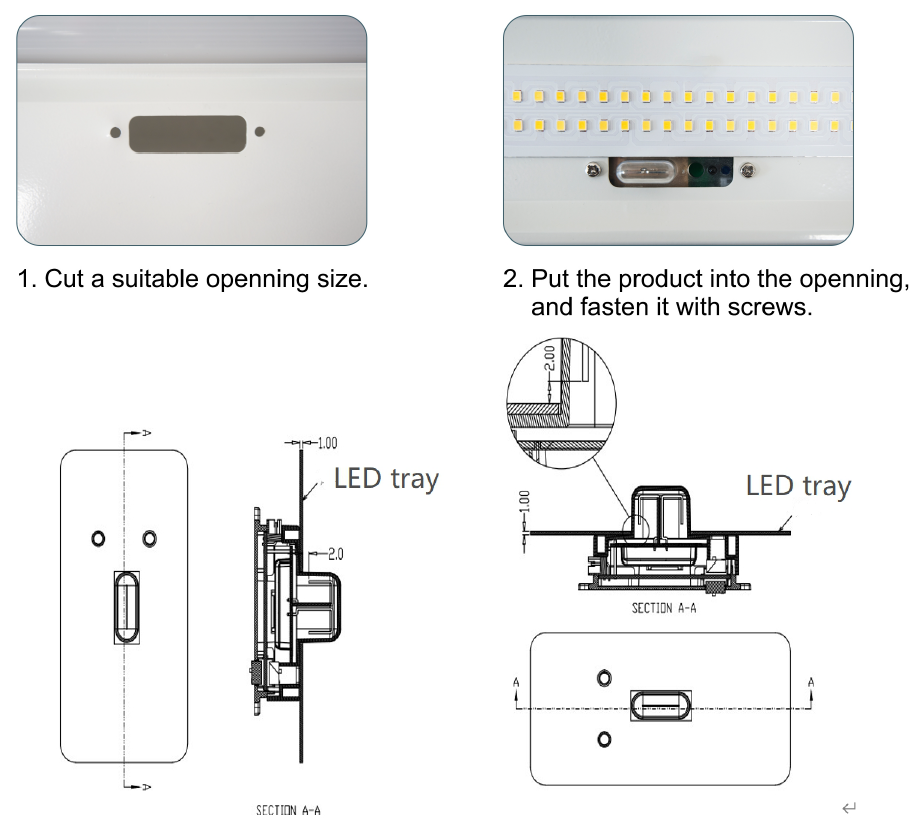

Application Notice

1) The sensor should be installed by professional electricians. Please turn off power before installing, wiring, and setting parameters.

2) Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is not allowed to cover the product. If antenna needs to pass through the metal flat, please ensure that the top of sensor is close to the metal flat.

3) The distance among sensors should be greater than 3 meters. Keep sensor at least 1.5 meters away from switches, routers and other wireless devices to avoid interference. The antenna surface of microwave sensor should be away from input AC and output DC to avoid low or high frequency signals affecting the normal operation of microwave sensor’s antenna.

4) Vibration signals will be regarded as moving signals to trigger sensor. Installing sensor should be away from the object that vibrates for a long time, such as large metal equipment, pipes, air conditioning outlets, exhaust vents, smoke exhaust machine ports, shaking fans, etc. Pets in detecting area may trigger sensing.

5) Sensor is for indoor use only. When installed outdoor or half-outdoor, the waterproof effect will be affected. Wind, rain, and moving objects may cause false triggering. When the sensor is installed in a metal lamp, on a metal reflective surface, or in a narrow enclosed device, microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity of sensor or contact manufacturer for technical support.

6) This product is suitable for ceiling mounting. If wall mounting, the detecting area will enlarge which makes microwave penetrate wall or light not turn off. Please change sensitivity to 50%. If 50% is useless, please avoid wall mounting or contact the manufacturer for technical support.

7) Due to continuous improvement, the contents of this instruction will be changed without prior notice.

8) The effect of low brightness will be different when connecting to different 0-10V drivers. The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.

9) Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, installation environment, reflecting materials and others.

10) Given detecting area is typical value that is measured by 165cm high testers in an indoor open environment.

11) The product should be connected to DC stabilized power supply with stabilized output voltage and low ripple ratio(ripple ratio <100mV; load current > 25mA).

12) When installing in new environment, please install and test at least 5pcs product firstly before mass installation.

13) Set “Stand-by Period” to “+∞” when daylight priority function is required.

14) Daylight priority function may be out of control when it is used in lamps with a color temperature below 3500K.
