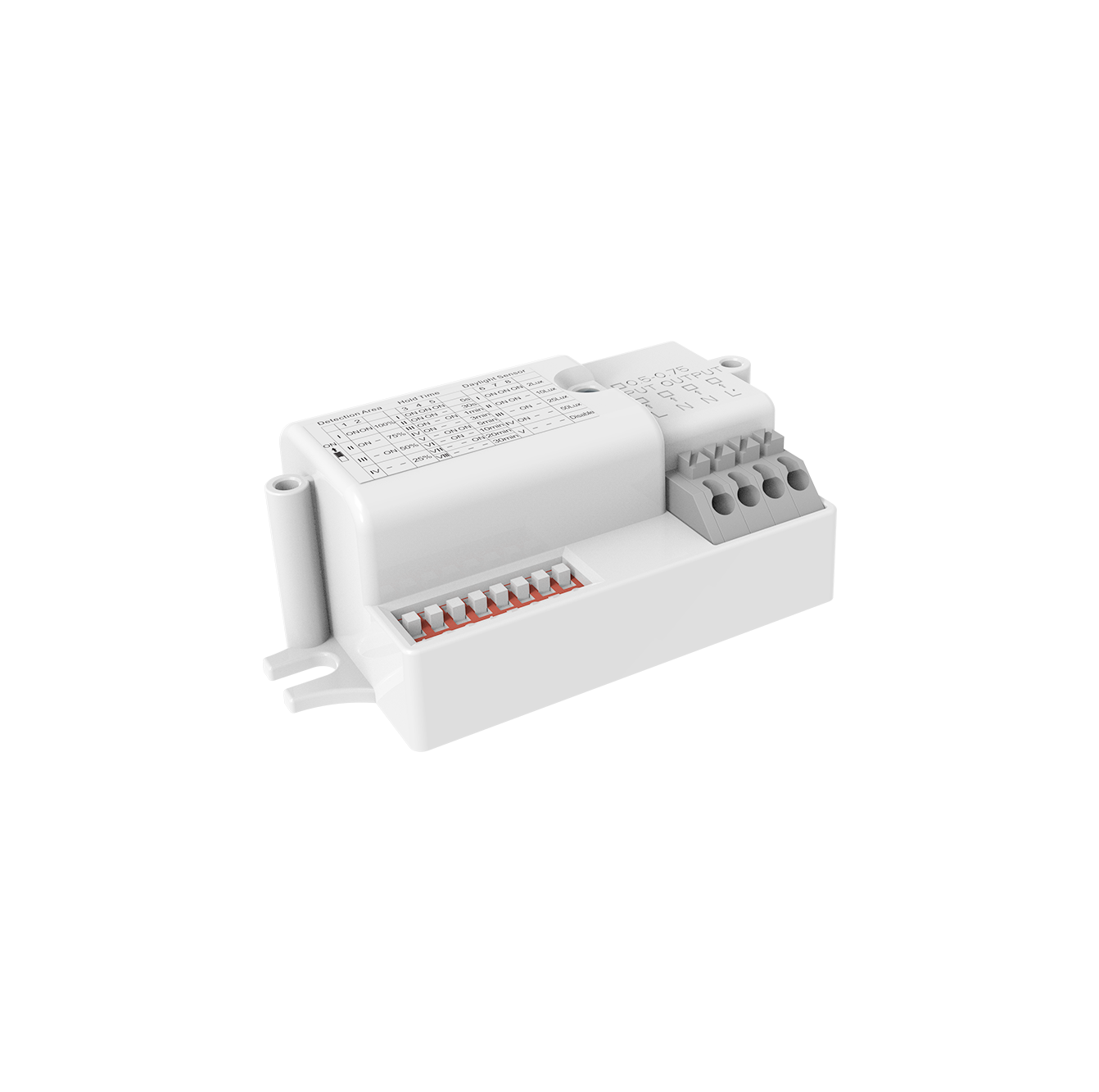

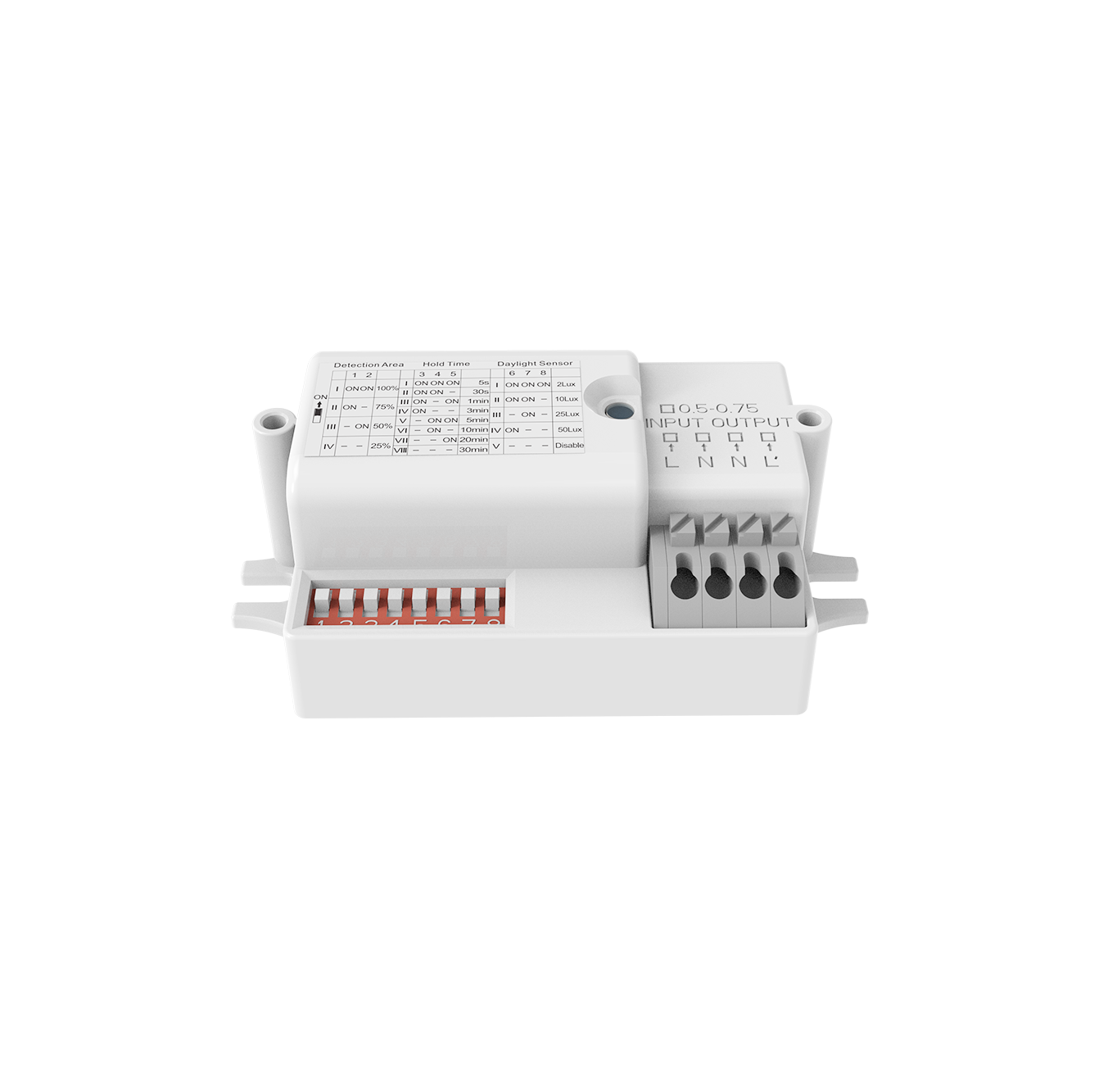

| Input | Operating Voltage Range | 105-300VAC 50/60Hz | |||||
| Rated Voltage | 120-277VAC 50/60Hz | ||||||
| No-load Power | ≤1.0W | ||||||
| Stand-by Power | ≤0.5W | ||||||
| Surge Test | Between L and N: 1KV | ||||||
| Output | Working Mode | ON/OFF | |||||
| Type of Load | Resistive or Capacitive | ||||||
| Load Capacity | 800W (Resistive) or 400W (Capacitive) | ||||||
| Load surge current | 30A relay – 30A (test twidth 500us @230Vac at 50% Ipeak, cold start at full load) or 60A (test twidth 200us @230Vac at 50%Ipeak, cold start at full load) | ||||||
| Sensor | Operating Frequency | 5.8 GHz ±74.9 MHz.ISM wave band | |||||
| Transmitting power | 0.5mW Max. | ||||||
| Hold time | 5S/30S/60S/3min/5min/10min/20min/30min | ||||||
| Detection Area | 100% / 75% / 50% / 25% | ||||||
| Daylight Sensor | 2Lux/10Lux/25Lux/50Lux/Disable | ||||||
| Detecting Radius | 4-7m (Installed at 3m high ) | ||||||
| Mounting Height | 2.5-6 m(Suction Top Installation) | ||||||
| Detecting Angle | Ceiling mount 150° | ||||||
| Operating Environment | Operating Temperature | -20℃…+60℃ Humidity: 85% (non-condensing) | |||||
| Storage Temperature | -40℃…+80℃ | ||||||
| Certificate Standards | Safety standards | EN61058-1, EN61058-1-2 | |||||
| EMC standards | EN55015, EN61547, EN61000-3-2, EN61000-3-3 | ||||||
| Environmental Requirement | RoHS | ||||||
| Certificate | UL | ||||||
| Others | Input/output terminal specifications | 0.5-0.75mm2 | |||||
| IP Rating | IP20 | ||||||
| Protection Class | Class II | ||||||
| Installation | Built-in installation | ||||||

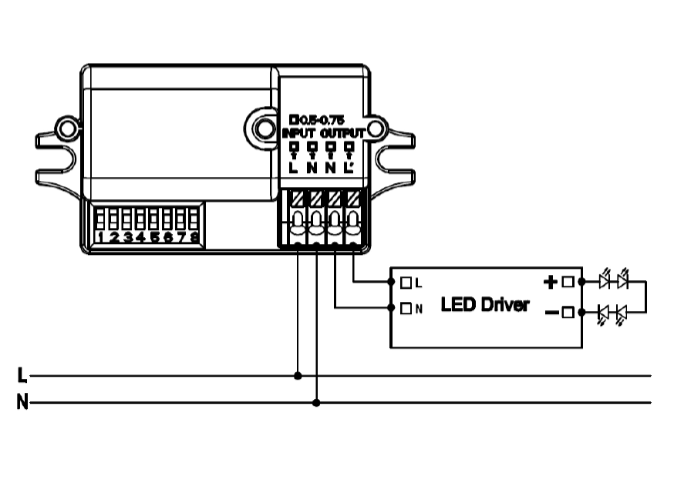

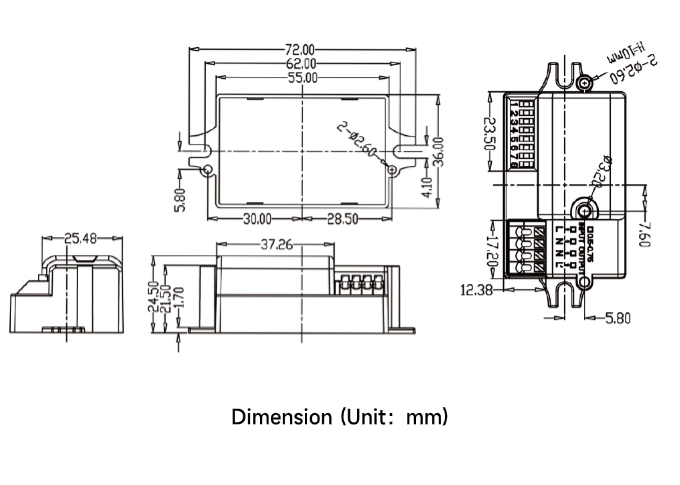

| Dimension | 62*36*25mm | ||||||
| Package | Bubble bag + partition + outer box (K=A) | ||||||
| Net Weight | 36g | ||||||
| Lifetime | 5 years warranty@Ta 230V full load | ||||||
| Note: 1. “N/A”means not available. 2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s. |
|||||||
Override Function
Power off, quick switch ON/OFF sensor 3 times (ON-OFF-ON-OFF-ON) within 2sec to override sensor function. Lights will blink 3 times and then switch ON all the time. Power off and on again to recover sensor function.
Initialization
After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the sensor is not able to detect movement.
Factory settings
Detection Area: 100%, Hold Time: 5S, Daylight Sensor: Disable
Use Caution
1. Be sure to cut off the power supply before installing or adjusting the setting of the dial switch.
2. The microwave cannot pass through the metal, make sure there are no metal above the sensor.
3. It has to be at least 3.5mm away from metal around the microwave antenna. It is not allowed to place antenna and metal on the same horizontal.
*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.
