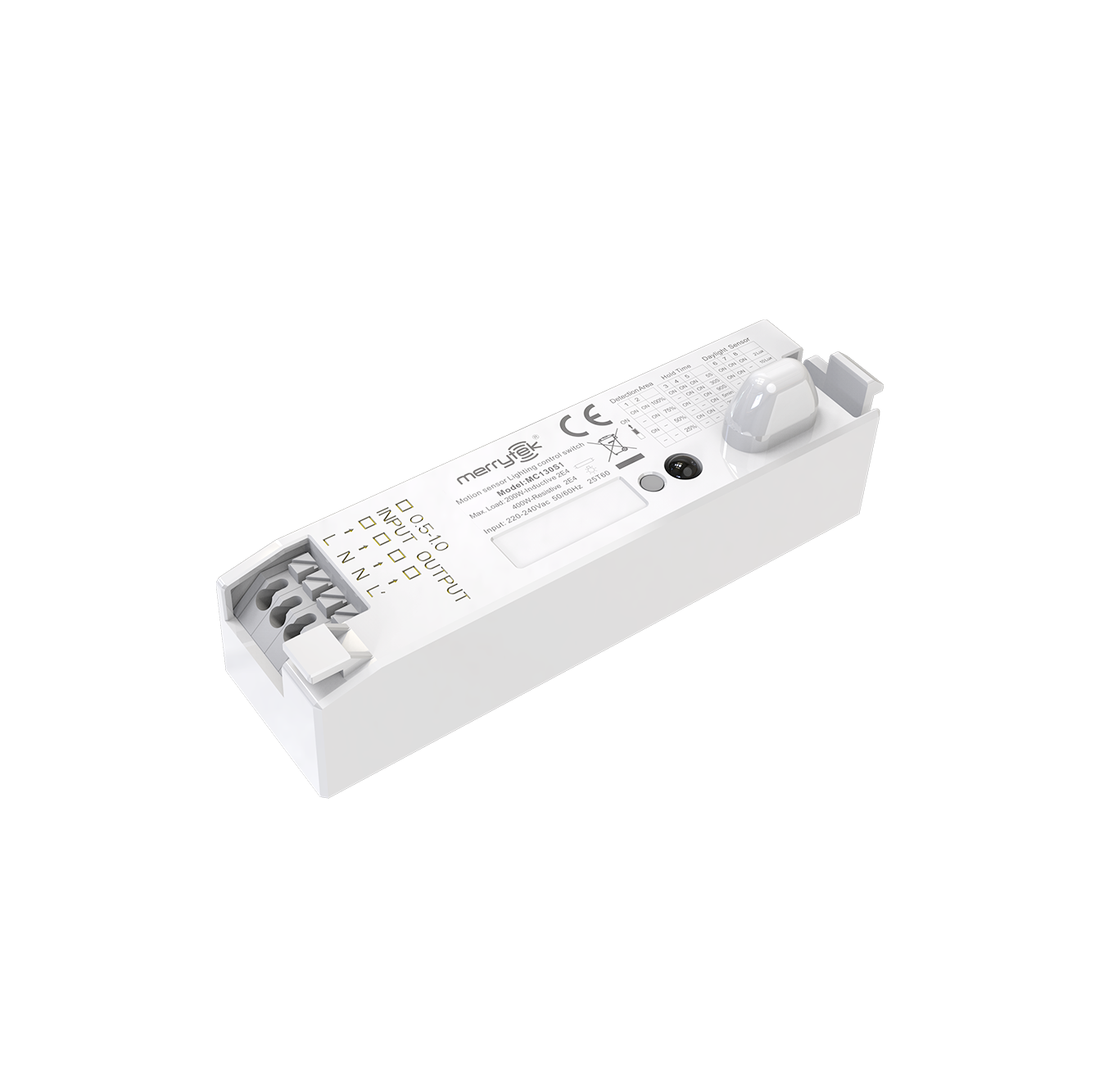

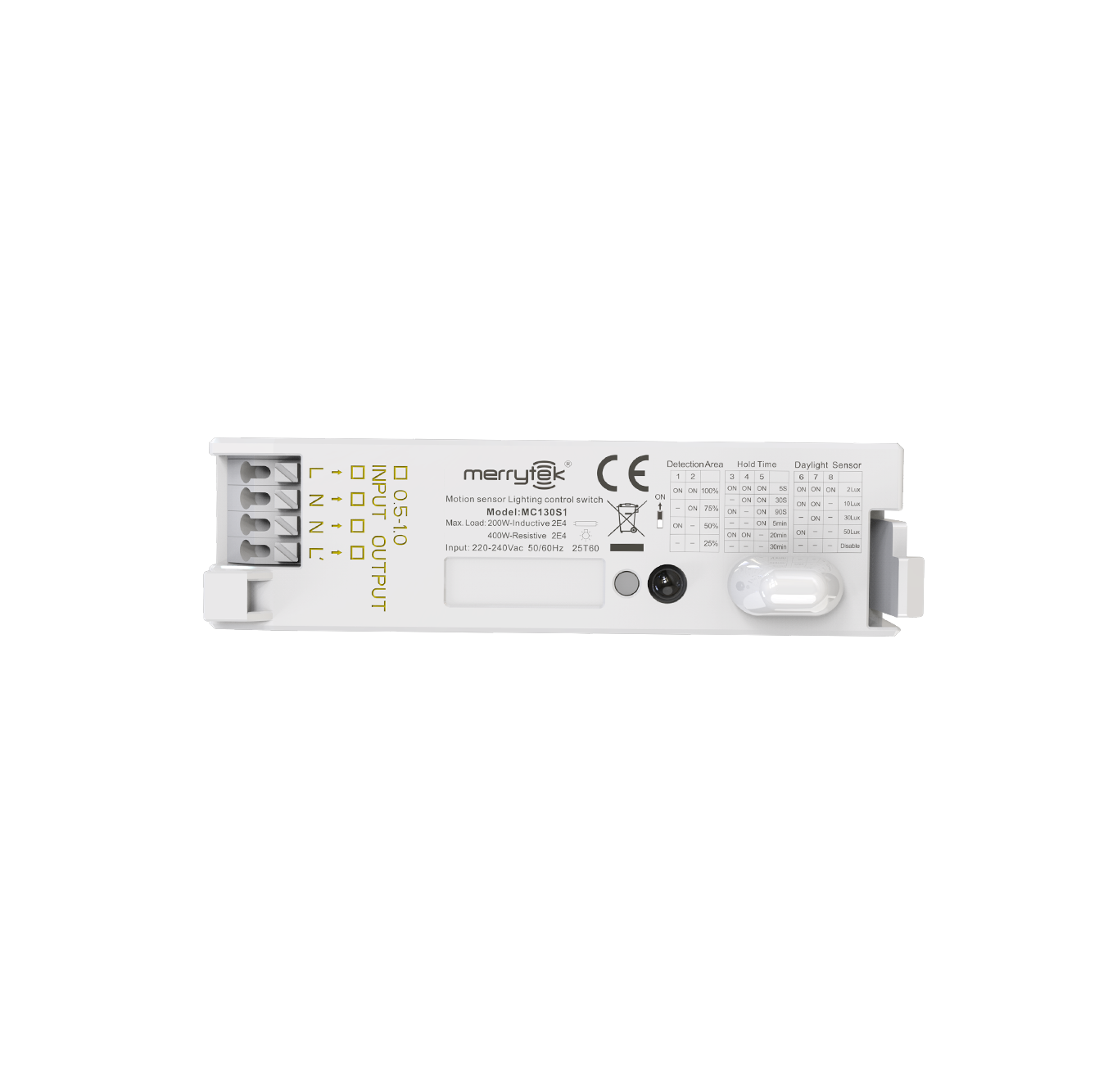

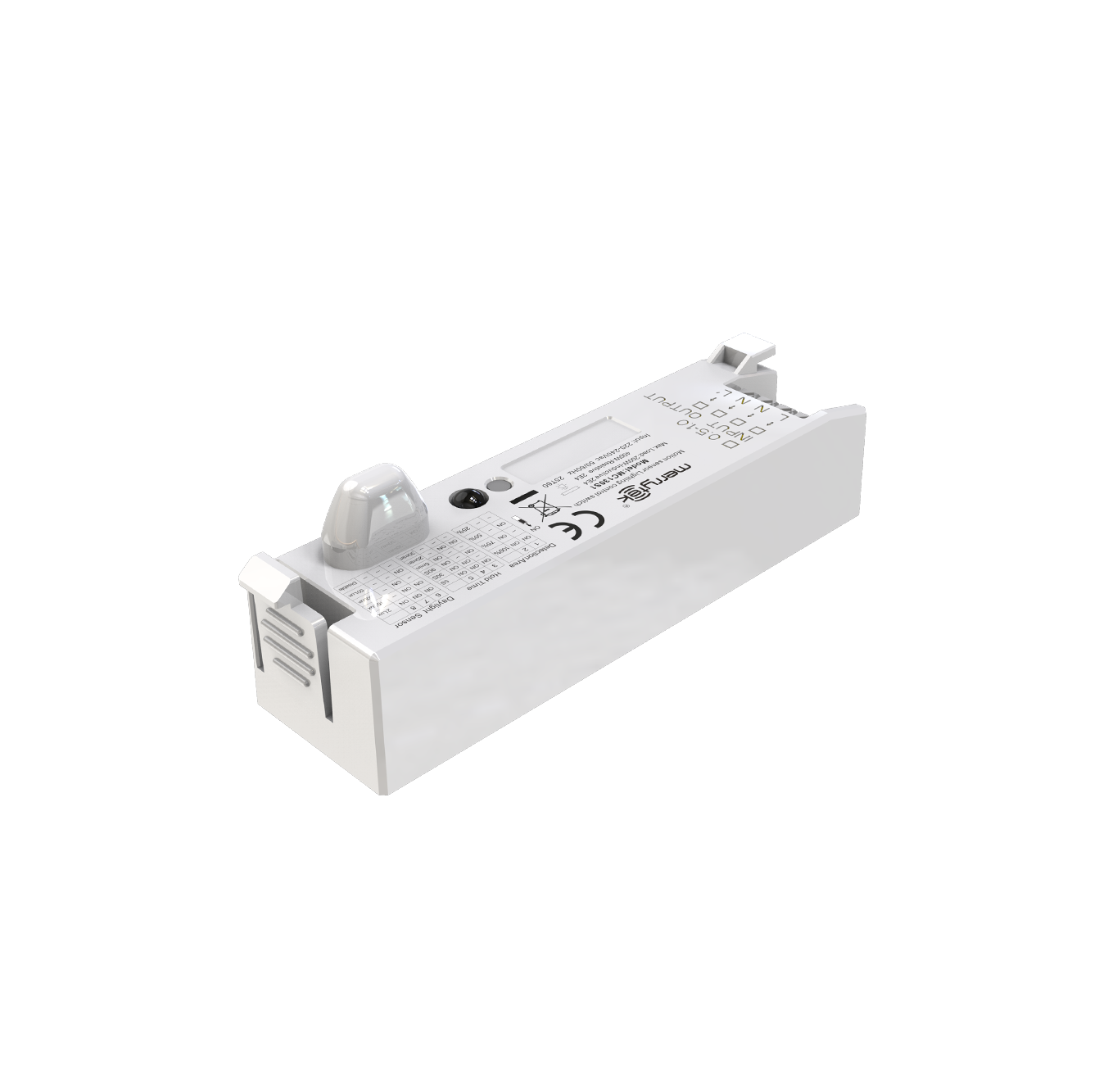

MC130S 1

Features

Patented Mini Coupling DiPole Antenna for ceiling light. suitable to built-in metal LED tray without false trigger.
Compact size, not effect light distribution.
Low sidelobe, no false trigger in metal reflection space.
Low transmitting power, no harm to human.

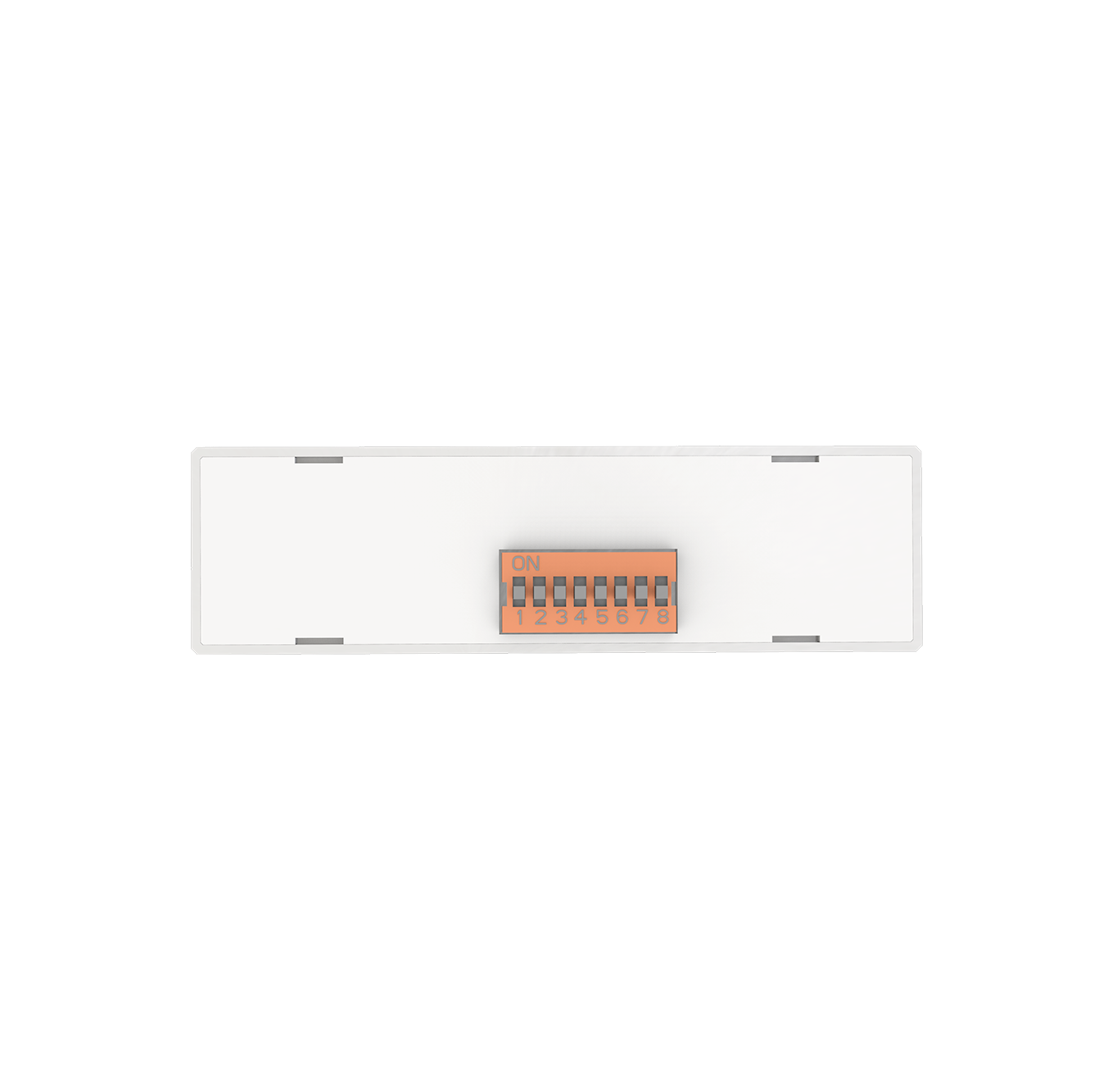

Sensor data can be set by DIP switch & remote control.
Not affected by temperature, humidity, noise, dust etc..

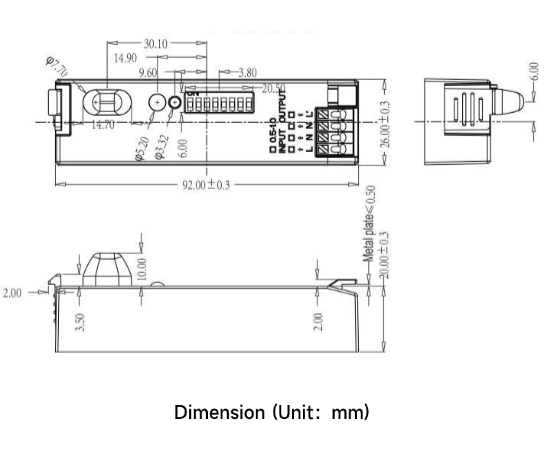

Size and Function Diagram

Parameter characteristics

Input	Rated Voltage	220-240VAC 50/60Hz
	Stand-by Power	≤0.5W
	Surge Test	L–N: 1kV
Output	Output Control	ON-OFF
	Load Capacity	200W(Inductive/LED) ; 400W(Resistive)
	Max. Surge Capacity	10A relay: 30A (50% Ipeak, twidth =200us, 230Vac full load, cold start);
Sensing parameters	Operating Frequency	5.8 GHz ±75MHz, ISM wave band.
	Transmitting power	1mW Max.
	Detecting Radius	r≥3m @ ceiling mounting, r≥8m @ wall mounting Motion speed: 1m/s, 100% sensitivity, 165cm person.
	Mounting Height	2.5-5m (ceiling mounting), 2-3m (wall mounting)
Environment	Operating Temperature	-25~60°C
Environment	Storage Temperature	-40℃~80℃, Humidity: ≤85%(Non-condensing)
Certificate Standard	Certificate	CE, RED, UKCA, SAA, CB
	Environmental Requirement	Compliant to RoHS 2.0, Reach
	IP Rating	IP20
Other	Wiring	Press-in type terminal block, wiring 0.5-0.75mm2
	Installation	Built-in
	Package	Bubble bag + Clapboard + Carton(K=A)
	Net Weight	36g±3g
	Lifetime	5 years warranty @Ta

Product details

Initialization

After power on, the sensor automatically turns on light to 100% brightness and turns off light in 10 seconds. During initialization, sensor is not able to detect movement.

Default setting

Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable

Application Notice

Sensor should be installed by a professional electrician. Please turn off power before installing, wiring, or setting the DIP switches.

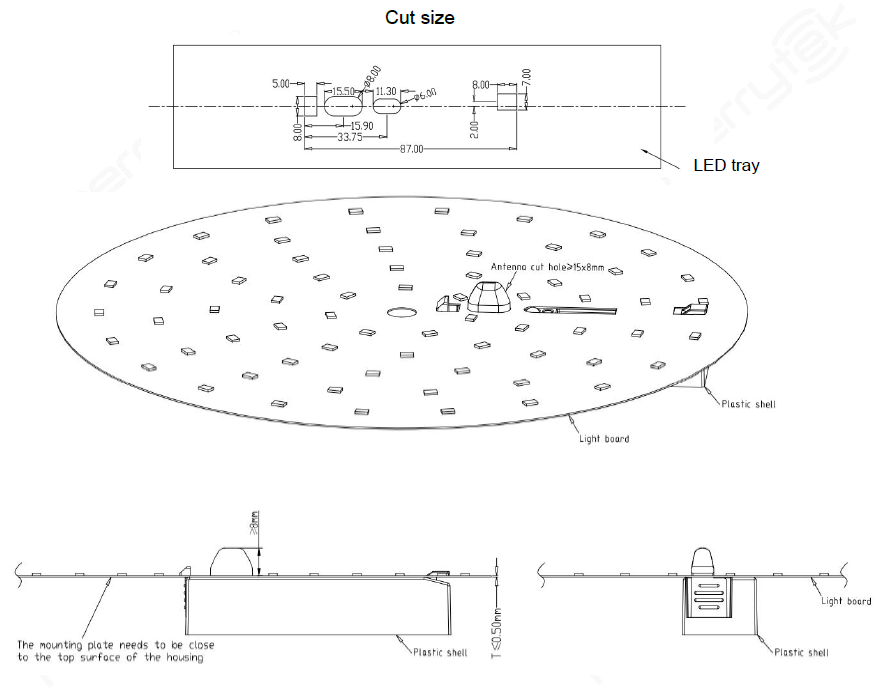

Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is not allowed to cover above the product. If antenna needs to pass through the metal plate, please ensure that the top of sensor is close to the metal plate.
Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.. Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.
The installation spacing between sensors is recommended to be greater than 2m, and the installation spacing between sensors and routers is recommended to be greater than 2m.

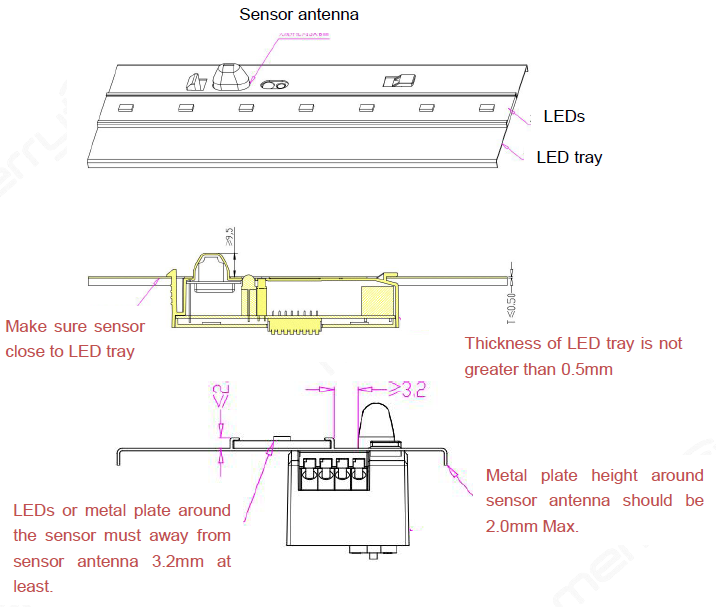

Sensor should not be covered or hided by metal, PCB, LED tray etc..The spacing between the sensor antenna and surrounding materials should be greater than 5mm. There should be no metal or PCB tracks near the sensor antenna, above or below it. The recommended thickness of cover is 2mm, and keep the spacing between the sensor antenna and cover is greater than 3.2mm.
Vibration signals will be regarded as moving signals to trigger sensor. Installing sensor should be away from the object that vibrates for a long time, such as large metal equipment, pipes, air conditioning outlets, exhaust vents, smoke exhaust machine ports, shaking fans, etc. Pets in detecting area may cause false trigger.
The antenna surface of microwave module should be away from input AC, output DC, rectifier bridge, transformer, switch tube and other high-power devices to avoid high frequency signals affecting the normal operation of microwave sensor’s antenna.
Sensor is for indoor use only. The waterproof effect for outdoor or half-outdoor use will be affected. Wind, rain, and moving objects may cause false triggering.
