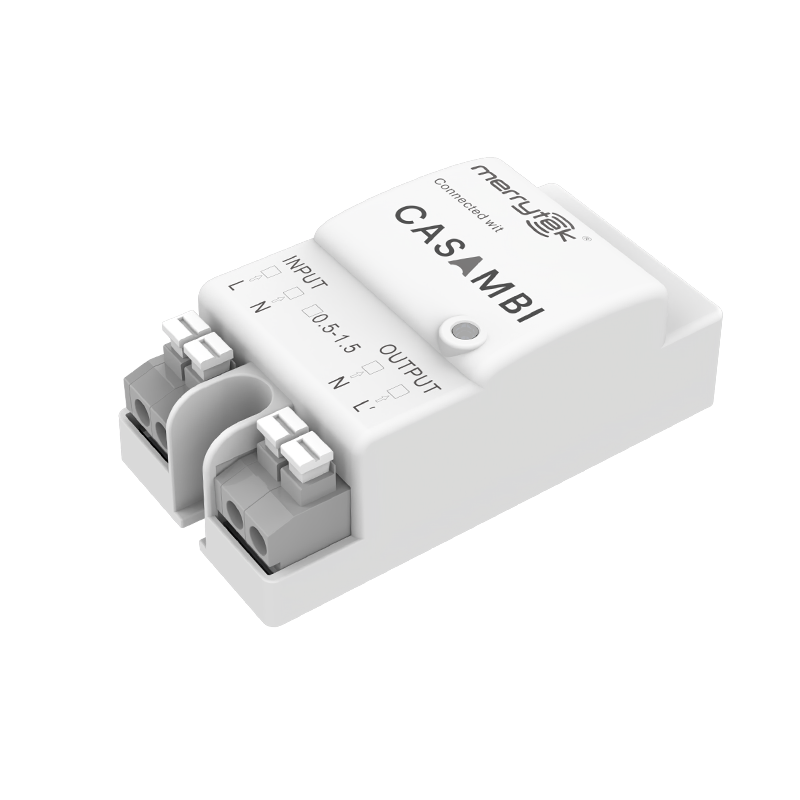

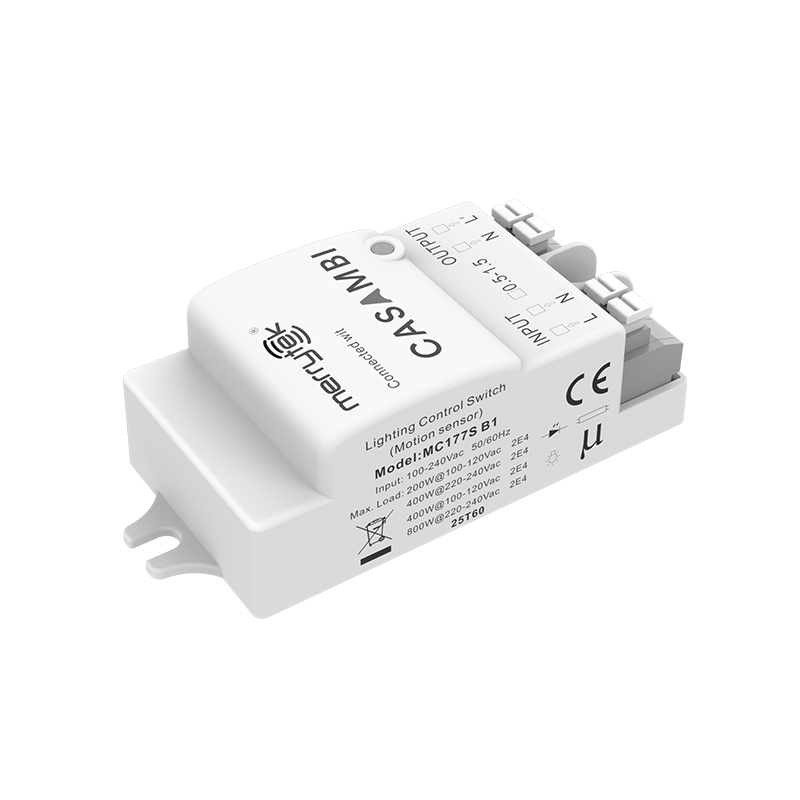

MC177S B1

Features

Casambi Bluetooth mesh networking was adopted, casambi App was used to design parameters And set application scenarios
Conform to new ERP standards; low stand-by power.
5.8GHz microwave license-free ISM wave band; bulk order are compliant with RED approval.
Compact size design, can be built-in most of light fixtures.
Input and output terminals are convenient for connecting.
Five year warranty

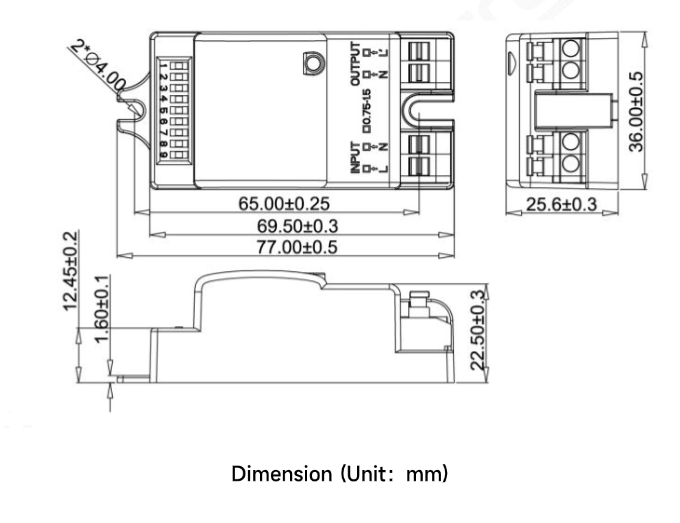

Dimension & Function Diagram

Parameter characteristics

Input	Rated Voltage	100-240VAC 50/60Hz
	Stand-by Power	≤0.5W
	Surge Test	L–N: 1kV
Output	Output Control	ON-OFF
	Load Capacity	400W(Inductive) ; 800W(Resistive)
	Max. Surge Capacity	50A (50% Ipeak, twidth =200us, 230Vac full load, cold start)
Sensor Parameter	Operating Frequency	5.8 GHz ±75MHz, ISM wave band.
	Transmitting power	0.5mW Max.
	Detecting Radius	Ceiling installation 3m height: 1m/s ≥ 2.5m, 0.3m/s ≥ 2.5m Test condition: Product setting 100% sensitivity, 60 ㎡ indoor open space
	Mounting Height	2.5-6m (ceiling mounting), 2-3m (wall mounting)
	Sensor sensitivity	Casambi App setting
	Hold time	Casambi App setting
	Daylight Sensor	Casambi App setting
Wireless parameters	BLE Module	Casambi Bluetooth
	Working frequency	2.402-2.480GHz
	Transmitting power	+8dBm(max)
	Transmission distance	25m(Visible distance)
	Fixture ID	35481
Environment	Operating Temperature	-25~60°C
	Storage Temperature	-40℃~80℃, Humidity: ≤85%(Non-condensing)
	Maximum Shell Temperature (Tc)	80℃
Certificate Standard	Certificate	CE, RED
	Environmental Requireme nt	Compliant to RoHS 2.0, Reach
	IP Rating	IP20
	Product Category	Class Ⅱ
Other	Wiring	Press-in type terminal block, wiring 0.75-1.5 mm2
	Installation	Built-in
	Package	Bubble bag + Clapboard + Carton(K=A)
	Net Weight	37.8±3g
	Lifetime	5 years warranty @Ta

Product details

Initialization

When the sensor is powered on for the first time, the indicator will flash 6 times and turn off after 15 seconds. During initialization, sensor is not able to detect movement.

Default setting

Sensitivity: 100%, Hold time: App setting , Daylight sensor: App setting

Application Notice

Sensor should be installed by a professional electrician. Please turn off power before installing, wiring.
Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is not allowed to cover above the product. If antenna needs to pass through the metal plate, please ensure that the top of sensor is close to the metal plate.
The installation spacing between sensors is recommended to be greater than 2m. Keep it away from wireless devices such as switches and routers, and the installation spacing between sensors and routers is recommended to be greater than 2m.
Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.. Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
This model is suitable for ceiling installation. If wall installation is used, the microwave sensor sensing detection area is greatly increased, and it may cause the phenomenon of microwave penetrate wall or the light not going out. So please adjust the sensitivity to 10%. If the sensitivity 10% can not be used, please avoid to the wall installation or ask the manufacturer for technical support.
The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.
Sensor should not be covered or hided by metal, PCB, LED tray etc..The spacing between the sensor antenna and surrounding materials should be greater than 5mm. There should be no metal or PCB tracks near the sensor antenna, above or below it. The recommended thickness of cover is 2mm, and keep the spacing between the sensor antenna and cover is greater than 3.2mm.
Vibration signals will be regarded as moving signals to trigger sensor. Installing sensor should be away from the object that vibrates for a long time, such as large metal equipment, pipes, air conditioning outlets, exhaust vents, smoke exhaust machine ports, shaking fans, etc. Pets in detecting area may cause false trigger.
The antenna surface of microwave module should be away from input AC, output DC, rectifier bridge, transformer, switch tube and other high-power devices to avoid high frequency signals affecting the normal operation of microwave sensor’s antenna.
Sensor is for indoor use only. The waterproof effect for outdoor or half-outdoor use will be affected. Wind, rain, and moving objects may cause false triggering. When the sensor is installed in a metal lamp, a metal reflective surface or a small enclosed environment, the microwave will be reflected many times and cause false triggering, please reduce the sensitivity or ask the manufacturer for technical support.
For the new installation environment, it is recommended to test 5pcs samples before installation.

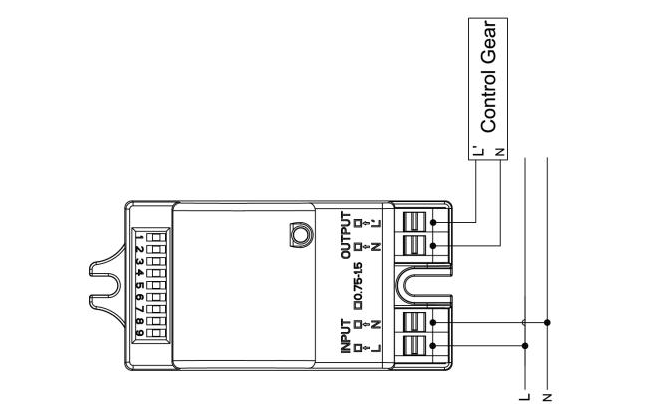

Wiring suggestions

Note:

*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.

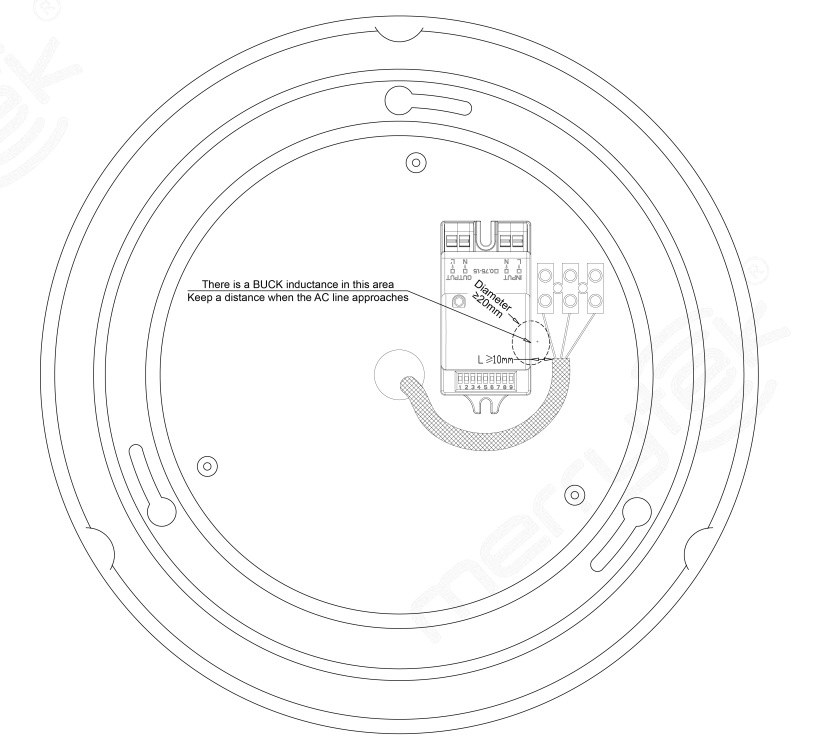

Installation suggestion
