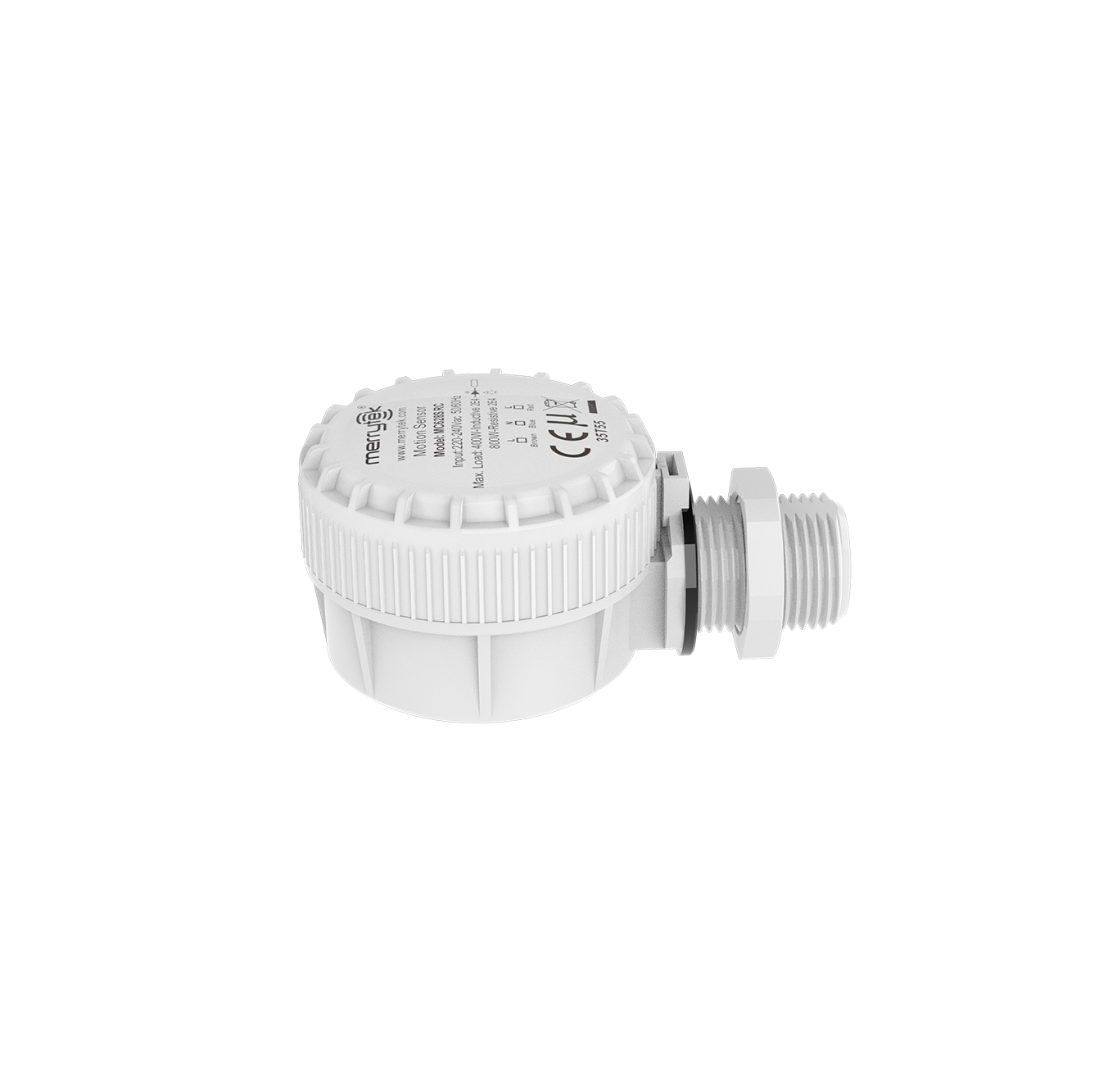

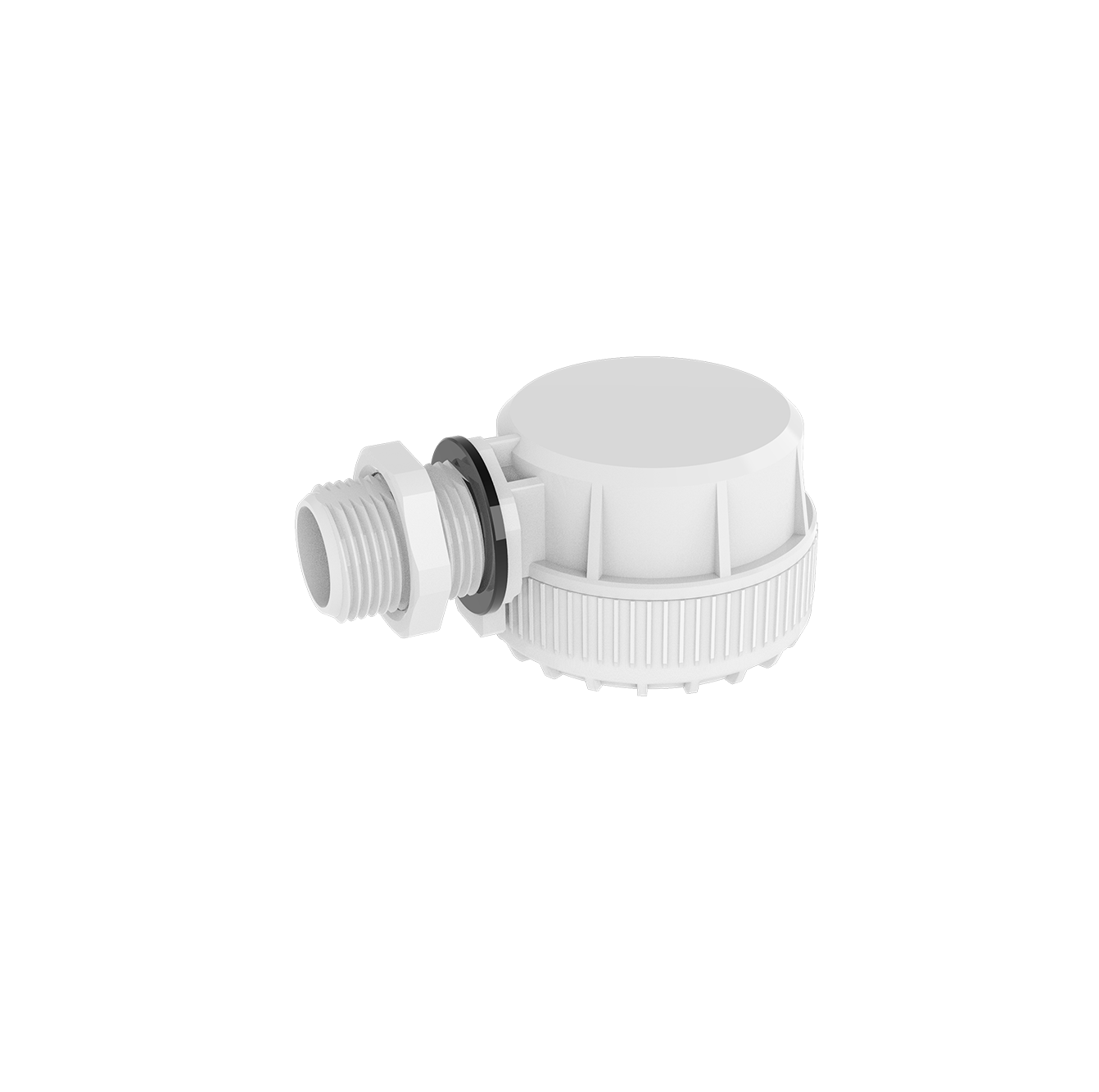

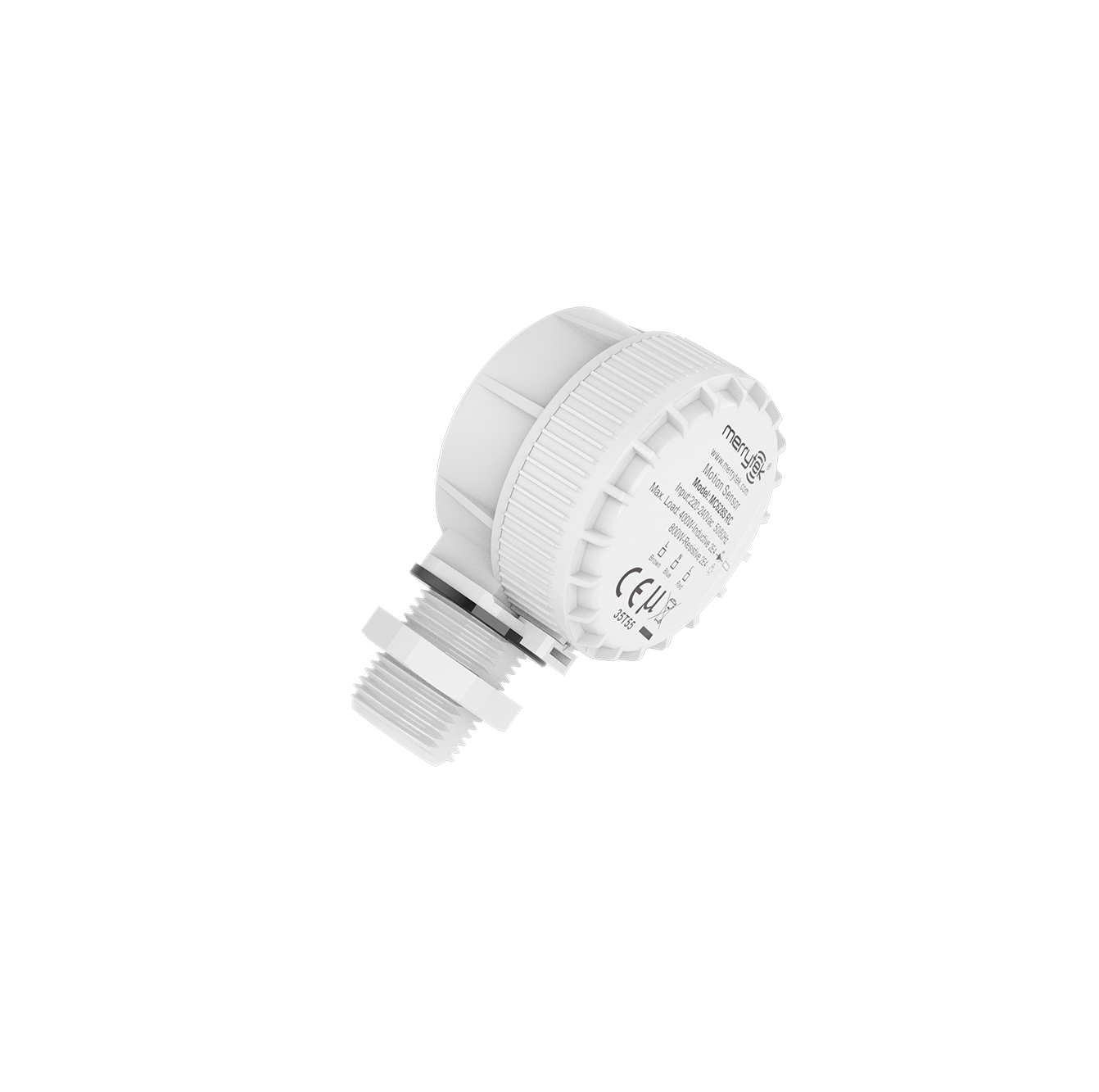

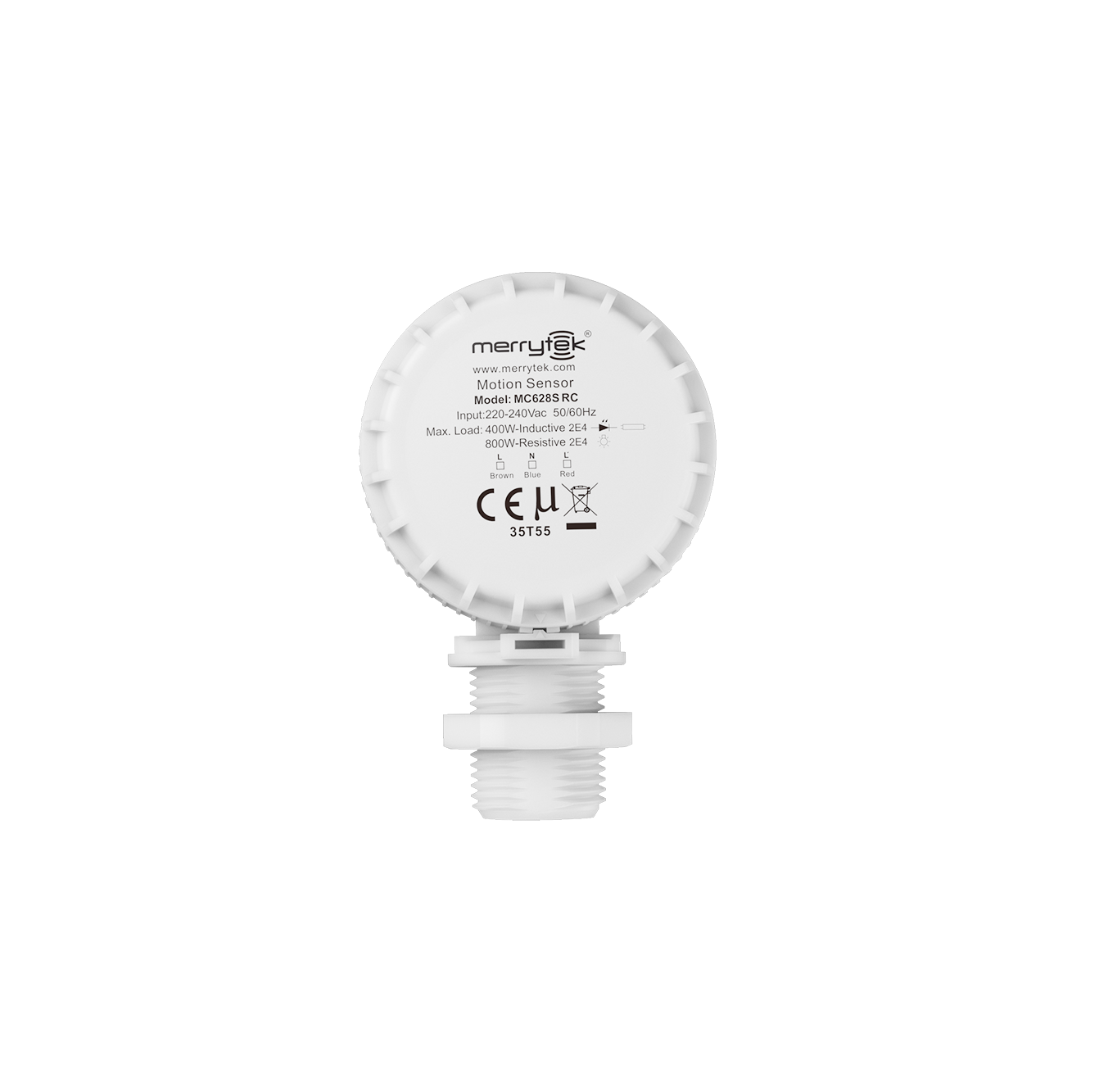

MC628S RC

Features

Operating voltage 120~277V AC.
Mounting height is 15m Max. Supports high-sensitivity and low-sensitivity. modes (for metal ceilings, metal reflector mounting environments).
M20 side mount, fit for linear highbay and vapor.
Compact design, all parameters can be set by remote control MH10.
5 years warranty.

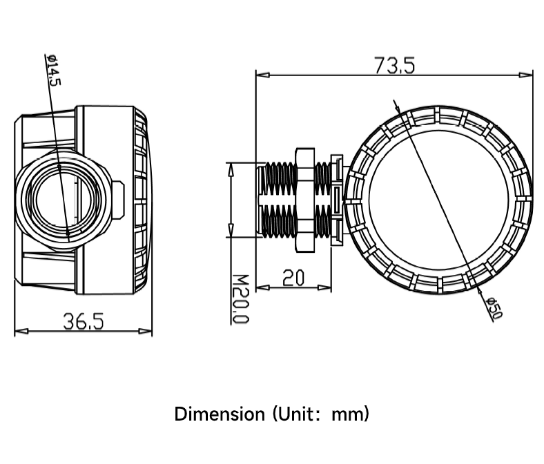

Size and Function Diagram

Parameter characteristics

Input	Operating Voltage Rage	108-305VAC 50/60Hz
	Rated Voltage	120-277VAC 50/60Hz
	Stand-by Power	<1W
	Surge Test	L N: 1kV
Output	Working Mode	On-off
	Type of Load	Resistive & inductive
	Load Capacity	400w – inductive or 800w – resistive
	Max. Surge Capacity	30A(Measured at 50% Ipeak,twidth=500us @230Vac Cold start）or 60A(Measured at 50% Ipeak,twidth=200us @230Vac Cold start）
Sensor Parameters	Operating Frequency	5.8 GHz ±75 MHz，ISM band
	Transmitting power	0.5mW Max.
	Hold time	5s/30s/1min/3min/5min/10min/20min/30min
	Detection Area)	25%/50%/75%/100%
	Daylight Sensor	Daylight threshold:5lux/15lux/30lux/50lux/100lux/150lux/Disable(no shadow or direct light to sensor）
	Detecting Range	See detection pattern
	Mounting Height	15m Max.
	Detection Angle	150°（wall mount）, 360°（ceiling mount）
Operating Environment	Operating Temperature	-35℃…+55℃
Operating Environment	Storage Temperature	-40℃…+80℃ humidity:10%-95% (non-condensing)
Certificate Standards	Safety standards	IEC60669-2-1, IEC60669-1 AS/NZS 60669.1, AS/NZS 60669.2.1 UL60730-1
	EMC standards	EN55015, EN61000-3-2, EN61000-3-3, EN61547 AS/NZS CISPR 15, AS/NZS 4268 FCC Part 15C, Part 15B EN 60950-1, EN301489-1, EN 201489-3, EN300440
	Environment Request	Compliant to RoHS
	Certificate	CE
Others	Wiring	UL1015，2*18AWG，exposed line length 810mm
	Wiring color	L(Black), N(White), L’(Red)
	IP Rating	IP65
	Protection Class	Class II
	Installation	M20 side mount
	Dimension	See dimension
	Package	White paper box+cartons
	Net Weight	80g
	Lifetime	5 years warranty@Ta 230V full load
Note: 1. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s.

Product details

Initialization

On/Off function: After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the sensor is not able to detect movement.

Factory setting

Detection area:75%, Hold time:5s , Daylight Sensor: Disable

Application Notice

The sensor should be installed by a professional electrician. Please turn off thepower before installing, wiring and changing.
Microwaves cannot penetrate metal. Do not place the product in a closed metal lamp or a half-closed metal lamp and metal or glass are not allowed to cover above the product. If antenna needs to pass through the metal plate, please ensure that the top of the sensor is close to the metal plate.
The distance between any inductive sensors should be greater than three meters. Keep sensor away from switches, routers and other wireless devices to avoid radio interference, more than three meters.
Vibration signals will be regarded as moving signals to trigger the sensor. Avoid using objects that vibrate for a long time around the sensor, such as large metal equipment, pipes, air conditioning outlets, exhaust vents, smoke exhaust machine ports, shaking fans, etc. Pets in detecting area may trigger sensing.
Sensor is for indoor use only. The waterproof effect for outdoor use will be affected. Wind, rain, and moving objects around will cause false triggering. When the sensor is installed in a metal lamp, metal reflective surface, or a narrow enclosedenvironment, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity or contact the manufacturer for technical support.
Due to continuous improvement, the contents of this instruction could be changed without prior notice.
The daylightthreshold is measured in a sunny environment without shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.
Sensitivity distance is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.
Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
When installing in new environment, please install and test at least 5pcs product firstly before mass installation.

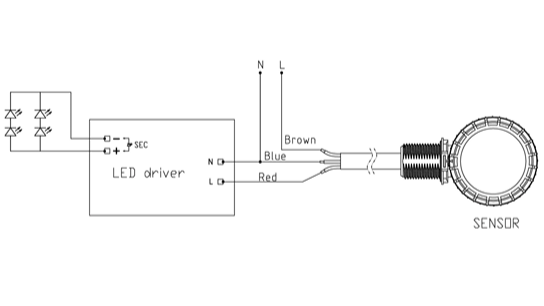

Wiring suggestions

*The sensor is designed to connect one load only.

Connect more than one load may damage the sensor.

Installation suggestion

N/A
