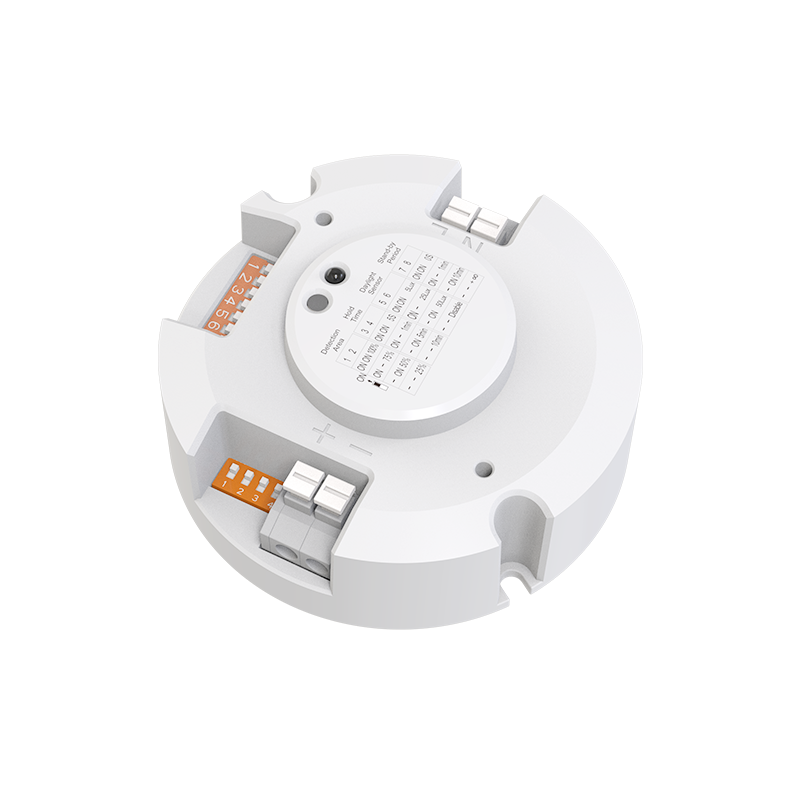

MLC16C-DP3

Features

Conform to ERP standard, micro-power consumption.
5.8GHz ISM brand, can be batch REDcertification.
Isolated, Flicker-free, Driver+sensor 2 in 1
With corridor function , light priority function, suitable for all kinds of use scenes
Compact size, easy to install inside the lamps and lanterns.

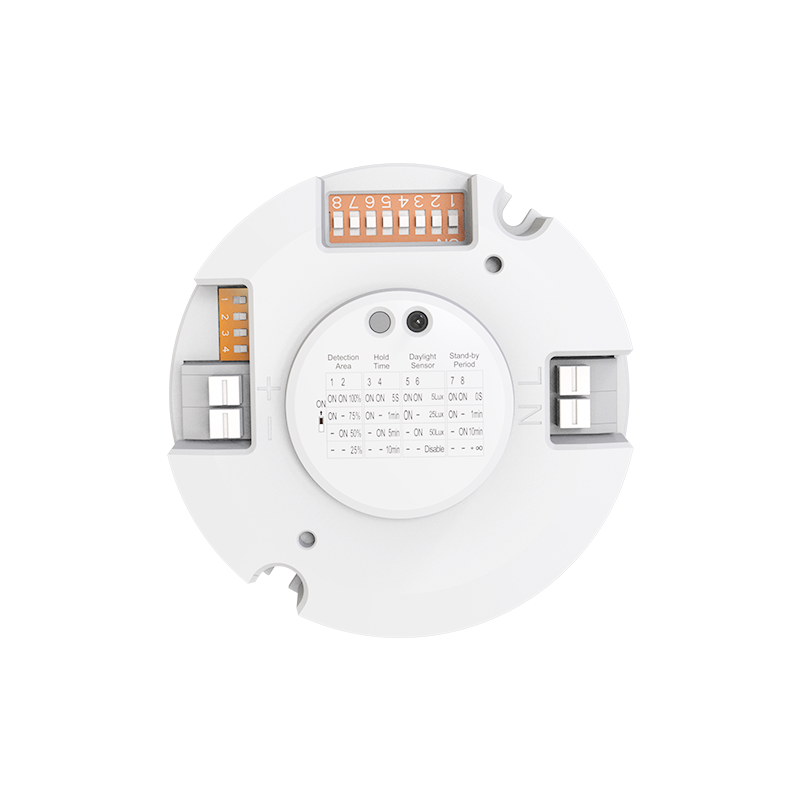

All parameters can be adjusted via DIP switch.

Dimension & Function Diagram

Parameter characteristics

Input	Voltage rage	220-240V AC，50Hz/60Hz
	Input current	≤0.11A @ 230VAC
	Inrush current	≤15A (100us half-current) @230V AC
	THD	≤20%，230VAC/Max Load
	Power factor	≥0.90，230VAC/Max Load
	Stand-by power	≤0.5W
	Working efficiency	≥83% , @ 230V AC Max Load
	Lightning surge	L/N：1KV
Output	Working model	CC
	Type of load	LED
	Full load power	16W Max
	Flicker ripple	≤2%
	No-load output voltage	60VDC Max
	Load current	350mA/450mA/500mA/600mA/700mA
	Load output voltage range	9-45V(350mA)/9-36V(450mA)/9-32V(500mA)/9-26V(600mA)/9-23V(700mA)
	Constant current accuracy	±5% @230VAC
Parameters	Operating frequency	5.8GHz ±75MHz, ISM band.
	Transmitting power	1mW
	Detection Area	25%/50%/75%/100%
	Hold Time	5S/1min/5min/10min
	Stand-by Period	0S/1min/10min/+∞
	Daylight Sensor	Daylight threshold	5Lux/25Lux/50Lux/Disable
		Daylight priority open/close	Open	Close
			5Lux	50Lux
			25Lux	100Lux
			50Lux	150Lux
	Stand-by DIM Level	15%
	Detecting radius (sensitivity: 100%)	Ceiling mounting 3m：0.3m/S ≥4m，1m/S ≥2.5m Wall mounting 2m：0.3m/S ≥10m，1m/S ≥5m
	Mounting Height	3m Typical Value (6m Max )
	3db field angle	90°@Xz flat
		95°@Yz flat
Abnormality Protection Requirements	Over voltage protection	Yes, self-recovery
	No-load protection	Yes, self-recovery
	Short-circuit?protection	Yes, self-recovery
	Operating temperature	-25…+50℃
	Maximum temperature(Tc)	75℃
	Storage temperature/humidity	-40℃…+80℃ Humidity：85%
	Withstand voltage	3750Vac 5mA 60S (input “L N” to output SEC+ SEC-)
Certificate Standards	Safety standards（LVD)	EN61347-1, EN61347-2-13
	EMC standards	EN55015, EN61547, EN61000-3-2, EN61000-3-3
	Environmental?requirement	Compliant to RoHS
	Certificate	CE RED
	IP Rating	IP20
	Protection class	Class II
Others	Wiring method	Press terminal, wire diameter: 0.5-1.5mm2
	Installation	Built-in
	Installation size	Ф73mm*H23mm
	Package	PE bag clapboard, carton（K=A）
	Net weight	78±3g
	Lifetime	5 years warranty@Ta 230V full load
Note:The given values of detecting parameter is typical measured by 165cm high testers in an indoor open environment.

Product details

Initialization

When power on, the product automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the product is not able to detect moving signals.

Factory Setting

Sensitivity: 100%; Hold Time: 5S; Stand-by period: 0S; Daylight Sensor: Disable.

Application Notice

The product should be installed by a professional electrician. Please turn off thepower before installing, wiring, changing the setting of the DIP switches.
The microwave sensor has good penetration ability to plastic and wooden objects, but the front and near the microwave antenna can not be equipped with metal accessories, metal shell and glass shell, otherwise it will affect the transmission and reception of the microwave antenna.
It is recommended that microwave sensors be installed at a distance of more than 2m, and that they be installed at a distance of more than 2m away from switches, routers and other wireless devices to avoid radio interference, for 5G WIFI is greater than 2 m.
The antenna surface of the microwave sensor is far away from the input AC and output DC to avoid low/high frequency signals interfering with the normal operation of the microwave antenna.
Should avoid long-term vibration equipment or moving objects around the microwave sensor, the vibration signal generated will be regarded as mobile signal trigger induction, so the installation position should be far away from large metal equipment, ventilation pipes, air conditioning outlets, exhaust vents, smoke exhaust machine and other scenes; If a pet passes through the detection area, the sensor may be triggered.
This product is suitable for indoor installation, when semi-outdoor or outdoor installation, wind, rain may be regarded as moving signal trigger induction; When the sensor is installed in metal lamps, metal reflective surface or narrow closed environment, the microwave will be reflected many times and trigger by mistake. Please reduce the sensitivity of the sensor or contact the manufacturer for technical support.
If wall mounting, the detection distance of microwave sensor will be greatly increased, please reduce the sensitivity or contact the manufacturer for technical support.
Due to continuous improvement, the contents of this instruction could be changed without prior notice.
Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.
The value of daylight sensor is in a sunny environment with no shadows and ambient light diffuse reflection conditions. The illuminance values detected by the product may different in different environment, at different times, in different seasons, and in different climates.

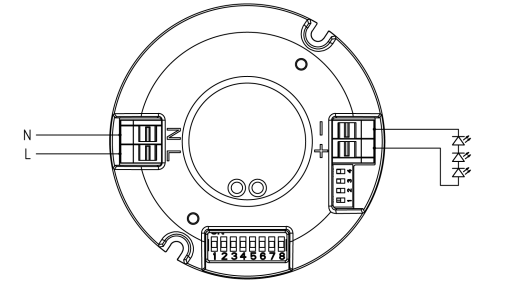

Wiring suggestions
