| Input | Operating Voltage Range | 198-264V AC 50Hz/60Hz |
| Rated Voltage | 220-240V AC 50Hz/60Hz | |
| Input surge current | 12A(Measured at 50% Ipeak,twidth=50us @230Vac Cold start） | |
| load Power | ≥0.9 (230V AC 18W) | |
| Stand-by Power | ≤2.0W | |
| Lightning surge | Between L N 1kv | |
| Output | Working Mode | Constant current |
| Type of Load | LED | |
| Load power | 22W Max. | |
| Ripple level | Flicker-free(Ripple level ≤2%: ) | |
| Non-load output voltage | 82V DC Max. | |
| Load output current | 300mA – (16-65.0V) 350mA – (16-60.0V) 450mA – (16-47.5V) 600mA – (16-34.5V) 700mA – (16-30.0V) |
|
| Output voltage | 82vDC Max. | |
| Working efficiency | 84%Max （@350mA 230v full load ) | |
| Constant current accuracy | ±5% | |
| L-Push Dimming | Dimming range | 50%-100% （With memory） |
| Cable length | 20m Max . | |
| Sensor Parameters | Operating Frequency | 5.8 GHz ±75 MHz,ISM Band. |
| Transmitting power | <0.2mW | |
| Hold time | 5s/30s/90s/3min/20min/30min | |
| Stand-by dim Level | 10%/20%/30%/50% | |
| Stand-by Period | 0S/5min/10min/30min/1h/+∞ | |
| Detection Area | 25%/50%/75%/100% | |
| Daylight Sensor | 2Lux/10Lux/35Lux/50Lux/100Lux/Disable | |
| Detecting Radius | 4-7m (mounting height 6m) (see note 2) | |
| Mounting Height | 6m Max | |
| Detecting Angle | 150° (Wall mounted), 360° (Ceiling mounted) | |
| Wireless Module | Operating Frequency | 820-880MHz ( FSK) |
| Transmitting power | -5dBm-20dBm | |
| Transmitting distance | ≤100m （open space）≤30m （Indoor with wall） | |
| Operating Environment | Operating Temperature | -25℃…+50℃ |
| Surface Temperature of body | 85℃ | |
| Storage Temperature | -40℃…+80℃ (Humidity: 85% Non-condensing) | |
| Certificate Standards | Insulation withstand voltage | Input-Output:3750Vac 5mA 60S Input-Earth：1500Vac 5mA 60S Output-Earth：500Vac 5mA 60S |
| Safety standards | EN61347-1 EN61347-2-13 | |
| EMC standards | EN55015 EN61547 EN61000-3-2 EN61000-3-3 | |
| Environmental Requirement | Compliant with RoHS | |
| Certificate | CE | |

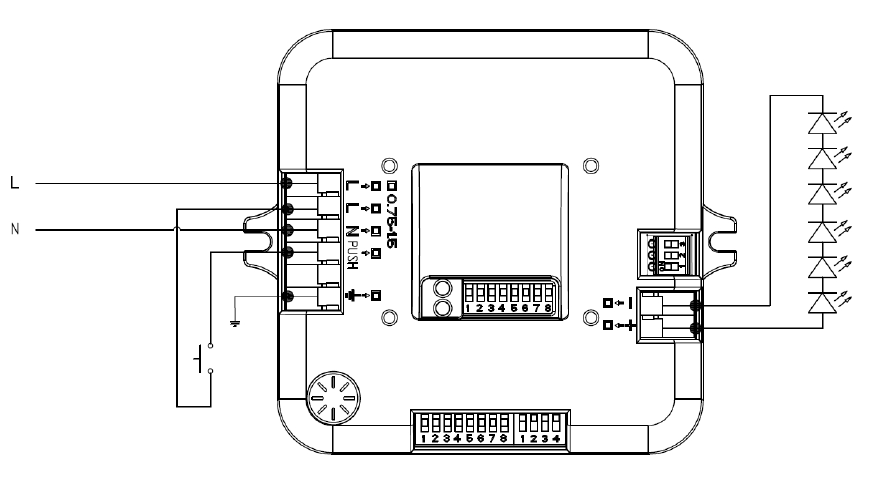

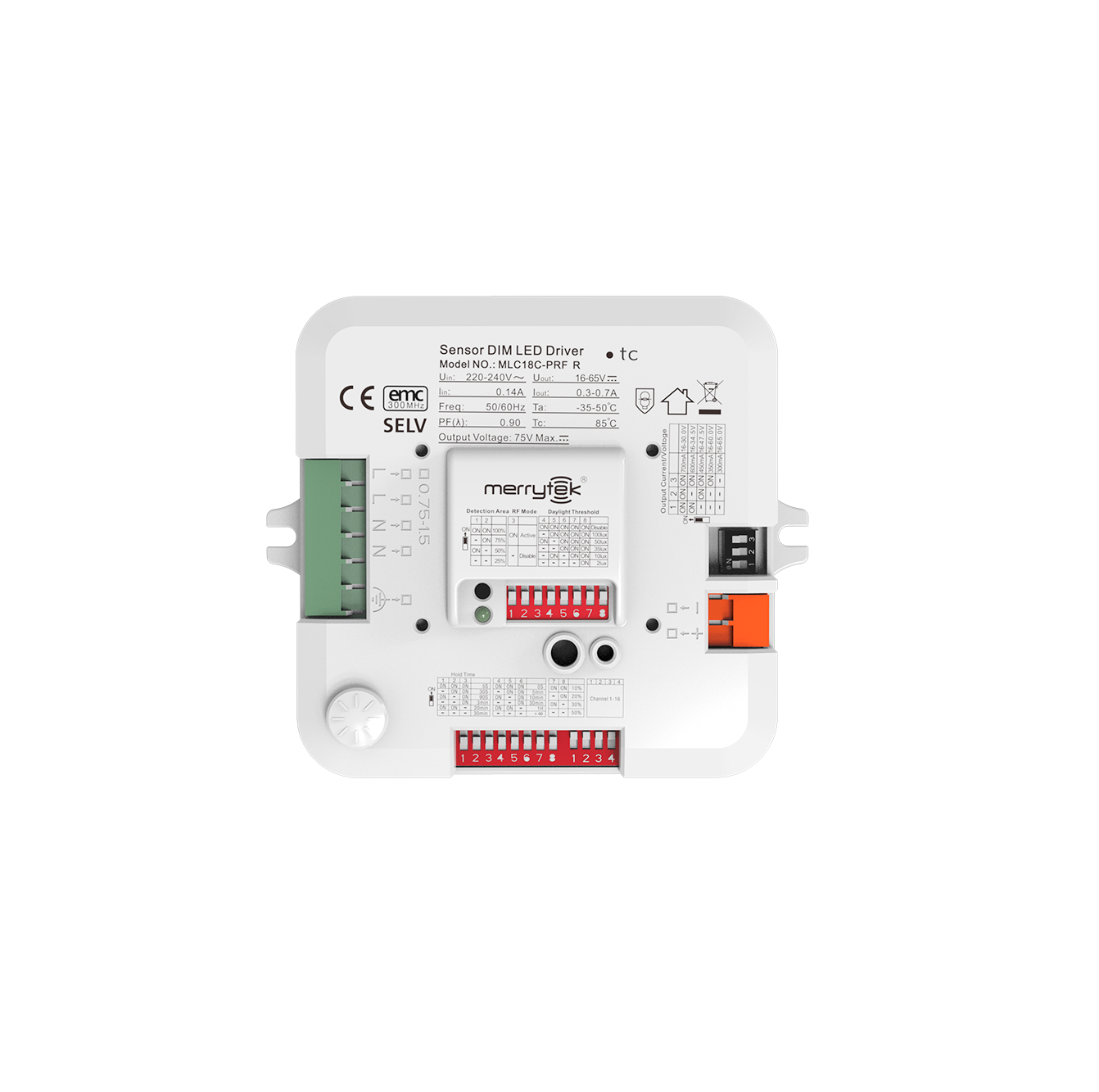

| Other | Input-Output(Terminal/lead) | Push-on terminal block Wire diameter：0.75-1.5mm² |
| IP Rating | IP20 | |
| Protection Class | Class I | |
| Installation | Built-in installation | |

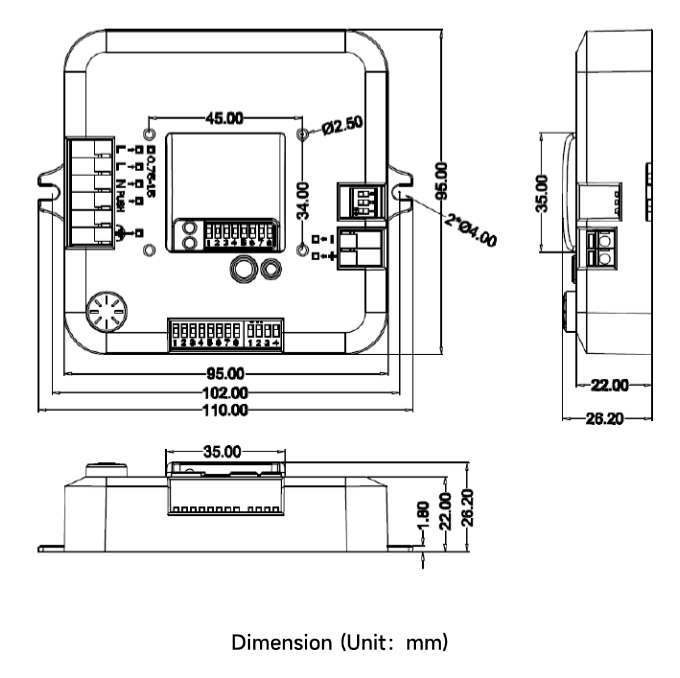

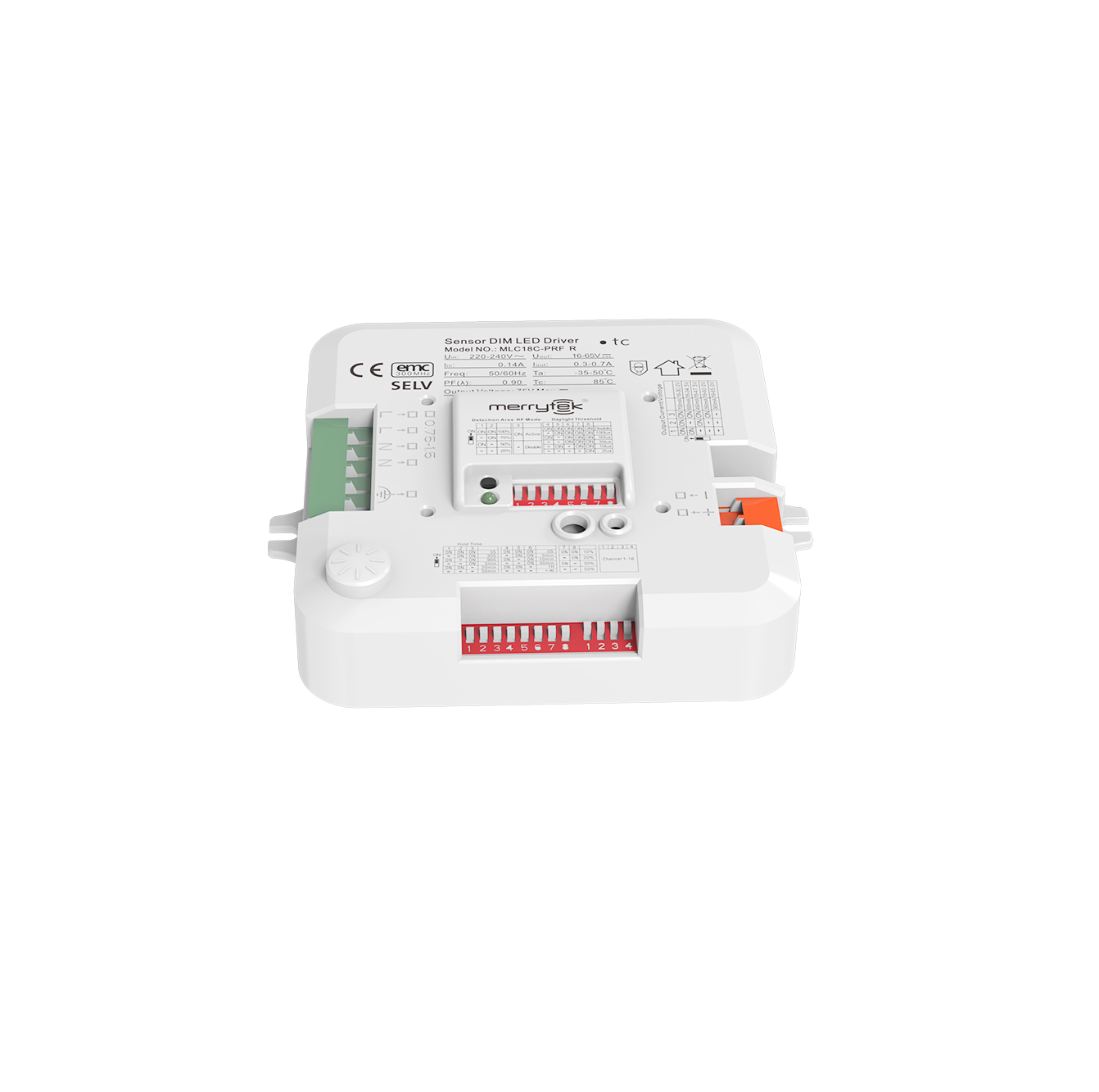

| Dimension | 95*95*26mm | |
| Package | Bubble bag+Clapboard + Carton(K=A) | |
| Net Weight | 142.7g | |
| Lifetime | 5 years warranty @Ta 230V full load | |
| Note: 1. “N/A”means not available. 2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 170cm height person and walking speed is 0.3m/s. |
||
Initialization
1) On/Off function /3-step dimming function:
After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the sensor is not able to detect movement.
2) 2-step dimming function:
After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it dims the light to a low light level (set by stand-by dim level). During the initialization, the sensor is not able to detect movement.
Factory Setting
Detection Area: 100%; RF Mode: Active; Hold Time: 5S, Daylight Sensor: Disable, Stand-by DIM Level: 10%, Stand-by Period: 0S
PUSH Switch
Application Notice
Note:
*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.
