| Input | Voltage Range | 198-264Vac 50Hz/60Hz |
| Input Current | 0.1A (@230Vac full load) | |
| Operating Voltage | 220-240Vac 50Hz/60Hz | |
| No-load Power | ≤0.3W | |
| Stand-by Power | ≤0.3W | |
| Power Factor | ≥0.9 (@230Vac full load) | |
| Working Efficiency | 85% (230V Max load) | |
| THD | ≤20% (@230V ac full load) | |
| Leak Current | <0.5mA/240V | |
| Surge Current | <22A (100us half-current) @230Vac | |
| Qutput | Working model | Constant Current |
| Type of load | LED | |
| Start Time | ≤1S (@230Vac full load) | |
| Ripple Current | ±5% (@230Vac full load, LED full load) | |
| Strobe Frequency Requirement |
Flicker free (≤5%) | |
| No-load Output Voltage | 65Vdc Max | |
| Load Power | 18.9W Max | |
| Load Current | 200mA/250mA/300mA/350mA(set by DIP switches) | |
| Load Output Voltage Range | 30-54Vdc | |
| Connecting Port |
PWM | Yes (5V and 3.3V PWM signals are compatible) |
| Port Connecting Method | 3PIN PH2.0 row needles terminal | |
| Auxiliary Power supply |
Voltage | 12V±1V |
| Current | Max100mA | |
| Protection Requirements |
Operating Temperature/Humidity | -25℃~+50℃ |
| Storage Temperature/Humidity | -40℃~+80℃ Humidity: 85% (Non-condensing) | |
| Atmospheric Pressure | 86~106KPa | |
| Certificate Standards |
Safety Standards(LVD) | EN61347-1，EN61347-2-13 |
| EMC Standards | EN55015，EN61547，EN61000-3-2，EN61000-3-3 | |
| Lightning surge | LN: 1KV | |
| Withstand Voltage | 1500V AC 5mA 60s (input“L N” to output SEC+ SEC-) | |
| Environmental requirement | Compliant to RoHS | |
| Certificate | CE\ SAA | |
| Others | Output Current Accuracy | ±5% |

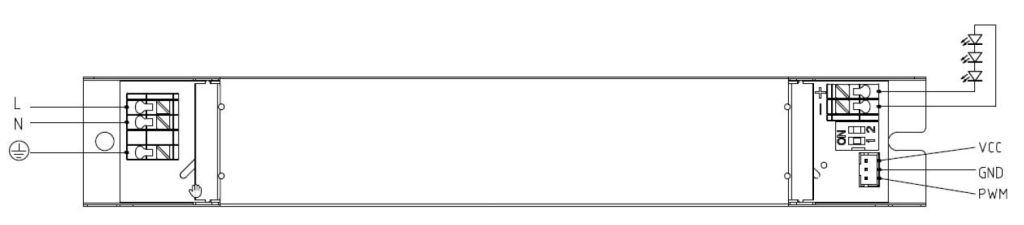

| Wiring | Press terminal, wire diameter: 0.5-1.0mm² | |
| IP Rating | IP20 | |
| Protection Class | Class 2 | |
| Installation | Built-in | |

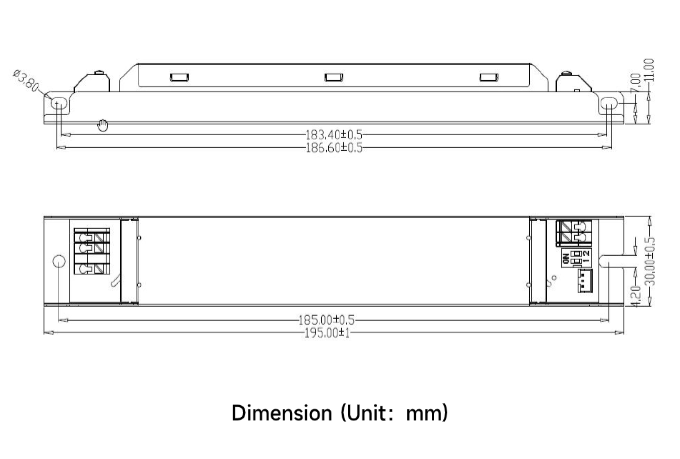

| Dimension | 195*30*21mm | |
| Net Weight | 135g±3g | |
| Warranty | Five years warranty(Ta=50℃ @230Vac full load) |
