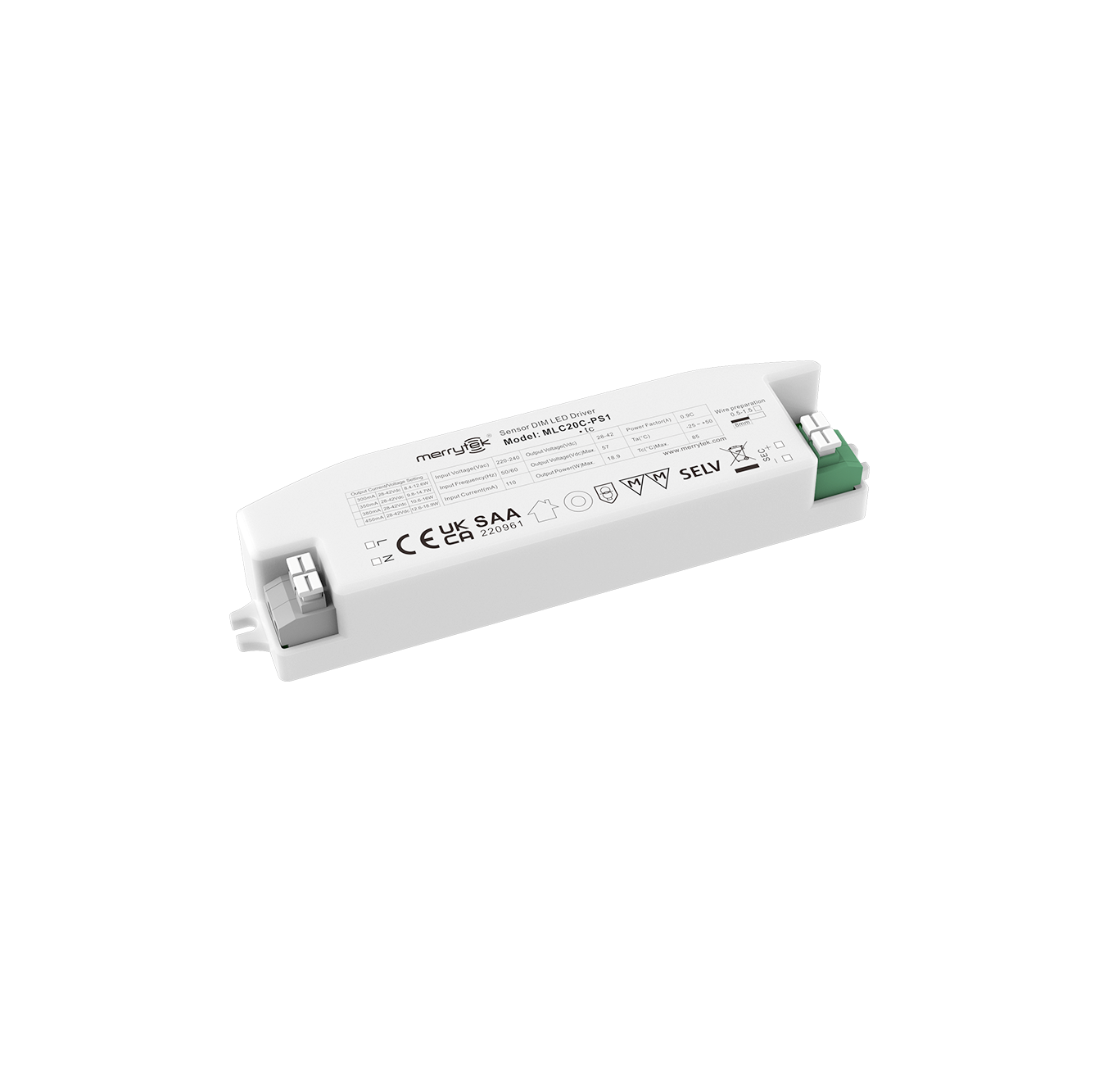

MLC20C-PS1

Initialization

When power on, the product automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the product is not able to detect moving signals.

Factory Setting

Sensitivity: 100%; Hold Time: 5S; Stand-by period: 0S; Daylight Sensor: Disable

Application Notice

• The product should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switches.
• Microwaves cannot penetrate metal. Do not place the product in a closed metal lamp or a half-closed metal lamp and no metal or glass cover above the product. If the antenna has to pass through the metal plate, ensure that the top of the sensor is close to the metal plate, and the plane of the microwave antenna should be higher than the nearby plane (such as aluminum substrate, glass fiber plate) to achieve the best detection effect
• It is recommended that microwave sensors be installed at a distance of more than 3m, and that they be installed at a distance of more than 3m away from switches, routers and other wireless devices to avoid radio interference. The antenna surface of the microwave sensor must be far away from the input AC and output DC to avoid low/high frequency signals interfering with the normal operation of the microwave antenna.
• Should avoid long-term vibration equipment or moving objects around the microwave sensor, the vibration signal generated will be regarded as mobile signal trigger induction, so the installation position should be far away from large metal equipment, ventilation pipes, air conditioning outlets, exhaust vents, smoke exhaust machine and other scenes; If a pet passes through the detection area, the sensor may be triggered.
• The product is for indoor use only. It will affect the waterproof effect for outdoor use. Wind, rain, and moving objects around will cause false triggering. When the product is installed in a metal lamp, metal surface, or a narrow closed environment, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity or contact the manufacturer for technical support.
• If wall mounting, the detection distance of microwave sensor will be greatly increased, please reduce the sensitivity or contact the manufacturer for technical support.
• Due to continuous improvement, the contents of this instruction could be changed without prior notice.
• The Value of daylight sensor is in a sunny environment with no shadows and ambient light diffuse reflection conditions. The illuminance values detected by the product may difference in different environment, at different times, in different seasons, and in different climates.
• Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.
• Given the values of detecting area is typical that was measured by 165cm high testers in an indoor open environment.
