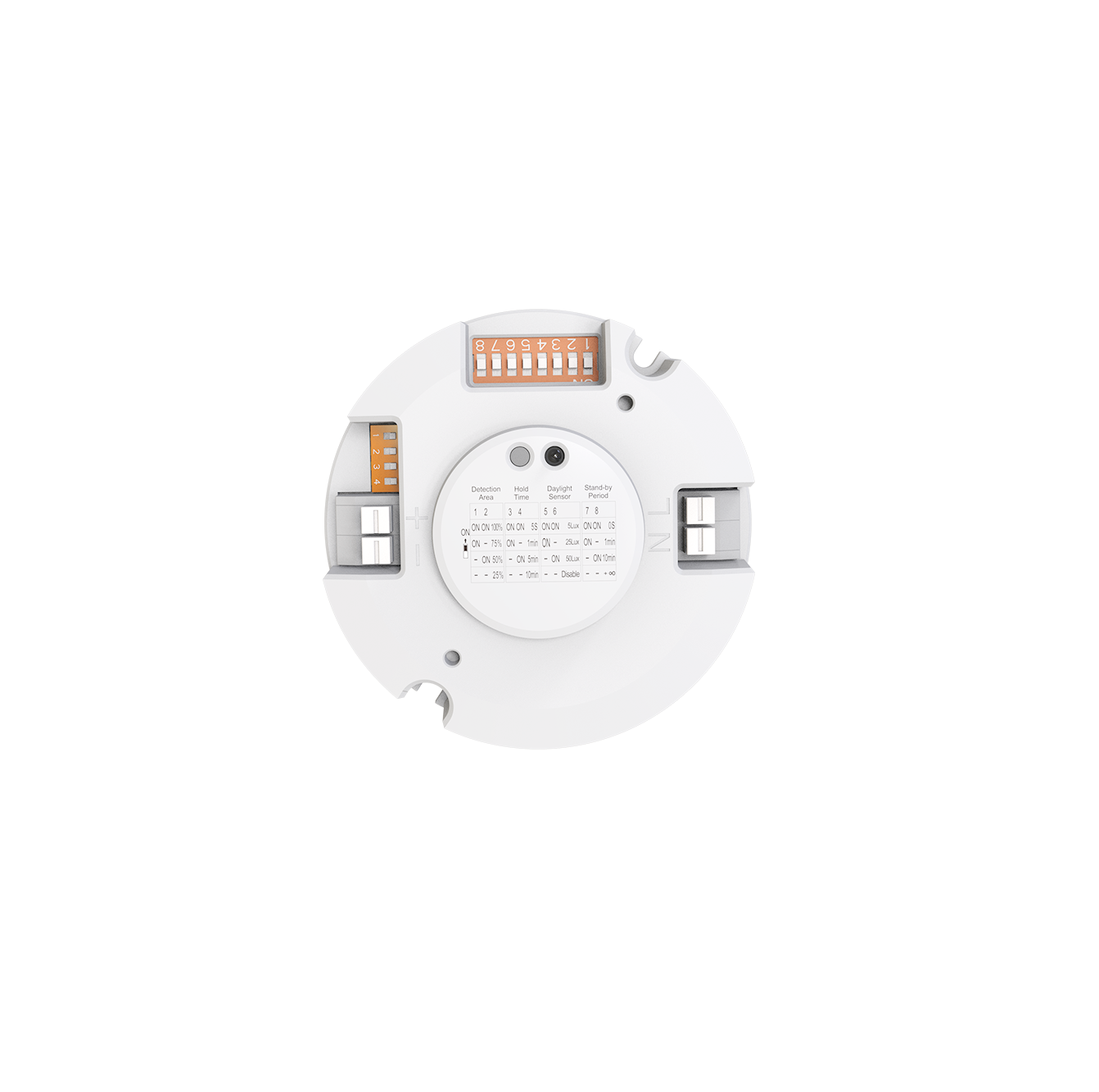

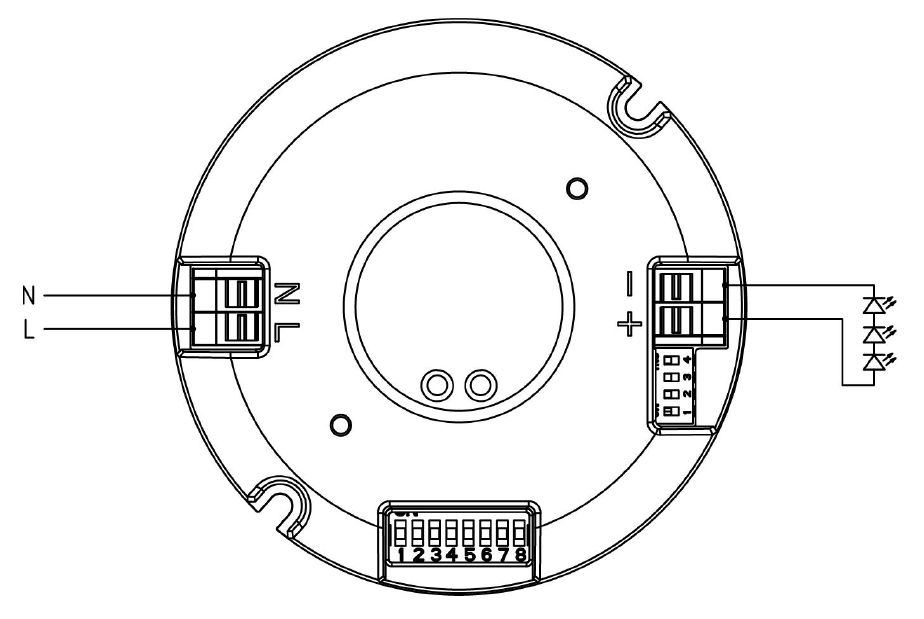

Input | Voltage rage | 220-240V AC,50Hz/60Hz | ||
Input current | ≤0.18A @ 230VAC | |||
Inrush current | ≤20A(100us half-current)@230V AC | |||
THD | ≤20%,230VAC/Max Load | |||
Power factor | ≥0.90,230VAC/Max Load | |||
Stand-by power | ≤0.5W | |||
Working efficiency | ≥86% ,230VAC/Max Load | |||
Lightning surge | L/N:1KV | |||
Output | Output | CC | ||
Type of load | LED | |||
Full load power | 28W Max | |||
Flicker ripple | ≤2% | |||
SVM( visual flicker) | <1 | |||
Flicker PstLM Value | <1 | |||
No-load output voltage | 60VDC Max | |||
Load current | 300mA/450mA/500mA/550mA/600mA/700mA | |||
Load voltage | 9-40VDC | |||
Constant current accuracy | ±5% @230VAC | |||
Parameters | Operating frequency | 5.8GHz ±75MHz ISM band. | ||
Transmitting power | 1mW | |||
Detection Area | 25%/50%/75%/100% | |||
Hold Time | 5S/1min/5min/10min | |||
Stand-by Period | 0S/1min/10min/+∞ | |||
Daylight Sensor | Daylight threshold | 5Lux/25Lux/50Lux/Disable | ||
Daylight priority open/close | Open | Close | ||
5Lux | 50Lux | |||
25Lux | 100Lux | |||
50Lux | 150Lux | |||
Stand-by DIM Level | 0.15 | |||
Detecting radius (sensitivity: 100%) | Ceiling mounting 3m:0.3m/S ≥4m,1m/S ≥2.5m Wall mounting 2m:0.3m/S ≥10m,1m/S ≥5m |
|||
Mounting Height | 3m Typical Value (6m Max ) | |||
3db field angle | 90°@Xz flat | |||
95°@Yz flat | ||||
Abnormality Protection Requiremen ts | Over voltage protection | Yes, self-recovery | ||
No-load protection | Yes, self-recovery | |||
Short-circuit protection | Yes, self-recovery | |||
Operating temperature | -25…+50℃ | |||
Maximum temperature(Tc) | 75℃ | |||
Storage temperature/humidity | -40℃…+80℃ Humidity:85% | |||
Withstand voltage | 3750Vac 5mA 60S (input “L N” to output SEC+ SEC-) | |||
Certificate Standards | Safety standards(LVD) | EN61347-1, EN61347-2-13 | ||
EMC standards | EN55015, EN61547, EN61000-3-2, EN61000-3-3 | |||
Environmental requirement | Compliant to RoHS | |||
Certificate | CE RED | |||
IP Rating | IP20 | |||
Protection class | Class II | |||
Others | Wiring method | Press terminal, wire diameter: 0.5-1.5mm² | ||
Installation | Built-in | |||

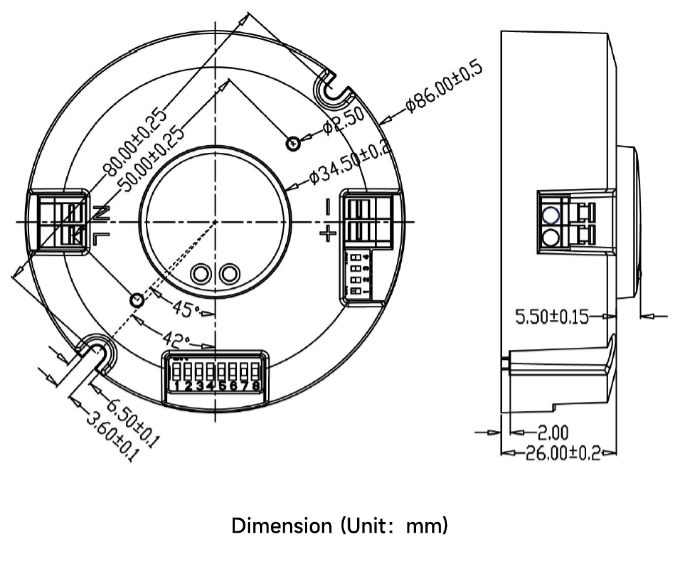

Installation size | Ф86mm*H26mm | |||
Package | PE bag clapboard, carton(K=A) | |||
Net weight | 122±3g | |||
Lifetime | 5 years warranty@Ta 230V full load | |||
Note: The given values of detecting parameter is typical measured by 165cm high testers in an indoor open environment. |
Initialization
When power on, the product automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the product is not able to detect moving signals.
Factory Setting
Sensitivity: 100%; Hold Time: 5S; Stand-by period: 0S; Daylight Sensor: Disable.
