MLC40CC-PD

Isolated two-stage circuit frame, full dimming and flicker-free.
Support DIP switches to set the current gear；Slide Switches to select the CC/CW/WW
Support 12V auxiliary power supply, with sensing split head can achieve integrated sensing function.
Equip with PWM dimming control port.
Suitable for various microwave sensors or wireless smart modules.

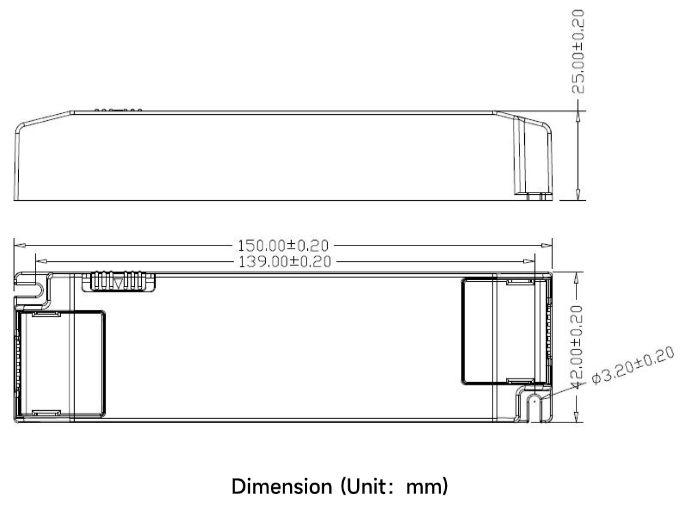

Input	Rated voltage	220-240V AC 50Hz/60Hz
	Stand-by power	≤0.5W（Equip with Merrytek 5.8Ghz sensing split head）
	Surge	1KV(L/N,EN61000-4-5)
	Power factor	≥0.9 (230V Max load)
	Input current	≤0.24A @230VAC full load
	Inrush current	≤35A（100us half-current）@230V AC
	Working efficiency	≥86% (230V Max load)
Output	Working model	CC
	Type of load	LED
	Flick	≤5%
	Constant current accuracy	Constant current accuracy ±5%
	Auxiliary driver parameters	12VDC Current: 25mA Max
	No-load output voltage	60VDC Max
	Full load power	40W Max
	Load current	850mA / 900mA / 950mA / 1000mA / 1050mA
	Load output voltage range	850mA / 27-42VDC 900mA / 27-42VDC 950mA / 27-42VDC 1000mA /27-40VDC 1050mA /27-38VDC
Abnormality Protection Requirements	Protection mode	Input overvoltage protection; Input no-load protection no-load protection Input short circuit protection
Environmental Requirements	Operating temperature	Built-in：-25…+50℃
	Maximum shell temperature(Tc)	85℃
	Storage temperature/humidity	-40℃…+80℃ Humidity: ≤85% （non-condensation）
Certificate Standards	Certificate	CE、UKCA、SAA
	Environmental require ment	RoHS2.0, Reach requirement
	Safety standards（LVD)	EN61347-1, EN61347-2-13
	EMC standards	EN55015, EN61547, EN61000-3-2, EN61000-3-3
	Withstand voltage	Primary to secondary: 3.75KVAC Primary to ground :1.5KVAC
	IP Rating	IP20
	Product Category	Class II
Others	Wiring method	Press terminal, wire diameter：0.5-1.0mm²
	Installation	Built-in
	Package	PE bag clapboard, carton（K=A）
	Net weight	132±5g
	Lifetime	5 years warranty@Ta 230V full load

Initialization

When powered on, it is steady on. When the sensor is configured, it changes according to the status of the sensor.

Default Setting

Adjust the corresponding current gear according to the order or customer demand.

Application Notice

Please use this product in accordance with the specifications. Failure may occur if the product is used beyond the use conditions.
The product should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switches.
The load LED string must be connected first, and then turn on the input power, otherwise it may damage the LED string.
After the LED drive input is powered off, there will be residual voltage at the output end, which can be maintained for about 3 minutes.
