| Input | Input current | ≤0.32A @230VAC full load |
| Rated voltage | 220-240V AC 50Hz/60Hz | |
| Stand-by power | ≤0.5W | |
| Power factor | ≥0.95 (@230V Max load) | |
| Working efficiency | ≥87% (@230V Max load) | |
| THD | ≤20%(@230V Max load) | |
| Leak current | <0.5mA/240V | |
| Inrush current | ≤30A（100us half-current）@230V AC | |
| Output | Working model | CC |
| Type of load | LED | |
| Flick | ≤2% | |
| Constant current accuracy | Constant current accuracy ±5% | |
| No-load output voltage | 70VDC Max | |
| Full load power | 60W Max | |
| Load current | 500mA/550mA/600mA 650mA/700mA/750mA 800mA/850mA/900mA 950mA/1000mA/1050mA |
|
| Load output voltage range | 9-56V DC | |
| Interface | PWM control interface | PWM (3.3V 5V) |
| Connection mode of interface end | 3pin terminal | |
| Auxiliary driver parameters | Voltage | 8.5±1V |
| Current | 25mA max | |
| Abnormality Protection Requirements | Input overvoltage protection | Yes, self-recovery |
| Input no-load protection | Yes, self-recovery | |
| Input short-circuit protection | Yes, self-recovery | |
| Environmental requirements | Operating temperature | -25…+50℃ |
| Maximum shell temperature(Tc) | 85℃ | |
| Storage temperature/humidity | -40℃…+80℃ Humidity: ≤85% （non-condensation） | |
| Certificate Standards | Safety standards（LVD) | EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61547, EN61000-3-2, EN61000-3-3 | |
| Surge | L N：1KV (different mode) L N to ground 2KV (common mode) | |
| Withstand voltage | Primary to secondary: 3000VAC; Primary to ground :1500VAC |
|
| Environmental requirement | RoHS | |
| Certificate | CE \ SAA | |
| Wiring method | Press terminal, wire diameter：0.5-1.0mm² | |
| IP Rating | IP20 | |
| Protection class | Class I | |
| Installation | Built-in | |
| Package | PE bag clapboard, carton（K=A） | |

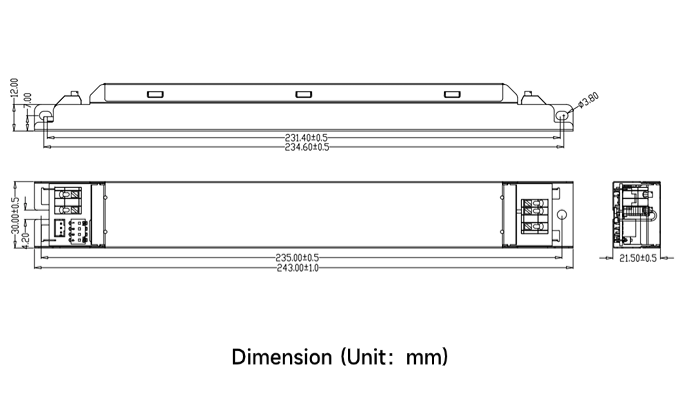

| Installation size | 243*30*21.5mm | |
| Net weight | 200±3g | |
| Lifetime | 5 years warranty@Ta 230V full load |
Initialization
When powered on, it is steady on. When the sensor is configured, it changes according to the status of the sensor.
Factory Setting
Adjust the corresponding current gear according to the order or customer demand.
