| Input | Operating Voltage Range | 1-10V DC |
| Rated Voltage | 1-10V DC | |
| Sensor Parameters | Detection Range | 3-4m |
| Daylight Sensor | 100-2000Lux | |
| Dim Interface | 1-10V dimming | <50 mA |

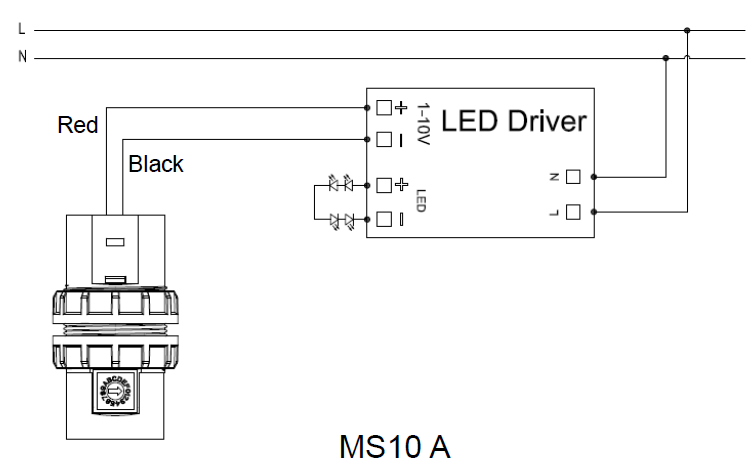

| Dimming mode | Lead connection: red is the positive pole of port 1-10v; black is the negative pole of port 1-10v | |
| OperatingEnvironment | Operating Temperature | 0℃…+55℃ |
| Storage Temperature | -35℃…+80℃ | |
| Certificate Standards | Environmental Requirement | Compliant with RoHS |
| Certificate | CE | |
| IP Rating | IP20 | |
| Protection Class | Class 2 | |
| Installation | Built-in installation | |
| Dimension | 90*130 mm | |
| Package | White bag+Clapboard+Carton(K=A) | |
| Net Weight | 26.7g | |
| Lifetime | 5 years warranty @Ta 230V full load |
Application Notice
1) To be equipped with active 1-10v dimming power supply for use!
2) Pay attention to the positive and negative terminals of the leads when wiring and installation.
