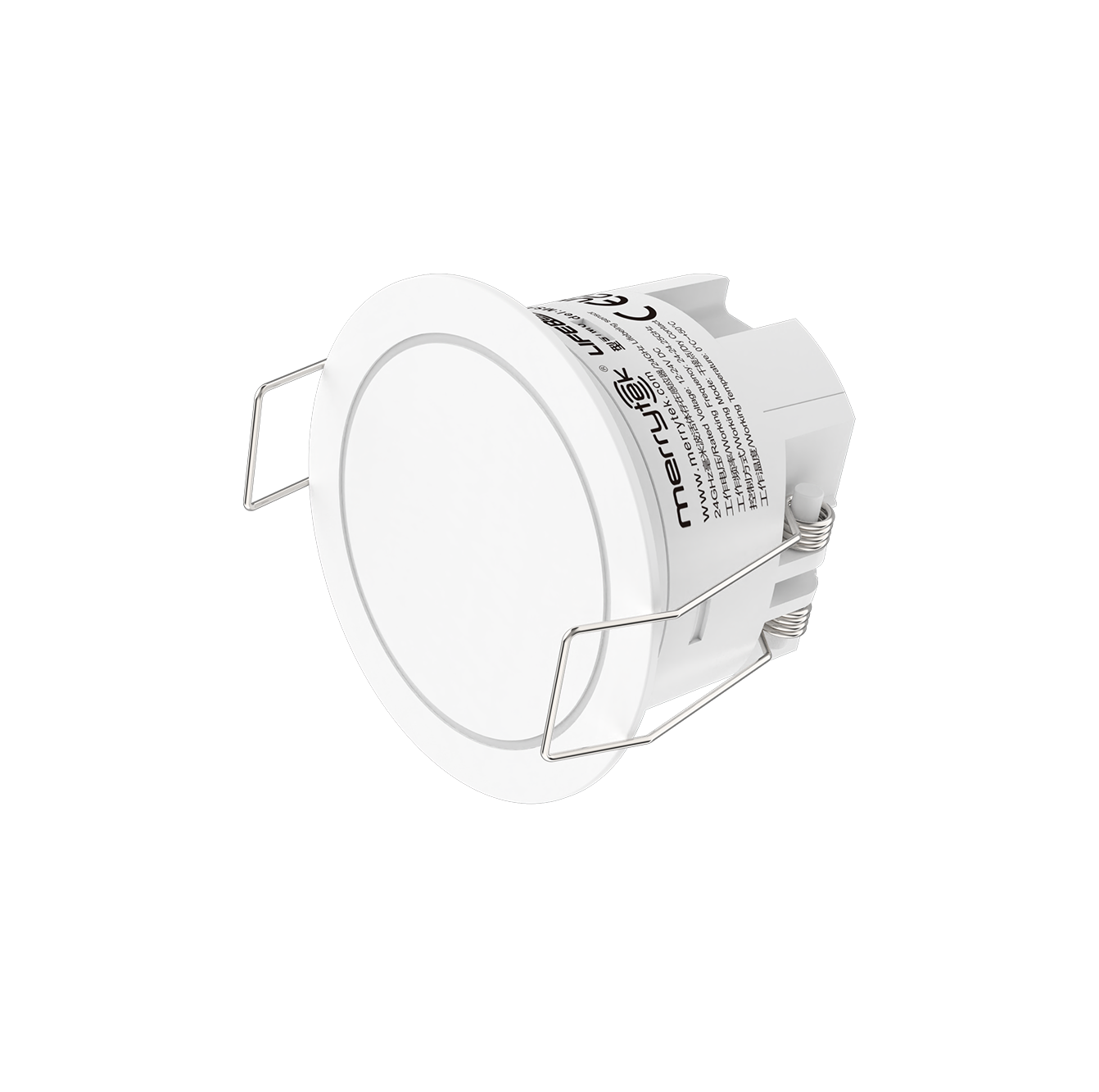

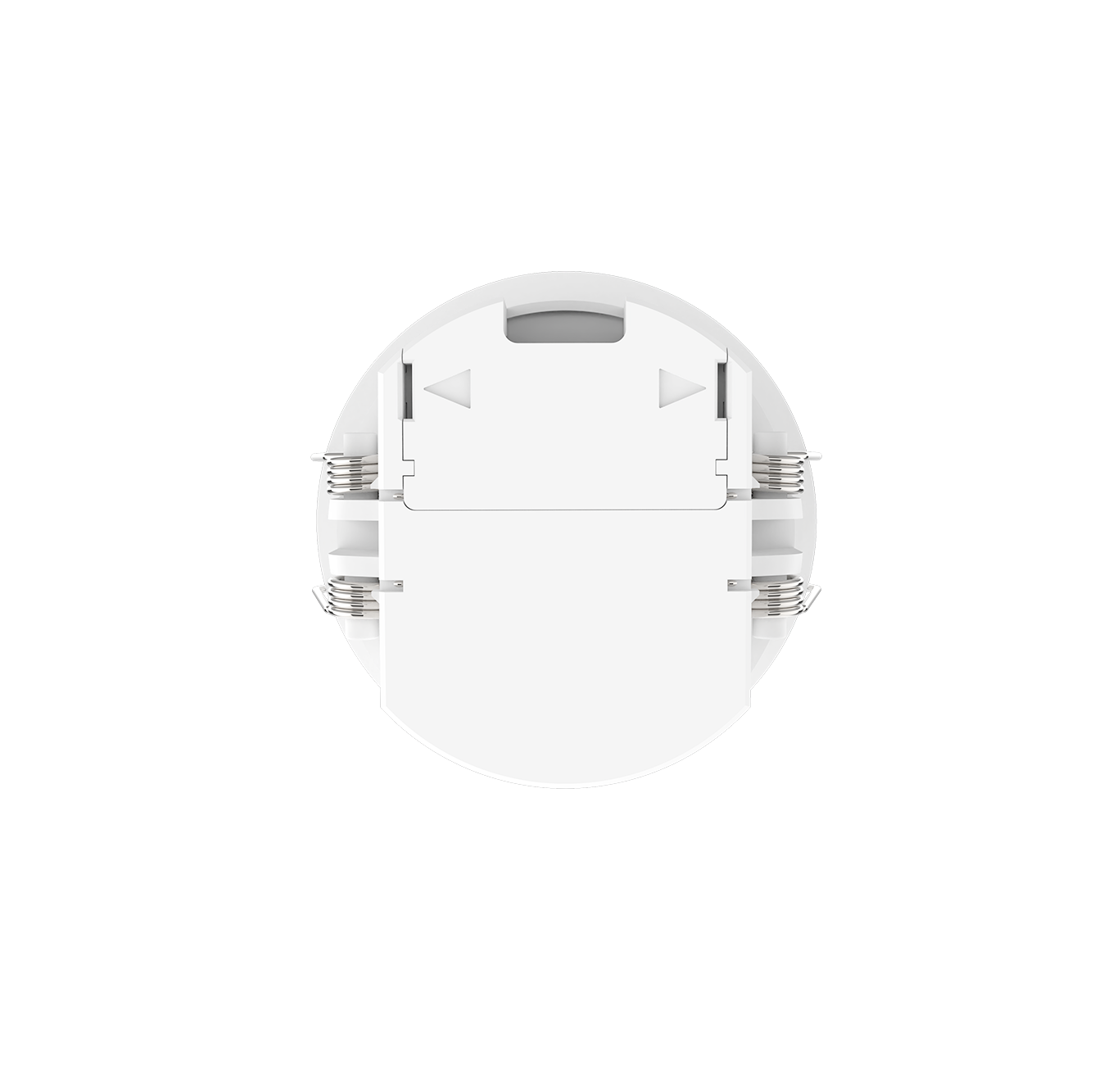

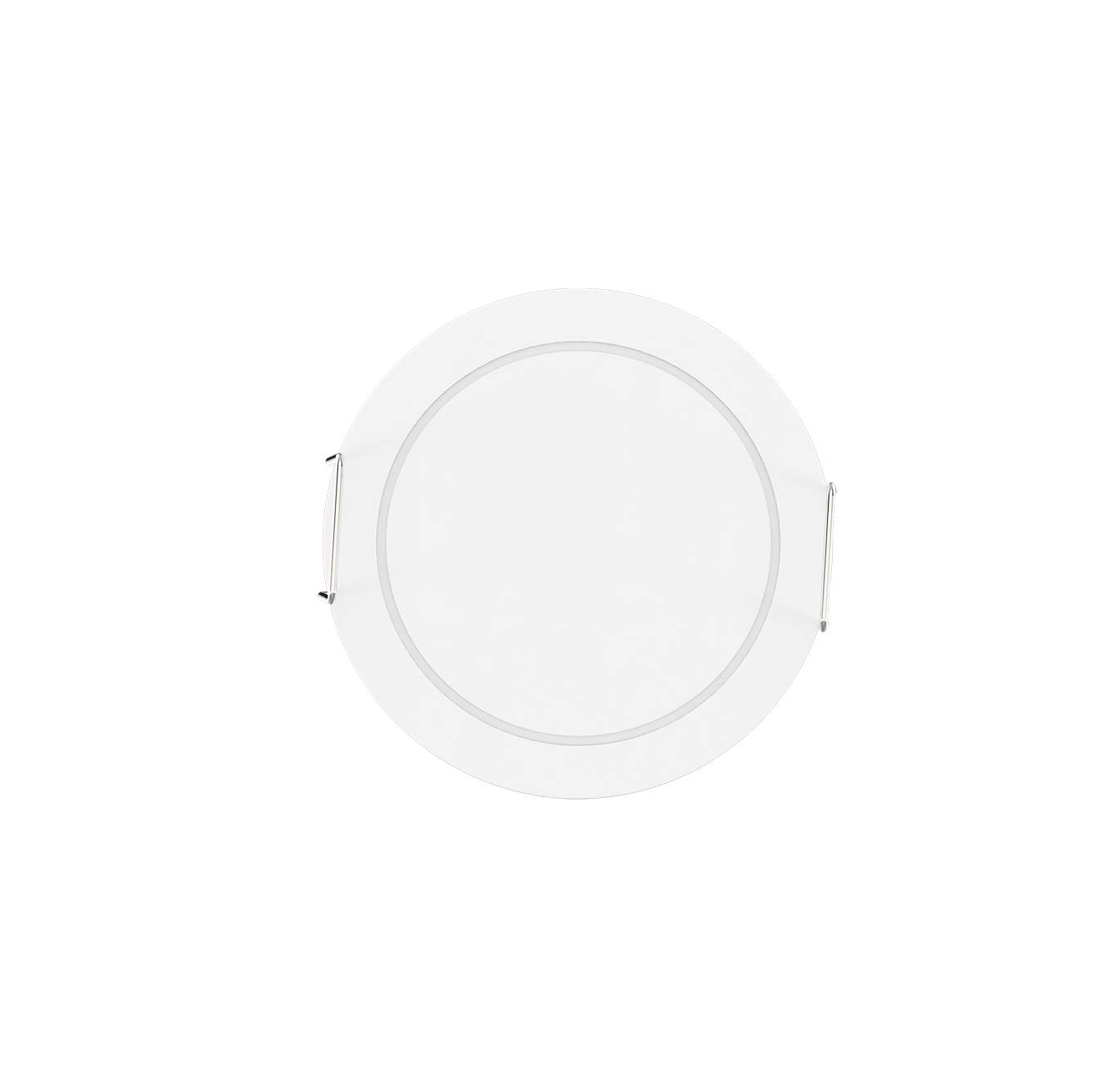

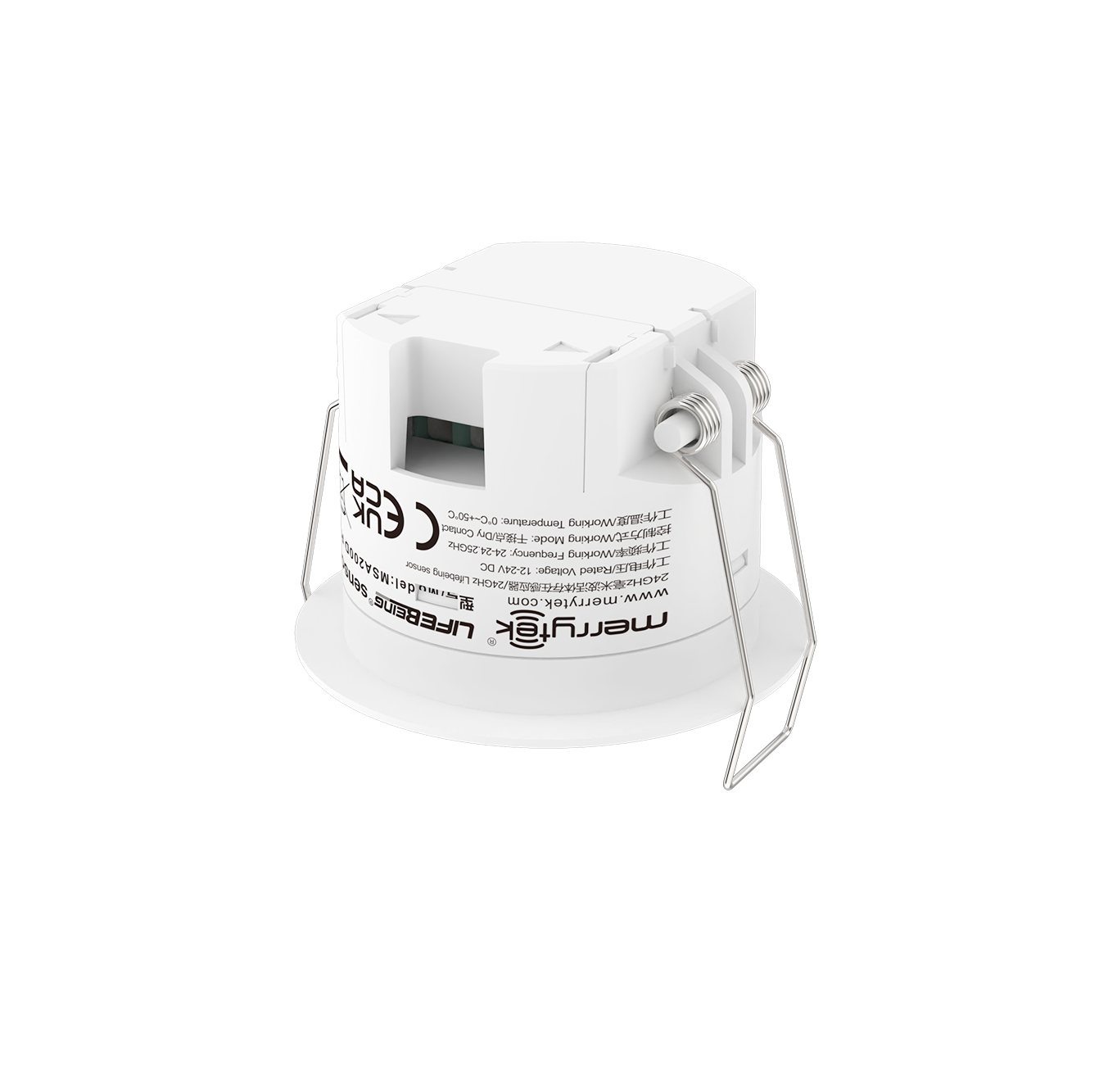

Low-mounting microwave motion sensor (dry contact version)
MSA001D E is a 5.8GHz microwave sensor with high antenna gain and wide sensing range. Combined with the unique software algorithm of Merrytek, it can accurately detect human movements in almost all indoor spaces to trigger smart scene application in smart homes, smart hotels, and smart offices.
| Input/Output | Input voltage | 12-24V DC |
| Rated voltage | 12/24V DC | |
| Working current | 20mA max | |
| Power consumption | ≤0.5W @24V DC | |
| Output signal | NO/NC dry contact (Factory setting is NO dry contact) | |
| Load type | Resistive (load voltage :Vdc≤36V,load current:100mA max) | |
| Sensor parameter | Microwave frequency | 5.8 GHz ±75 MHz |
| Radar transmit power | 2mW Max | |
| Detection sensitivity | MH10 remote setting: 100%/75%/50%/25% | |
| Hold Time | MH10 remote setting: 2S/30S/1Min/3Min/5Min/10Min/20Min/30Min | |
| Daylight sensor threshold | MH10 remote setting: 5Lux/15Lux/30Lux/50Lux/100lux/150lux/Disable | |
| Radius detection range(based on 100% sensitivity) | 3-4m based on 3m mounting height | |
| Remote control | Available | |
| Mounting height | 2.5-4.0m | |
| Detecting Angle | 120° | |
| Application environment | Drill hole | Φ45mm |
| Working temperature | 0℃…+50℃ | |
| Storage temperature | -40℃~+80℃ | |
| Certificate Standard | Certificate | Compliant to CE |
| Environmental requirements | Compliant to RoHS | |
| IP rating | IP20 | |
| “N/A” means not available | ||

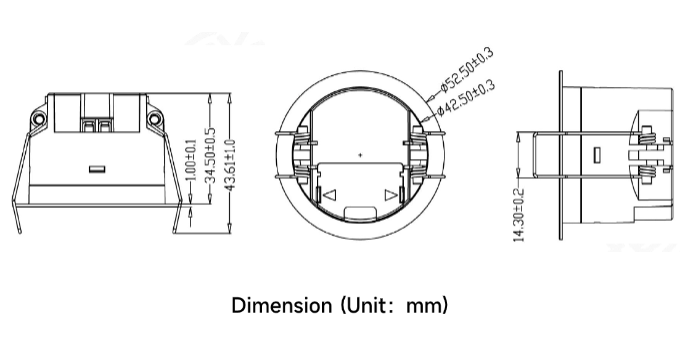

Dimension

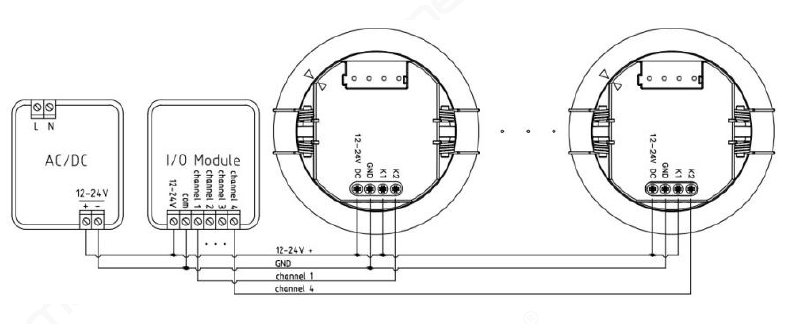

Initialization
When powered on,sensor indicator will turn off after flashing for 20S and will not detect moving signal during this time. After 20S,you can use our MH10 remote to adjust detection area、hold time and daylight sensor etc parameter.
Factory setting
Detection Area: 100%, Hold Time:2S, Daylight Sensor: Disable
