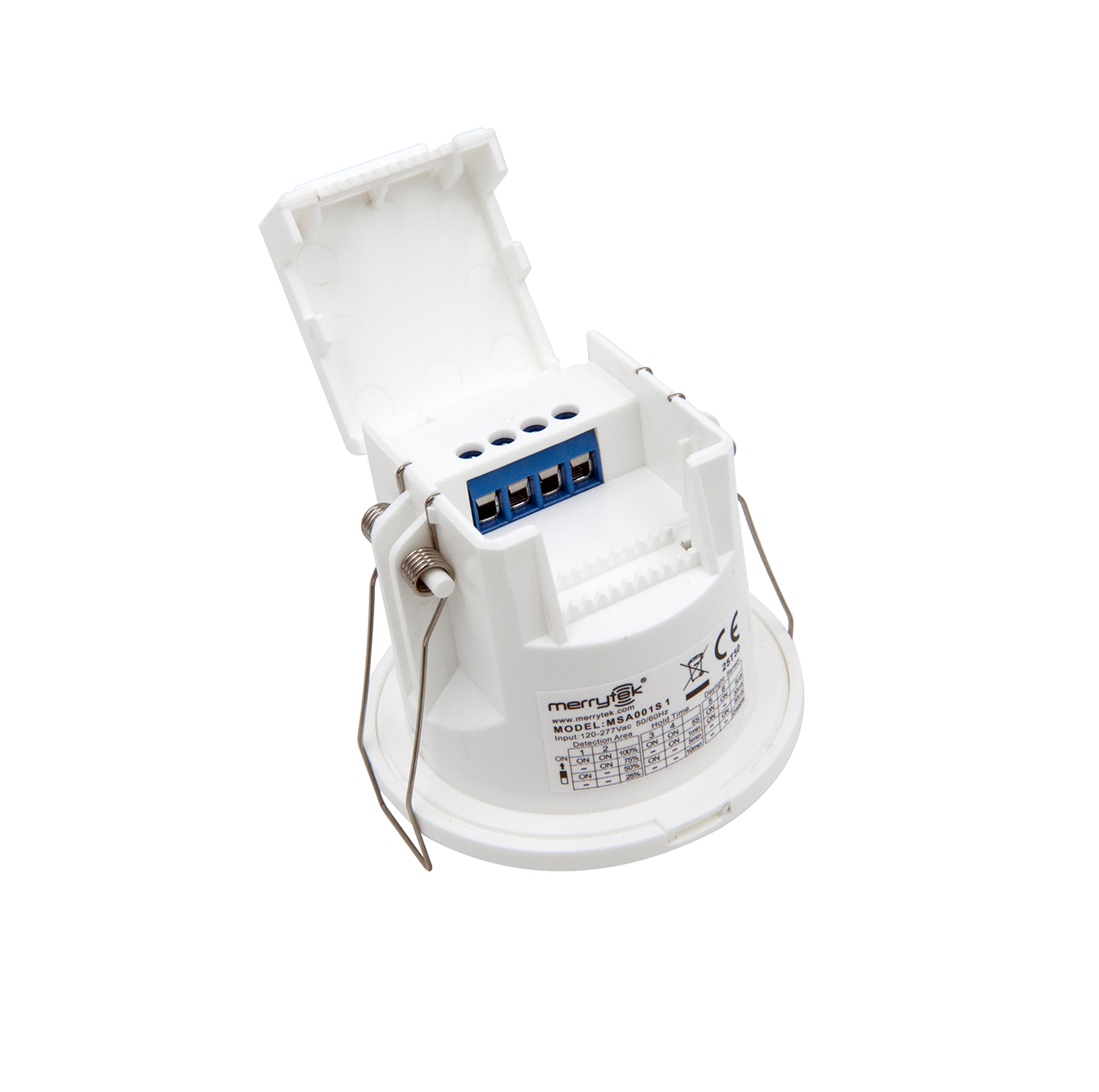

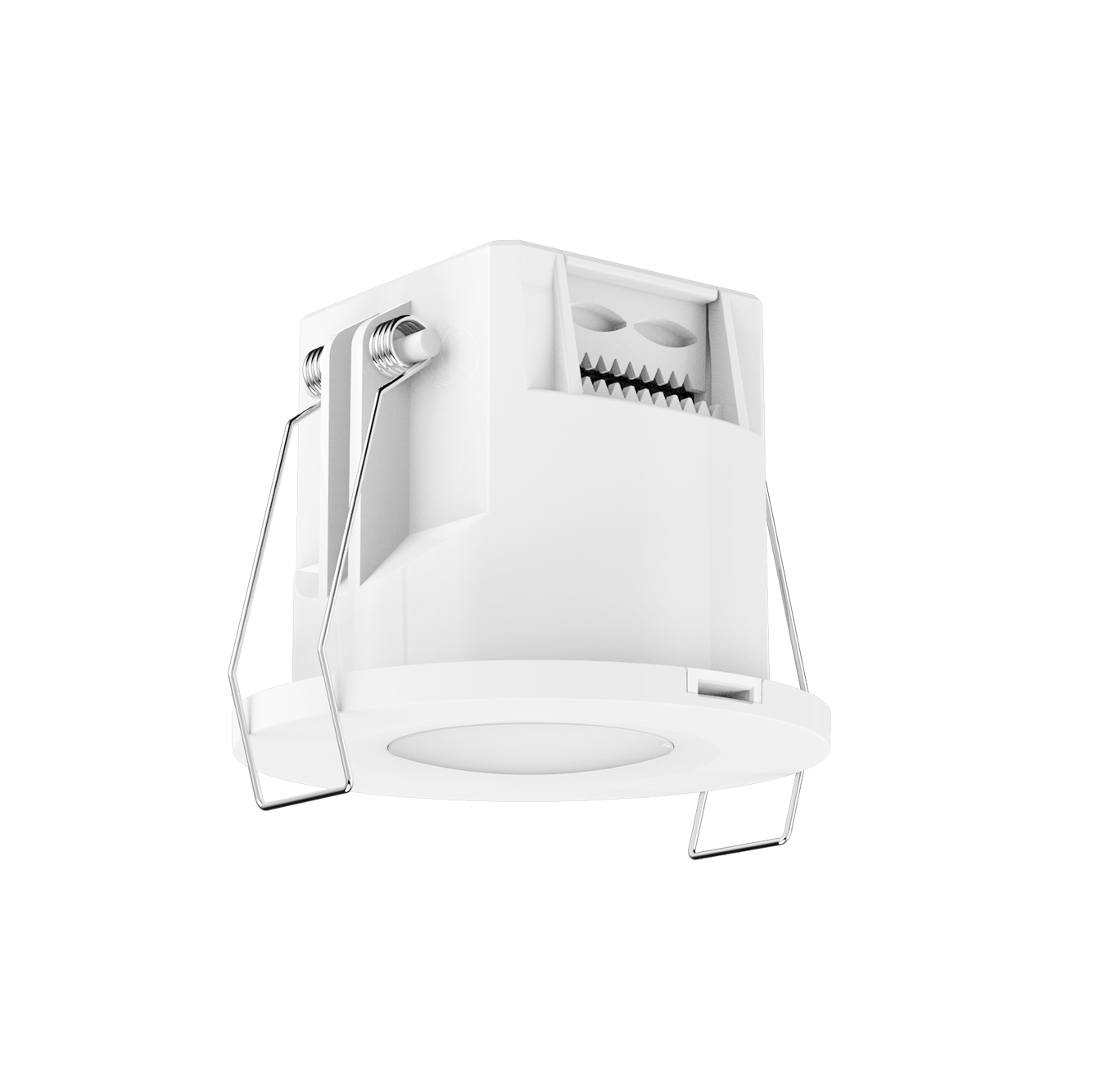

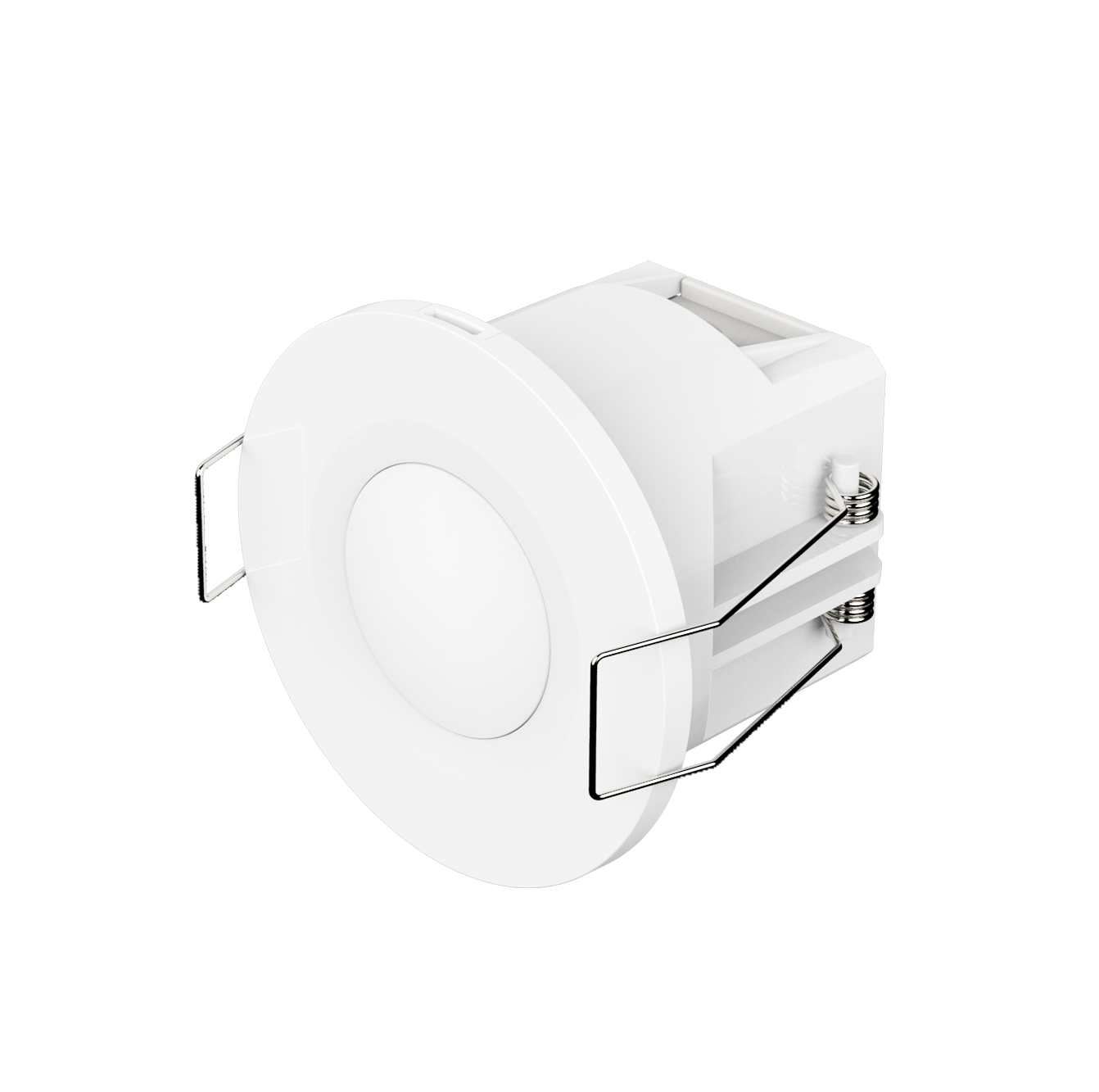

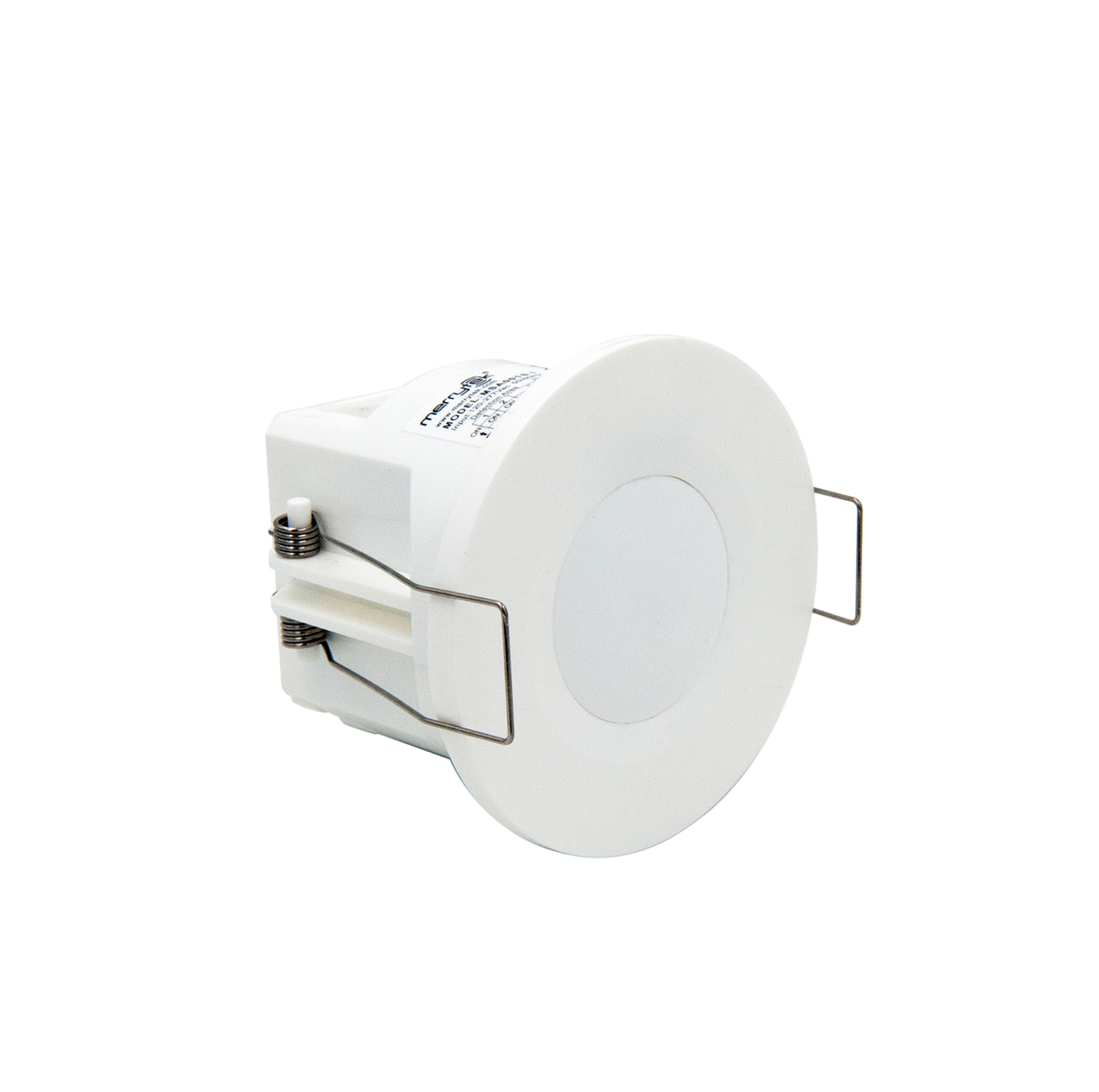

Low-mounting microwave motion sensor (ON/OFF version)
MSA001S 1 is a 5.8GHz microwave sensor with high antenna gain and wide sensing range. Combined with the unique software algorithm of Merrytek, it can accurately detect human movements in almost all indoor spaces to trigger smart scene application in smart homes, smart hotels, and smart offices.
| Input/Output | Input voltage | 100-240V AC 50/60Hz |
| Rated voltage | 220V AC | |
| Working current | 20mA max | |
| Power consumption | ≤0.5W @220V DC | |
| Output signal | ON/OFF | |
| Load capacity | 800w resistive loading or 400w inductive loading | |
| Sensor parameter | Microwave frequency | 5.8 GHz ±75 MHz |
| Radar transmit power | 2mW Max | |
| Detection Area | DIP or remote setting: 100%/75%/50%/25% | |
| Hold Time | DIP or remote setting: 5S/1Min/5Min/10Min | |
| Daylight Sensor threshold | DIP or remote setting: 5Lux/30Lux/50Lux/Disable | |
| Radius detection range(based on 100% sensitivity) | 3-4m based on 3m mounting height | |
| Remote control | Available | |
| Mounting height | 2.5-4.0m | |
| Detecting Angle | 120° | |
| Application environment | Drill hole | Φ55mm |
| Working temperature | 0℃…+50℃ | |
| Storage temperature | -40℃~+80℃ | |
| Certificate Standard | Certificate | Compliant to CE |
| Environmental requirements | Compliant to RoHS | |
| IP rating | IP20 | |
| “N/A” means not available | ||

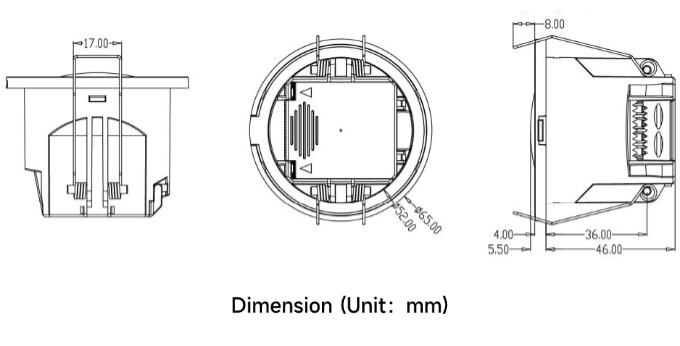

Dimension
Initialization
When powered on,sensor indicator will turn off after flashing for 20S and will not detect moving signal during this time. After 20S,you can use our MH10 remote or dip switch to adjust detection area、hold time and daylight sensor etc parameter.
Factory setting
Detection Area: 100%, Hold Time: 5S, Daylight Sensor:Disable
