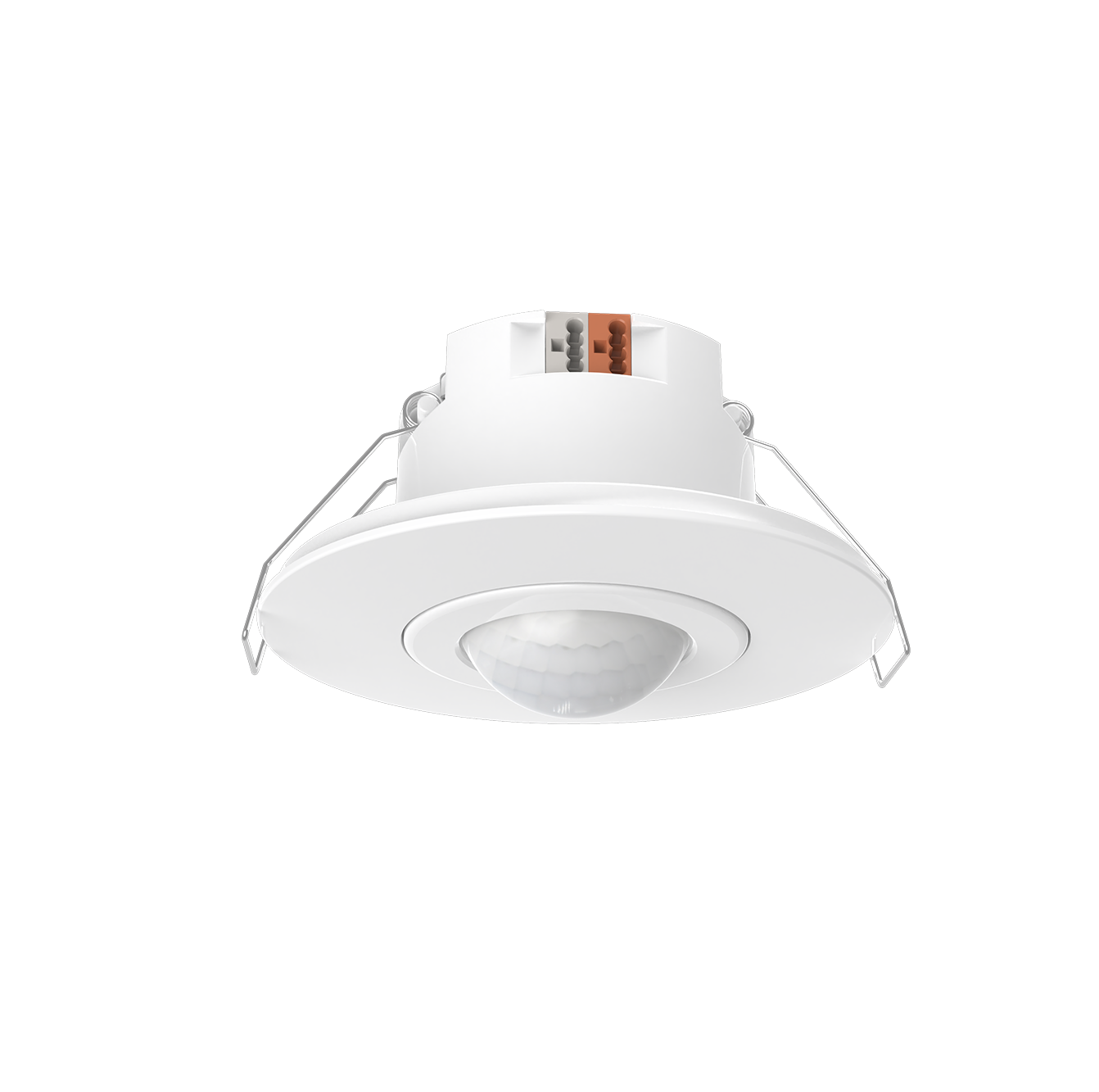

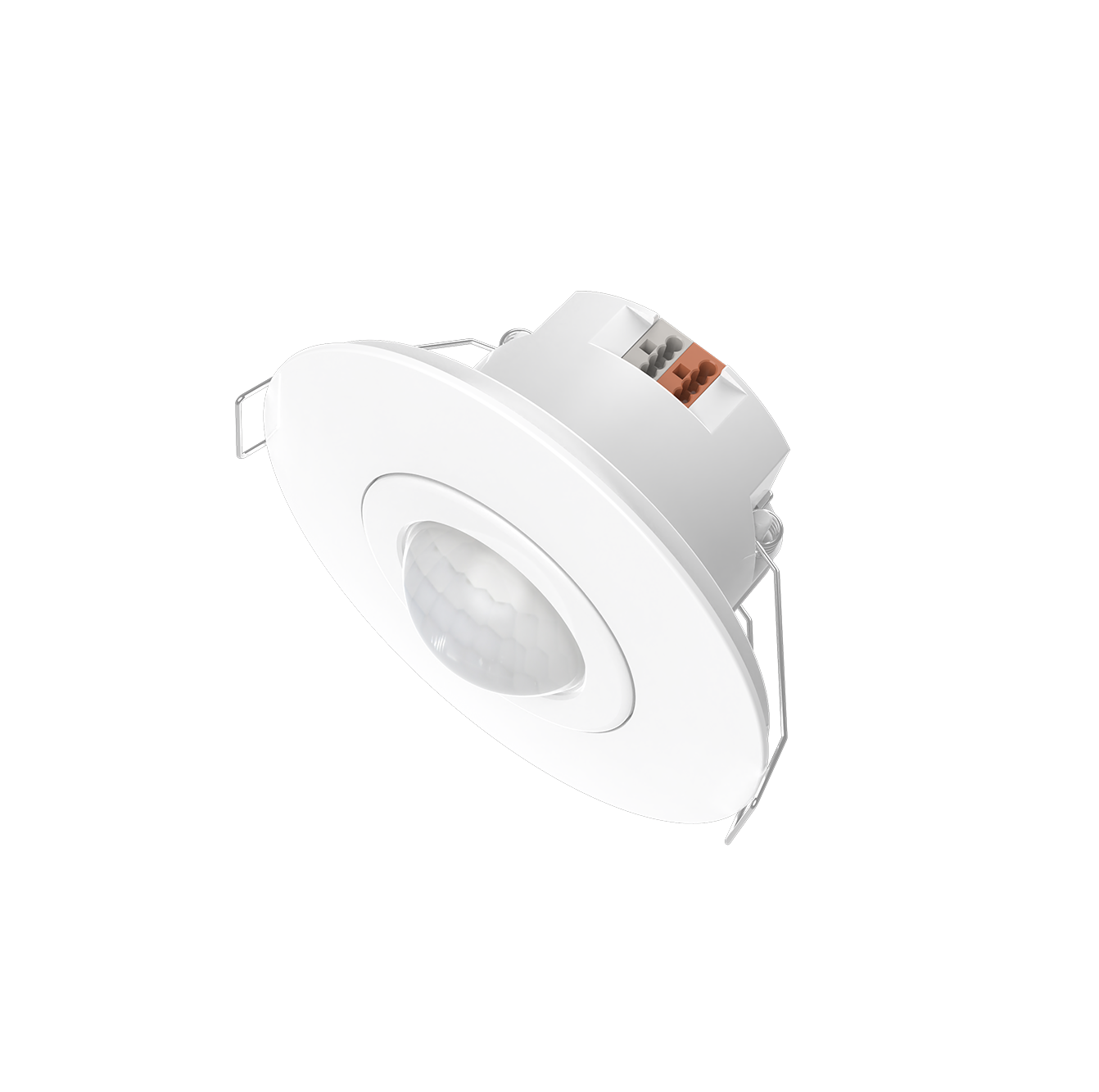

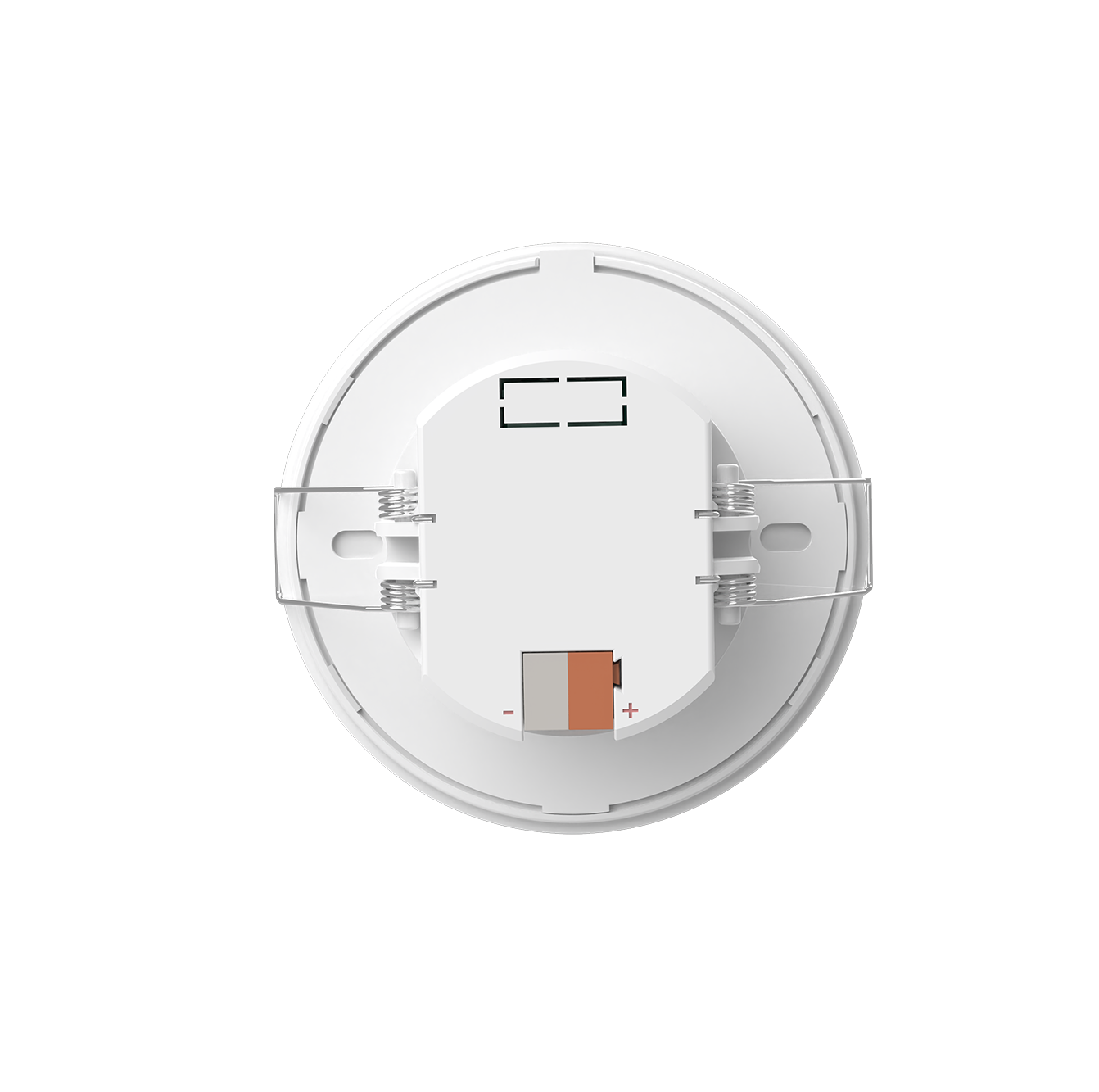

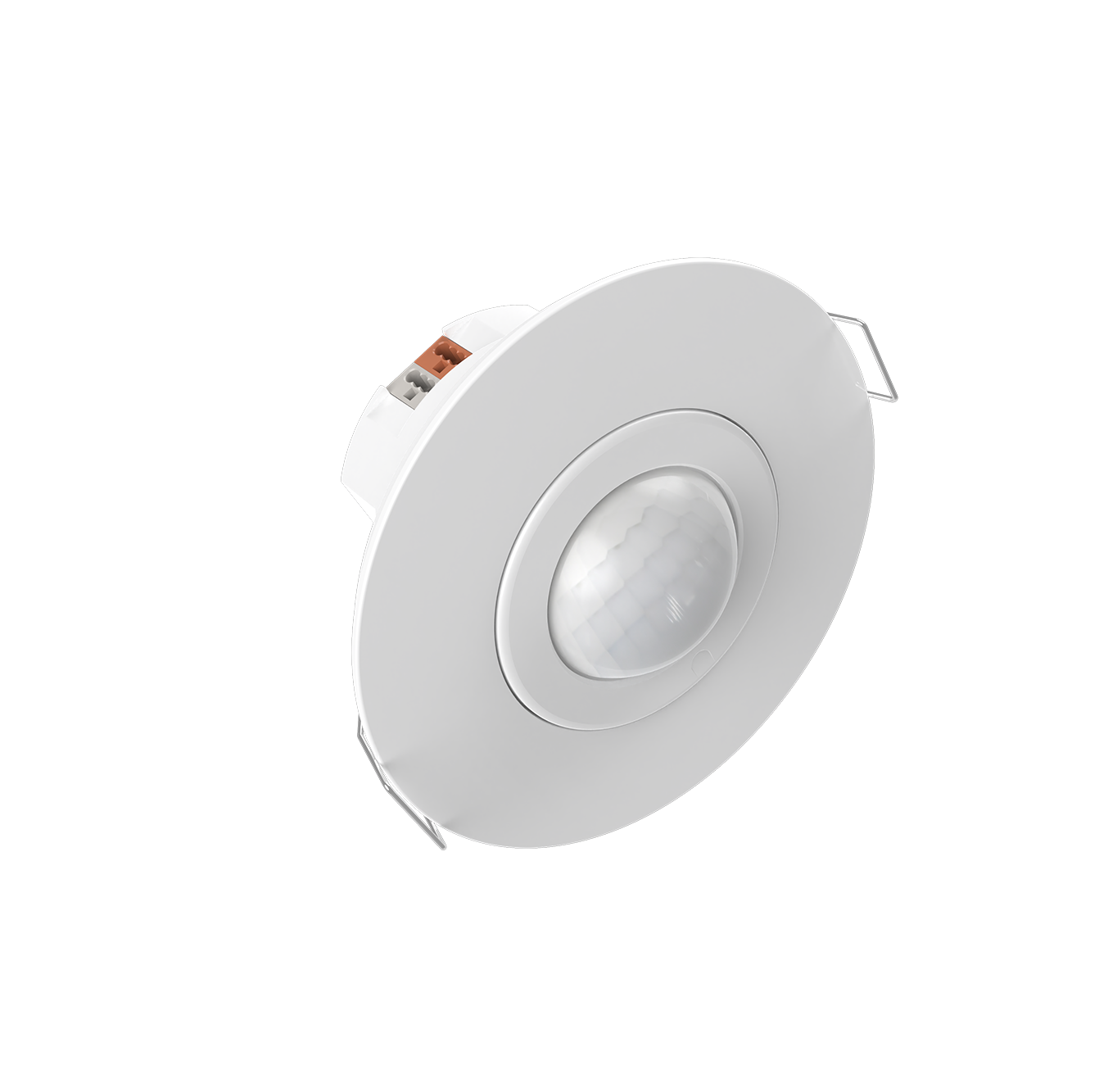

Low-mounting PIR motion sensor (KNX version)
MSA017K IR is a low-mounting PIR motion sensor with daylight detection function and KNX output. Combined with the unique software algorithm of Merrytek, it can accurately detect human movements in almost all indoor spaces to trigger smart scene application by KNX communication in smart homes, smart hotels, and smart offices.
| Input/Output | Input voltage | 21-30V DC KNX bus power |
| KNX current | ≤10mA | |
| Consumption | ≤0.5W @24V DC | |
| Sensor parameter | Function | PIR motion detection+ daylight sensor |
| Detection Area | ETS setting:8%/16%/24%/32%/40%/48%/56%/64%/72%/80%/88%/100% | |
| Hold Time | ETS setting | |
| Radius detection range(based on 100% sensitivity) | 2.5-4m @25℃ based on 3m mounting height | |
| Remote control | Available | |
| Mounting height | 2-6m typical value:3m | |
| Application environment | Drill hole | Φ60mm |
| Working temperature | -25℃…+50℃(detection range might differ based on different temperature ) | |
| Storage temperature | -40℃~+80℃ | |
| Warranty | 3 years（available based on product quality problem） | |
| Certificate Standard | Certificate | Compliant to CE |
| Environmental requirements | Compliant to RoHS | |
| IP rating | IP20 | |
| “N/A” means not available | ||

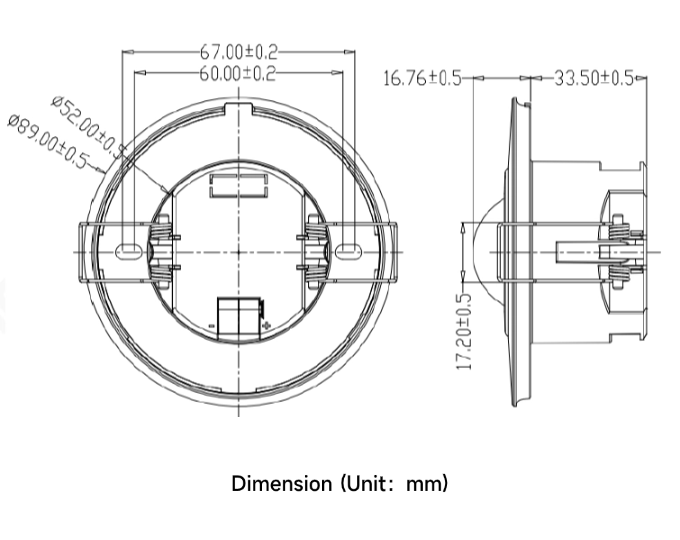

Dimension
Start Process & Initialization
After routing the physical addresses and setting the channel parameters, follow these steps:
Note: Please use the latest version of ETS 5 or 5.7.2 version. Please obtain thee ETS engineering configuration file of this sensor from our sales staff.

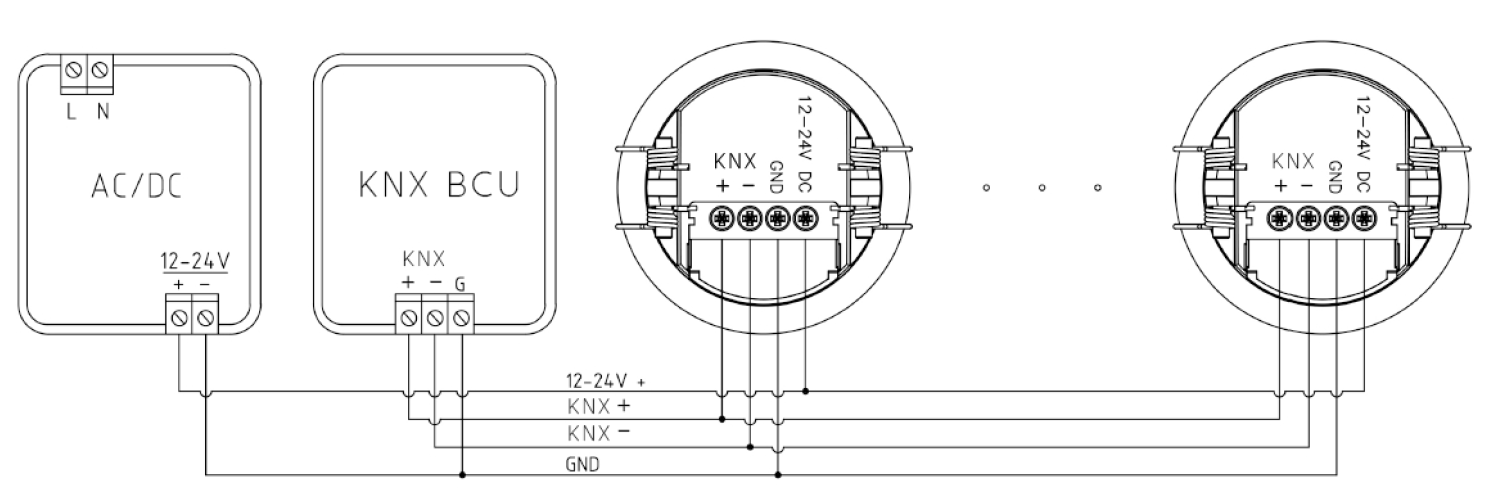

Wiring recommendations:
N/A
