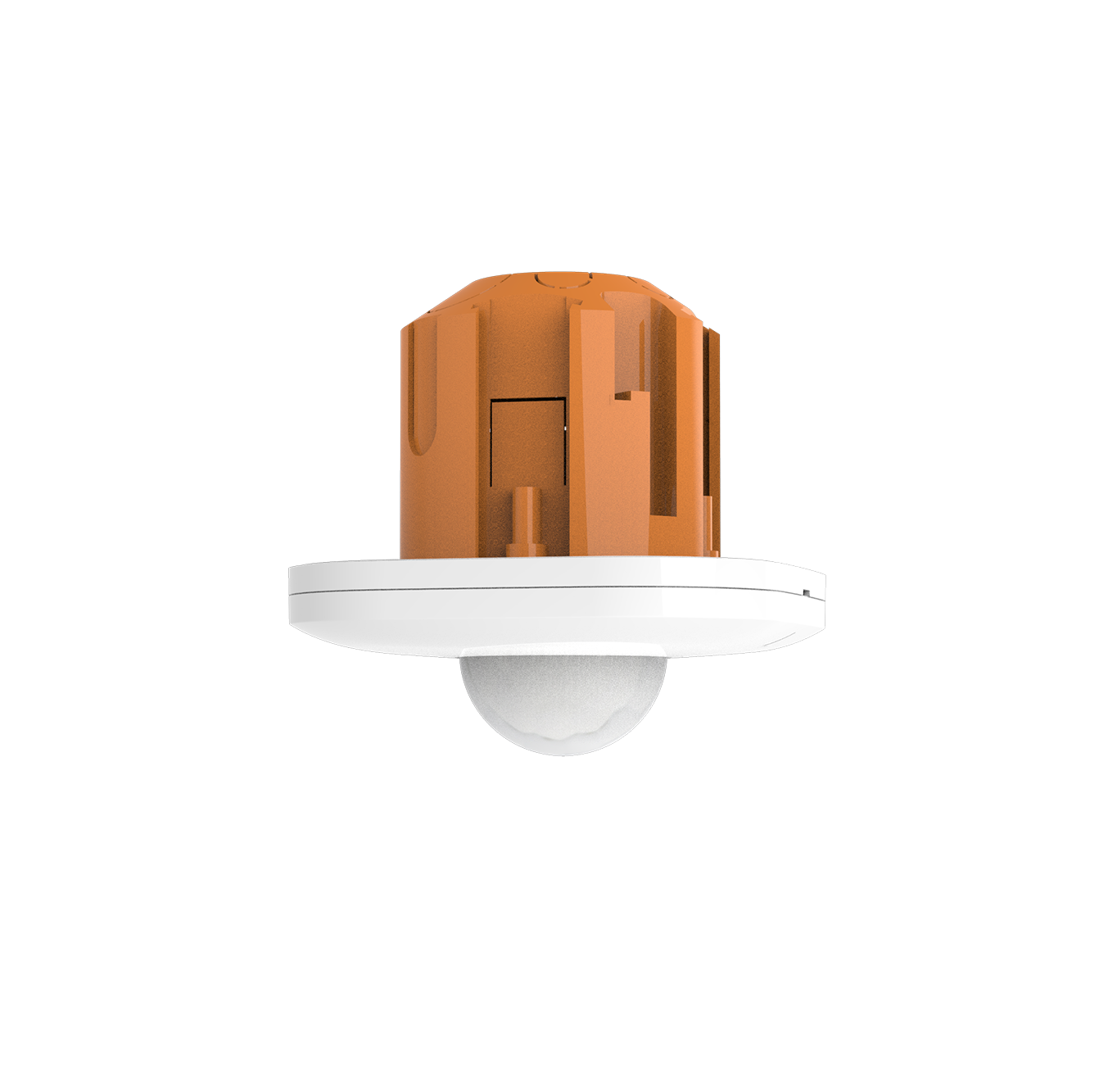

High-mounting PIR motion sensor (ON/OFF version)
MSA050S IR is a high-mounting PIR motion sensor with daylight detection function. Combined with the unique software algorithm of Merrytek, it can accurately detect human movements in almost all high-mounting scenario to control lighting automatic ON/OFF in warehouse,lobby,workshop etc.
| Input/Output | Input voltage | 220-240V AC |
| Rated voltage | 230V AC | |
| Working current | 20mA max | |
| Power consumption | ≤0.5W @12/24V DC | |
| Output signal | 1 channel ON/OFF(Max 800w resistive loading and 400w inductive loading) | |
| Sensor parameter | Function | PIR motion detection+ daylight sensor |
| Detection Area | DIP or remote setting: 100%/75%/50%/25% | |
| Hold Time | DIP: 2s/1min/3min/5min/10min/20min/30min MH10remote:5s/30s/1min/3min/5min/10min/20min/30min |
|
| Daylight Sensor | DIP: 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable MH10remote: 5Lux/15Lux/30Lux/50Lux/100Lux/ 150Lux/Disable |
|
| Radius detection range(based on 100% sensitivity) | 4-5m@25℃ based on 6m mounting height | |
| Remote control | Available | |
| Mounting height | 2-8m, typical value:6m | |
| Application environment | Drill hole | Φ65-70mm |
| Working temperature | -25℃…+50℃(detection range might differ based on different temperature ) | |
| Storage temperature | -40℃~+80℃ | |
| Warranty | 3 years（available based on product quality） | |
| Certificate Standard | Certificate | Compliant to CE |
| Environmental requirements | Compliant to RoHS | |
| IP rating | IP20 | |
| “N/A” means not available | ||

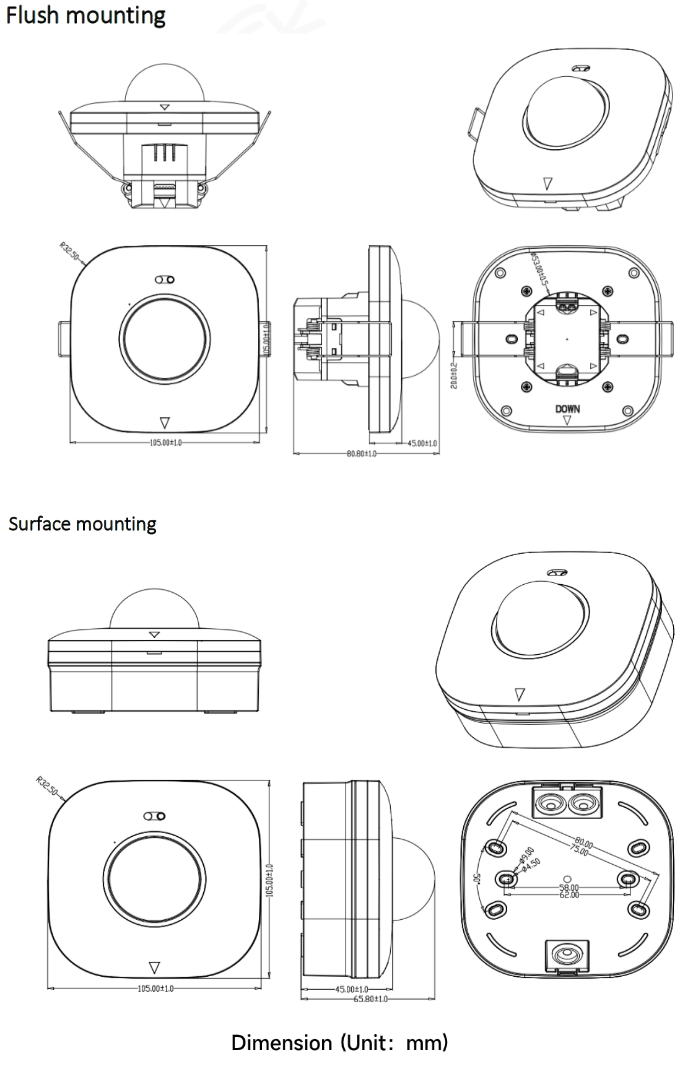

Dimension
Initialization
When powered on,sensor indicator will turn off after flashing for 10S and will not detect moving signal during this time. After 10S,you can use our MH10 remote or dip switch to adjust detection area、hold time and daylight sensor etc parameter.
Factory setting
Detection Area:100%, Hold Time: 5s,Daylight Sensor: Disable

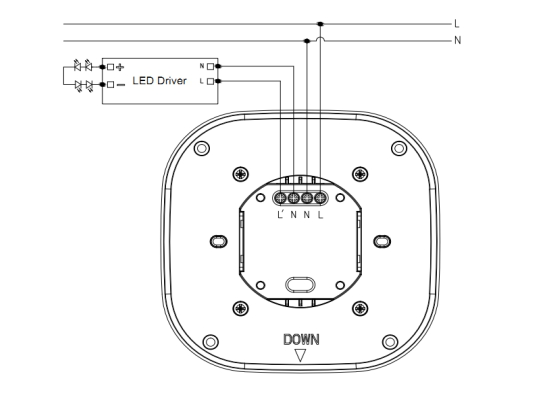

Wiring layout suggestion：
N/A
