High-mounting PIR motion sensor (DALI+PUSH version)
MSA050 IR is a high-mounting PIR motion sensor with daylight detection function. Combined with the unique software algorithm of Merrytek, it can accurately detect human movements in almost all high-mounting scenario to control lighting automatic ON/OFF or dimming in warehouse,lobby,workshop etc.
| Input/Output | Input voltage | 220-240V AC |
| Rated voltage | 220V AC | |
| Working current | 20mA max | |
| Power consumption | ≤0.5W @220/230V AC | |
| Output signal | DALI+PUSH DALI terminal：DA+ DA-（Max wire length 300m,Max terminal current 100mA） PUSH terminal：manual dimming+on/off control (Max wire length 15m） |
|
| Max. Surge Capacity | 1KV(L/N,EN61000-4-5) | |
| Sensor parameter | Function | PIR motion detection+ daylight sensor |
| Daylight harvesting | Available（when daylight harvesting mode is enabled,its dimming range is 10%-100%,and our sensor will automatically be disabled when environment lux is higher than 1000lux and recover enabled when environment lower than 120lux | |
| Detection Area | DIP /remote setting: 100%/75%/50%/25% | |
| Hold Time | DIP /remote setting:5s/1min/5min/10min/20min/30min | |
| Daylight Sensor | DIP /remote setting:50Lux/Disable | |
| Stand-by dim Level | DIP /remote setting:10%/20%/30%/50% | |
| Stand-by time | DIP /remote setting:0S/1min/10min/∞ | |
| Radius detection range(based on 100% sensitivity) | 4-5m@25℃ based on 8m mounting height | |
| Remote control | Available | |
| Mounting height | 2.5-10m, typical value:8m | |
| Application environment | Drill hole | Φ55mm |
| Working temperature | -25℃…+50℃(detection range might differ based on different temperature ) | |
| Storage temperature | -40℃~+80℃ | |
| Warranty | 5 years（available due to product quality problem under indoor application） | |
| Certificate Standard | Certificate | Compliant to CE |
| Environmental requirements | Compliant to RoHS | |
| IP rating | IP20(flush mounting) IP54(surface mounting) | |
| “N/A” means not available | ||
Dimension
Initialization
When powered on,sensor indicator will turn off after flashing for 10S and will not detect moving signal during this time. After 30S,you can use our MH10 remote or dip switch to adjust detection area、hold time and daylight sensor etc parameter.
Factory setting
Detection Area:100%, Hold Time: 5s, Daylight Sensor: Disable, Indicator: ON, standby time: 0s, standby dim level:10%
Detection Signal
The product detects human moving signals and below is a description of the moving signals:

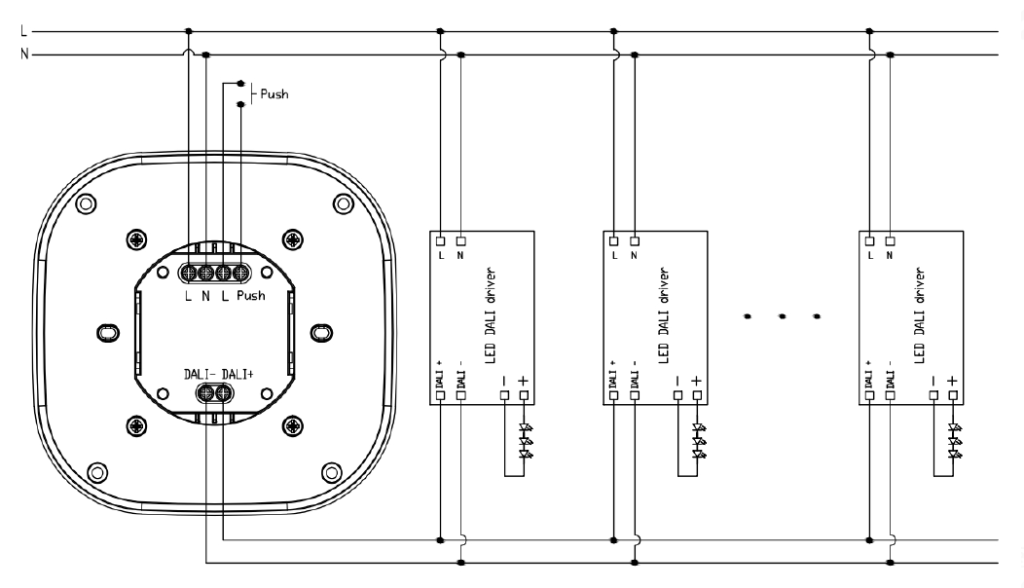

Wiring layout suggestion：
