MSA206K 99

Features

Exclusive Merrytek Lifebeing Presence Detection
FMCW modulation technology applied to detect micro movement brought by breathing
Germany RF technology applied for 5-year gurantee assurance
Accurate Presence/Absence Output
Daylight Sensor Available
Support KNX communication
24Ghz ISM Band Millimeter Wave Radar technology
Major/Minor/Micro Motion detection diameter: 6-8m Max
Major/Minor/Micro Motion detection range are highly coincide
Round radiation. Effectively managing a whole space by a single sensor
Absence switch to Presence within 0.5S
Presence switch to Absence no less than 15S
Flush mounting and 86 panel mounting installation available
Sensor parameter adjustable by ETS
Sensing function based on millimeter wave radar technology
Low RF power output. No harm to human health
Not affected by temperature, humidity, noise, airflow, dust, light and other environments

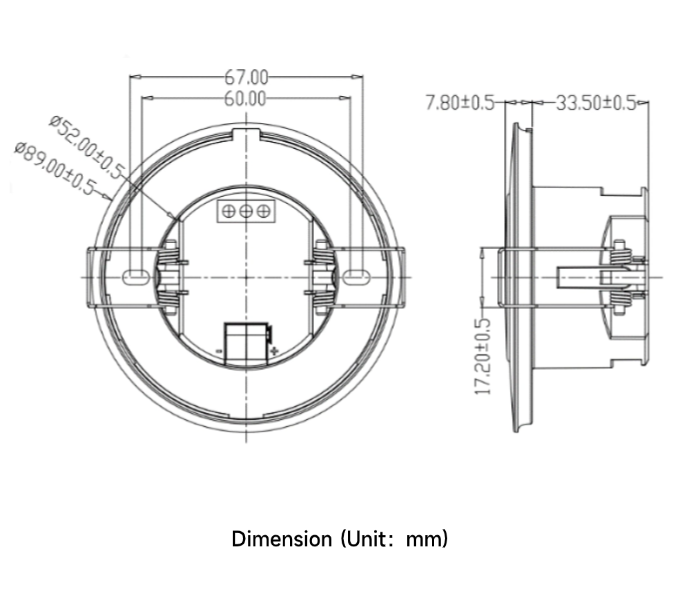

Dimension & Function Diagram

Parameter characteristics

Input/Output	Auxiliary Power Supply Voltage Range	12-24V DC
	KNX Terminal Voltage	21-30V DC
	Auxiliary Power Supply Working Current	12V: 70mA 24V: 40mA
	KNX Terminal Current	≤10mA
	Working Power	≤0.5W @24V DC
Sensor Parameter	Working Frequency	24GHz-24.25GHz ISM Wave.
	Transmitting Power	5mW Max
	Detection Area	ETS setting: 8%-100% (100%=4m,88%=3.5m,80%=3m,72%=3m,64%=2.5m,56%=2m,48%=1.5m,40%=1m,<40%=0.5m)
	Hold Time	ETS setting: 3S-7200S
	Detecting Range	major/minor/micor movement（3m height installation）: 3.5±0.5m（based on 41㎡ open area test and might change due to different space）
	(100% detection area, radius)
	Remote Control	Support
	Mounting Height	2-4m, typical value: 3m
	3db Beam Angle	100° (XZ field)
	3db Beam Angle	100° (YZ field)
Environment	Flush-mounted Hole Size	Φ55-65mm
	Working Temperature	0℃…+50℃
	Storage Temperature	-40℃…80℃, Humidity: ≤85%(non-condensing)
Certificate Standard	Certificate	FCC/RED
	Environmental Requirement	Compliant to RoHS
	IP Rating	IP20
	Gurantee	5 year（only for product quality problem）
Note: “N/A” means not available.

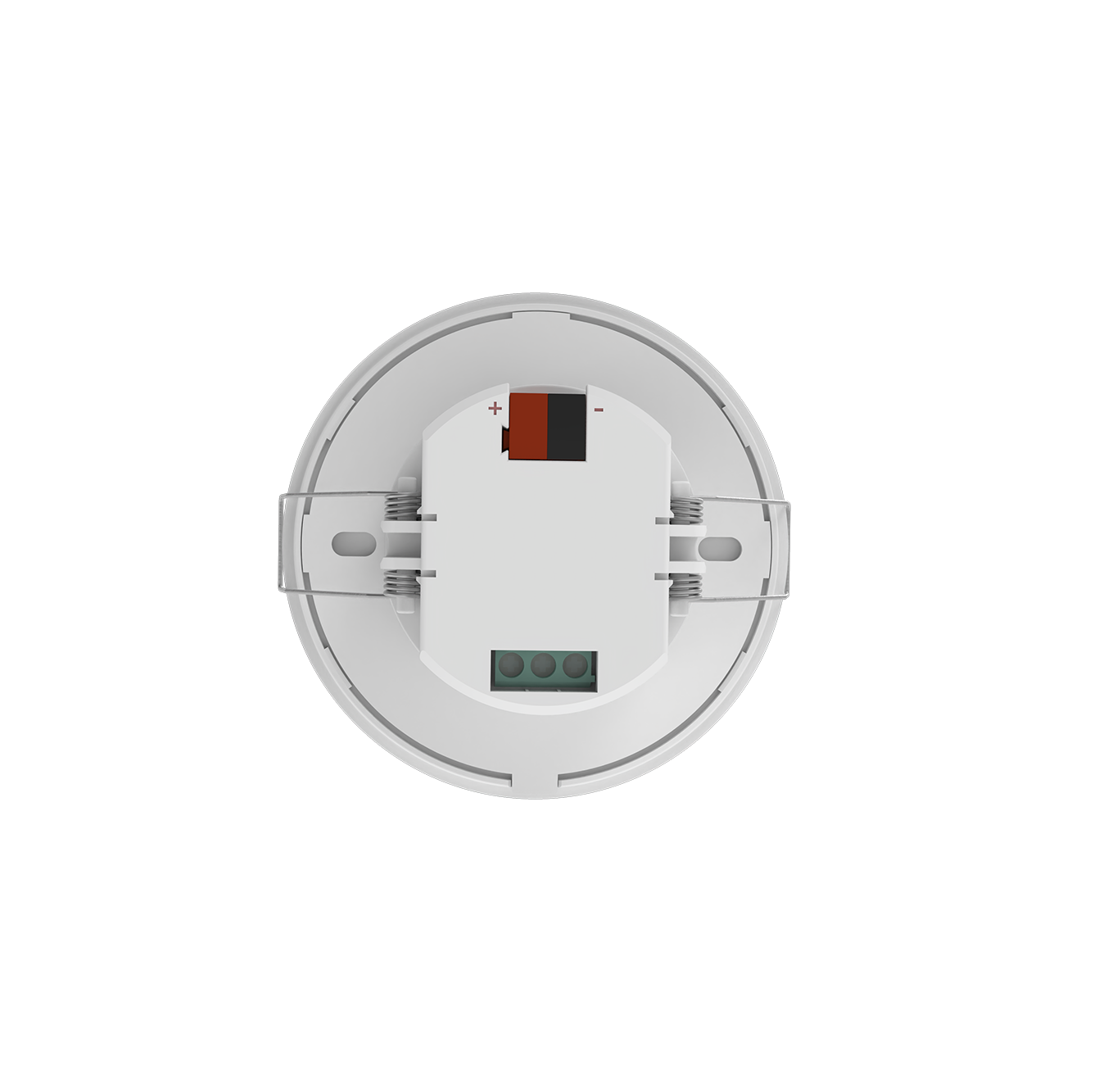

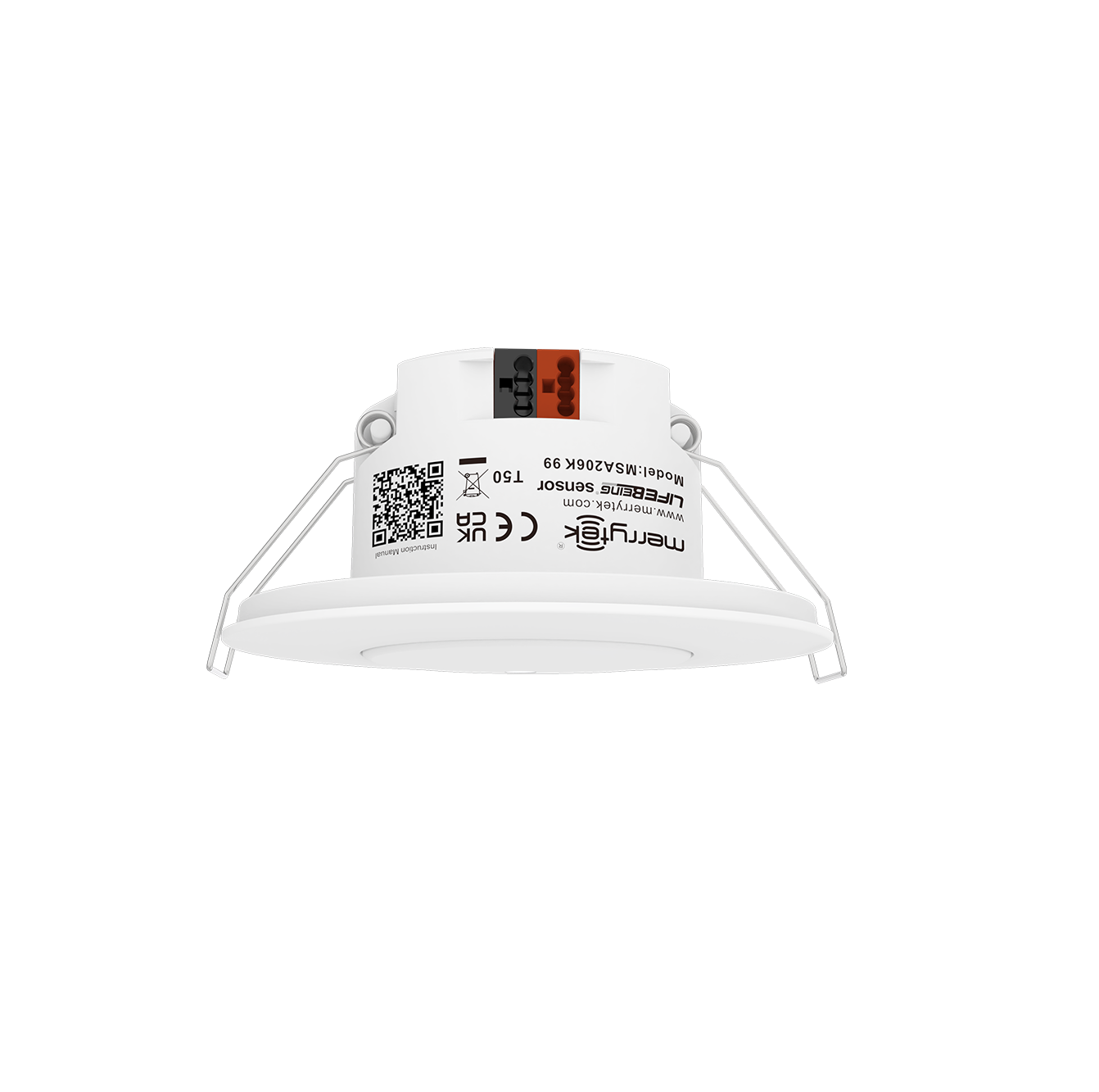

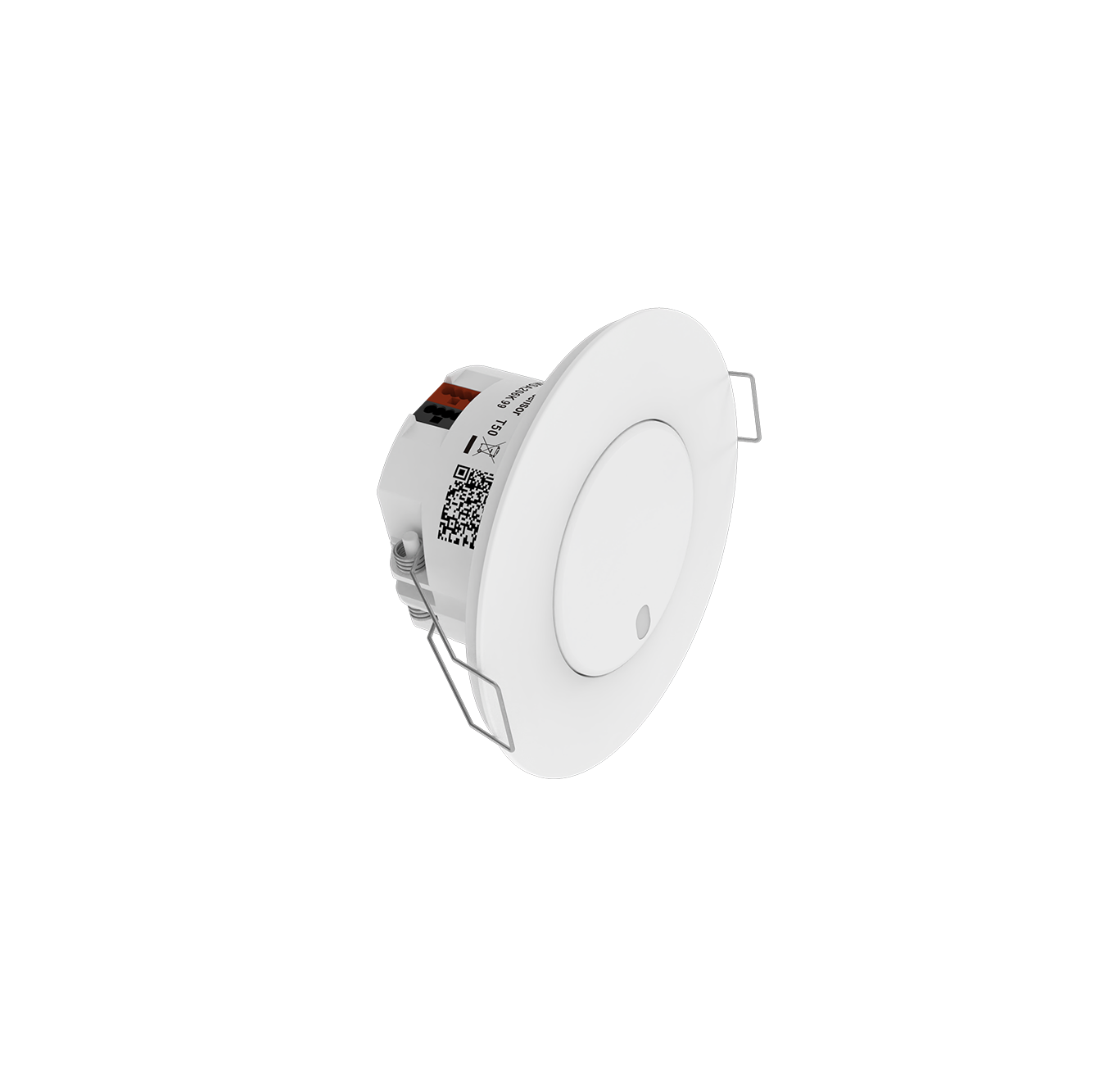

Product details

Product Package

Dimension: φ89x34mm
Wiring: Auxiliary power supply: 2-pin yellow and white shrapnel lifting terminals
KNX bus terminal: 4-pin red and black KNX terminals

Signal Detection Description

This millimeter-wave radar sensor detects human body movement, micro-movement, and presence signals, and realizes the detection of human body presence(human-existing/no-human) in a non-sleeping state. The following is a description of movement, micro-motion, and presence signals:

Majormovement: detect the human significant moving (walking) in the detection area.
Minor movement: detect the human slight moving in the detection area, such as leaning forward, leaning forwarder and back, swinging limbs, shaking head, typing, playing with mobile phones and so on.
Micromovement: detect human abdominal and thoracic expansion behaviors caused by breathing, but not detect moving signal and minor moving signal.

Wiring suggestions

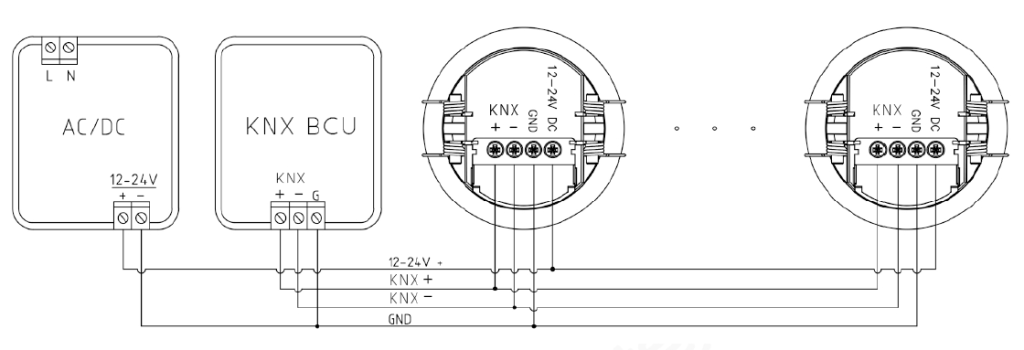

Wiring Diagram & Recommendations

Wiring recommendations:

KNX bus wiring suggestion hand in hand to the end, star or tree wiring is not recommended to ensure the stability of signal tranmission.
KNX bus wiring wire recommends KNX standard EIB shielded wire or Category 6 network cable, the length of the bus wiring is recommended not to exceed 400 meters, and the number of sensor connected to a bus is recommended to not exceed 12.
The number of sensors connected to a bus needs to fully consider the current load capacity of the power supply: that is the sum of the currents of all KNX devices (including sensors) shall not be greater than the load current of the KNX power supply.

Installation suggestion

NameDateDownload
MSA206K-99-FMCW-spec-2022.06.15.pdf 2025-09-16 06:07:09
