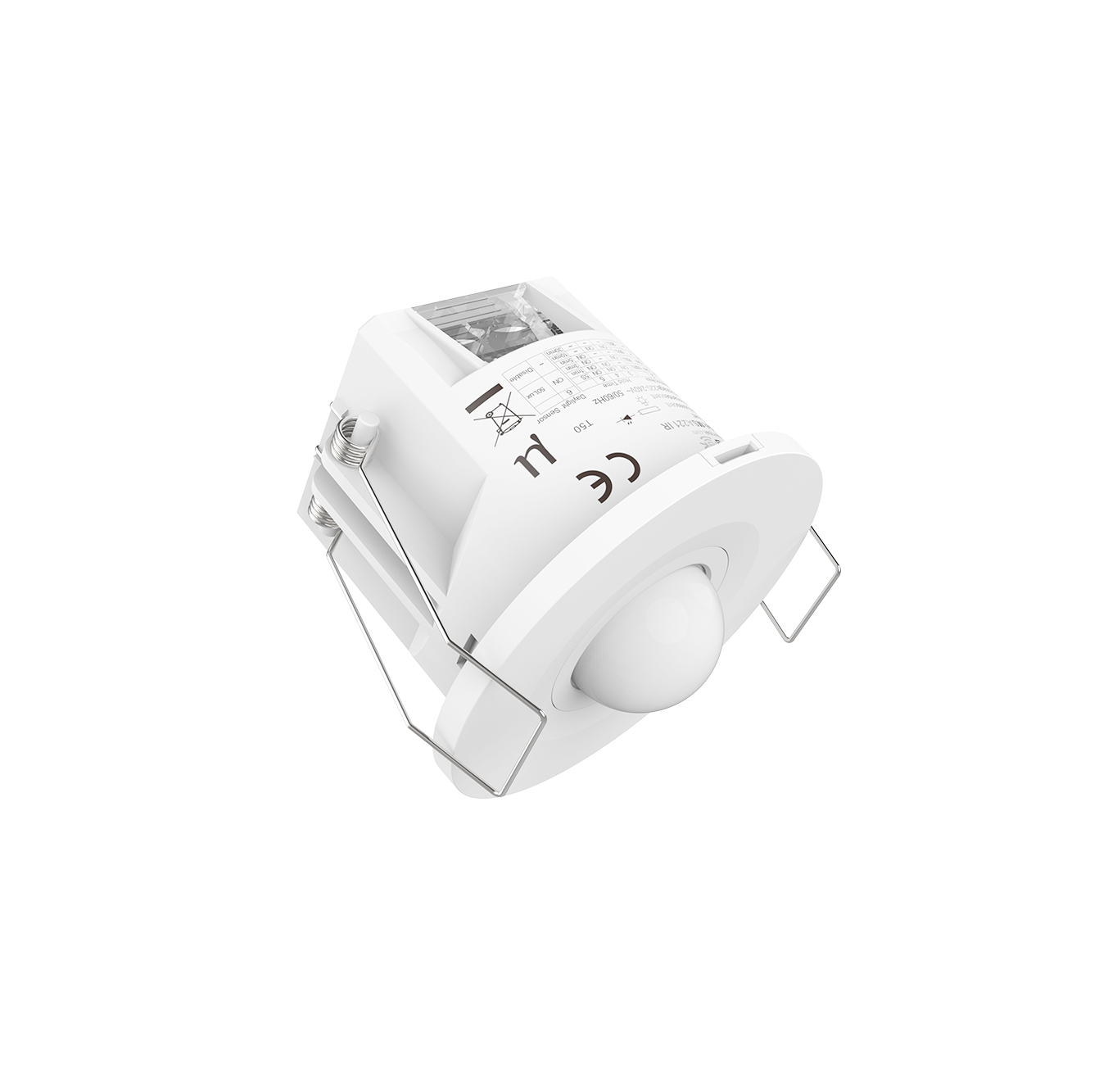

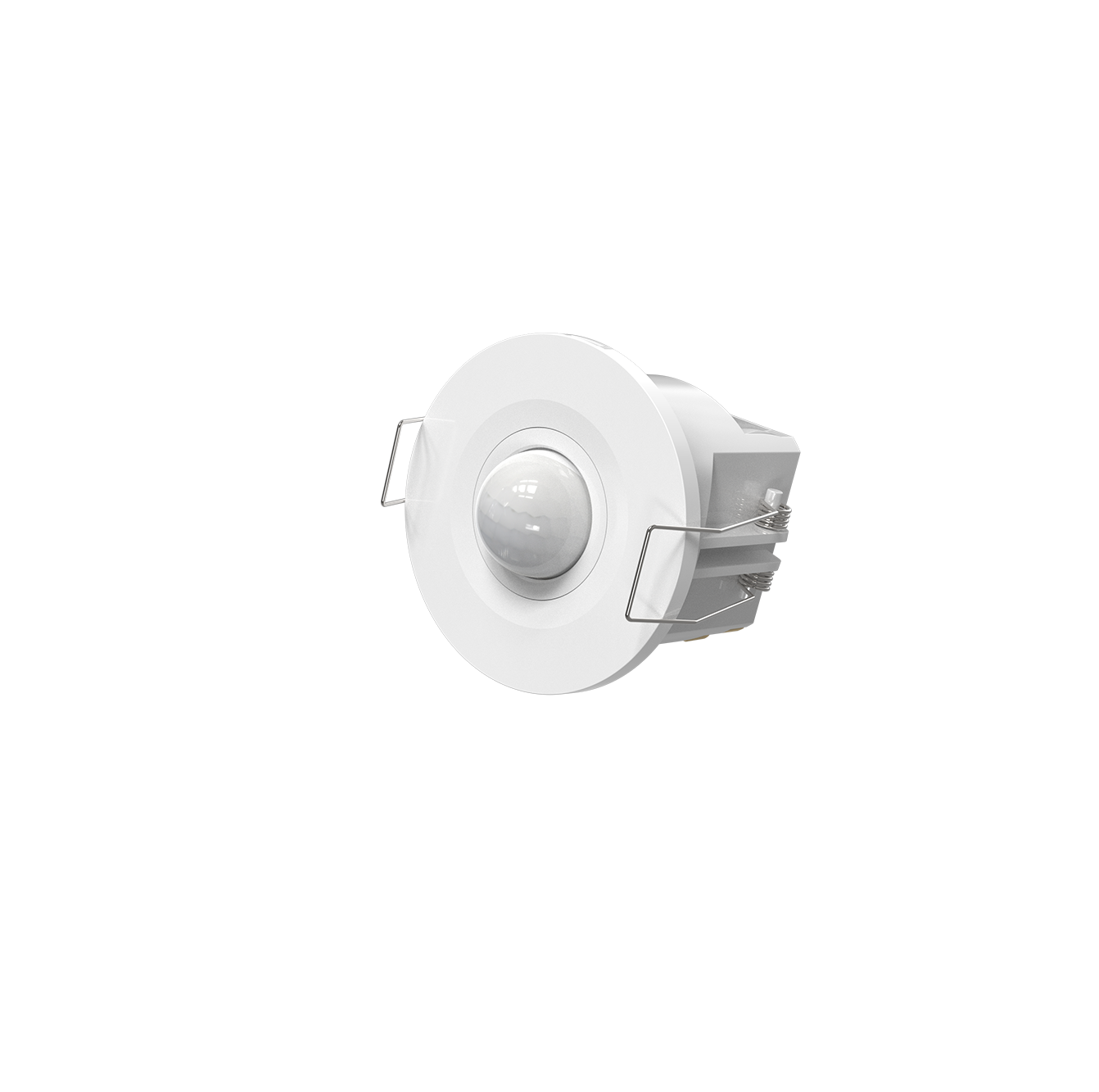

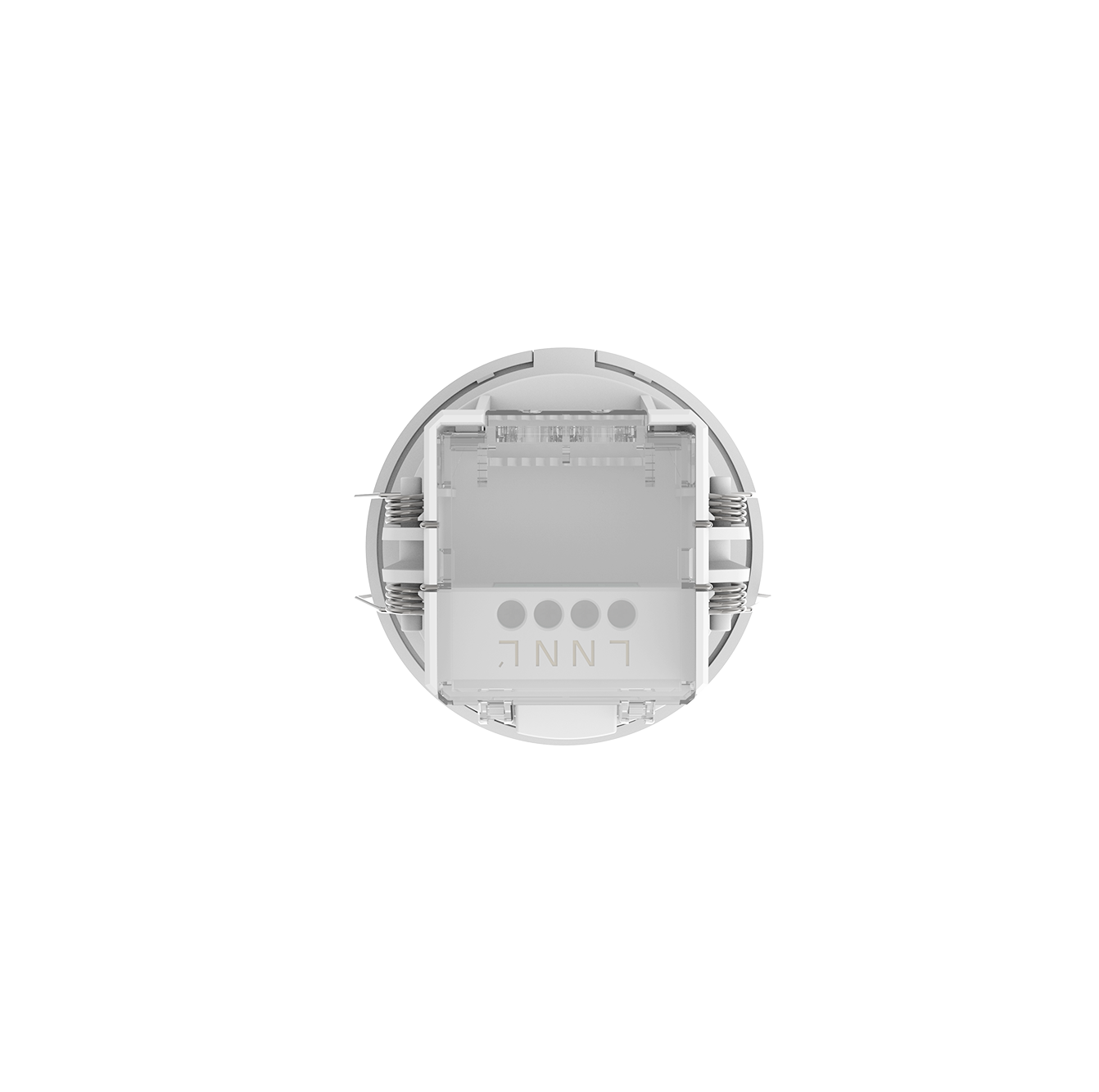

Low-mounting PIR motion sensor (ON/OFF version)
MSA221 IR is an compact PIR motion sensor with daylight detection function. Combined with the unique software algorithm of Merrytek, it can accurately detect human movements in almost all indoor spaces to trigger smart scene application in smart homes, smart hotels, and smart offices.
| Input/Output | Input voltage | 100-240V AC |
| Rated voltage | 220V AC | |
| Working current | 20mA max | |
| Power consumption | ≤0.2W @220V AC | |
| Output signal | ON/OFF | |
| Load capacity | 800w resistive loading or 400w inductive loading | |
| Sensor parameter | Function | PIR motion detection+ daylight sensor |
| Detection Area | DIP or remote setting: 100%/75%/50%/25% | |
| Hold Time | DIP: 5s/1min/3min/5min/10min/30min MH10remote: 5s/30s/1min/3min/5min/10min/20min/30min |
|
| Daylight Sensor | DIP: 50Lux/Disable MH10remote: 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable |
|
| Radius detection range(based on 100% sensitivity) | 2.5-4m @25℃ based on 3m mounting height | |
| Remote control | Available | |
| Mounting height | 2.5-6m typical value:3m | |
| Application environment | Drill hole | Φ55mm |
| Working temperature | -25℃…+50℃(detection range might differ based on different temperature ) | |
| Storage temperature | -40℃~+80℃ | |
| Warranty | 3 years limited warranty(due to product problem ONLY) | |
| Certificate Standard | Certificate | Compliant to CE |
| Environmental requirements | Compliant to RoHS | |
| IP rating | IP20 | |
| “N/A” means not available | ||

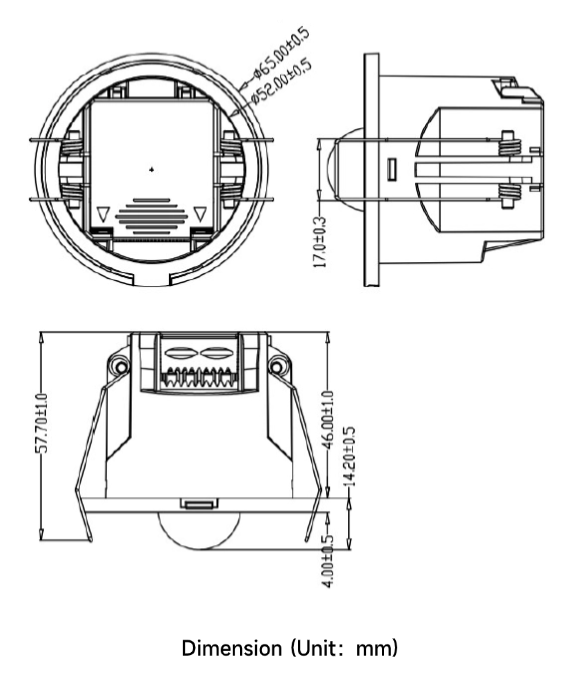

Dimension
Initialization
When powered on,sensor indicator will turn off after flashing for 10S and will not detect moving signal during this time. After 10S,you can use our MH10 remote or dip switch to adjust detection area、hold time and daylight sensor etc parameter.
Factory setting
Detection Area: 100%, Hold Time: 5s, Daylight Sensor: Disable
Detection Signal
The product detects human moving signals and below is a description of the moving signals:

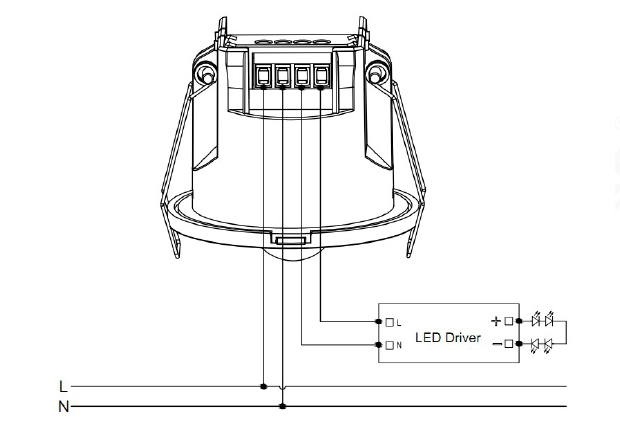

Wiring layout suggestion：
