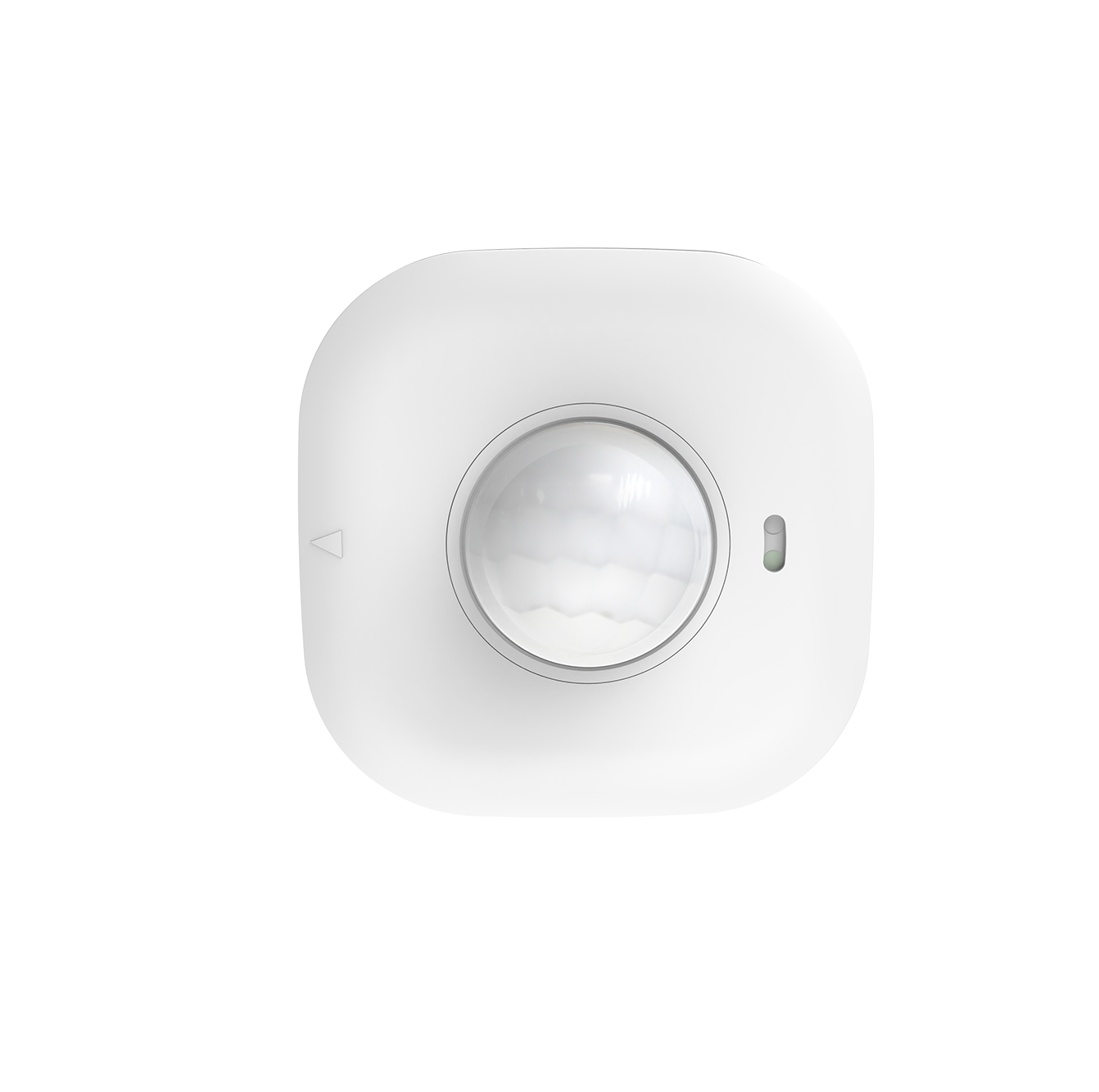

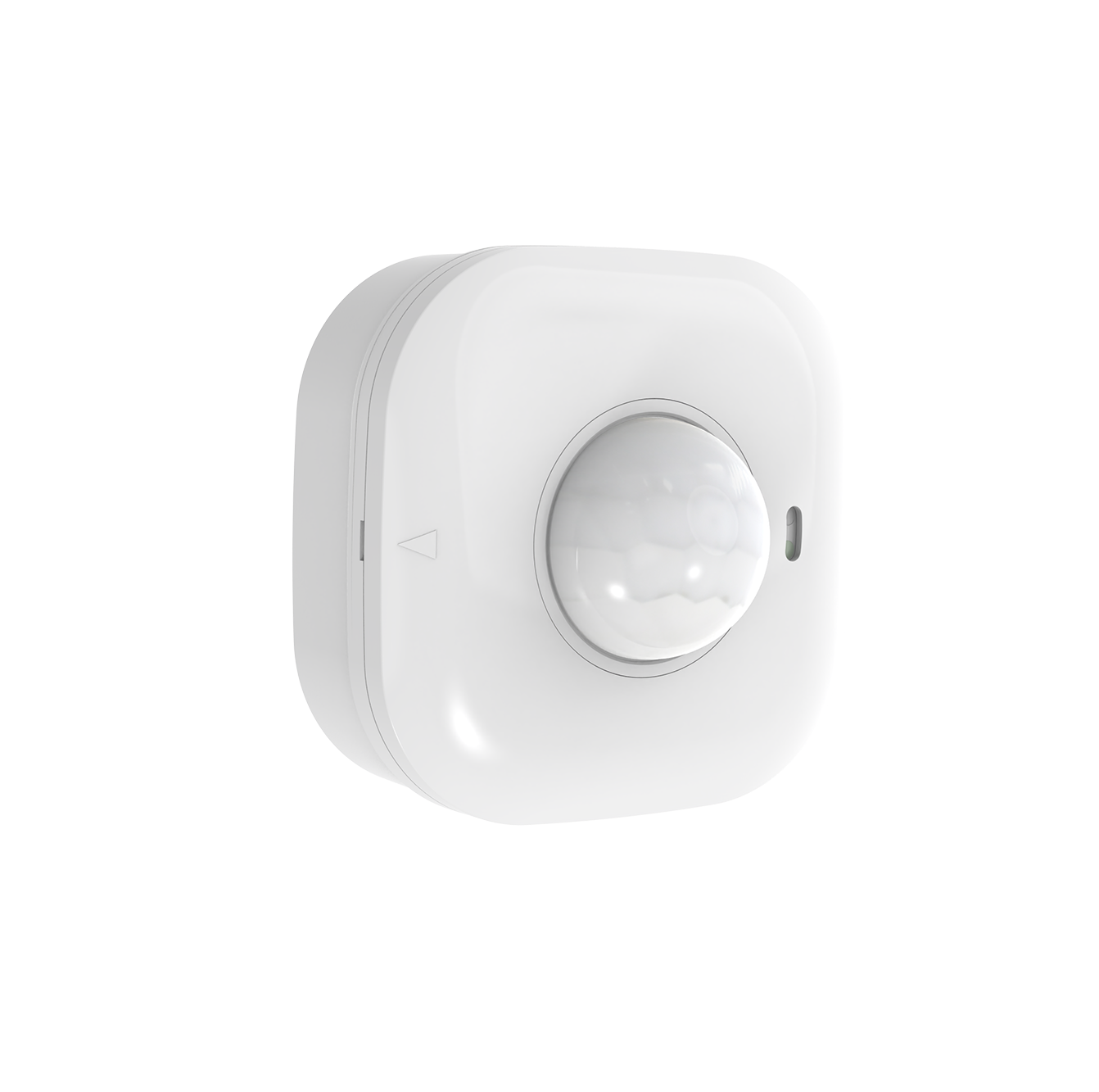

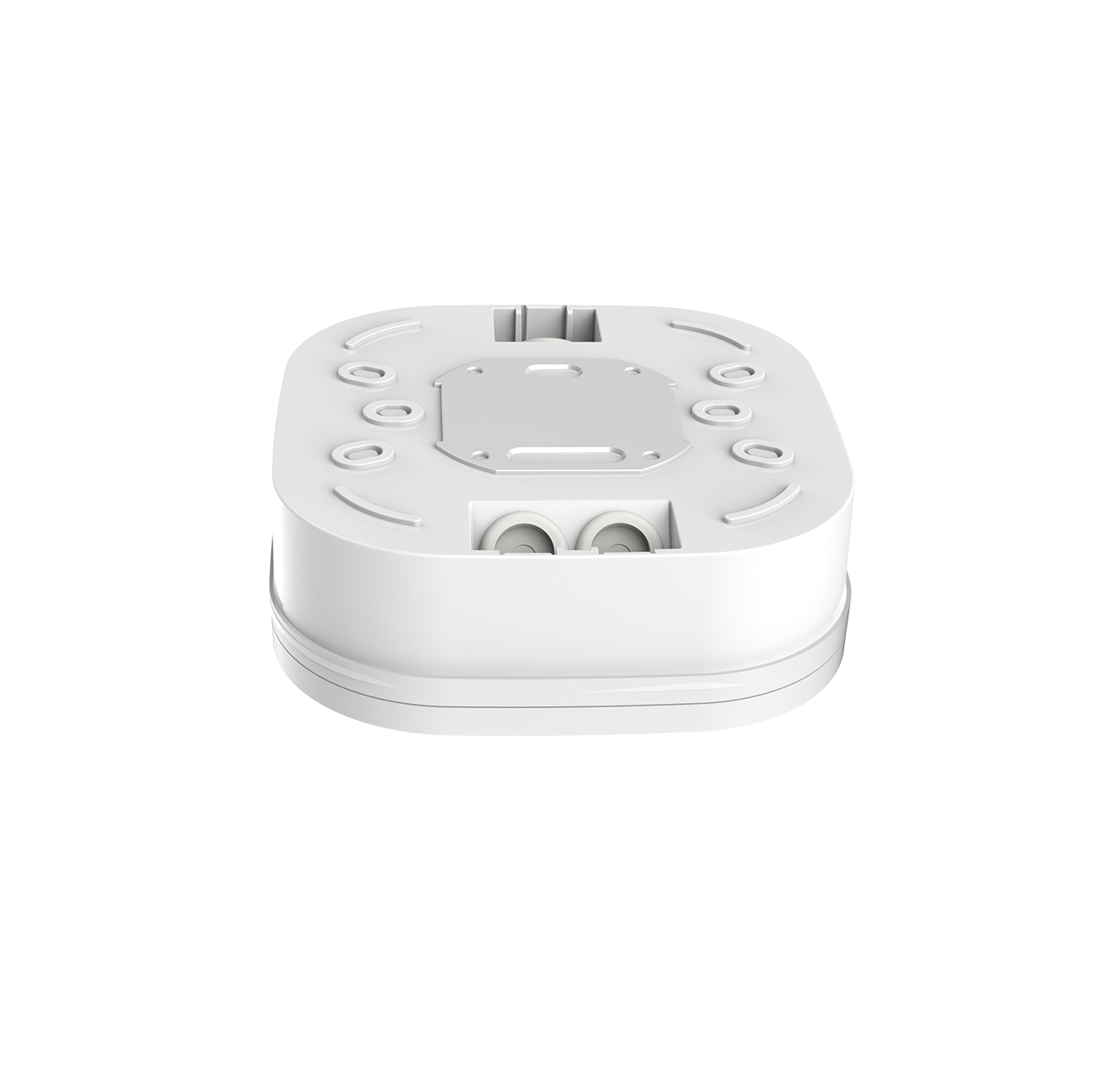

High-mounting PIR motion sensor (Casambi+DALI version)
MSA227 IR B1 is a high-mounting PIR motion sensor with daylight detection function and casambi wireless communication. Combined with the unique software algorithm of Merrytek, it can accurately detect human movements in almost all high-mounting scenario to trigger smart scene application in warehouse,lobby,workshop etc.Meanwhile it also has one channel DALI dimming terminal output and one channel push control terminal output.
| Input/Output | Input voltage | 220-240V AC | |||||
| Rated voltage | 220V AC | ||||||
| Working current | 20mA max | ||||||
| Power consumption | ≤0.5W @220/230V AC | ||||||
| Output signal | DALI+PUSH+casambi | ||||||
| Sensor parameter | Function | PIR motion detection+ daylight sensor | |||||
| Detection Area | Casambi app setting: 100%/75%/50%/25% | ||||||
| Sensor Hold Time | Casambi app setting: 5S/1min/3Min/10Min | ||||||
| Daylight Sensor | 0-1200lux | ||||||
| Radius detection range(based on 100% sensitivity and tangential moving) | 4-5m@25℃ based on 6m mounting height(radial moving trigger range shall be less than tangential moving) | ||||||
| Remote control | Available | ||||||
| Mounting height | 2-8m, typical value:6m | ||||||
| Application environment | Drill hole | Φ55mm | |||||
| Working temperature | -25℃…+50℃(detection range might differ based on different temperature) | ||||||
| Storage temperature | -40℃~+80℃ | ||||||
| Warranty | 3 year（available based on product quality） | ||||||
| Certificate Standard | Certificate | Compliant to CE | |||||
| Environmental requirements | Compliant to RoHS | ||||||
| IP rating | IP54 | ||||||
| “N/A” means not available | |||||||

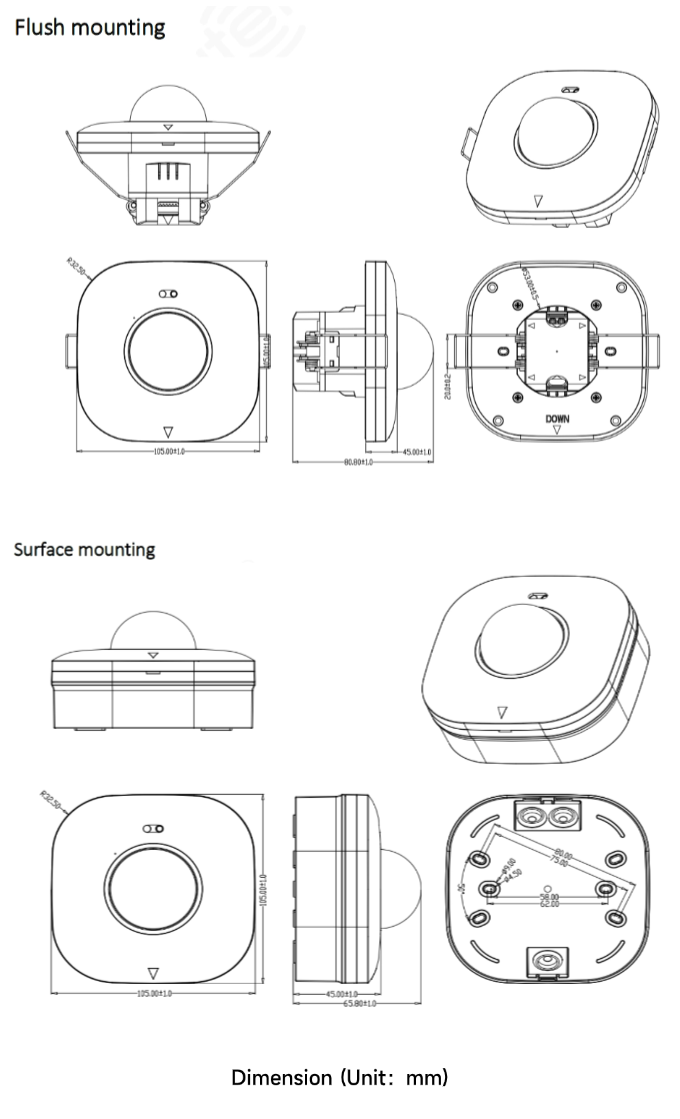

Dimension
Initialization
When powered on,sensor indicator will turn off after flashing for 30S and will not detect moving signal during this time. After 10S,you can use our MH10 remote or casambi app to adjust detection area、hold time and daylight sensor etc parameter.
Factory setting
Detection Area:100%, Hold Time: 5s, Indicator:ON
Detection Signal
The product detects human moving signals and below is a description of the moving signals:

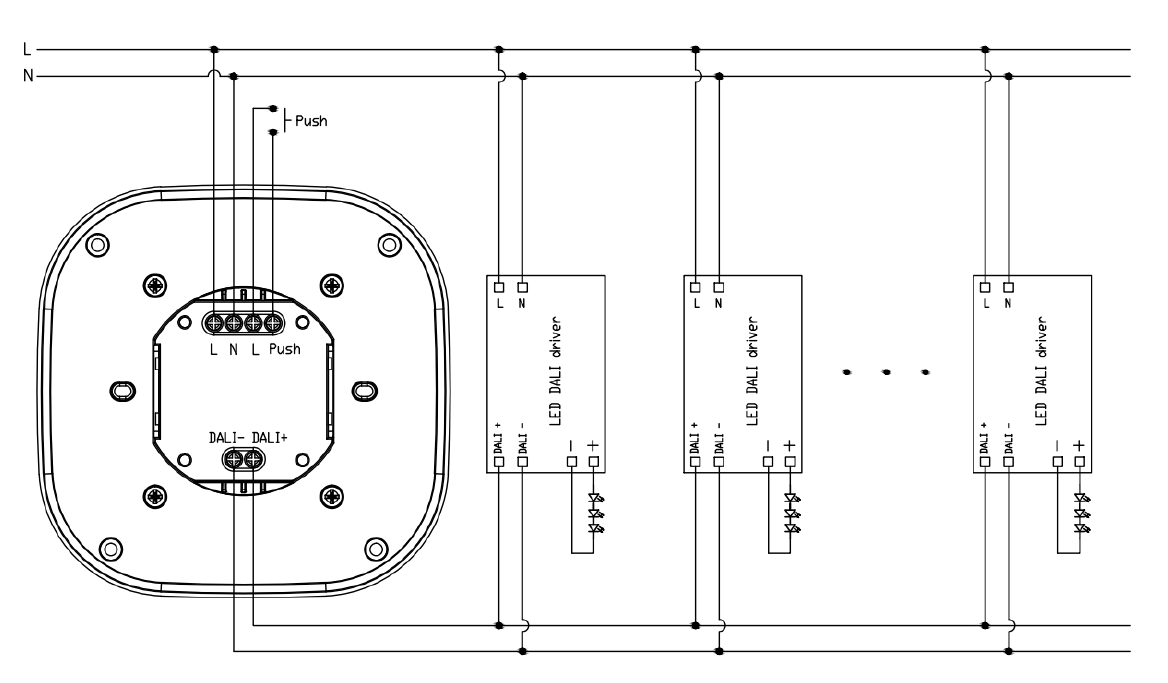

Wiring layout suggestion：
