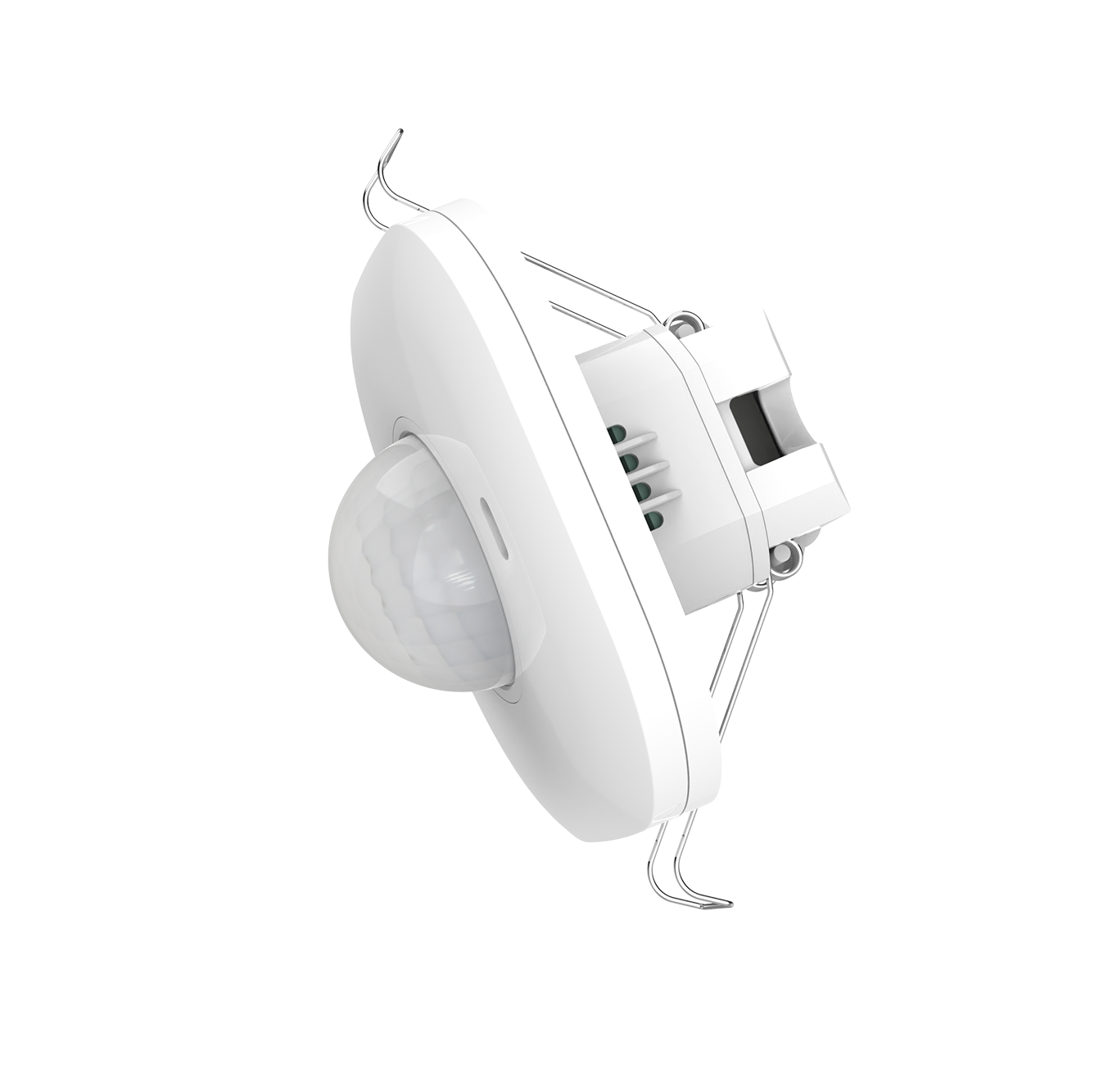

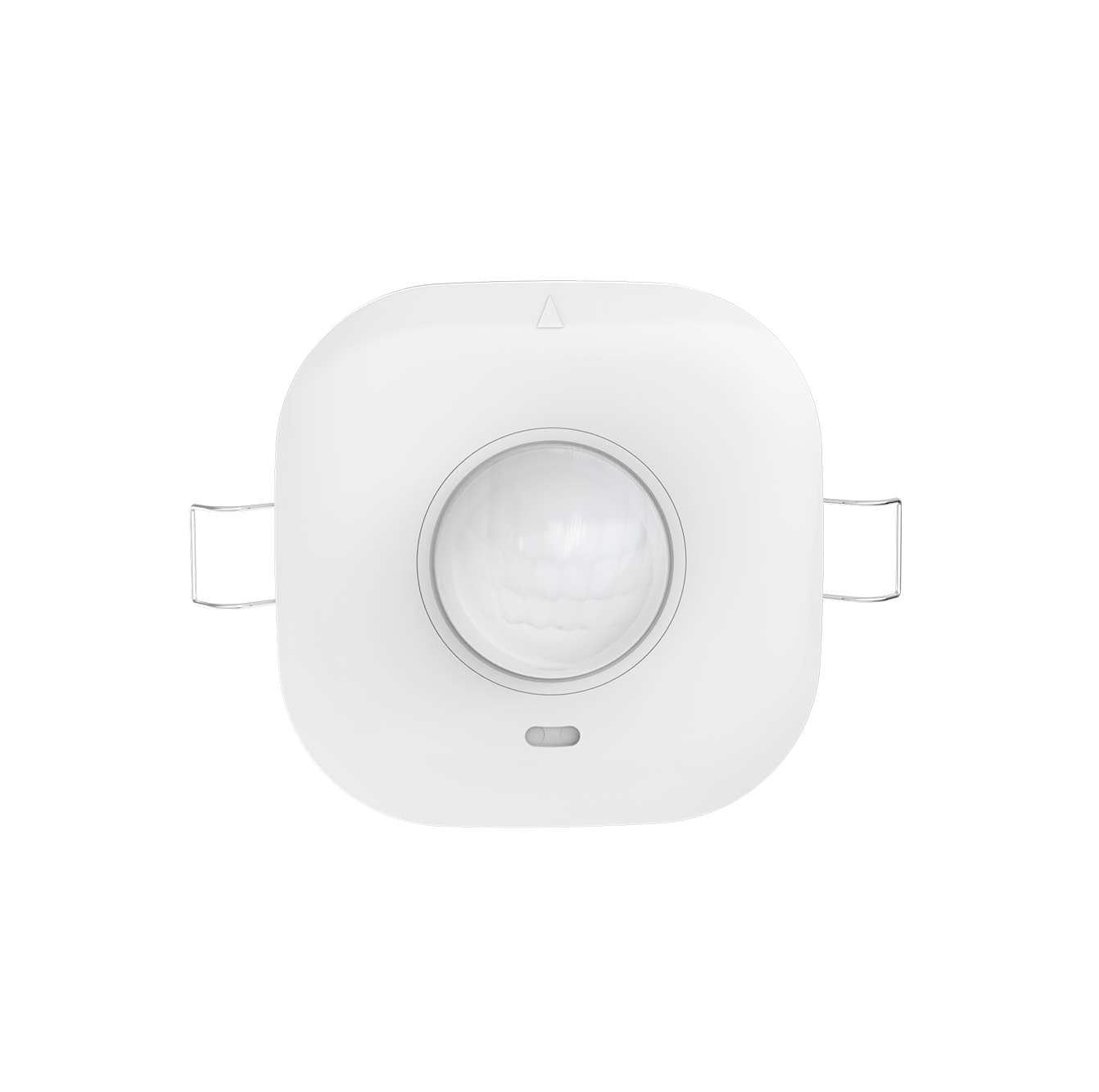

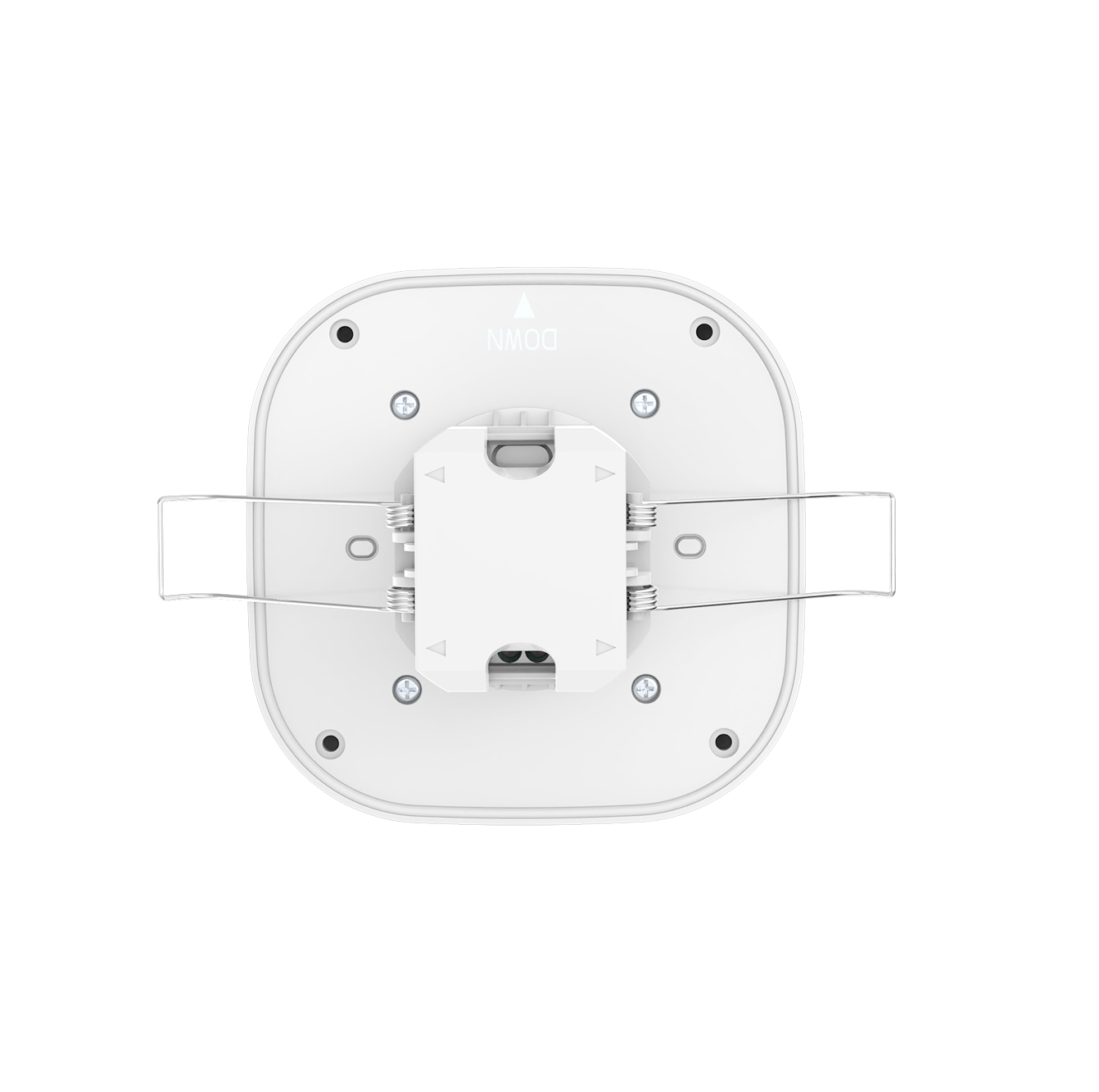

High-mounting PIR motion sensor (casambi+ON/OFF version)
MSA227S IR B1 is a high-mounting PIR motion sensor with daylight detection function and casambi wireless communication. Combined with the unique software algorithm of Merrytek, it can accurately detect human movements in almost all high-mounting scenario to trigger smart scene application in warehouse,lobby,workshop etc.
| Input/Output | Input voltage | 100-240Vac | |||||
| Rated voltage | 230V ac | ||||||
| Working current | 20mA max | ||||||
| Power consumption | ≤0.5W @230V AC | ||||||
| Output signal | 1 channel ON/OFF+casambi BLE | ||||||
| Max. Surge Capacity | 50A (50% Ipeak, twidth =200us, 230Vac full load, cold start) | ||||||
| Sensor parameter | Function | PIR motion detection+ daylight sensor | |||||
| Detection Area | Casambi app or MH10 remote setting: 100%/75%/50%/25% | ||||||
| Sensor Hold Time | MH10 remote setting：2S/30S/60S/3Min/5Min/20Min/30Min | ||||||
| Daylight Sensor | 0-1200lux | ||||||
| Radius detection range(based on 100% sensitivity) | 4-5m@25℃ based on 6m mounting height | ||||||
| Remote control | Available | ||||||
| Mounting height | 2.5-10m, typical value:8m | ||||||
| Application environment | Drill hole | Φ55mm | |||||
| Working temperature | -25℃…+50℃(detection range might differ based on different temperature ) | ||||||
| Storage temperature | -40℃~+80℃ | ||||||
| Warranty | 5 year（available based on product quality under indoor application） | ||||||
| Certificate Standard | Certificate | Compliant to CE | |||||
| Environmental requirements | Compliant to RoHS | ||||||
| IP rating | IP20(flush mounting) IP54(surface mounting) | ||||||
| “N/A” means not available | |||||||
Dimension
Initialization
When powered on,sensor indicator will turn off after flashing for 10S and will not detect moving signal during this time. After 10S,you can use our MH10 remote or casambi app to adjust detection area、hold time and daylight sensor etc parameter.
Factory setting
Detection Area:100%, Hold Time: 2s, Indicator:ON
Detection Signal
The product detects human moving signals and below is a description of the moving signals:

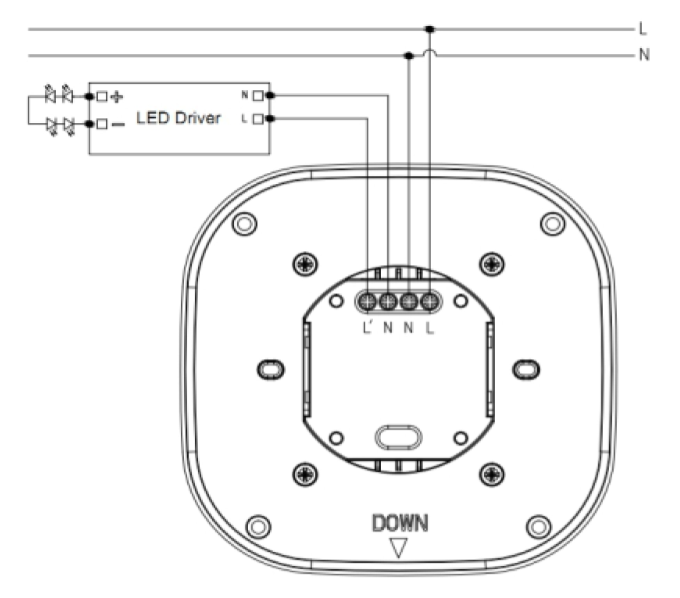

Wiring layout suggestion：
N/A
