MSA235S 99

Features

Exclusive Merrytek Lifebeing Presence Detection
FMCW modulation technology applied to detect micro movement brought by breathing
Germany RF technology applied for 5-year gurantee assurance
Accurate Presence/Absence detection
Daylight Sensor Available
24Ghz ISM Band Millimeter Wave Radar technology
Max loading capacity :800w resistive loading and 400w inductive loading
Major/Minor/Micro Motion detection diameter: 6-8m Max
Major/Minor/Micro Motion detection range are highly coincide
Round radiation. Effectively managing a whole space by a single sensor
Absence switch to Presence within 0.5S
Presence switch to Absence no less than 15S
Flush mounting installation available
Sensor parameter adjustable by DIP switch or MH10 remote
Sensing function based on millimeter wave radar technology
Low RF power output. No harm to human health
Not affected by temperature, humidity, noise, airflow, dust, light and other environments

Dimension & Function Diagram

Parameter characteristics

Input/Output	Input voltage	100-240V AC 50-60Hz
	Rated voltage	220V AC
	Consumption	≤1W 230V DC
	Output signal	1 channel ON/OFF(Max 800w resistive loading and 400w inductive loading)
	Max surge current	50A
Sensor Parameter	Radar frequency	24GHz-24.25GHz ISM band
	Transmitting Power	5mW Max
	Detection Area	DIP or MH10 remote setting: 0.5m-4m
	Hold Time	Dip setting:10s /30s /1min / 3min /5min /20min
		MH10 remote setting:10s /30s /1min / 3min /5min /10min /20min/30min
	QS1+100% detection range radius	major/minor/micor movement（3m height installation）: 3.5±0.5m（based on 41㎡ open area test and might change due to different space）
	Daylight sensor threshold	Dip setting: 5Lux /50Lux /150Lux/Disable
		MH10 remote setting: 5Lux /15Lux /30Lux/ 50Lux /100Lux /150Lux/Disable
	Remote control	Available
	Mounting height	2.5-4.0m typical value:3m
	Detecting Angle	120°
Application Environment	Drill hole	Φ65-70mm
	Installation	Surface mounting
	Working Temperature	0℃…+50℃
	Storage Temperature	-25℃~+80℃
Certificate Standard	Certificate	CE/RED
	Environmental Requirement	Compliant to RoHS
	IP Rating	IP20
	Gurantee	5 year（only for product quality problem）
Note: “N/A” means not available.

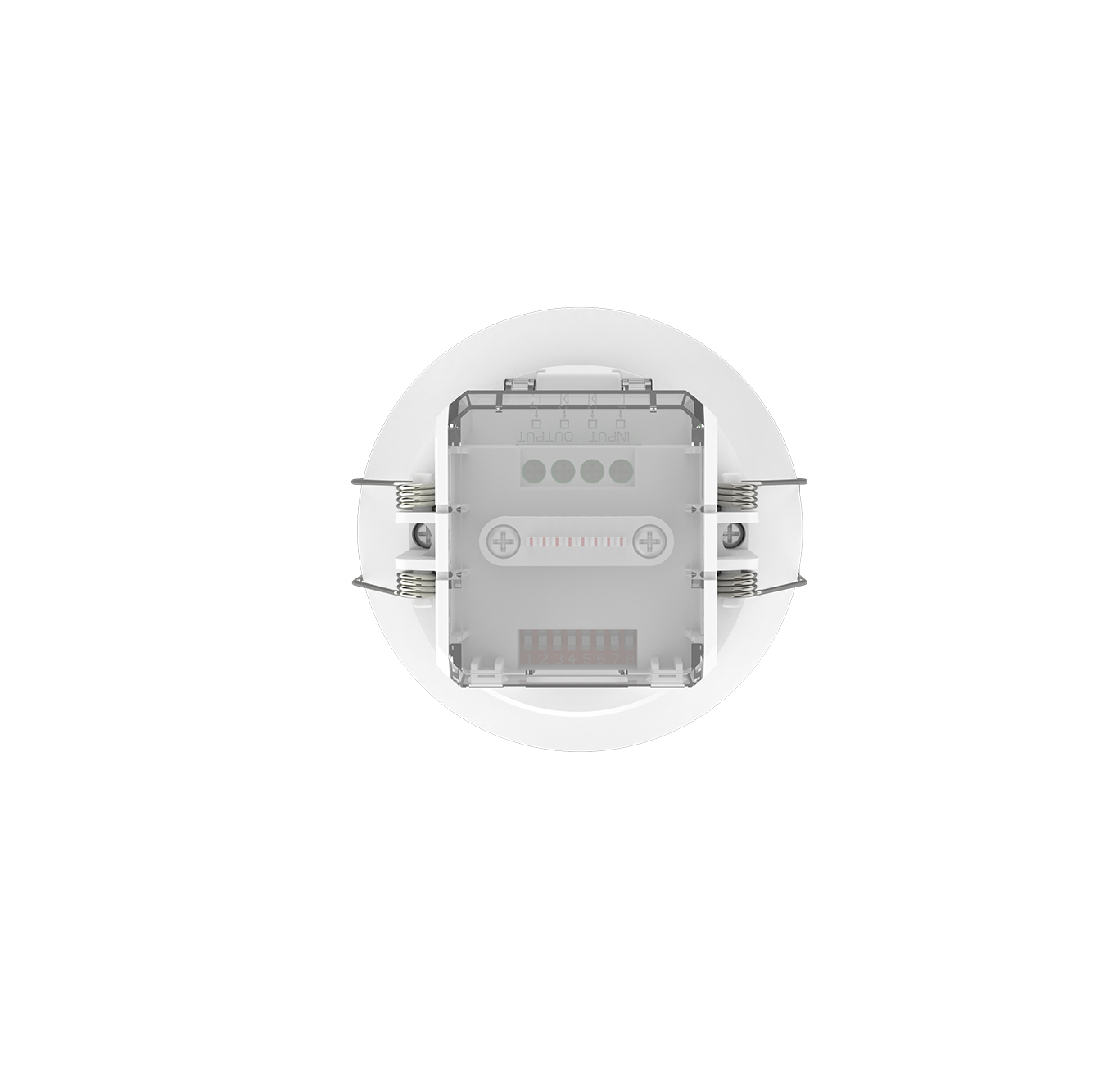

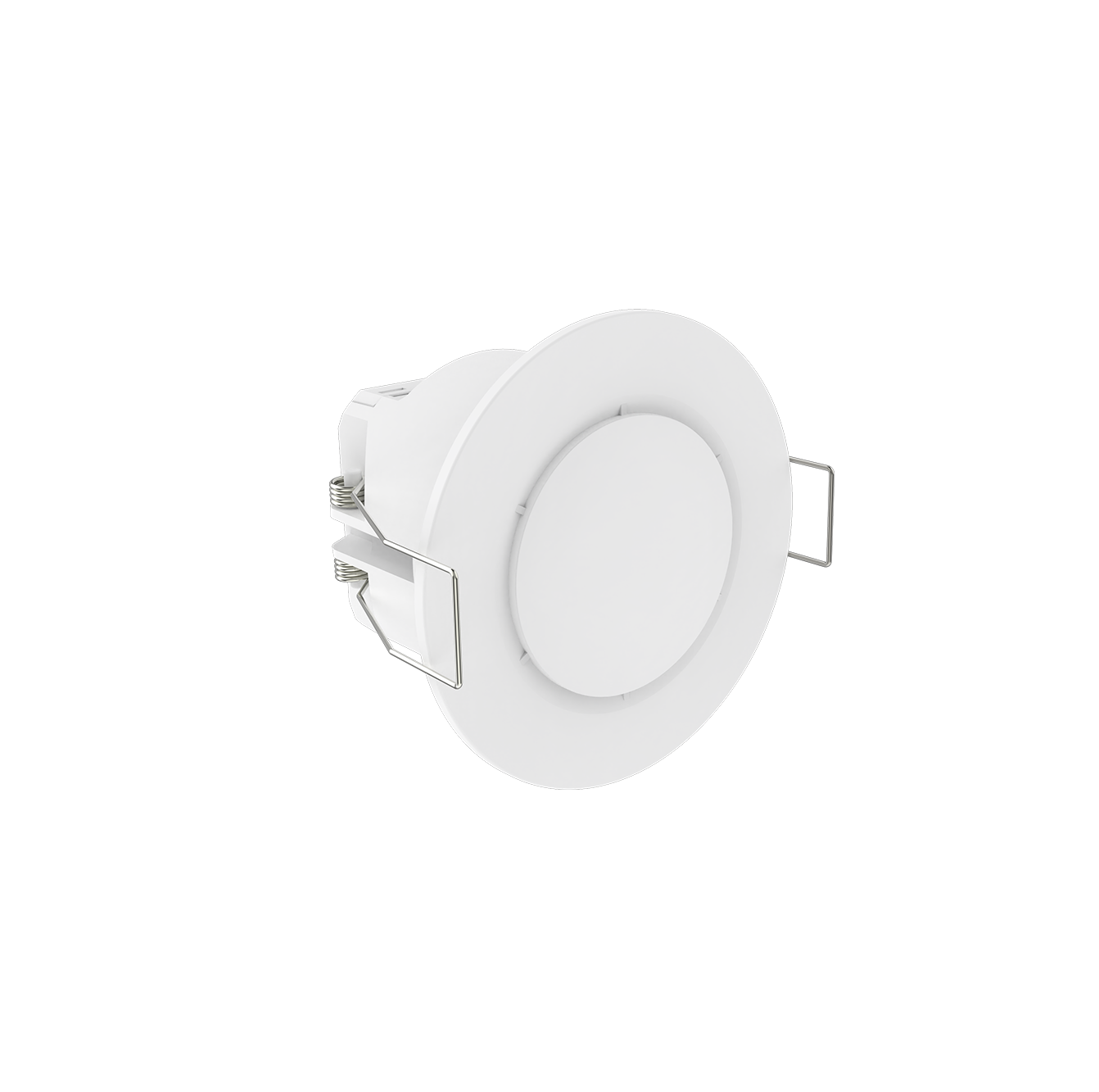

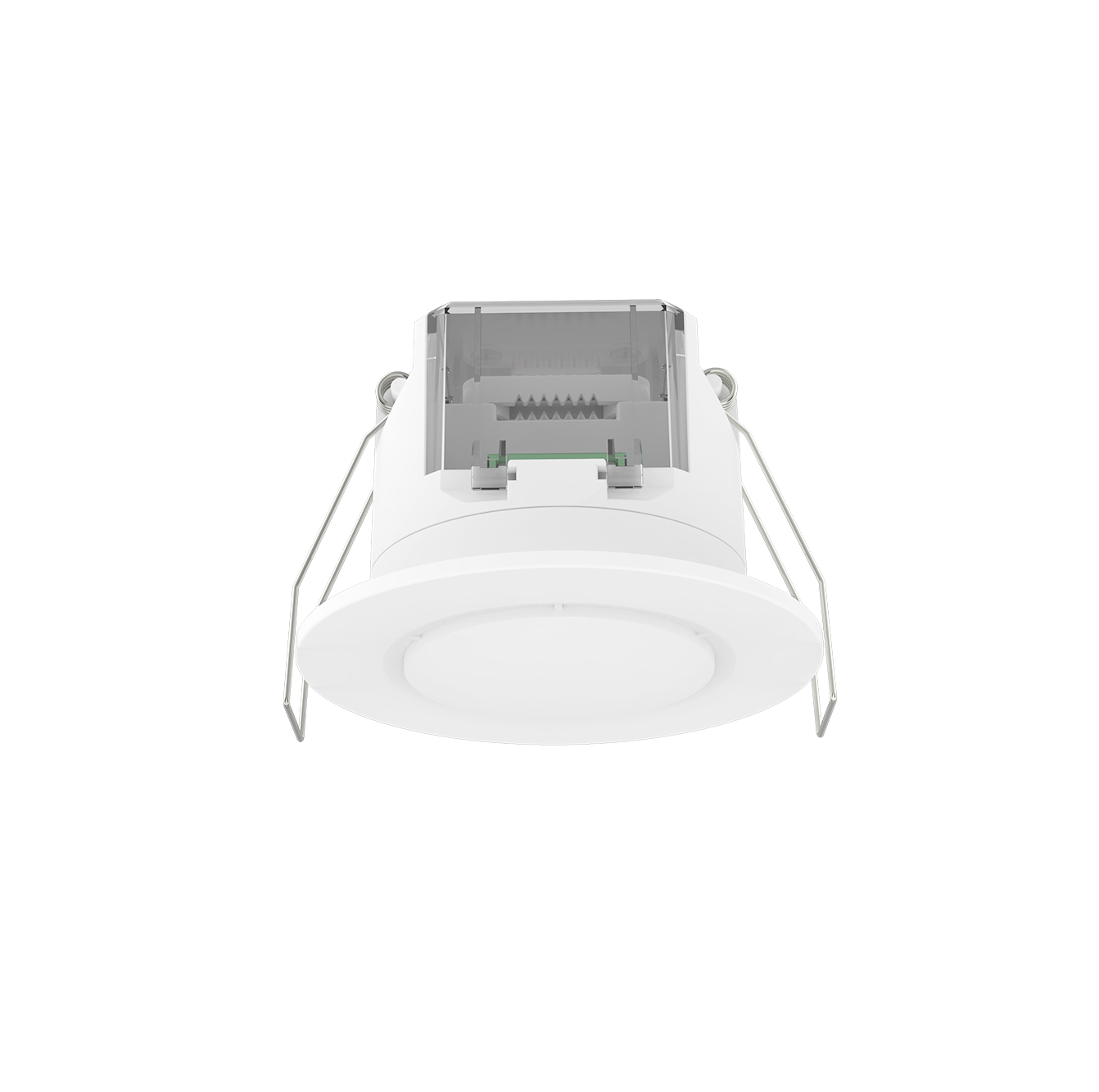

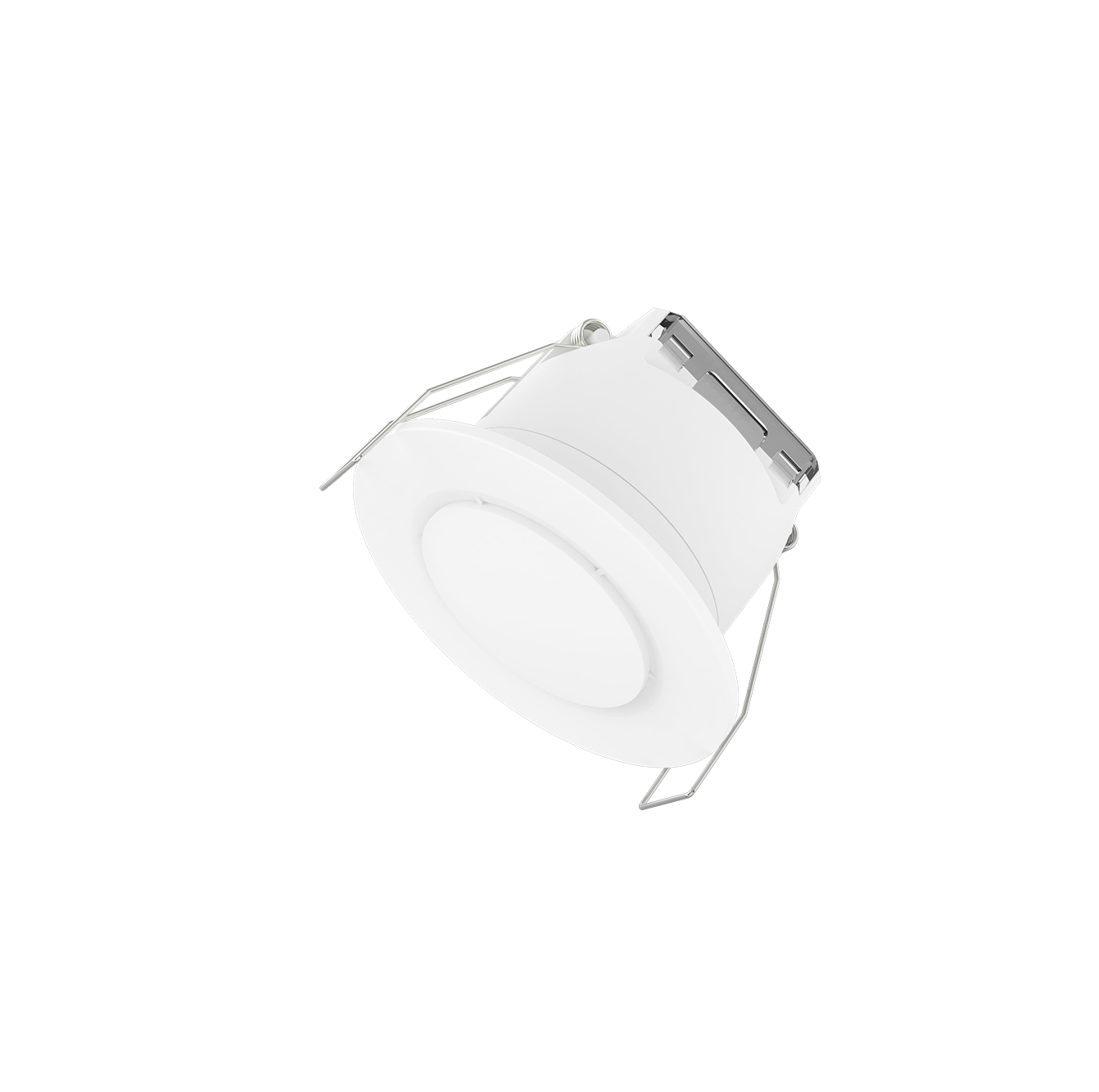

Product details

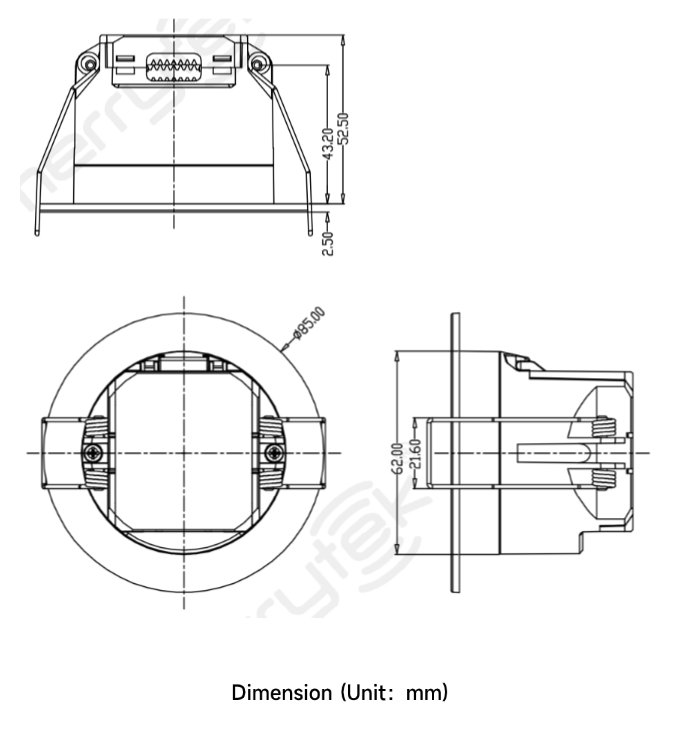

Product dimension

Dimension: φ85×52.5mm
Connection: 4-pin terminal

Initialization

When powered on,sensor indicator will turn off after flashing for 10S and will enter a 20S detection cycle,if there’s presence detected,then sensor will report presence and enter hold time calculating,if absence detected,then sensor will report absence.During initialization,sensor will not detect moving signal and you can use our MH10 remote or DIP switch to adjust detection area、hold time and daylight sensor etc parameter.

Factory setting

Detection Area: 4M, Hold Time: 30S, Indicator light :Open, Daylight sensor :Disable

Detection Signal

The product detects human moving, minor moving, and presence signals, and realizes the detection of human-existing/no-human in non-sleep state. The following is a description of the moving, minor moving and presence signals:

Majormovement: detect the human significant moving (walking) in the detection area.
Minor movement: detect the human slight moving in the detection area, such as leaning forward, leaning forwarder and back, swinging limbs, shaking head, typing, playing with mobile phones and so on.
Micro movement: detect human abdominal and thoracic expansion behaviors caused by breathing, but not detect moving signal and minor moving signal.

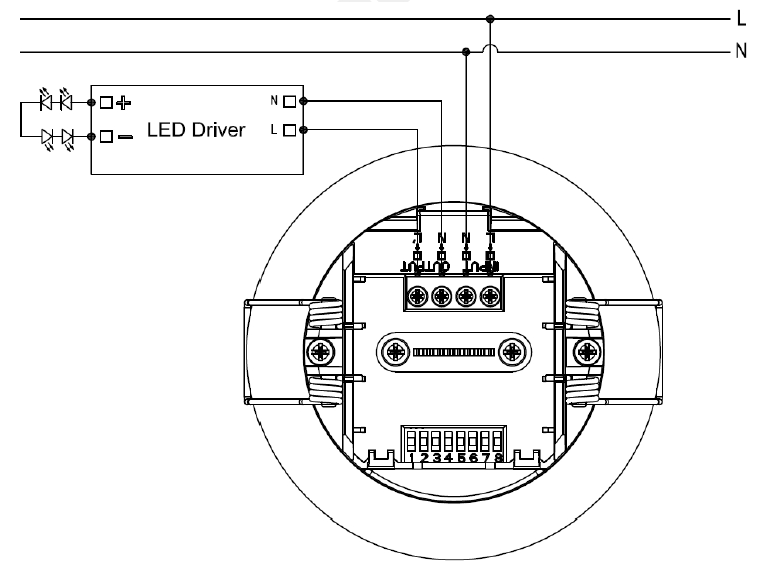

Wiring suggestions

Wiring layout suggestion：

LN terminal stands for AC input, L’N’ stands for AC output,please wiring correctly
One sensor’s max loading capacity is 800w resistive loading and 400w inductive loading for one single load.if you want connect more load in one loop,we recommend to add an AC contactor in our output LN terminalto avoid momentary surge overload.

Installation suggestion
