High-mounting PIR motion sensor (KNX version)
MSA237K 99 IR is a high-mounting PIR motion sensor with daylight detection function. Combined with the unique software algorithm of Merrytek, it can accurately detect human movements in almost all high-mounting scenario to trigger smart scene application in warehouse,lobby,workshop etc by KNX communication.
| Input/Output | KNX Terminal Voltage | 21-30V DC |
| KNX Terminal Current | 3±1mA | |
| Working Power | ≤1W @24V DC | |
| Sensor Parameter | Function | PIR motion detection+ daylight sensor |
| Detection Area | ETS/remote setting:0-100% | |
| Hold Time | ETS setting :3S-7200S | |
| Radius detection range(based on 100% sensitivity) | 4-5m@25℃ based on 8m mounting height | |
| Remote control | Available | |
| Mounting height | 2.5-10m, typical value:8m | |
| Detection angle | 120° | |
| Application environment | Drill hole | Φ55mm |
| Working temperature | -25℃…+50℃(detection range might differ based on different temperature ) | |
| Storage temperature | -40℃~+80℃ | |
| Certificate Standard | Certificate | Compliant to CE |
| Environmental requirements | Compliant to RoHS | |
| IP rating | IP20(Flush mounting) IP54(Surface mounting) | |
| Warranty | 5 years（available due to product quality problem under indoor application） | |
| “N/A” means not available | ||

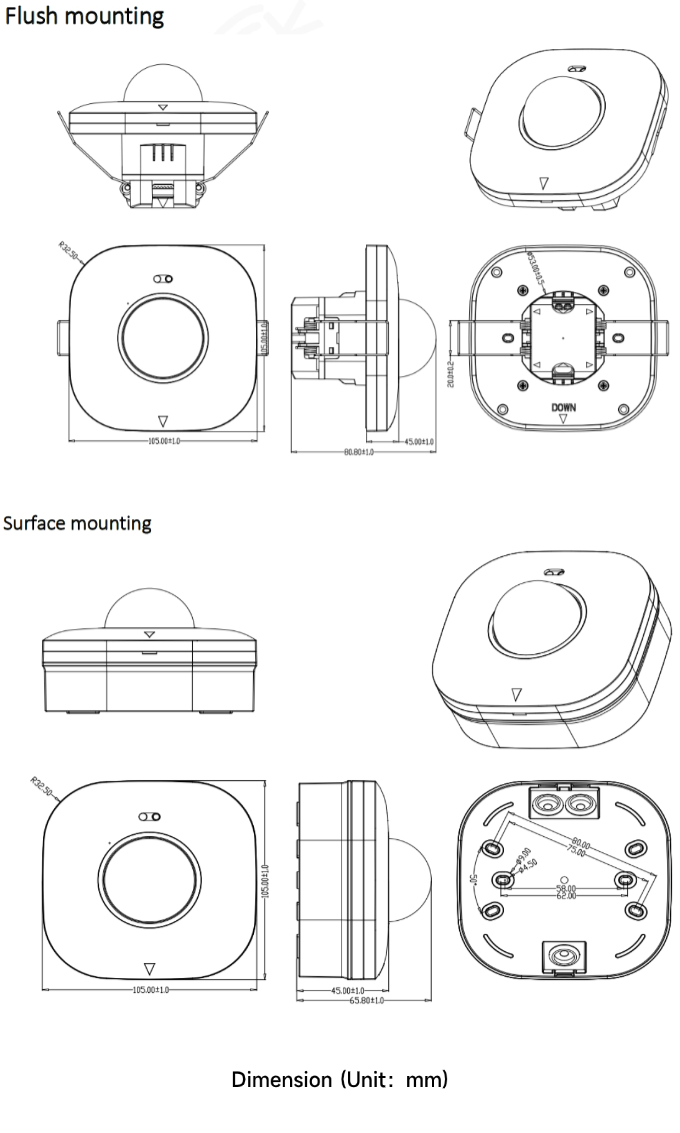

Dimension
Initialization
When powered on,sensor indicator will turn off after flashing for 10S and will enter a 20S detection cycle,if there’s presence detected,then sensor will enter hold time calculating,if absence detected,then sensor relay will disconnect.During initialization,sensor will not detect moving signal and you can use our MH10 remote to adjust detection area、hold time and daylight sensor etc parameter.
Factory setting
Detection Area: 100%, Hold Time: 30S, Indicator Light: open
Detection Signal
The product detects major human moving signals, following is a description of the moving, minor moving and presence signals:

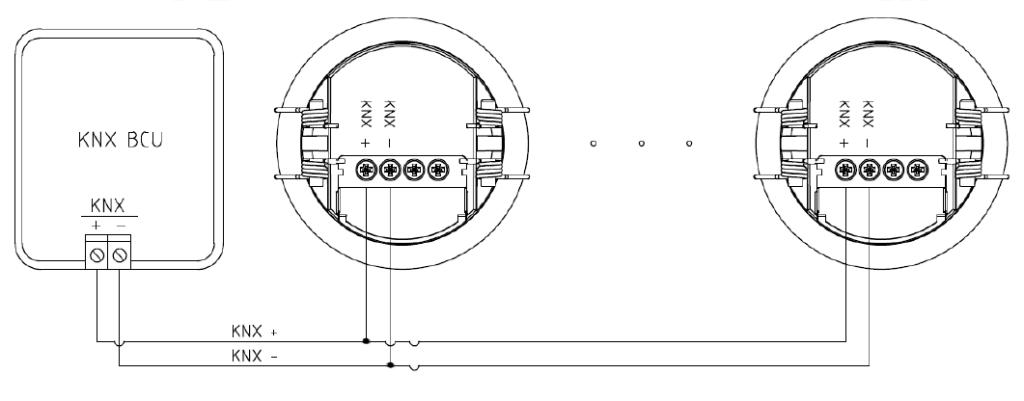

Wiring layout suggestion：
