Low-mounting PIR motion sensor (Casambi+DALI version)
MSA246 IR B1 is a low-mounting PIR motion sensor with daylight detection function and casambi wireless communication. Combined with the unique software algorithm of Merrytek, it can accurately detect human movements in almost all scenario lower than 4m mounting to trigger smart scene application.
| Input/Output | Input voltage | 220-240V AC |
| Rated voltage | 230V AC | |
| Working current | 20mA max | |
| Power consumption | ≤0.5W @230V AC | |
| Output signal | DALI+Casambi BLE | |
| Sensor parameter | Function | PIR motion detection+ daylight sensor |
| Detection Area | Casambi app setting: 100%/75%/50%/25% | |
| Sensor Hold Time | Sensor fixed hold time 2s+Casambi app setting linger time | |
| Daylight Sensor value | 0-1200lux | |
| Radius detection range(based on 100% sensitivity) | 3m height installation: tangential movement at 1m/s speed: 4-5m @25℃ radial movement at 1m/s speed: 2-3m @25℃ 6m height installation: |
|
| PUSH control | Available | |
| APP control | Available(Casambi app) | |
| Mounting height | 2.5-6m, typical value: 3m | |
| Application environment | Drill hole | Φ65mm |
| Working temperature | -25℃…+50℃(detection range might differ based on different temperature ) | |
| Storage temperature | -25℃~+50℃,humidity≤60%（non-condensation） | |
| Warranty | 5 year（available based on product quality under indoor application） | |
| Certificate Standard | Certificate | Compliant to CE |
| Environmental requirements | Compliant to RoHS | |
| IP rating | IP20(flush mounting) |
Dimension
Initialization
When powered on,sensor indicator will turn off after flashing for 35s and will not detect moving signal during this time. After 35S,you can use our casambi app to adjust detection area, hold time and daylight sensor etc parameter.
Factory setting

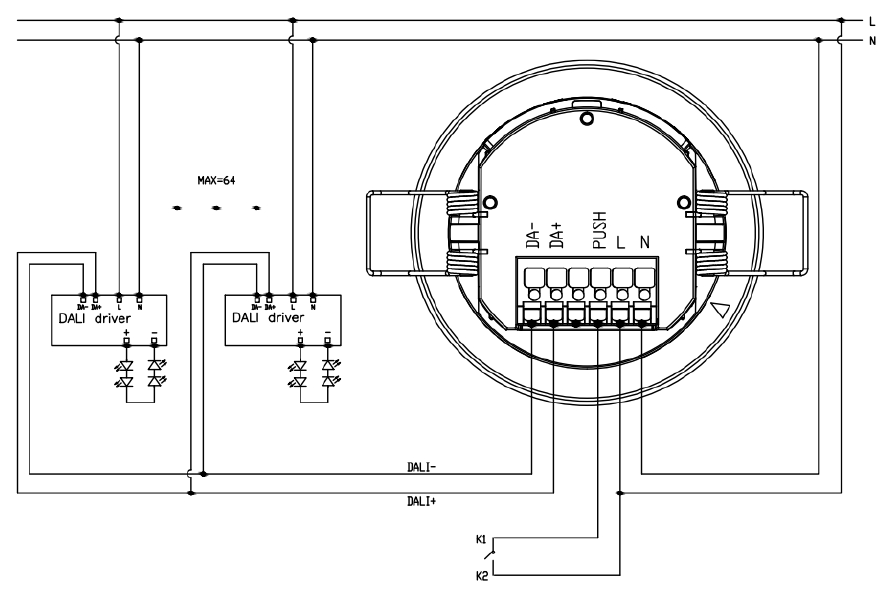

Wiring layout suggestion：
N/A
