MSA246S IR A2

Features

PIR motion detection
Accurate motion detection with one channel ON/OFF and one channel dry contact output
Daylight sensor detection available
Daylight threshold gear learning available
Detection area,hold time,daylight threshold etc can be set by rotation switch or remote control
Max detection range: 8-10m in diameter
16A relay applied,max loading capacity :1200w resistive loading and 600w inductive loading
PUSH button control available
Semi-auto/auto sensing mode available
IQ mode available
Max 2kV surge capacity
Office,passageway etc motion detection highly recommended
Flush mounting and surface mounting(need extra surface mounting kit)available
5 years warranty

Dimension & Function Diagram

Parameter characteristics

Input/Output	Input voltage	220-240V AC
	Rated voltage	230V AC
	Working current	20mA max
	Power consumption	≤0.5W @230V AC
	Output signal	One channel ON/OFF(16A relay)+one channel Dry contact(can connect loading)
	Max surge voltage	2KV(L/N,EN61000-4-5)
	Max surge current	30A (50% Ipeak, twidth =500us, 230Vac full load, cold start)
	Max loading	ON/OFF terminal: Max 1200w resistive loading and 600w inductive loading @230Vac Dry contact terminal: Max 5A @24Vdc
Sensor parameter	Function	PIR motion detection+ daylight sensor
	Detection Area	Rotation switch/MH18 remote/MH10 remote setting: 100%/75%/50%/25%
	Hold Time	ON/OFF channel hold time(Rotation switch/MH18 remote/MH10 remote setting) Test 2s/30s/1min/5min/10min/30min Dry contact channel hold time(Rotation switch/MH18 remote/MH10 remote setting) Test 2s/30s/1min/3min/5min/10min/20min/30min
	Daylight Sensor	Rotation switch/MH18 remote/MH10 remote setting: 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable
	Daylight threshold learning mode	When sensor enter daylight threshold learning mode,it’ll learn current environment’s daylight level and set it as threshold
	IQ mode	When sensor enter IQ mode.our sensor will auto set hold time based on sensor trigger frequency,hold time setting range is 10s-10min. 1.when current hold time is 10s and sensor triggered more than 3 times,hold time will auto set as 20s; 2.when current hold time is 20s and sensor triggered more than 6 times,hold time will auto set as 30s; 3.when current hold time is 30s and sensor triggered more than 10 times,hold time will auto set as 1min; 4.when current hold time is 1min and sensor triggered more than 20 times,hold time will auto set as 3min; 5.when current hold time is 3min and sensor triggered more than 40 times,hold time will auto set as 5min; 6.when current hold time is 5min and sensor triggered more than 80 times,hold time will auto set as 10min; 7.when current hold time is 10min and sensor enter absence or sensor be re-powered,hold time will return to initial hold time
	Pulse mode	When sensor enter pulse mode.our sensor will keep on 2s and block sensing 8s when motion detected
	PUSH button control	Push button can set auto/semi-auto sensing mode,or you can also us locking button/MH18 remote to set auto/semi-auto sensing mode.(PUSH button can only set ON/OFF channel) 1.When locking button is pressed down,auto mode is set: A.in such case,sensor can turn on light when motion detected and turn off light when no motion detected and hold time run out. B.If customer use push button turn on light,sensor will automatically turn off light when no motion detected and hold time run out. 2.When locking button is pressed up,semi-auto mode is set: A.in such case,light can only be turned on by push button and be turned off by sensor when no motion detected and hold time run out.
	Radius detection range based on 100% detection range	3m height installation: tangential movement at 1m/s speed: 4-5m @25℃ radial movement at 1m/s speed: 2-3m @25℃6m height installation: tangential movement at 1m/s speed: 4-5m @25℃ radial movement at 1m/s speed: 2-4m @25℃
	Remote control	available（MH18 remote/MH10 remote）
	Mounting heights	2.5-6m typical value: 3m
Application environment	Drill hole	Φ65mm
	Working temperature	-25℃…+50℃(detection range might differ based on different temperature )
	Storage temperature	-25℃~+50℃, humidity ≤60%(non-condensation status)
	Warranty	5 year（available based on product quality under indoor application）
Certificate Standard	Certificate	Compliant to CE
	Environmental requirements	Compliant to RoHS
	IP rating	IP20

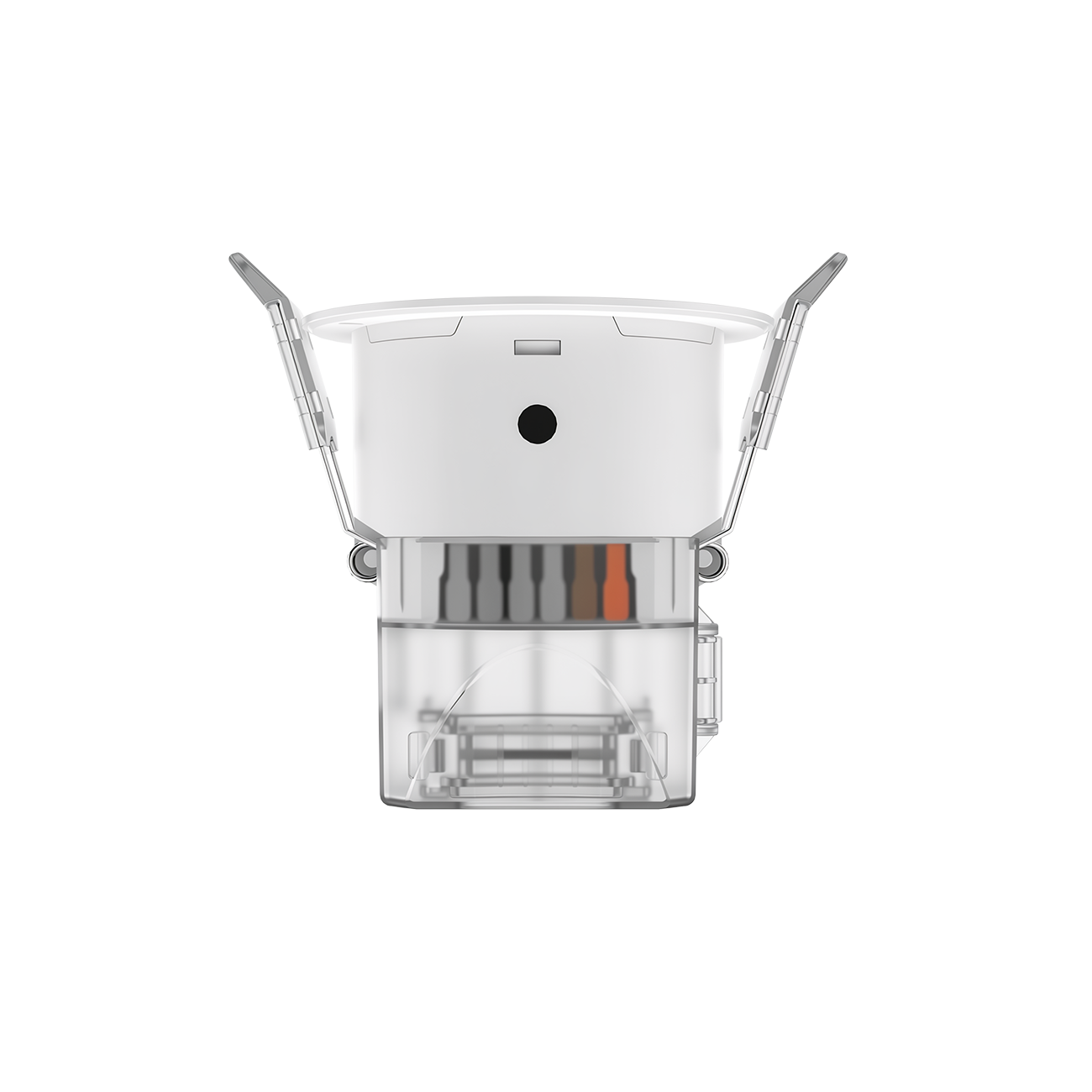

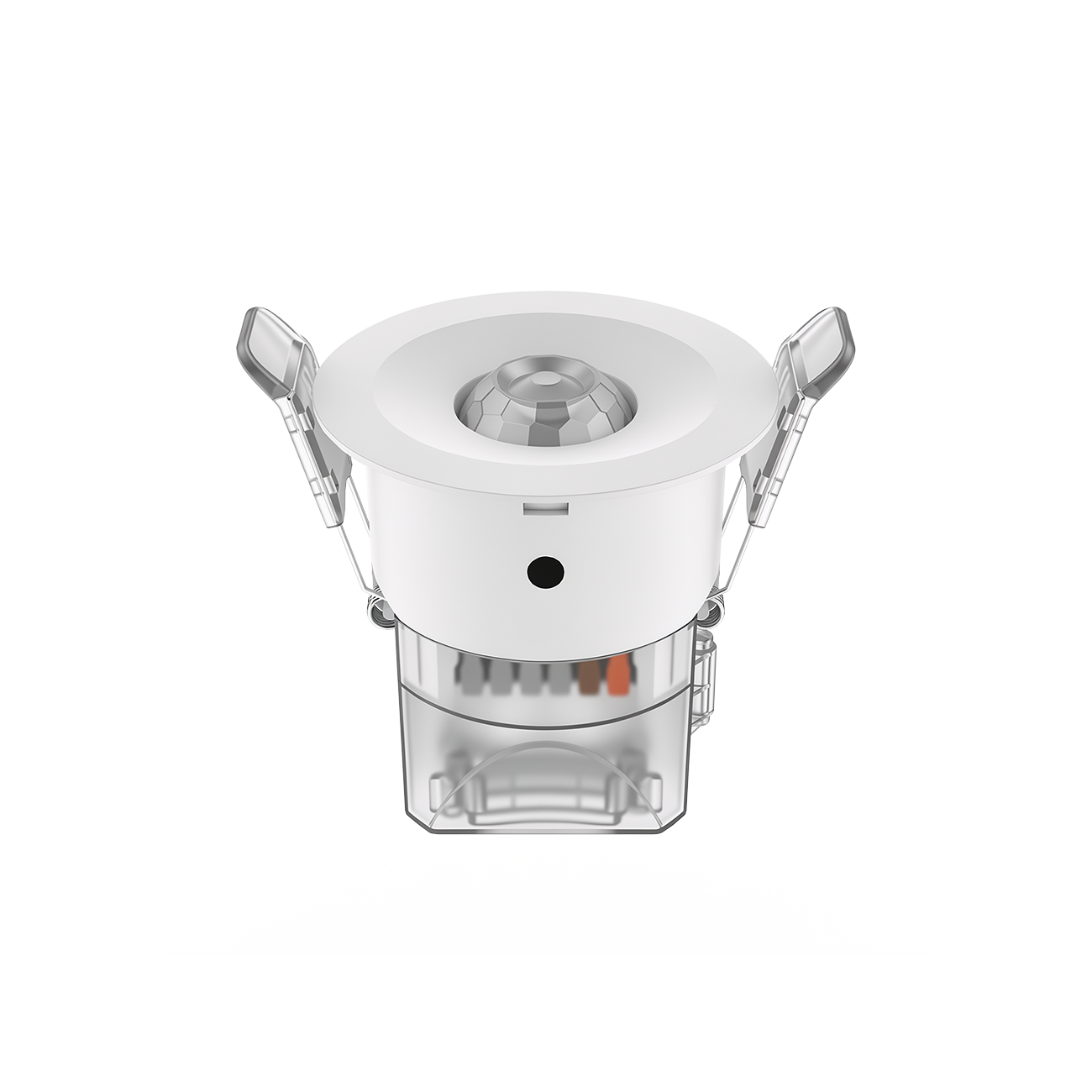

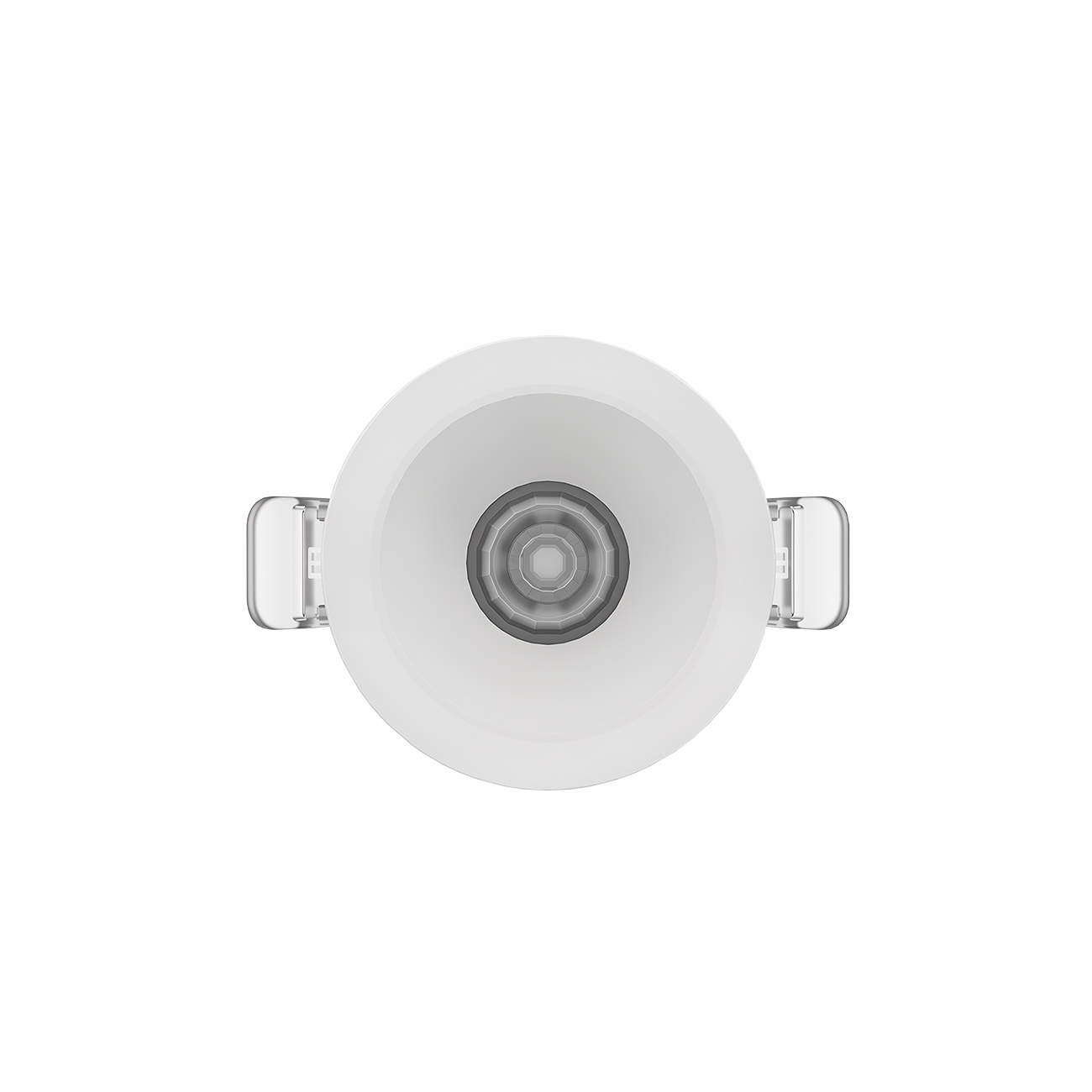

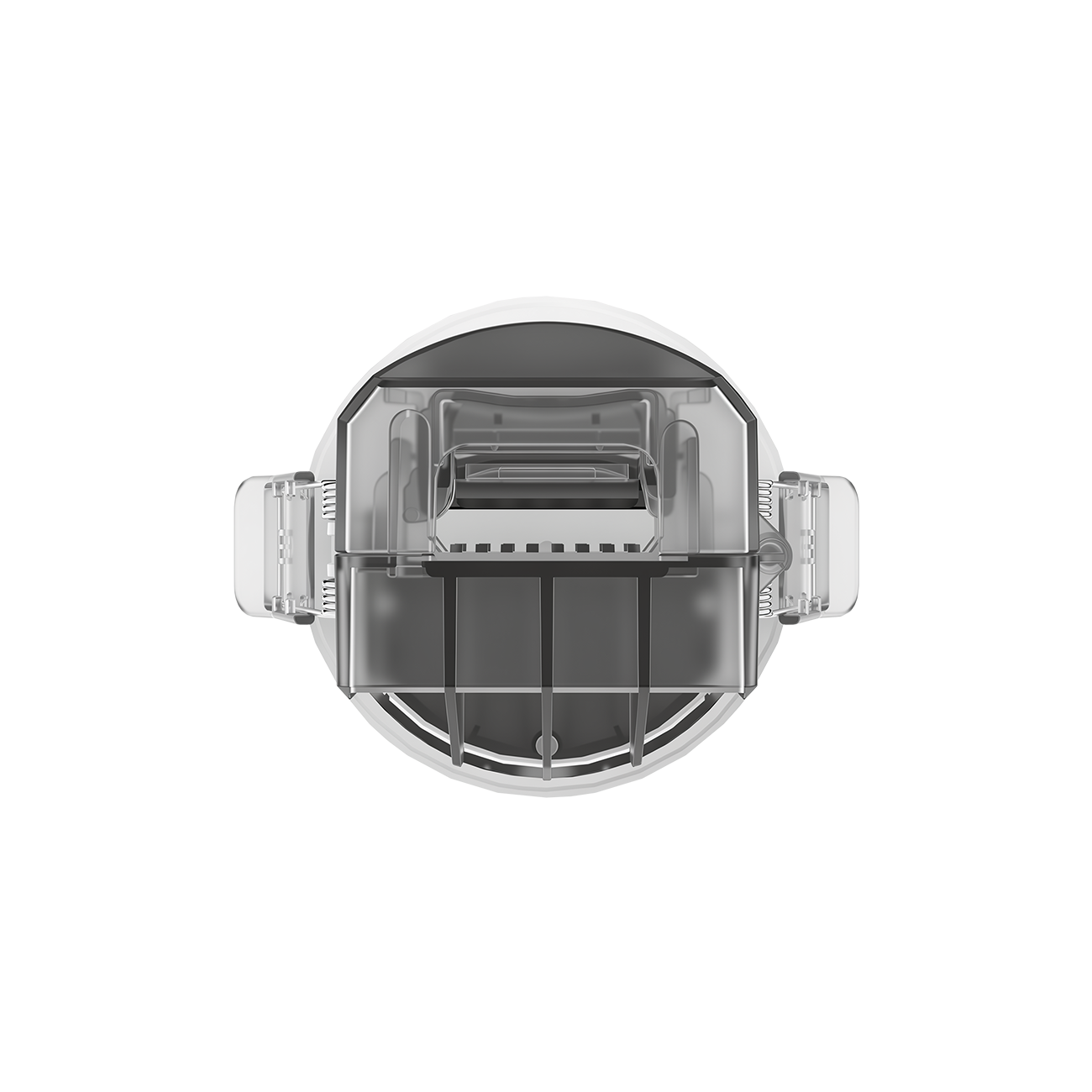

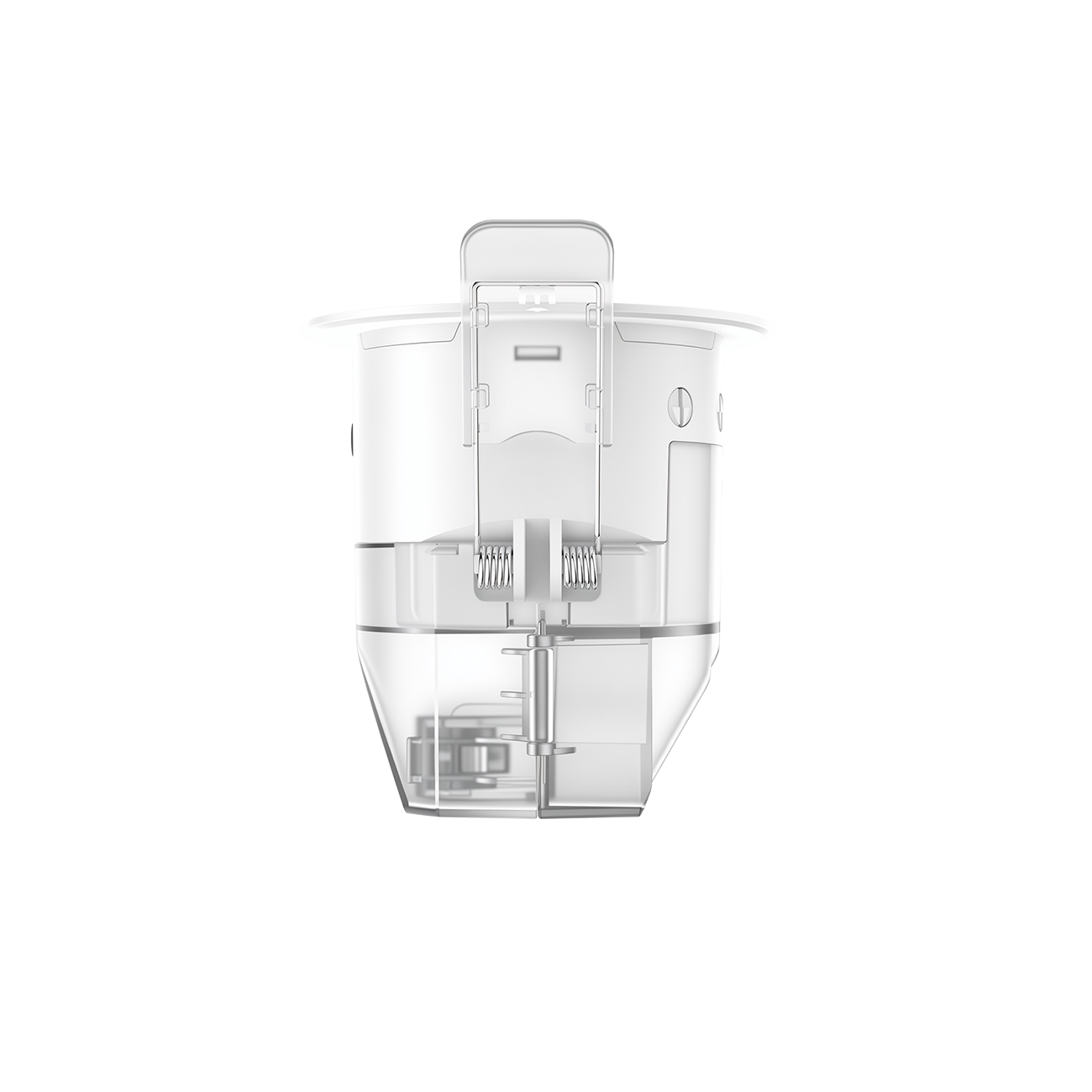

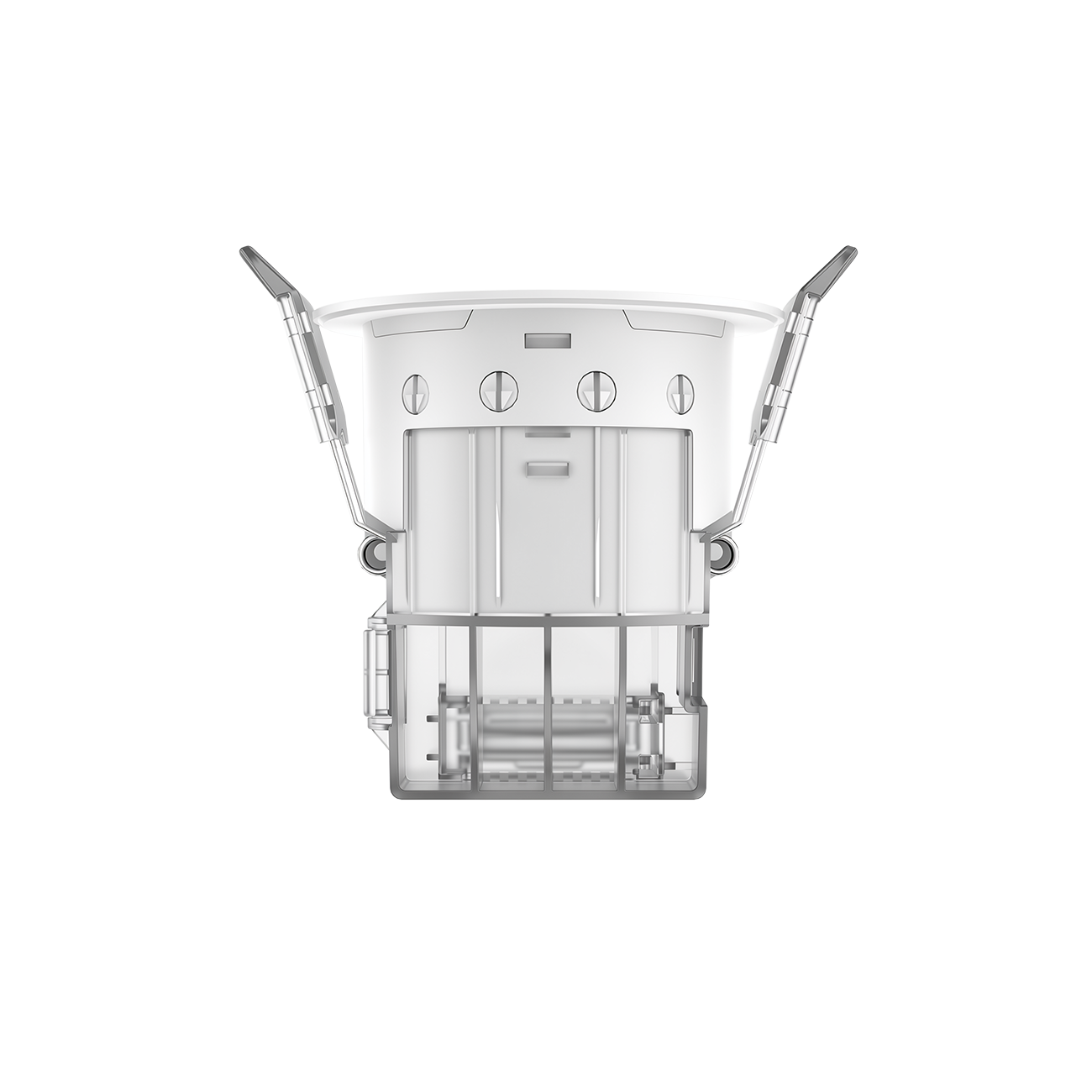

Product details

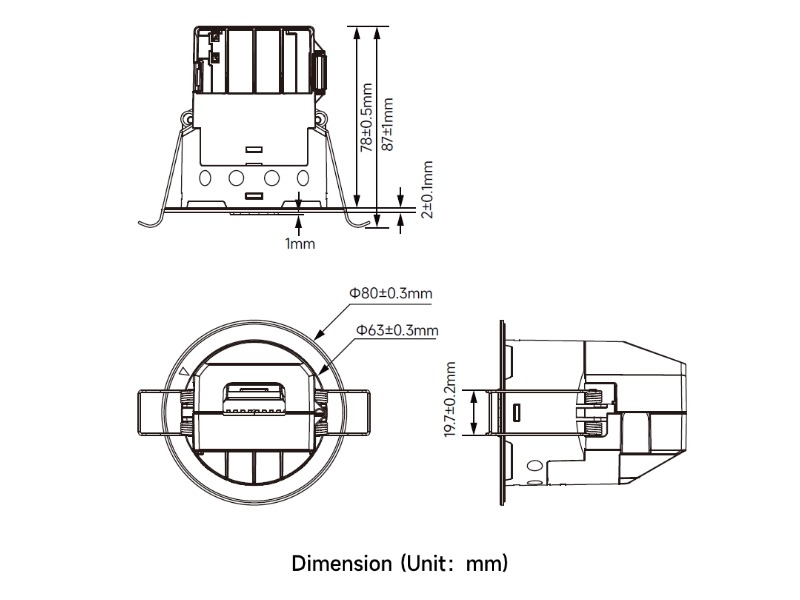

Dimension

Product size: φ63(internal diameter)x5mm/φ80(external diameter)x80.5mm
Connection interface: 6-pin terminal

Initialization

When powered on,sensor indicator will turn off after flashing for 35s and will not detect moving signal during this time. After 35S,you can use our rotation switch or remote to adjust detection area, hold time and daylight sensor etc parameter.

Factory setting

Detection Area:100%
ON/OFF terminal Hold Time: 2s
Dry contact terminal Hold Time: 2s
Daylight threshold: Disabled
Indicator:ON

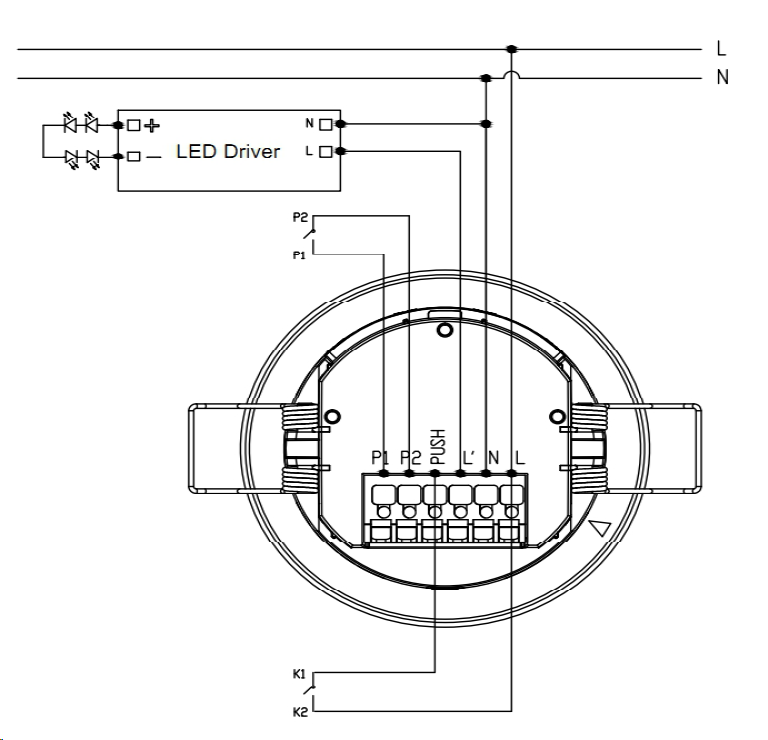

Wiring suggestions

Wiring layout suggestion：

LN terminal stands for AC input, L’N’ stands for AC output,please wiring correctly
One sensor’s max loading capacity is 1200w resistive loading and 600w inductive loading for one single load.if you want connect more load in one loop,we recommend to add an AC contactor in our output LN terminalto avoid momentary surge overload.
P1,P2 terminal can connect DC loading device,if you want connect AC loading device,you can jump P1 or P2 connect to L terminal

Installation suggestion

N/A
