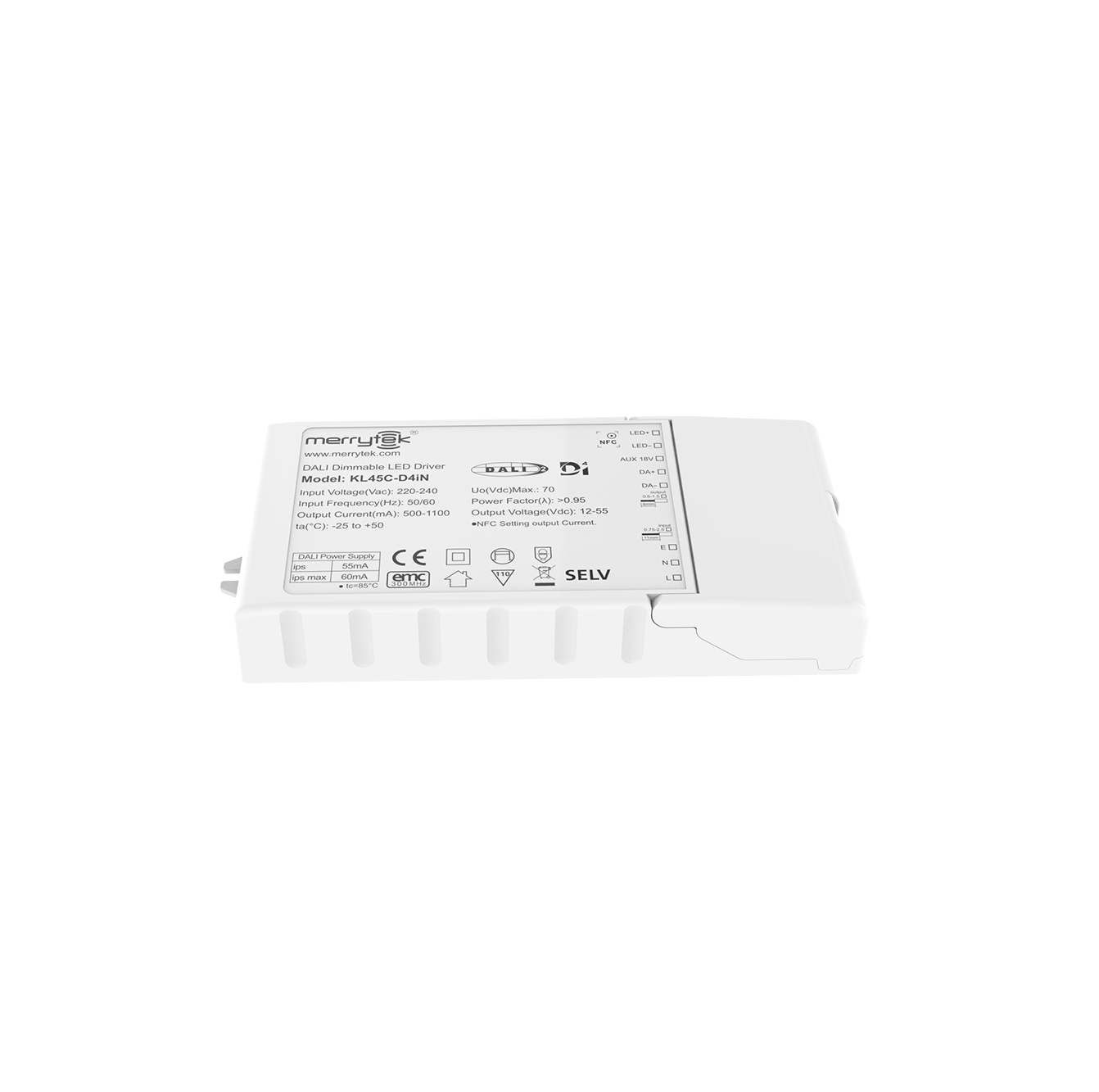

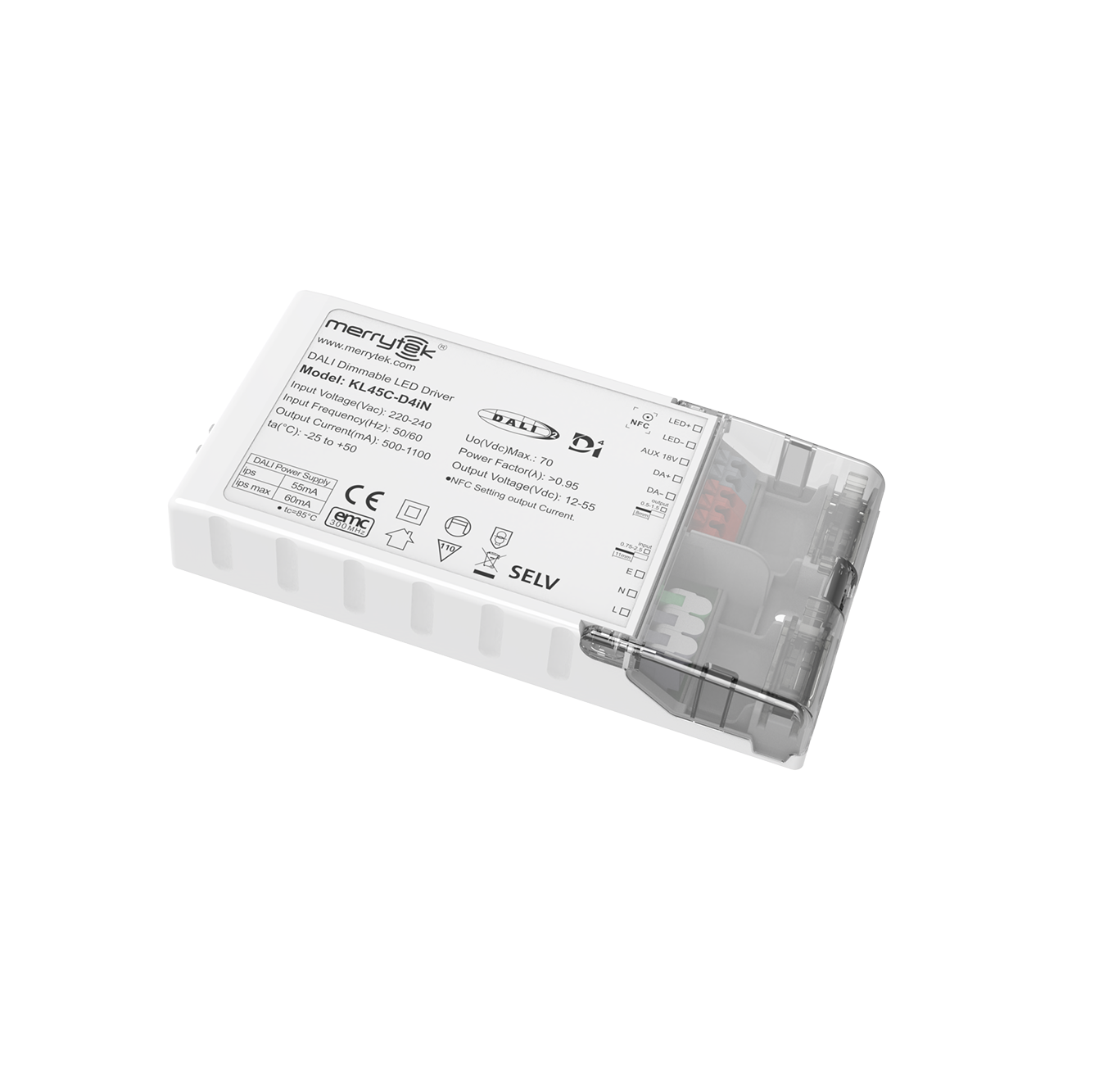

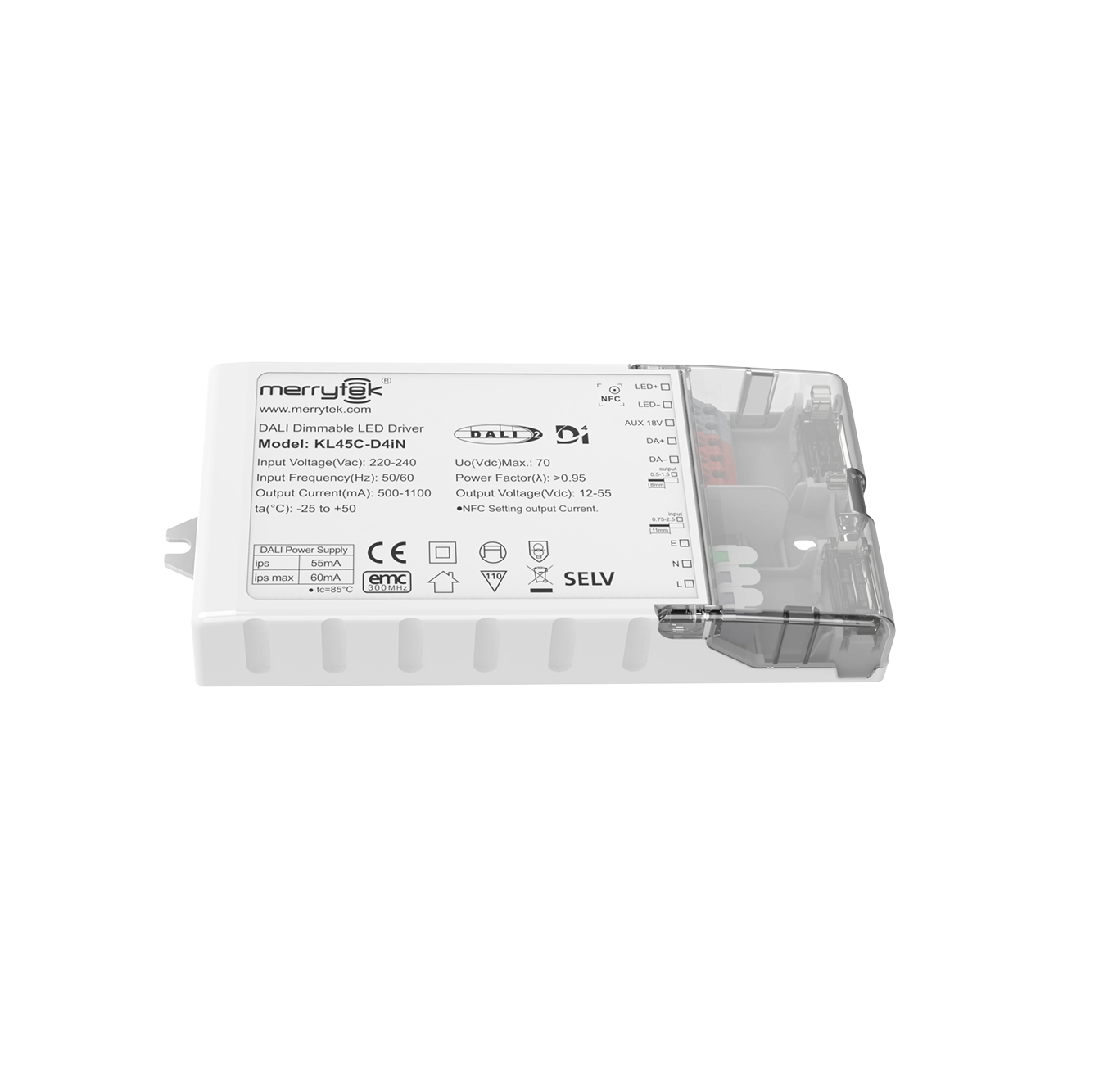

| Input | Operating Voltage | 198-264Vac 50Hz/60Hz | ||||||
| Rated Input Voltage | 220-240Vac 50Hz/60Hz | |||||||
| DC Input Voltage range | 200-240Vdc | |||||||
| Input Current | 0.27A Max. | |||||||
| Input Inrush Current | <15A (Half current pulse width100μs) @230Vac | |||||||
| Power factor(@230V100% load) | ≥0.95 | |||||||
| Total harmonic distortion | Typical: 15% (@230Vac, 100% load) | |||||||
| Stand-by power | ≤0.5W (@230Vac when DALI turn off) | |||||||
| Efficiency(@230Vac,100% load) | 89% Max. | |||||||
| Wiring Method | Wire cross section: 0.75-2.5mm² | |||||||
| Automatic circuit breaker (Calculate current in the wire) |
type | B10 | B13 | B16 | B20 | B25 | / | |
| Number | 20 | 25 | 30 | 40 | 50 | / | ||
| type | C10 | C13 | C16 | C20 | C25 | C32 | ||
| Number | 30 | 43 | 50 | 60 | 80 | 100 | ||
| Output | Operating mode | Constant Current | ||||||
| Load type | LED | |||||||
| Ripple requirement (Flickering or Flickering-Free） | Flicker value: less than 5% for whole dimming range | |||||||
| Start up time | <1s (@230Vac); <0.5s (@200Vdc) | |||||||
| No-load output voltage | 68V DC Max. | |||||||
| Load output voltage range | 12-55V DC | |||||||
| Full load output power | 45W Max. | |||||||
| Load output current | 500-1100mA | |||||||
| Constant current/voltage Precision | Constant Current Precision ±5% | |||||||
| Wiring method | Wire cross section: 0.5-1.5mm² | |||||||
| Control Method | Output auxiliary power port | 18Vdc, 100mA | ||||||
| DALI Dimming | DALI dimming (Max. lead length：300m） | |||||||
| DALI Power Supply | lps 55mA (60mA Max.) | |||||||
| DALI Power Supply Load | 15 units Max. | |||||||
| Dimming range | DALI dimming: 0%-100% | |||||||
| Exception Protection Requirements | Output over temperature protection | Yes, without self recovery function（Can be inquired） | ||||||
| Output short circuit protection | Yes, with self recovery function（Can be inquired） | |||||||
| Operating Environment | Operating temperature/ humidity | -25℃~50℃ Humidity: 85% (Non-condensing) | ||||||
| Storage temperature/ humidity | -40℃~80℃, Humidity: 85% (Non-condensing) | |||||||
| Max. case temp（Tc） | 85℃ | |||||||
| Safety & EMC | EMC standard | EN55015 EN61547 EN61000-3-2 EN61000-3-3 | ||||||
| DALI protocol standard | IEC62386-101 / 102 / 207 DT6 / 220 DT19 / 250 / 251 / 252 / 253 | |||||||
| Safety standard | EN61347-1 EN61347-2-13 | |||||||
| Certification | CE, CB, ENEC, UKCA | |||||||
| Withstand voltage | 3750Vac, 5mA, 60s (Input “L N” – Output “SEC”) 2000Vac (Input “L N” – “E”) 1000Vac (Input “L” – “N”) |
|||||||
| Others | Degrees of protection | IP20 | ||||||
| Type of protection | Class I | |||||||
| Installation type | Independent installation or Built-in installation | |||||||
| Dimension (Independent installation) | 160*79*26mm | |||||||
| Dimension (Built-in installation) | 130*79*26mm | |||||||
| Packaging requirement | PE bag + white box + manual + partition + outer box (K=A) | |||||||
| Weight | 168±5g | |||||||
| Life | 5 year @Ta full load | |||||||
| Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified. | ||||||||

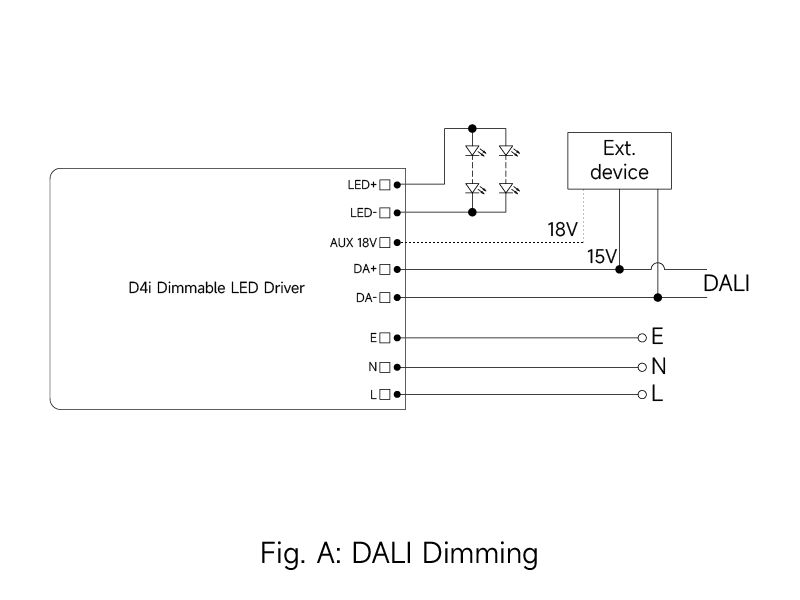

ON/OFF & Description of Dimming Operation
Matters Needing Attention
N/A
